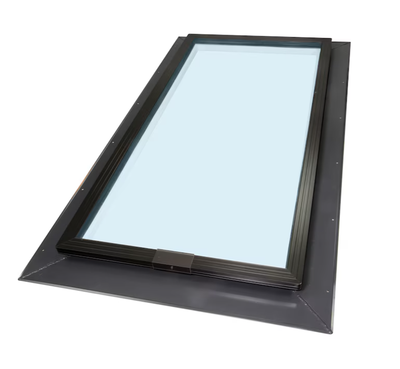

Sun-Tek 22.5-in x 30.5-in Fixed Self-flashing Skylight with Tempered Low-e Argon Glass
Regular price $236.22This skylight comes with a built-in flashing and a 4-in flat flange, eliminating the need for an extra flashing kit. It also includes a 20-year limited warranty and all necessary installation hardware. The Sun-Tek 22.5-in x 30.5-in Fixed Self-flashing Skylight with Tempered Low-e Argon Glass is pre-assembled and ready to easily install. The glass is argon-filled LoE3-340 double insulated tempered over tempered, providing the best thermal benefits. The built-in aluminum curb has a low height of only 2-1/8-in, giving it a sleek profile that is approved by the Florida Building Code and Texas Department of Insurance. It requires a minimum of 2:12 pitch or 9-1/2 degrees and is not suitable for use on metal roofs.
Here's the information presented in a table format:
| Specification | Details |
|---|---|
| Color/Finish Family | Bronze |
| Shade/Blind Color | N/A |
| Frame Color/Finish | Bronze |
| Dimensions | |
| - Actual Height (Inches) | 2.125 |
| - Outside Frame/Curb Height (Inches) | 33 |
| - Actual Length (Inches) | 39 |
| - Outside Frame/Curb Width (Inches) | 25 |
| - Actual Width (Inches) | 31 |
| - Rough Opening Height (Inches) | 0 |
| - Clear Opening Height (Inches) | 0 |
| - Rough Opening Length (Inches) | 30.5 |
| - Clear Opening Width (Inches) | 21.5 |
| - Rough Opening Width (Inches) | 22.5 |
| - Glass Thickness | 1/8-in |
| - Weight (lbs.) | 36 |
| Features | |
| - Blinds Included | No |
| - Glass Type | Tempered glass over tempered glass |
| - Clear Opening Sq Ft | 4.23 |
| - Glazing Type | Tempered |
| - Exterior Material | Aluminum |
| - Hardware Included | Yes |
| - Flashing Included | Yes |
| - Installation Type | Self-flashing |
| - For Use with Flat Roofing | No |
| - Interior Frame Material | Vinyl |
| - For Use with Metal Roofing | No |
| - Remote Control Included | No |
| - For Use with RV Roofing | No |
| - Shade/Blind Operation | N/A |
| - For Use with Shingled Roofing | Yes |
| - Shade/Blind Power Source | N/A |
| - Glass Insulation | Low-E argon |
| - Shade/Blind Style | N/A |
| - Glass Tint | No |
| - Skylight Style | Fixed |
| Compatibility | |
| - App Compatibility | No |
| - Smart Compatible | No |
| Warranty | |
| - Warranty | 20-year limited |
