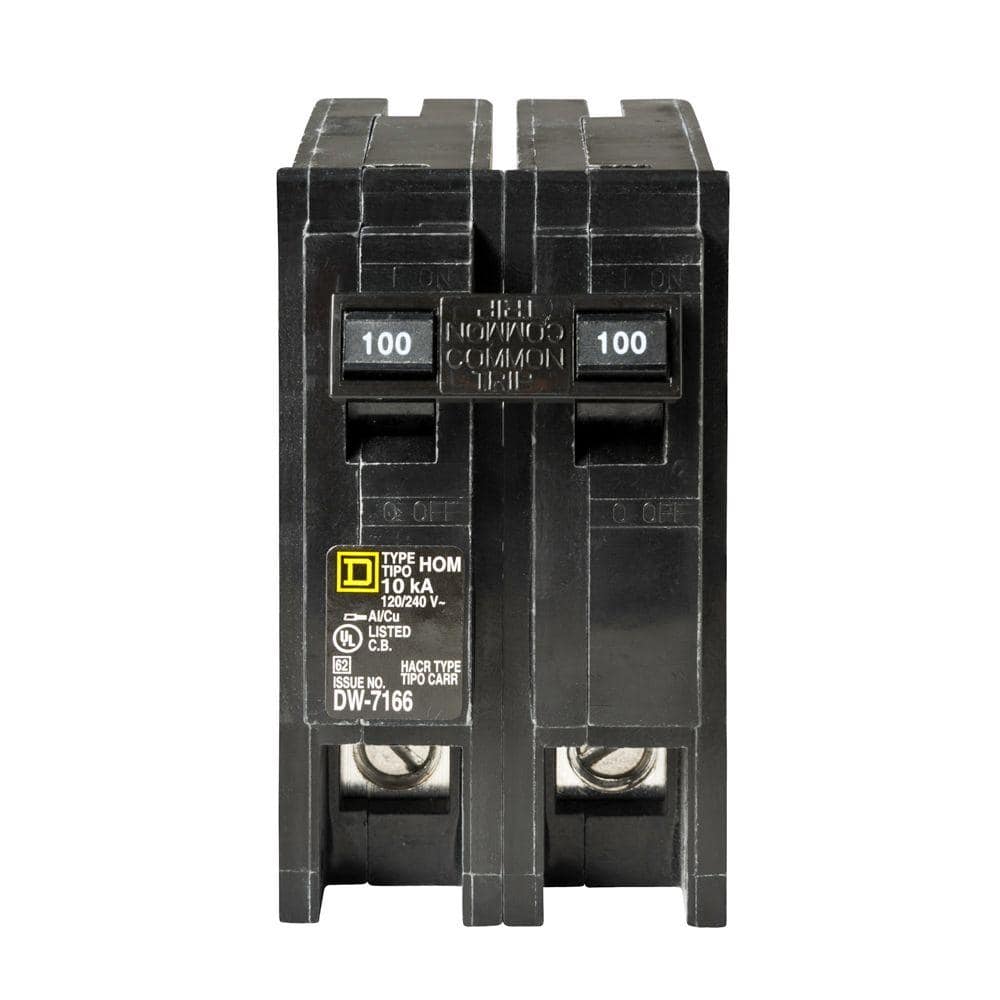

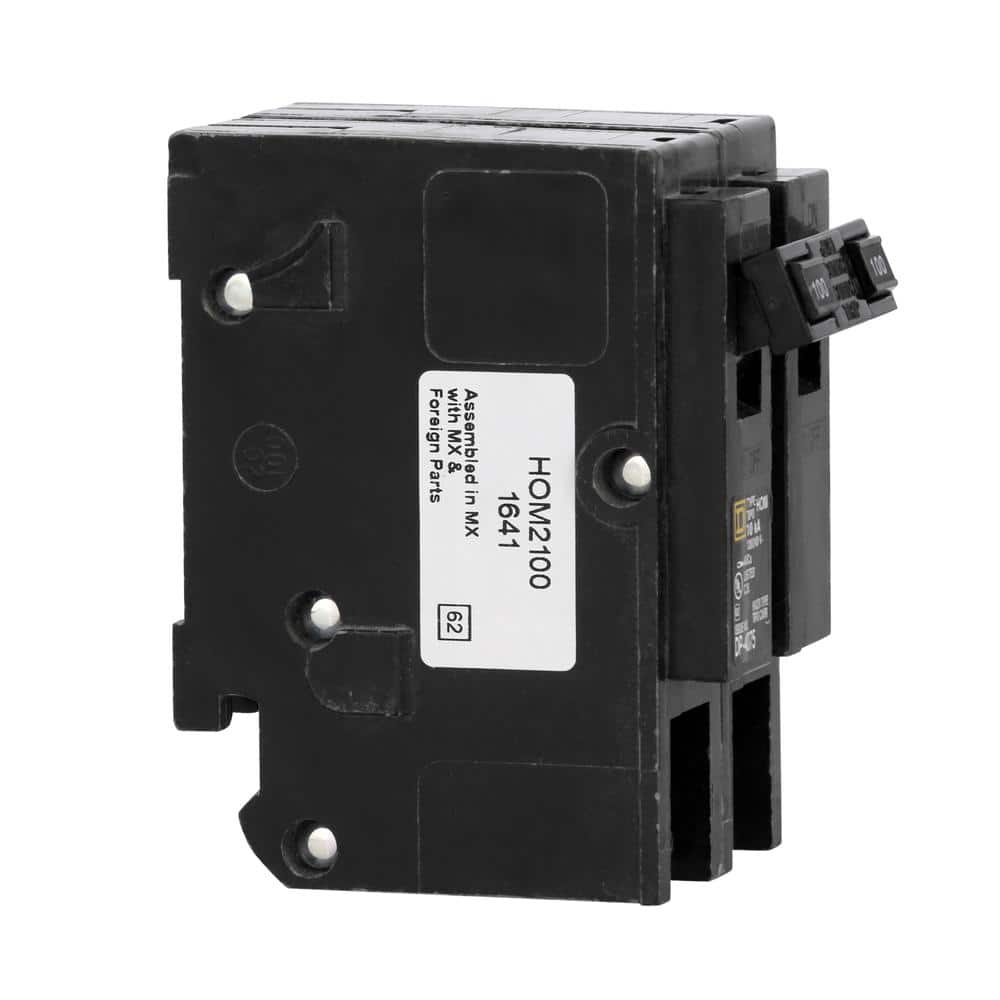

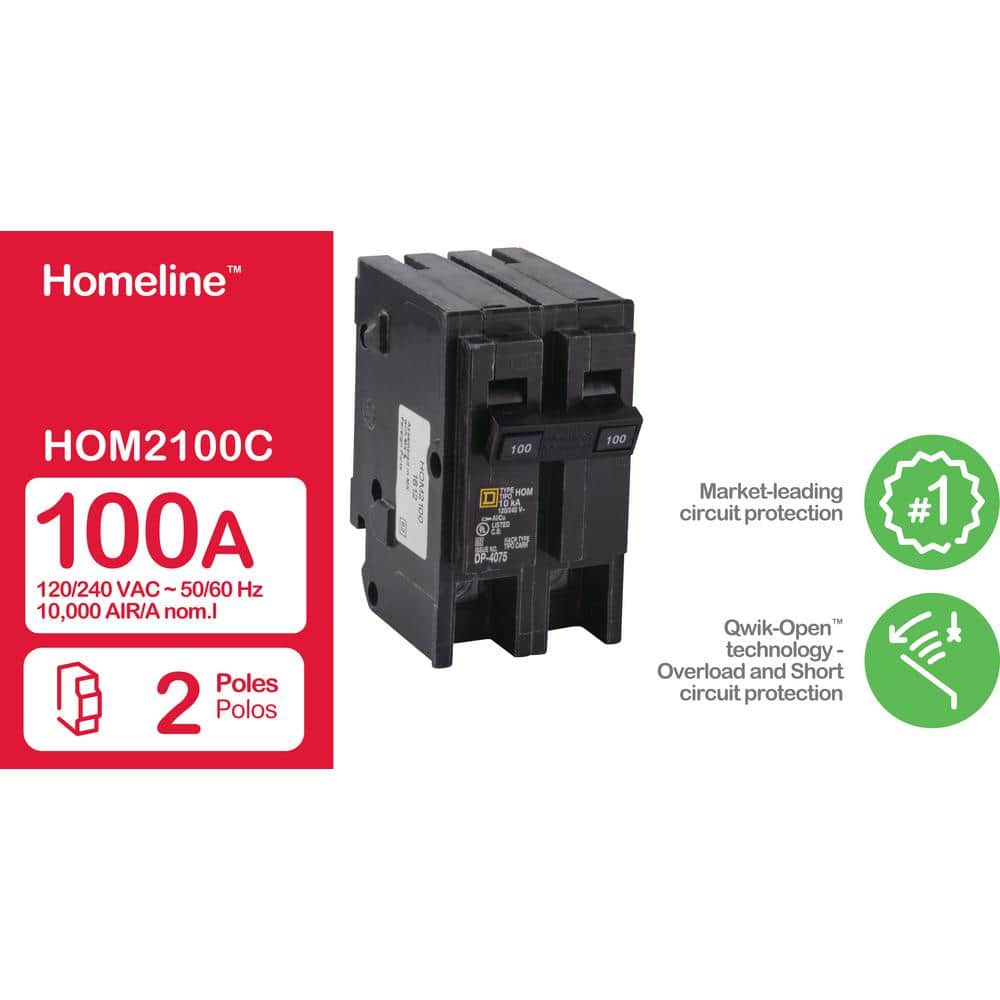

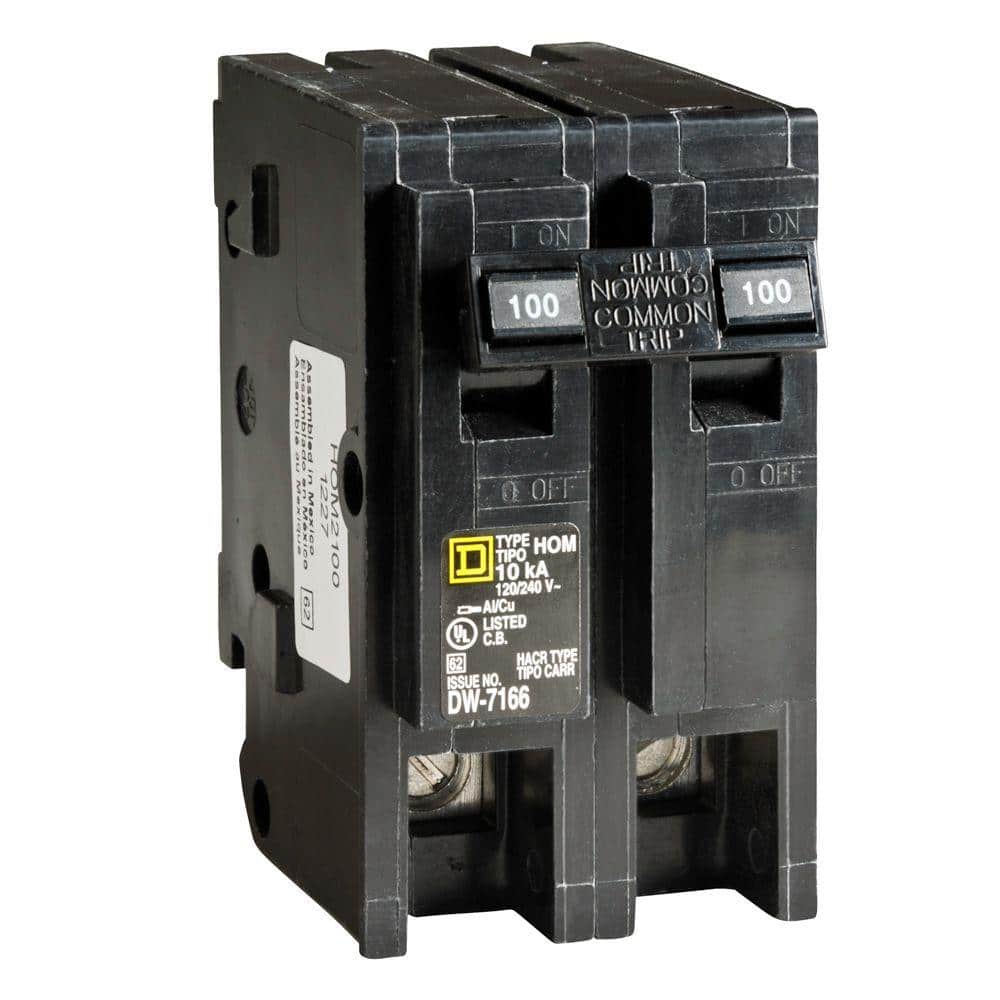

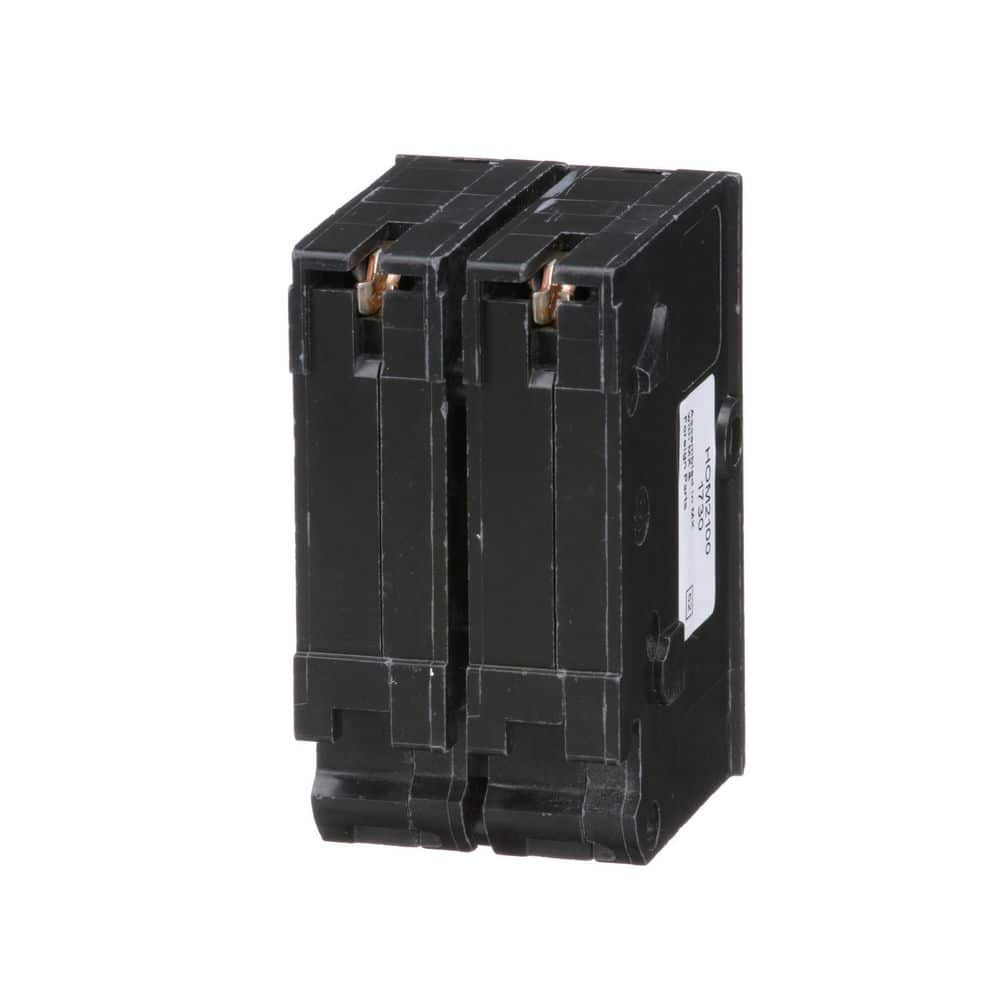

Homeline 100 Amp 2-Pole Circuit Breaker
The Square D Homeline 100 Amp 2-Pole Circuit Breaker is an essential component for safe and efficient power distribution in your home's electrical system. Engineered for overload and short-circuit protection, it ensures reliable performance and peace of mind. Compatible with Homeline load centers, this breaker offers the balance of quality and value that Square D is known for.
Key Features:
-
Protection: Provides overload and short-circuit protection for enhanced safety.
-
Compatibility: Designed to fit Square D Homeline breaker boxes and CSED devices.
-
Easy Installation: Features a plug-on design for quick setup and installation.
-
Durable: Built to last, backed by a limited lifetime warranty for peace of mind.
-
Certified: ANSI certified and UL Listed, meeting high safety standards.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Main Breaker |
| Connection Type |
Non-Neutral |
| Interruption Type |
Standard Trip |
| Maximum Amperage (A) |
100 A |
| Mounting Type |
Plug-On |
| Number of Poles |
Quad |
| Pack Size |
1 |
| Product Weight (lb.) |
0.88 lb |
| Series Type |
Homeline |
| Trip Unit |
Thermal Magnetic |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |
| Product Depth (in.) |
2.98 in |
| Product Height (in.) |
3.13 in |
| Product Width (in.) |
2 in |
Frequently Asked Questions (FAQ):
Q: Can this circuit breaker be used in a commercial setting?
A: Yes, while designed for residential use, the Square D Homeline circuit breaker can also be utilized to protect branch circuits in commercial setups, as long as it meets the requirements of the specific application.
Q: Is professional installation required for this circuit breaker?
A: For safety and compliance reasons, it's recommended to have the circuit breaker installed by a licensed electrician to ensure correct and safe setup.

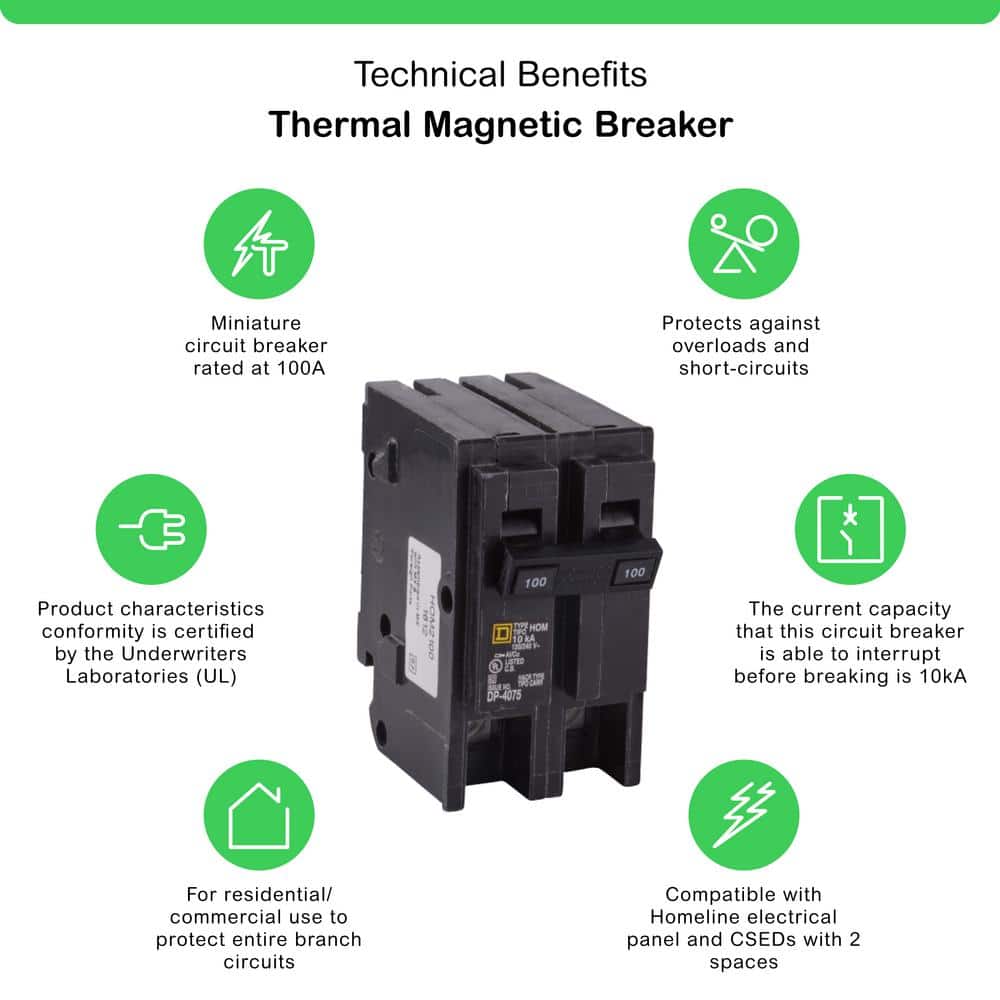

Q: How does the thermal magnetic trip unit function?
A: The thermal magnetic trip unit allows for both thermal protection (overloads) and magnetic protection (short-circuits), ensuring comprehensive safety for your electrical systems.
Q: Can this circuit breaker handle both 120V and 240V connections?
A: Yes, this breaker is rated for 120/240 VAC, suitable for handling both voltage levels seamlessly.

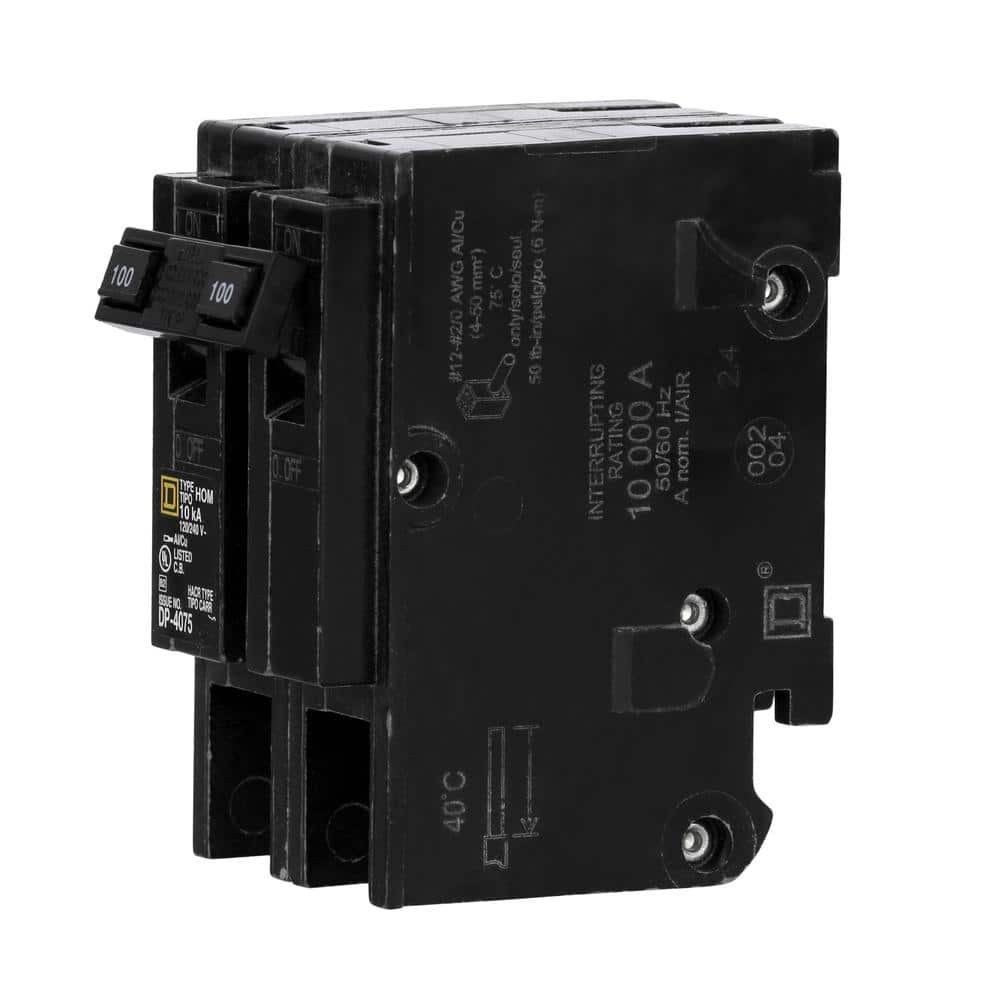

Q: What does '10,000 AIR' mean in terms of circuit breaker specifications?
A: AIR stands for Amps Interrupting Rating, indicating the maximum fault current the breaker can interrupt safely without causing electrical damage.
The Pinnacle of Home Power Security
Transform your home's electrical reliability with the sleek and functional Square D Homeline Circuit Breaker. Its robust design subtly integrates into your electrical panel, prioritizing performance for peace of mind. Envision a space where safety and style coexist; install it in utility rooms or garage panels for continuous, secure power flow, elevating your home’s electrical infrastructure. Make it a vital component of your living environment for worry-free luxury.
Ensure your home's electrical safety with the Square D Homeline Circuit Breaker—buy now and protect your power supply today!
