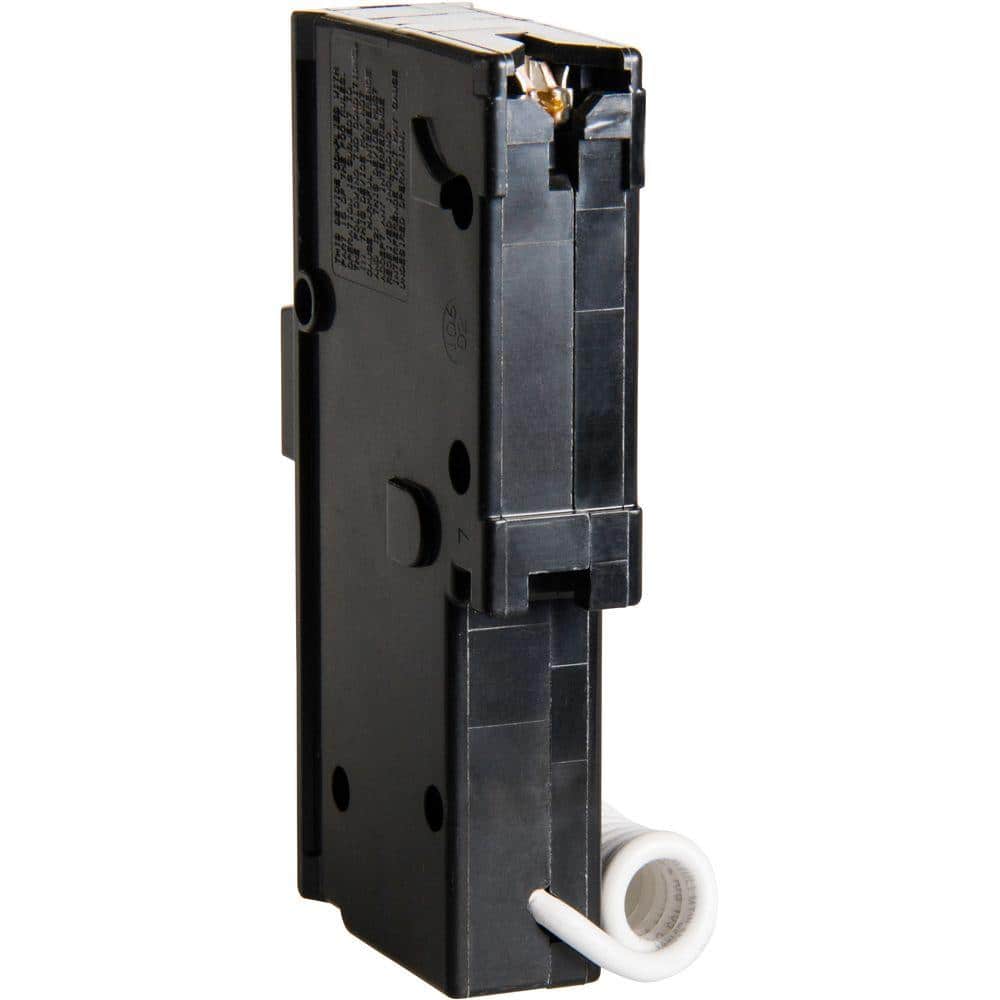

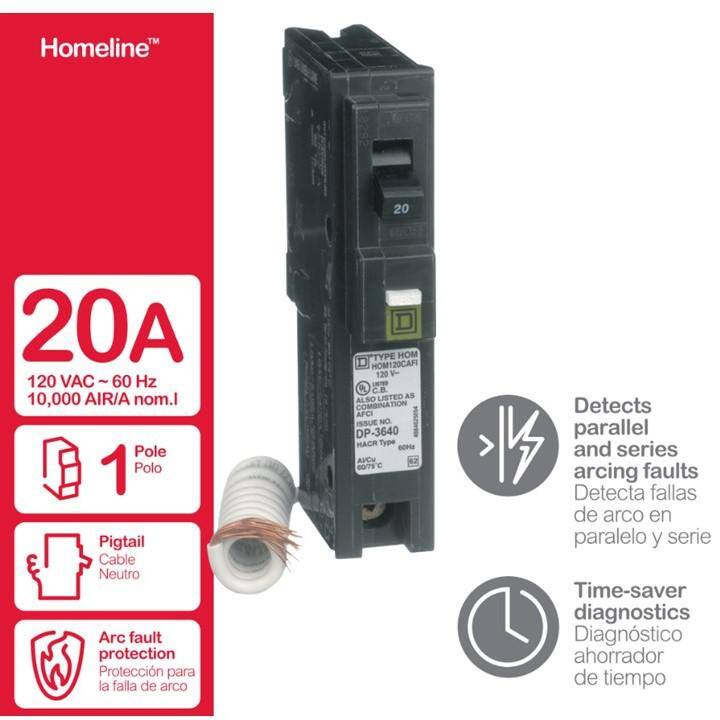

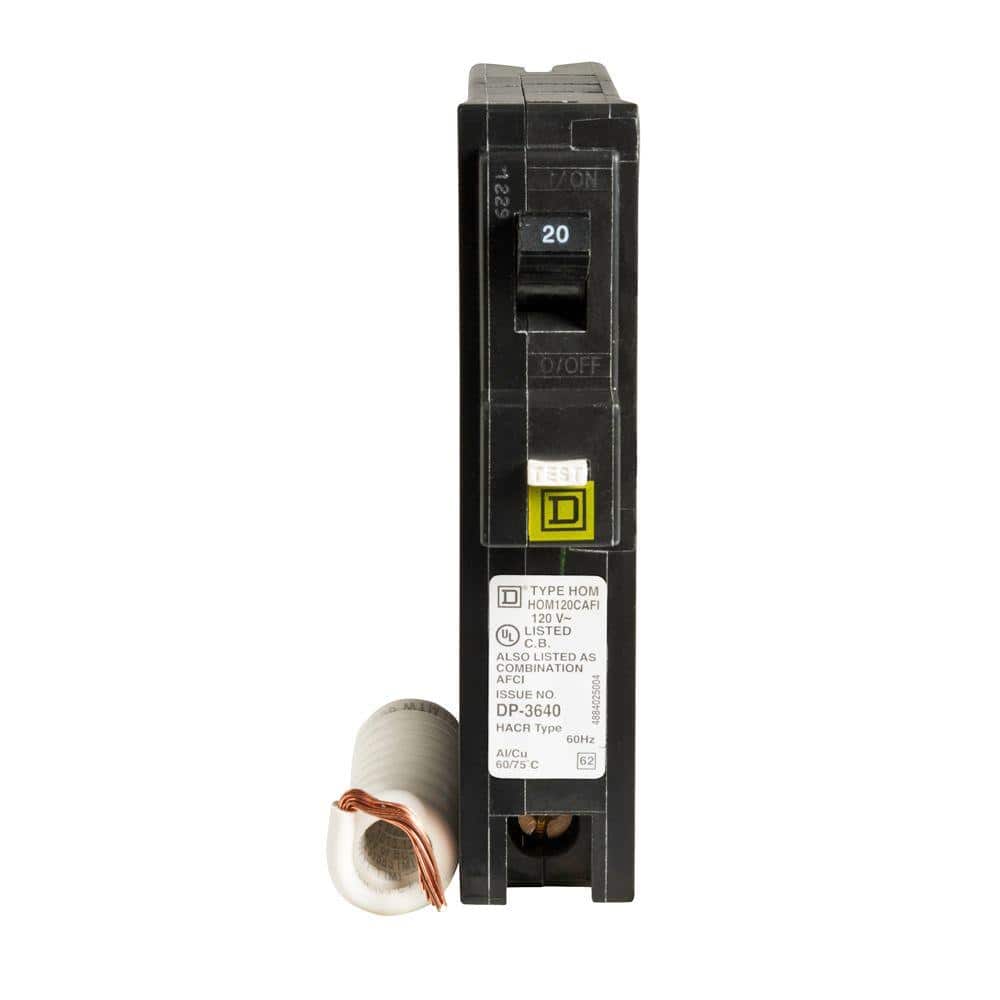

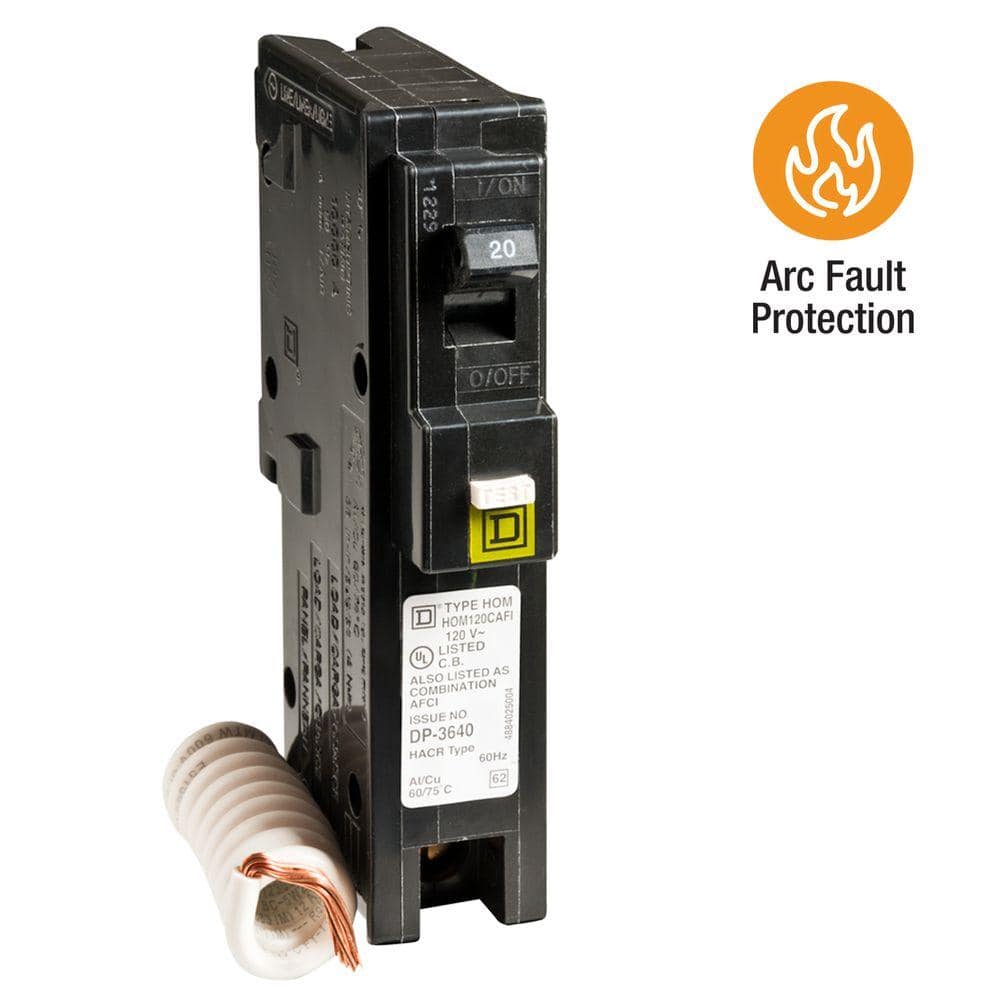

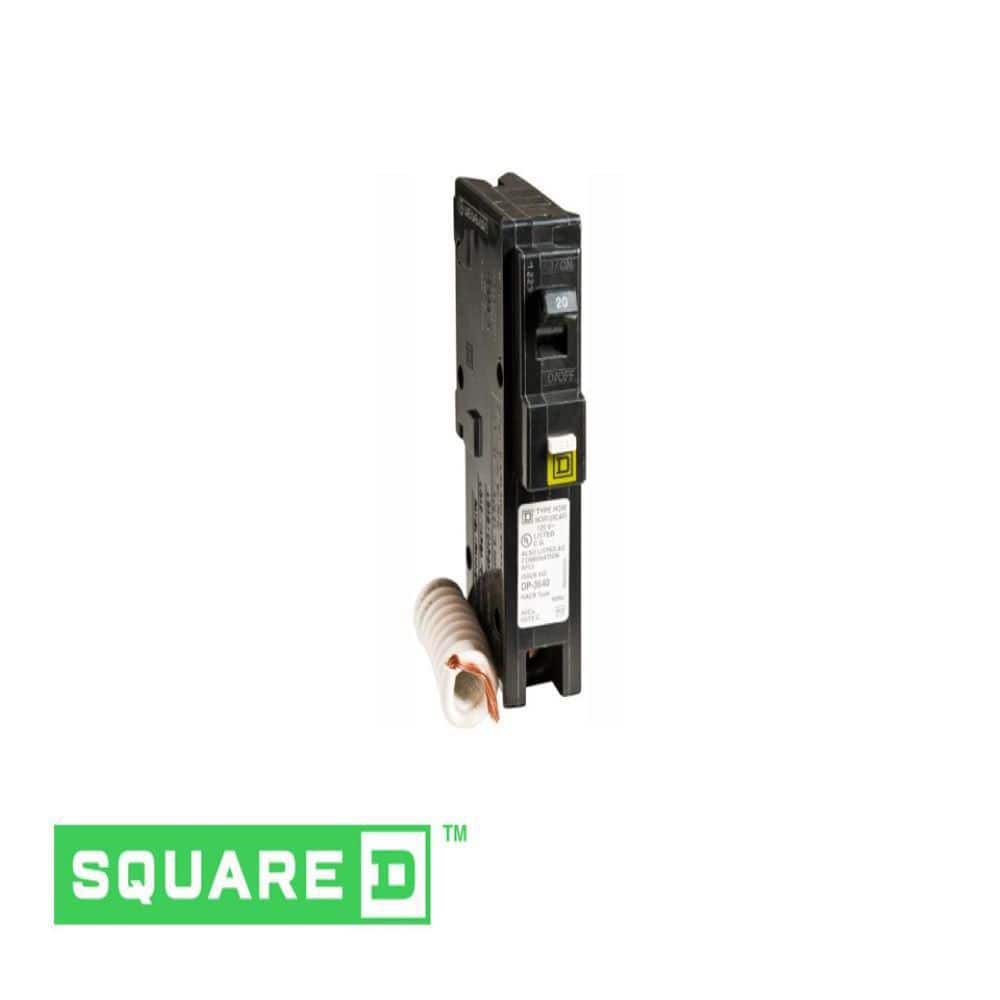

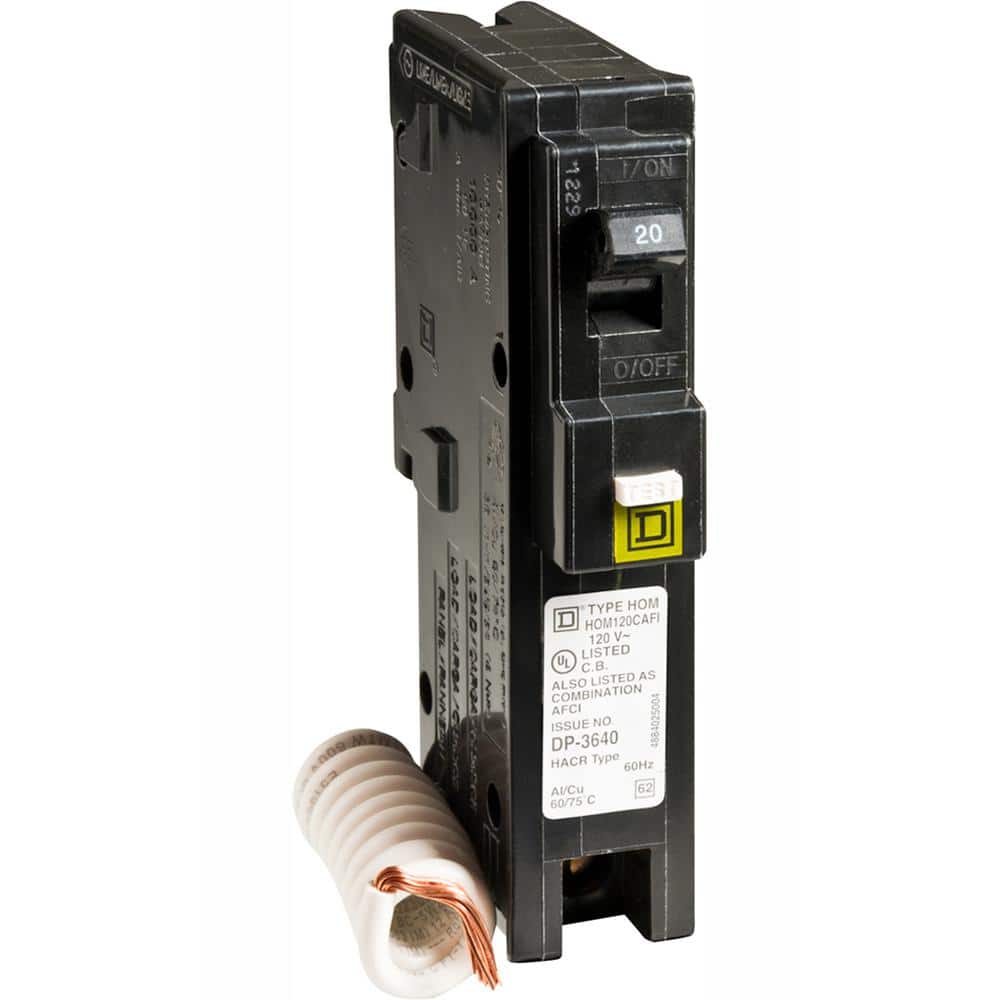

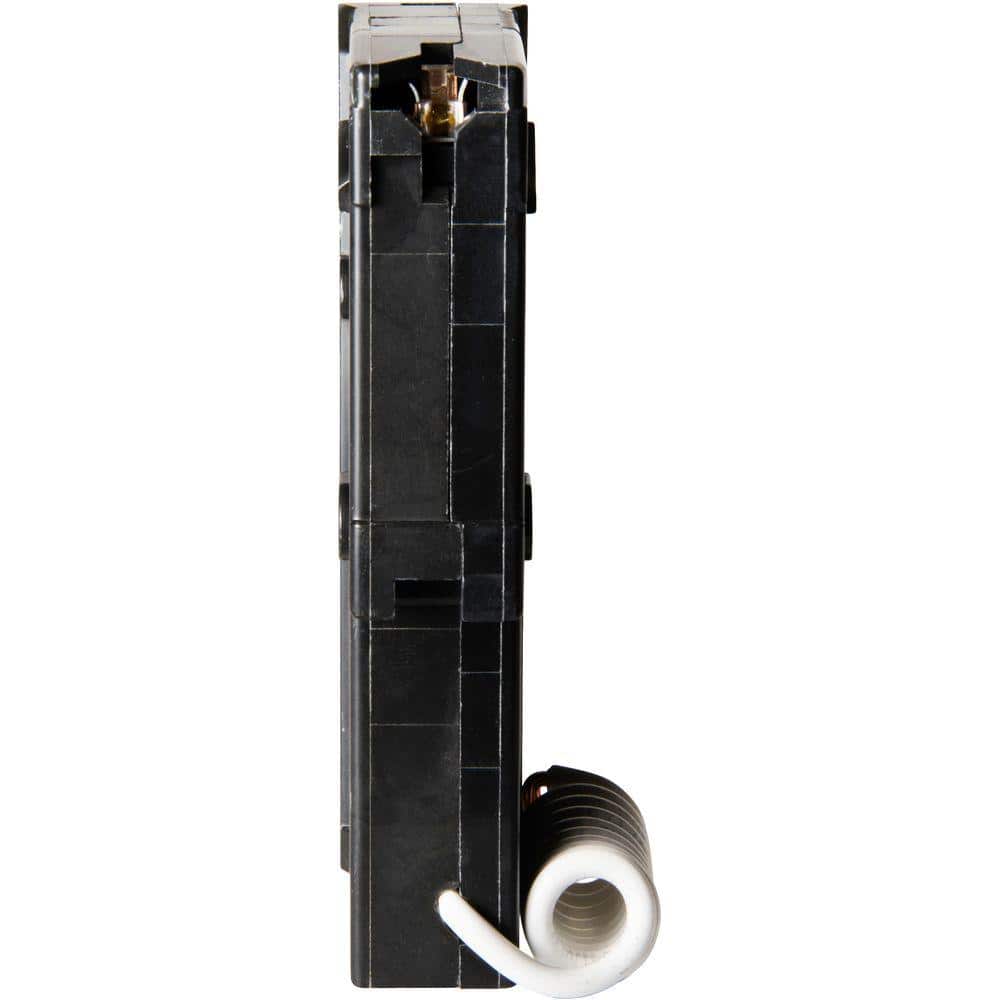

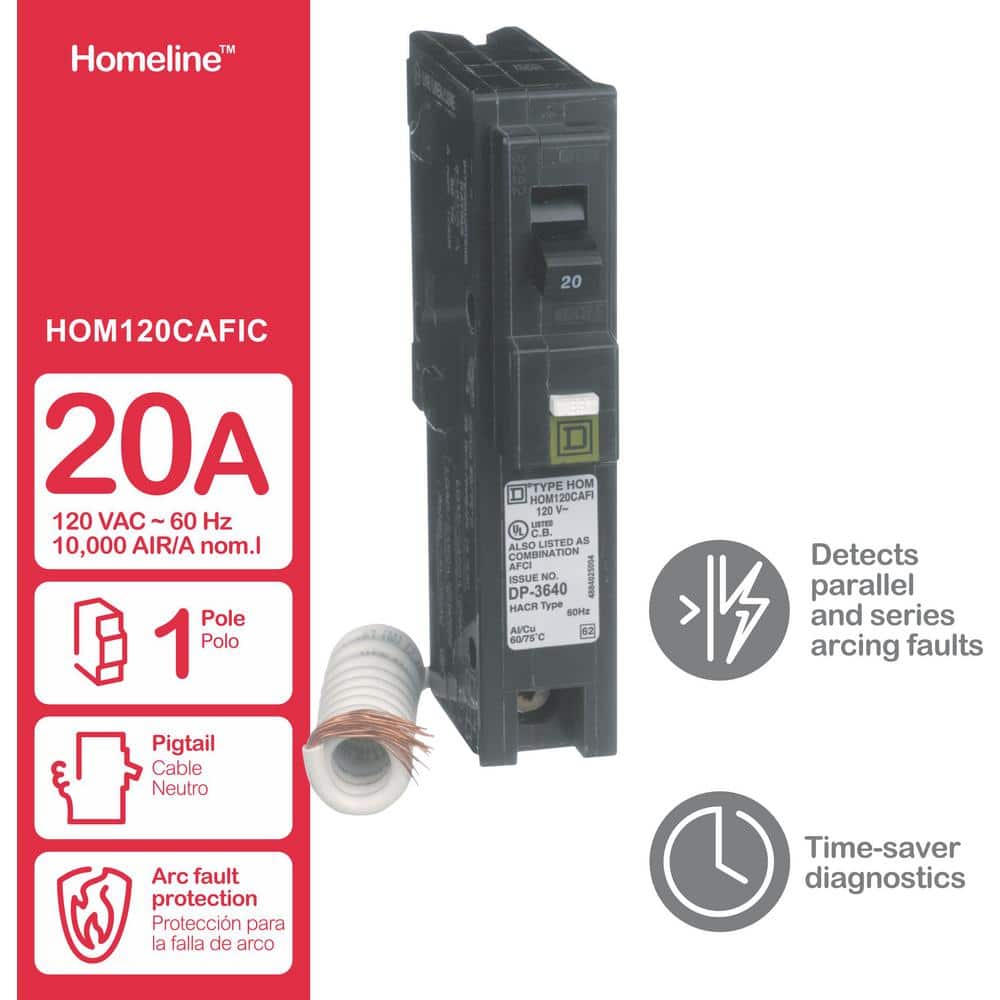

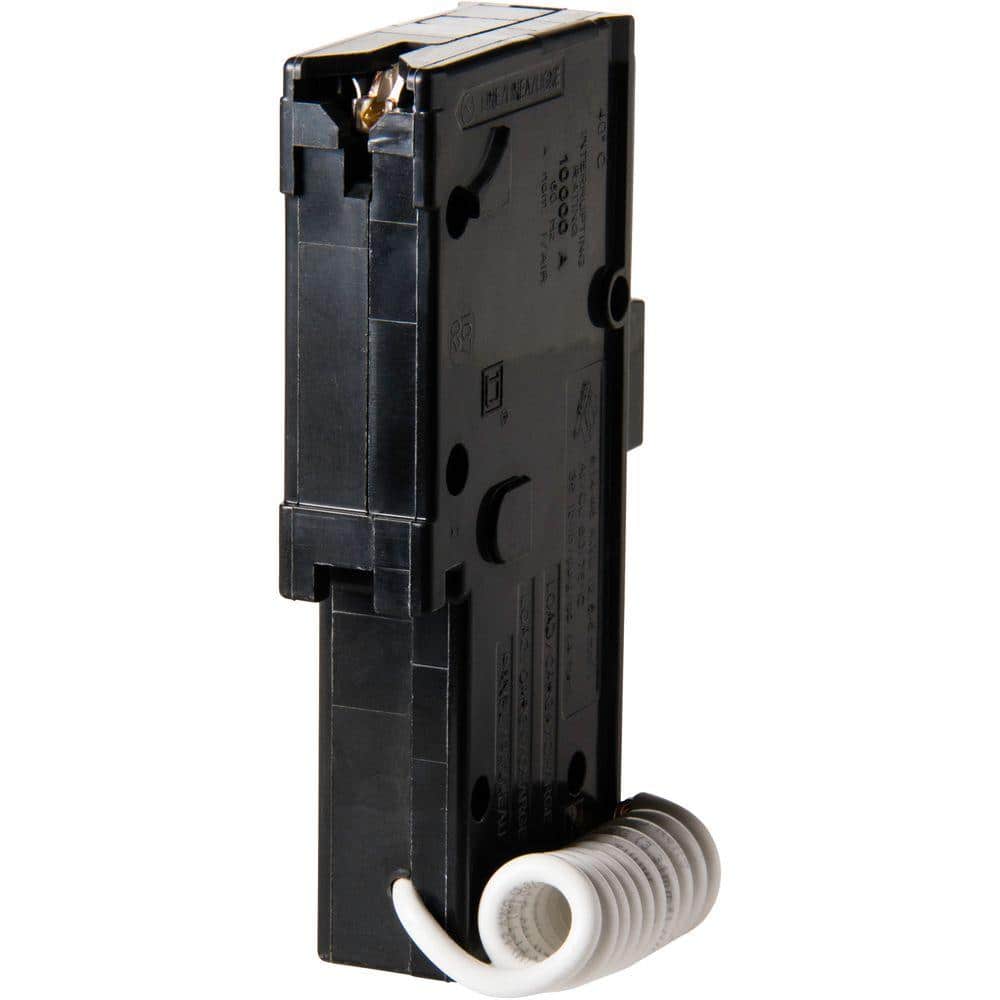

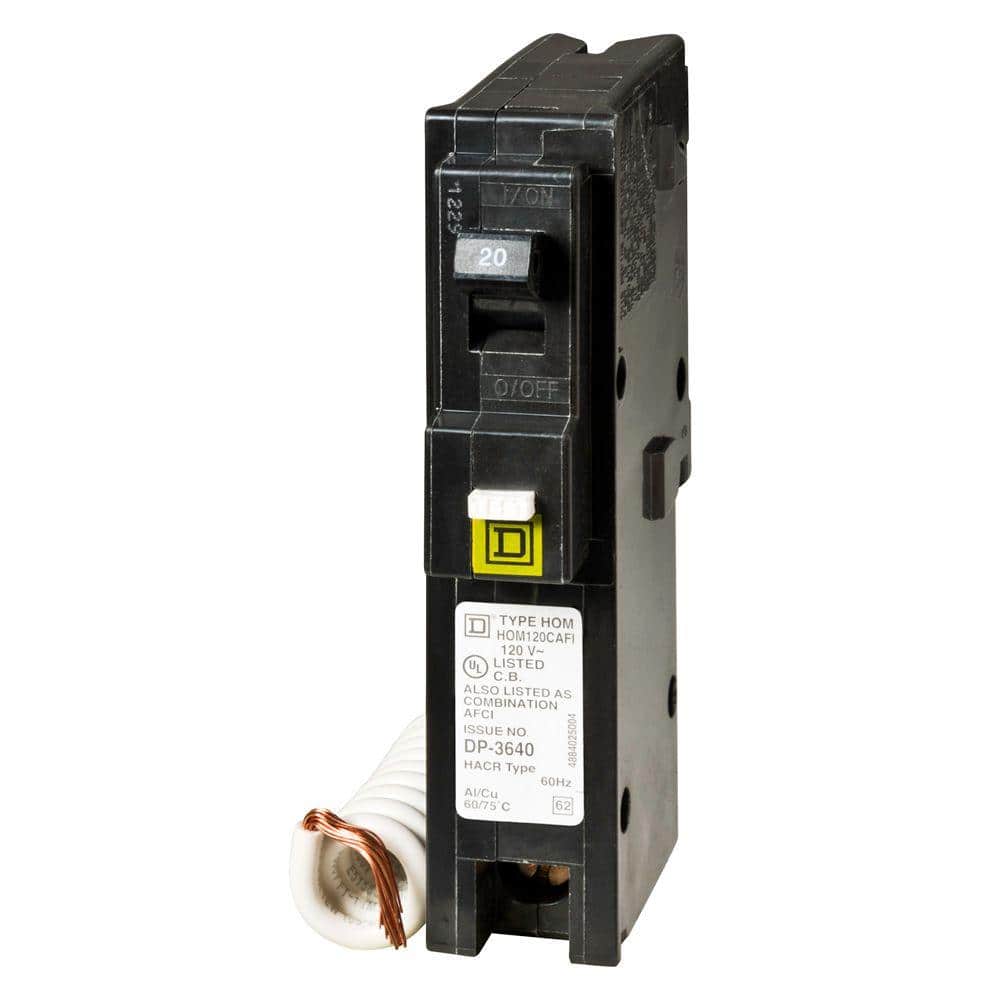

20 Amp Single-Pole Combination Arc Fault Circuit Breaker
Upgrade your home's electrical safety with the Square D Homeline 20 Amp Single-Pole Combination Arc Fault Circuit Breaker. Designed specifically to protect against arcing faults, this breaker helps prevent electrical fires while providing overload and short-circuit protection. With easy installation and advanced Time Saver Diagnostics, troubleshooting has never been simpler.
Key Features:
-
Arc Fault Protection: Safeguards against both parallel and series arcing faults to enhance electrical safety.
-
Time Saver Diagnostics: Quickly identifies fault types, reducing troubleshooting time and effort.
-
Compatibility: Designed for use with Square D Homeline breaker boxes and CSED devices.
-
Space Efficient: Requires just one space in a standard breaker box, making it ideal for compact settings.
-
Durable Build: Backed by a limited lifetime warranty for reliable, long-term use.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Pigtail |
| Interruption Type |
AFCI |
| Maximum Amperage (A) |
20 A |
| Mounting Type |
Plug-On |
| Number of Poles |
Single |
| Number of Spaces |
1 |
| Pack Size |
1 |
| Product Weight (lb.) |
0.67 lb |
| Series Type |
Homeline |
| Trip Unit |
Electronic |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |

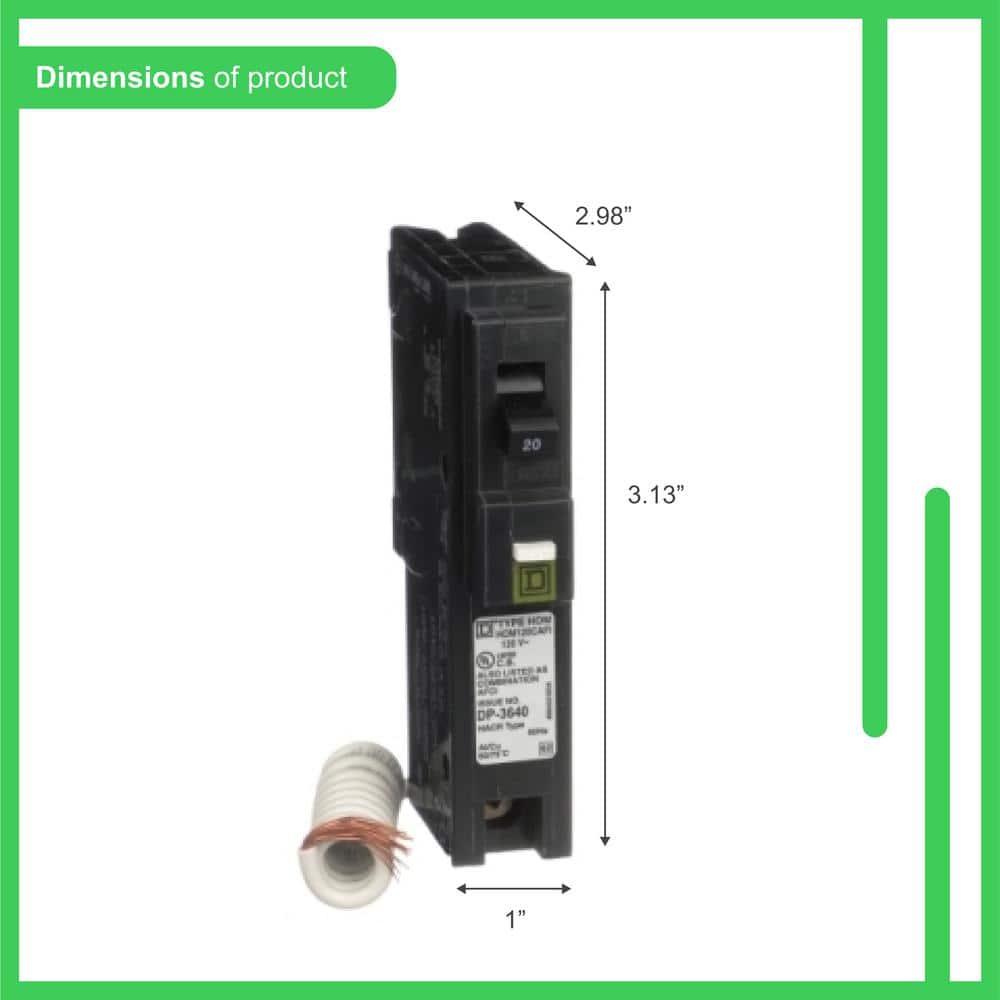

| Product Depth (in.) |
2.98 in |
| Product Height (in.) |
3.13 in |
| Product Width (in.) |
1 in |
Frequently Asked Questions (FAQ):
Q: What type of protection does this circuit breaker offer?
A: This Square D Homeline breaker provides protection against overloads, short circuits, and both parallel and series arc faults, enhancing the overall safety of your electrical system.
Q: How does the Time Saver Diagnostics feature work?
A: Time Saver Diagnostics assists in quickly identifying the last type of fault, providing valuable diagnostic insight that helps reduce troubleshooting time.
Q: Is this circuit breaker compatible with all breaker boxes?
A: The Homeline 20 Amp Single-Pole Combination Arc Fault Circuit Breaker is compatible specifically with Square D Homeline breaker boxes and CSED devices.
Q: How many spaces does this breaker occupy in my panel?
A: This breaker occupies just one space in your electrical panel, allowing for space-efficient installation.
Q: What is the warranty on this circuit breaker?
A: The breaker comes with a limited lifetime warranty, ensuring it is free from defects in material and workmanship under normal residential usage.
Elevate Your Home's Safety and Function with Sleek Simplicity
Envision a home where safety seamlessly integrates with sophistication and efficiency, thanks to the Square D Homeline Arc Fault Circuit Breaker. This unobtrusive powerhouse ensures comprehensive electrical protection, featuring a striking mix of modern technology and reliable performance. Nestle it into your breaker box, inconspicuously enhancing your home's security with a touch of ease. Truly, it's not just a circuit breaker but a pinnacle of peace of mind that turns advanced safety into a stylish necessity.
Enhance your home's electrical safety with the Square D Homeline 20 Amp Breaker—order now for less troubleshooting and more reliability.
