CVGR Hercules Glass Panel with Spigots
The CVGR Hercules Glass Panel with Spigots from ClearView Glass Railings is a robust, modern railing solution that combines strength with sleek design. Featuring tempered laminated glass and patented lever spigots, this system ensures safety and style in any setting, ideal for both indoor and outdoor projects.
Key Features:
-
Durability: Made from Duplex 2205 Stainless Steel, offering superior corrosion resistance and strength over standard 316 steel.
-
Safety: Exceeds International Building Code requirements with impressive load-bearing and impact resistance of up to 2,520# vertical and 820# horizontal loads.
-

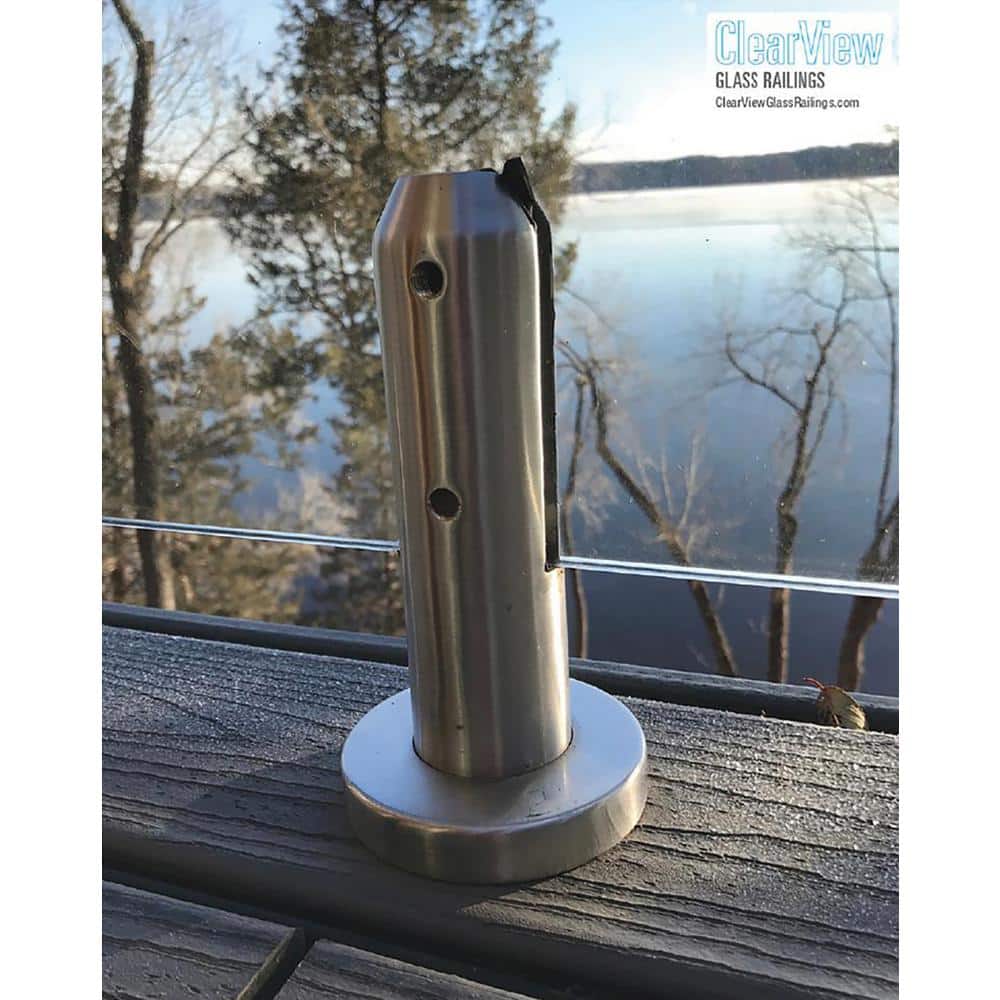

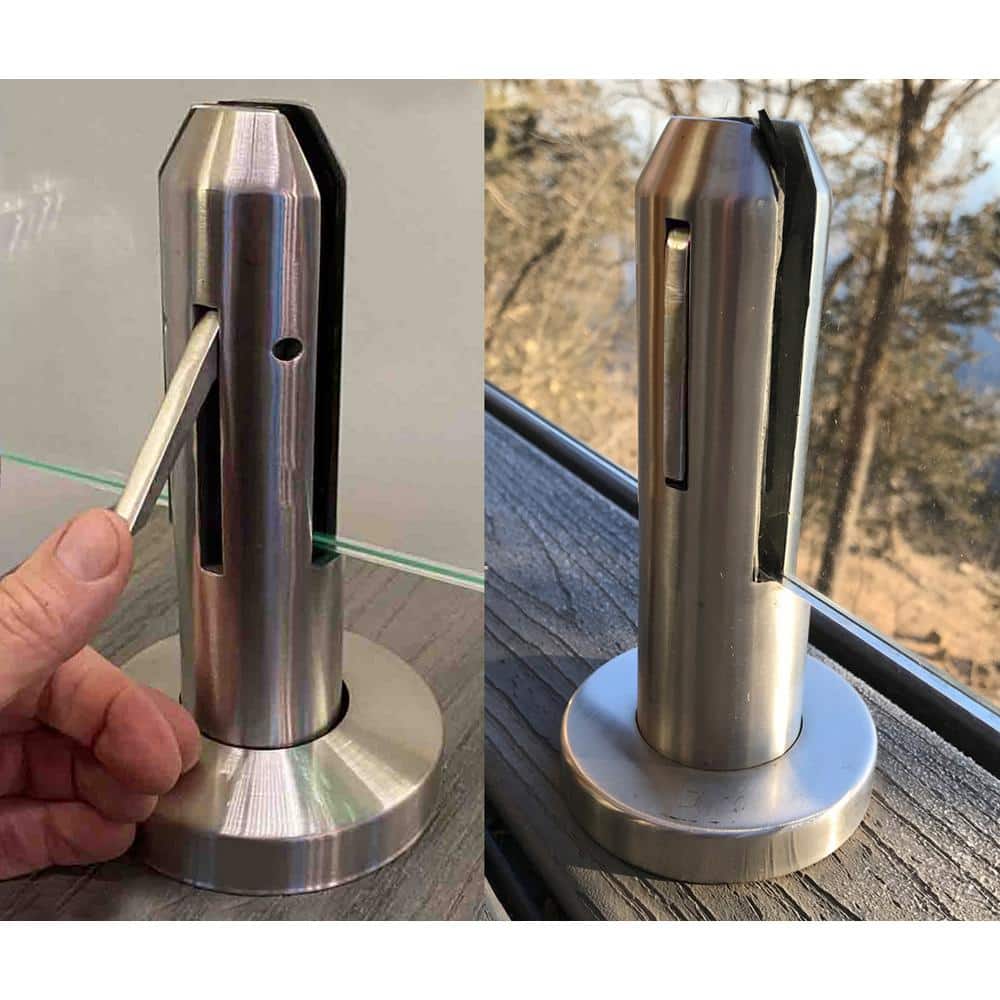

Installation Ease: NEXT-GEN lever spigots feature a locking system with leveling screws for fast, hassle-free installation on uneven surfaces.
-
Aesthetic: The option of square matte black or traditional round brushed stainless steel spigots to complement any design style.
-
Transparency: The 13.5mm thick tempered laminated glass provides an unobstructed view, maintaining an open feel while meeting safety standards.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Color Family |
Clear |
| Features |
No Additional Features |
| Includes |
Brackets |
| Interior/Exterior |
Exterior,Interior |
| Material |
Glass |
| Product Weight (lb.) |
21 lb |
| Railing Type |
No Rail |
| Stair Part Type |
Preassembled Railing |
| Structural/ornamental |
Structural/ornamental |
| Manufacturer Warranty |
See clearviewglassrailings.com or document in this listing. |
| Product Height (in.) |
39.37 in |
| Product Width (in.) |
12 in |
Frequently Asked Questions (FAQ):
Q: How is the CVGR Hercules Glass Panel installed?
A: The glass panel is installed using the patented lever spigots, which include four leveling screws for adjustment on uneven surfaces, making installation straightforward and secure.
Q: Is the glass panel suitable for outdoor use?
A: Yes, the CVGR Hercules Glass Panel is designed for both indoor and outdoor use, using materials that provide excellent durability and corrosion resistance.
Q: What are the safety standards for this glass panel?
A: The panel exceeds standard building codes, including the International Building Code, with enhanced impact and load-bearing capabilities that ensure top safety.
Q: What material is used for the glass?
A: The glass is made from two layers of 6mm tempered glass laminated to a 1.5mm PVB layer, similar to automotive windshields, which increases strength and safety.
Q: Can the panel withstand severe weather conditions?
A: Yes, the panel and its materials are tested to exceed requirements, including wind and impact codes, making it suitable for locations prone to extreme weather.
Elevate Your View with Modern Elegance
In the world of design, the CVGR Hercules Glass Panel is your gateway to seamless elegance and panoramic views. Its tempered glass gleams with clarity, adding a touch of minimalism that transforms spaces into modern marvels. Pair the square matte black spigots with natural wooden decks for a stunning contrast, or align with muted interiors for a harmonious flow. A must-have in both outdoor terraces and indoor staircases, this railing is more than a safety measure—it's an embodiment of contemporary luxury.
Elevate your project with the CVGR Hercules Glass Panel and explore the perfect blend of safety and style—order today!
