Prime-Line 1 in. D X 1/4 in. L Plastic/Steel Spring Tension Roller Assembly 2 pk

Regular price $7.59

/
Shipping calculated at checkout.

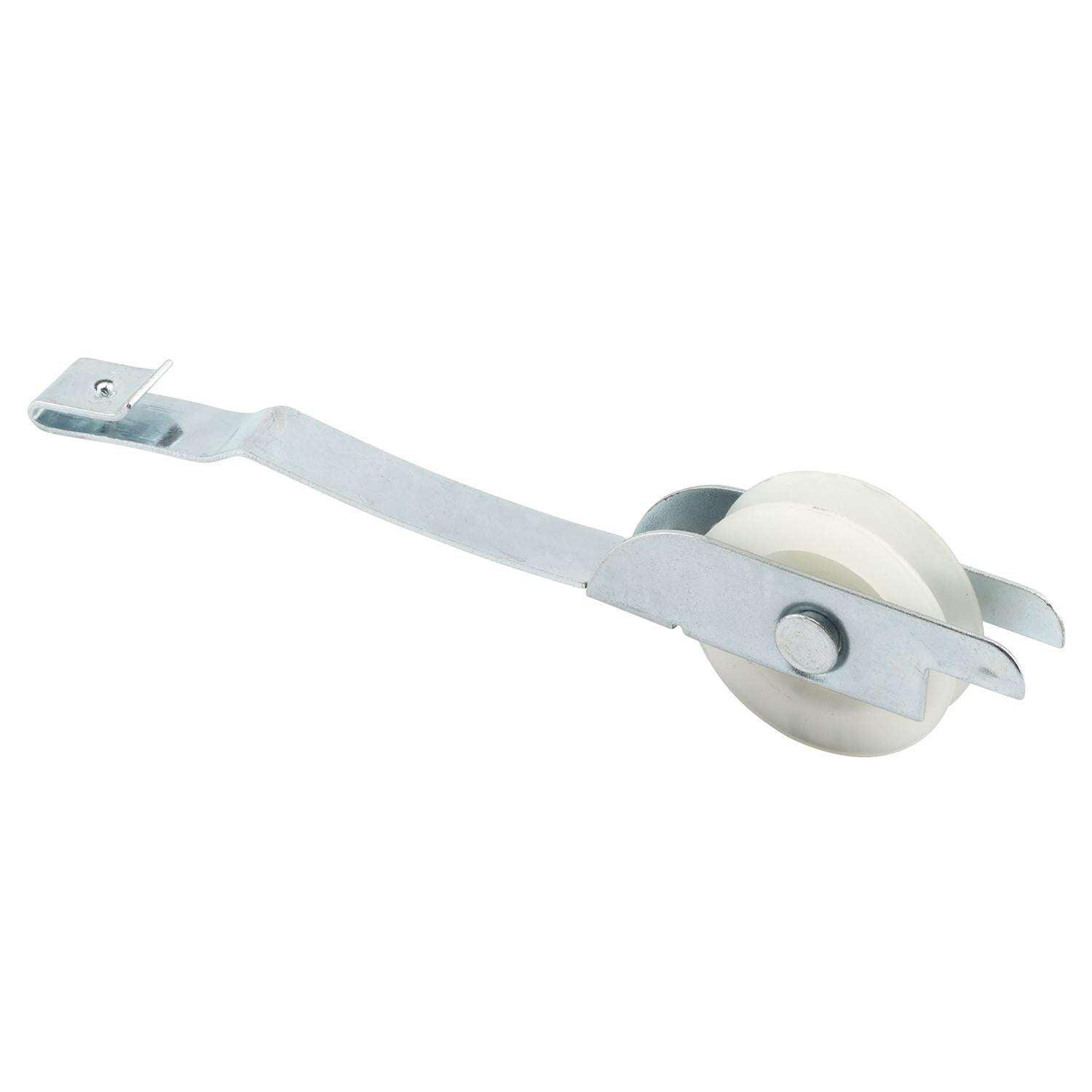

This high tension steel spring roller assembly fits onto the Columbia Uni-Fit series door. This roller assembly has a 1 in. high density polyethylene roller mounted in the housing. The flat steel spring end catches onto the inside of the door frame while the flat edges of the two tabs extending out in front of the roller restrict the roller from retracting too far up into the door frame as it rolls. This sliding screen door roller assembly insert has a thinner high density polyethylene frame than the Prime-Line part B 646. It has an adjustable high density polyethylene inner housing and high density polyethylene roller. The assembly inserts into the bottom or top of the sliding screen door using the included screws. The roller adjusts to the correct position needed. This style is found on Columbia sliding screen doors but is also used on a variety of other sliding screen door manufacturers. Please note dimensions and design when comparing with old roller.
  • Used on Columbia and Uni-Fit series doors
  • 3-5/8 in. overall length
  • 1 in. diameter concave roller
  • High tension spring steel and high density polyethylene roller
  • 2-pack
  • No mounting hardware needed
  • No tools required for installation

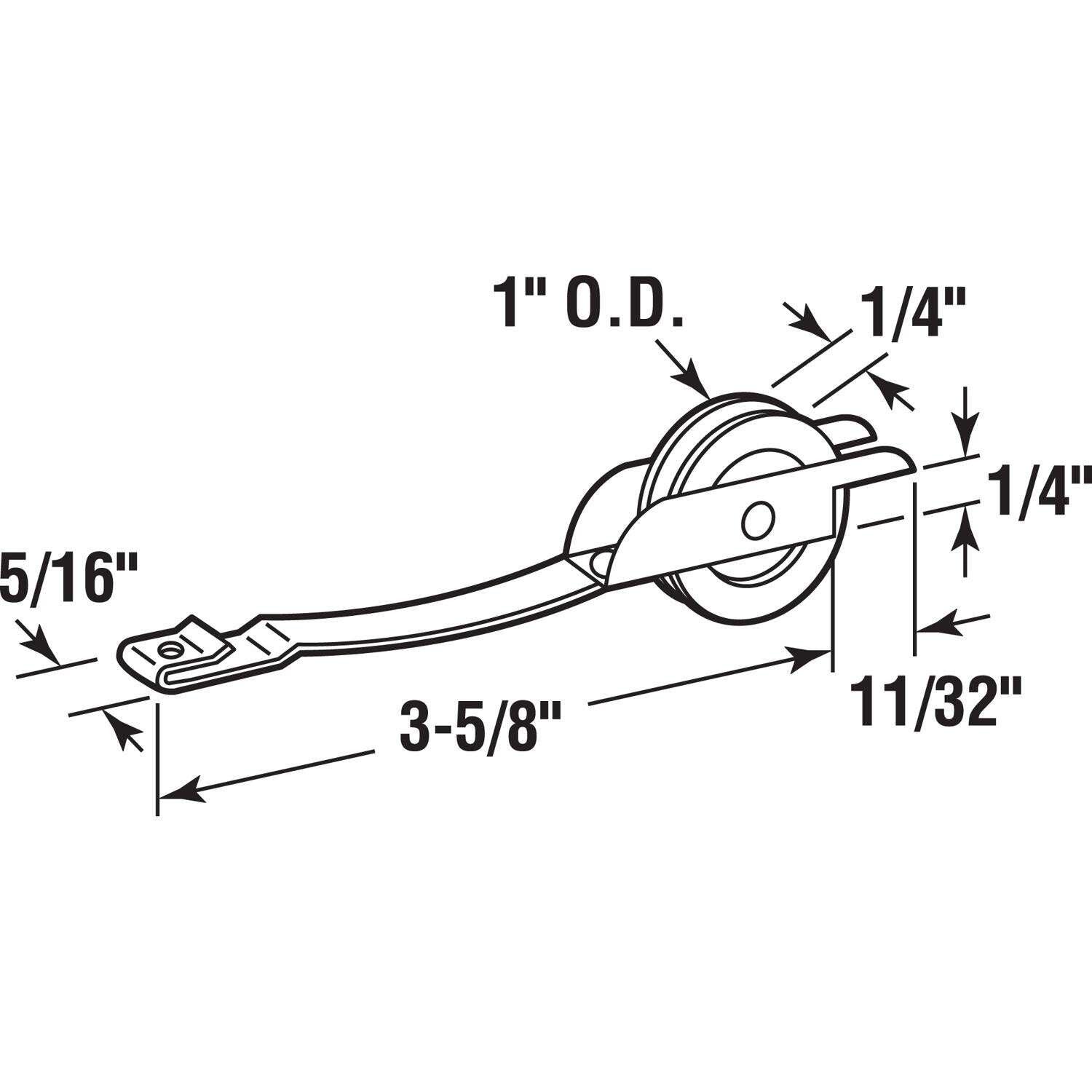

  • For further dimensional information, please see the line drawing


Features
Country Of Origin US
Department Number 5
Feature 10 Text
Feature 1 Text Used on Columbia and Uni-Fit series doors
Feature 2 Text 3-5/8 in. overall length
Feature 3 Text 1 in. diameter concave roller
Feature 4 Text High tension spring steel and high density polyeth
Feature 5 Text 2-pack
Feature 6 Text No mounting hardware needed
Feature 7 Text No tools required for installation
Feature 8 Text For further dimensional information, please see th
Feature 9 Text
Item Restriction Flag N
Product Source Code B
Product Type Spring Tension Roller Assembly
Sub-category Sliding Door Rollers
Shipping Code Y
Vendor Name PRIME-LINE PRODUCTS/SLIDE-CO
Vendor Number 05746
Web Order Multiple 1
ISPU Only Item Flag N
Category Windows and Doors
Merchandise Class Description DOOR HARDWARE
Product Group Description PATIO DOOR ROLLERS
Product Type Noun Assembly
Search Field Prime-Line 1 in. D X 1/4 in. L Plastic/Steel Sprin
Sales Rank 050
Assembly Code N
Delivery Offered Y
Display Only Item N
Dollar Velocity Code C
Product Type Code 002011201008
Proposition 65 Flag N
Retail Velocity Code B
Store Availability Rank 04
Unit Velocity Code C
Proposition 65 Warning
What's Included
DIFM Service Code N
Warranty Code N
Old Default Base SKU
Paint Code N
Default Base SKU
Accessory SKUs
Replacement Part SKUs
Brand Name Prime-Line
Local SKU Available Stores ALL
Local SKU Store SKUs 5133673
Reviews 1
Customer Rating 5
Compatibility columbia-uni-fit-doors
Diameter 1-inch
Hardware included no
Length 1/4-inch
Material plastic/steel
Number in Package 2-pack
Packaging Type carded
