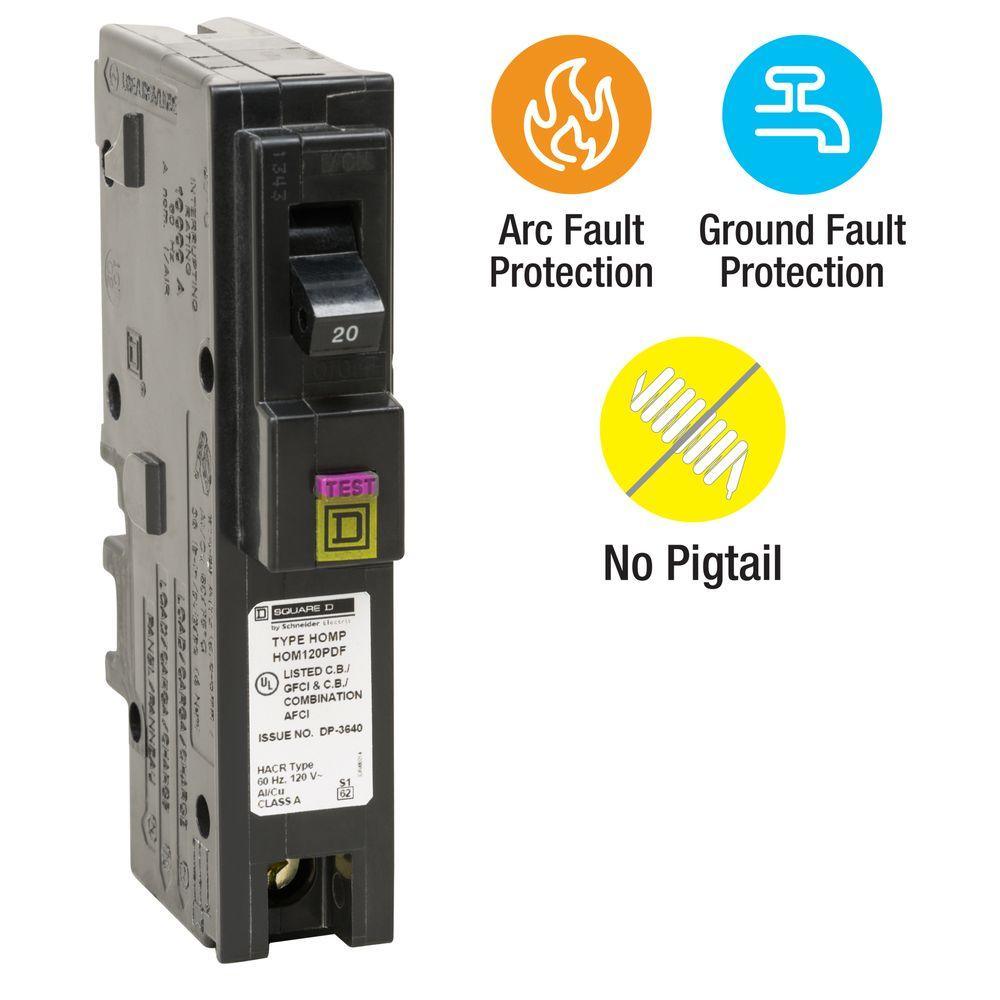

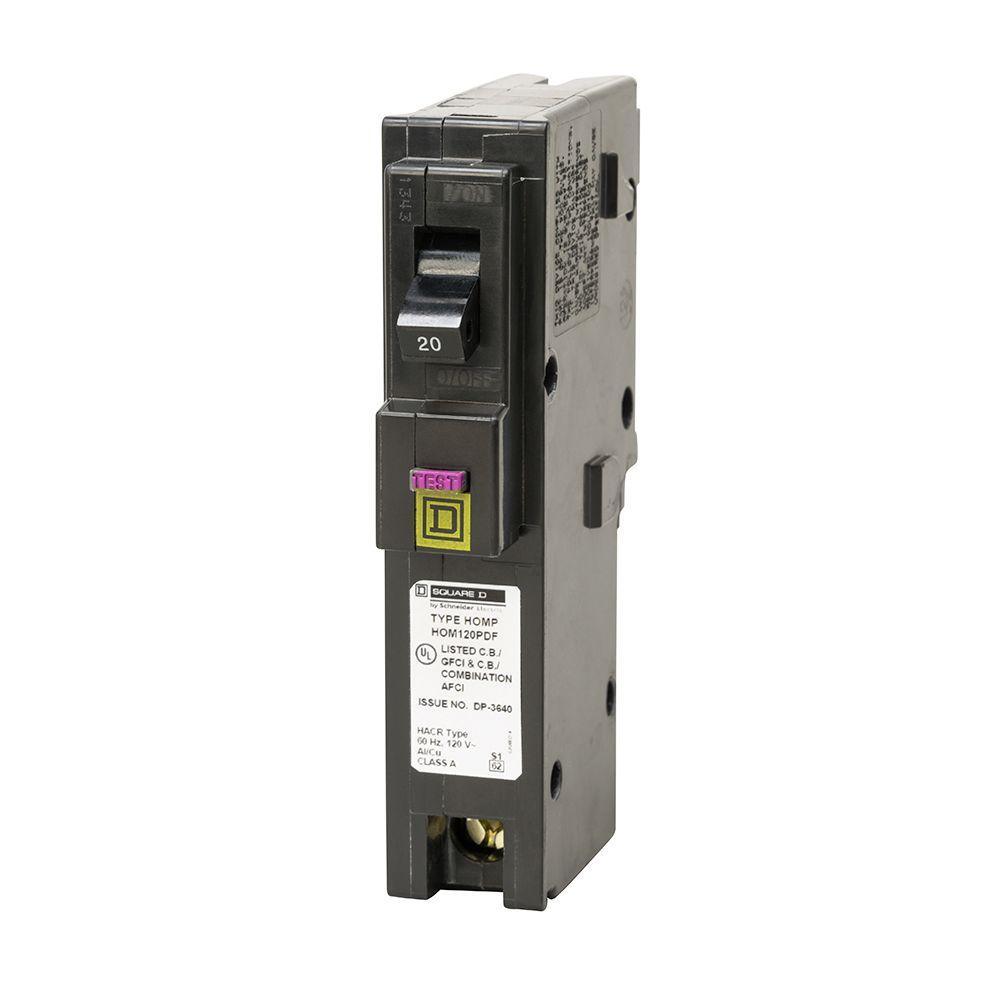

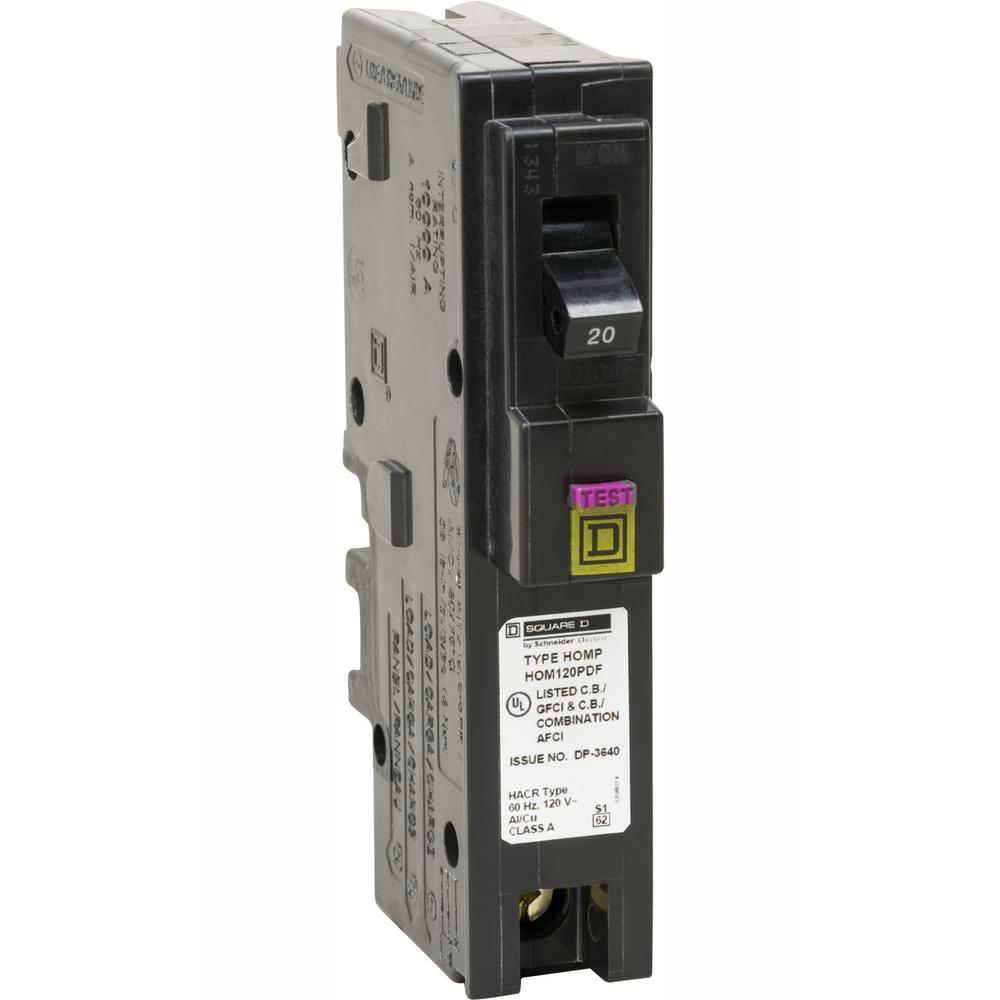

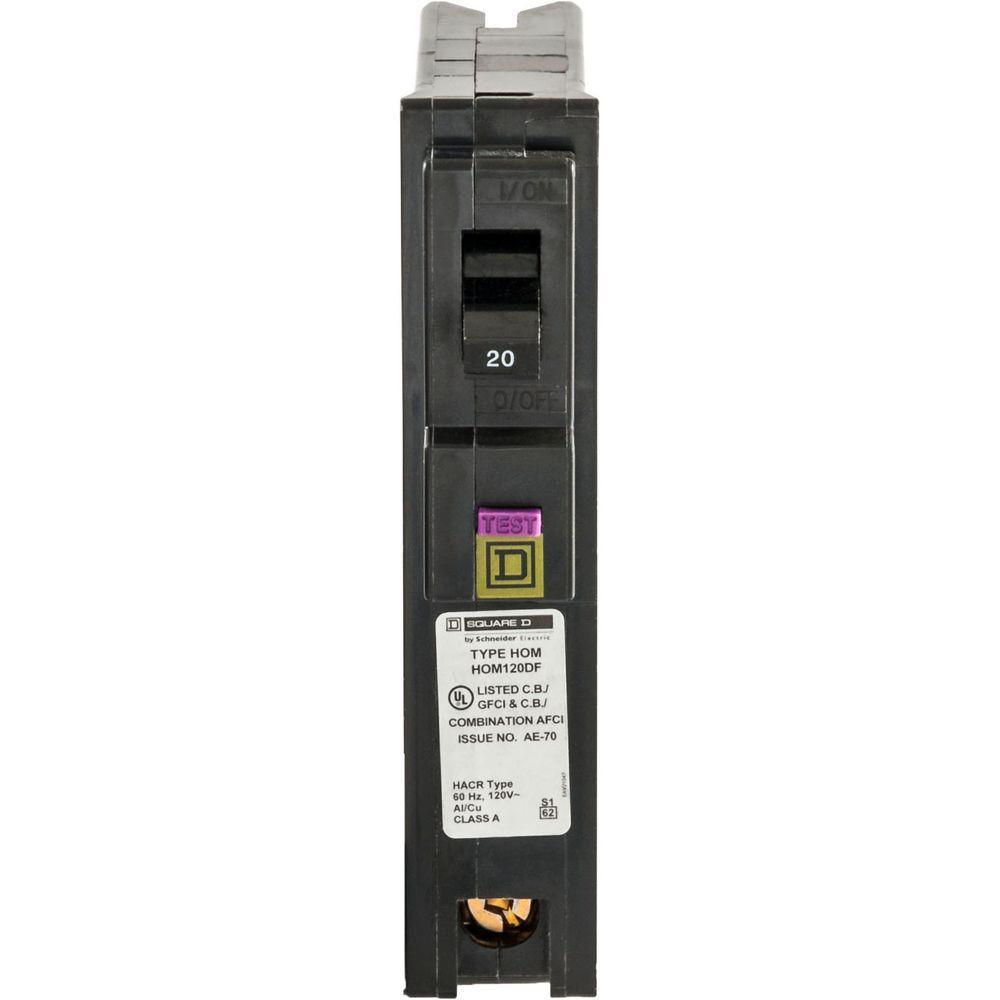

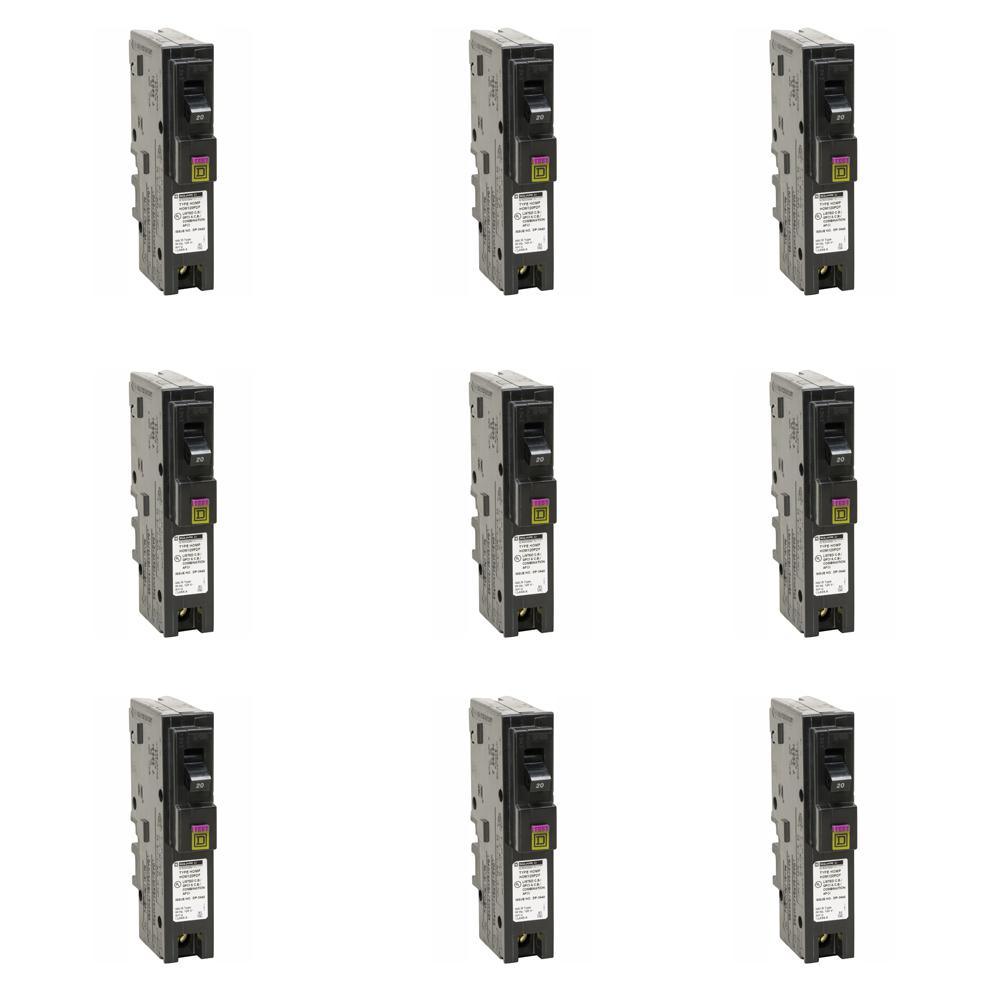

Homeline 20 Amp Single-Pole Plug-On Neutral Dual Function (CAFCI and GFCI) Circuit Breaker (9-pack)

$50.24

/
Shipping calculated at checkout.
Square D by Schneider Electric Homeline 20 Amp 1-pole Plug-on Neutral Dual Function Circuit Breaker is a space and labor saving device, engineered to meet prevailing National Electric Code requirements. This device combines 2 critical technologies, Combination Arc Fault protection (CAFCI/CAFI) and Ground Fault protection (GFCI/GFI - class A), in a single, easy-to-install device. The National Electric Code now requires both Combination Arc Fault and Ground Fault protection on all 1-Pole, 15 Amp and 20 Amp kitchen and laundry circuits. The new Dual Function circuit breakers eliminate the hassle of using 2 separate devices to provide this essential protection. Designed for reliability, the Homeline Plug-on Neutral Dual Function Circuit Breaker connects directly to the neutral bar, providing a time and labor-saving installation. Several advantages from the Plug-on Neutral design are fewer connections which lead to faster installation and an innovative neutral clip eliminates pigtails which in turn frees gutter space. This breaker is only compatible with Square D's Homeline Plug-On Neutral electrical panels with available space for a 1-pole breaker. A total of 9 spaces required for entire offering. Like all Square D CAFI Circuit Breakers, it is integrated with time saver Diagnostics, a unique feature that provides additional circuit information and minimizes troubleshooting at the touch of a button. This breaker is designed for residential and single phase commercial uses.
  • Contact your local building inspector for code adoptions and details.
  • Limited lifetime warranty
  • Homeline 20 Amp 1-pole plug-on-neutral dual function (CAFCI/CAFI and GFCI) circuit breaker

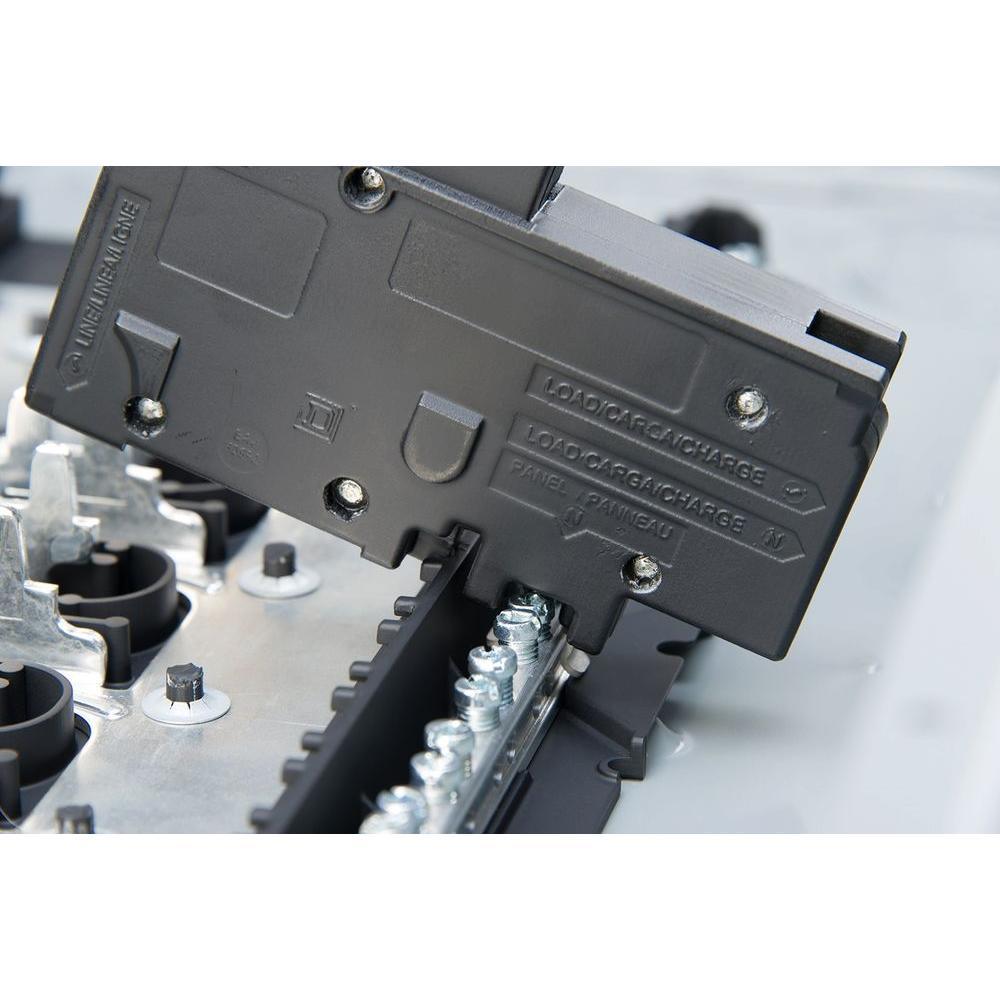

  • Innovative neutral connection design leads to fewer connections and faster installation, no pigtails which frees up gutter space
  • Compatible with Square D's Homeline series 4 and newer load centers only that have available space for a 1-pole breaker
  • 120-Volt AC
  • 10,000 AIR
  • ANSI certified and UL listed





Features
Item Weight 0.28
Pack Size 9
Voltage (volts) 120/240
Mounting Type Plug-On Neutral
Number of Poles 1
Interruption Type Dual Function (C/AFCI and GFCI)
Power Distribution Features No Additional Features
Product Weight (lb.) 0.28
Returnable 180-Day
Breaker Type Single Pole
Maximum Amperage (amps) 20
Electrical Product Type Breaker
Product Width (in.) 1
Product Height (in.) 3.13
Product Depth (in.) 2.98
Certifications and Listings UL Listed
Manufacturer Warranty Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed.
