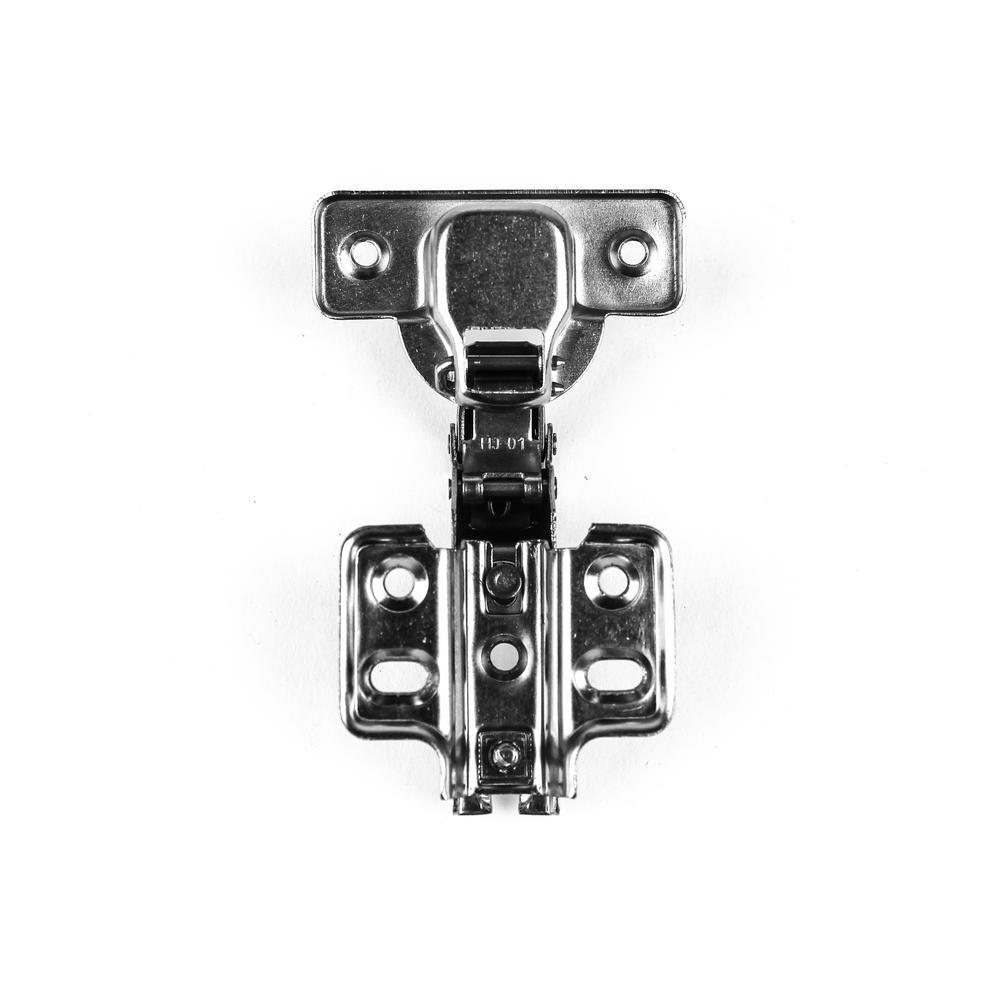

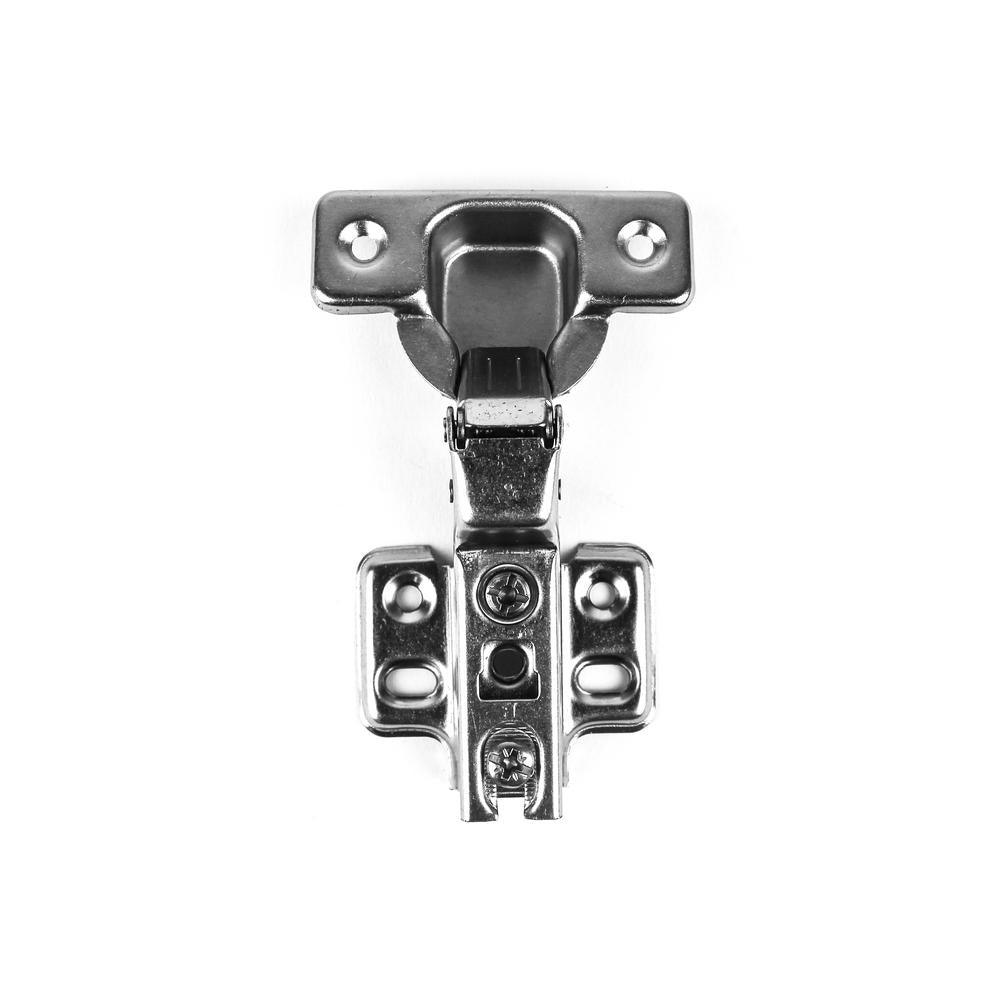

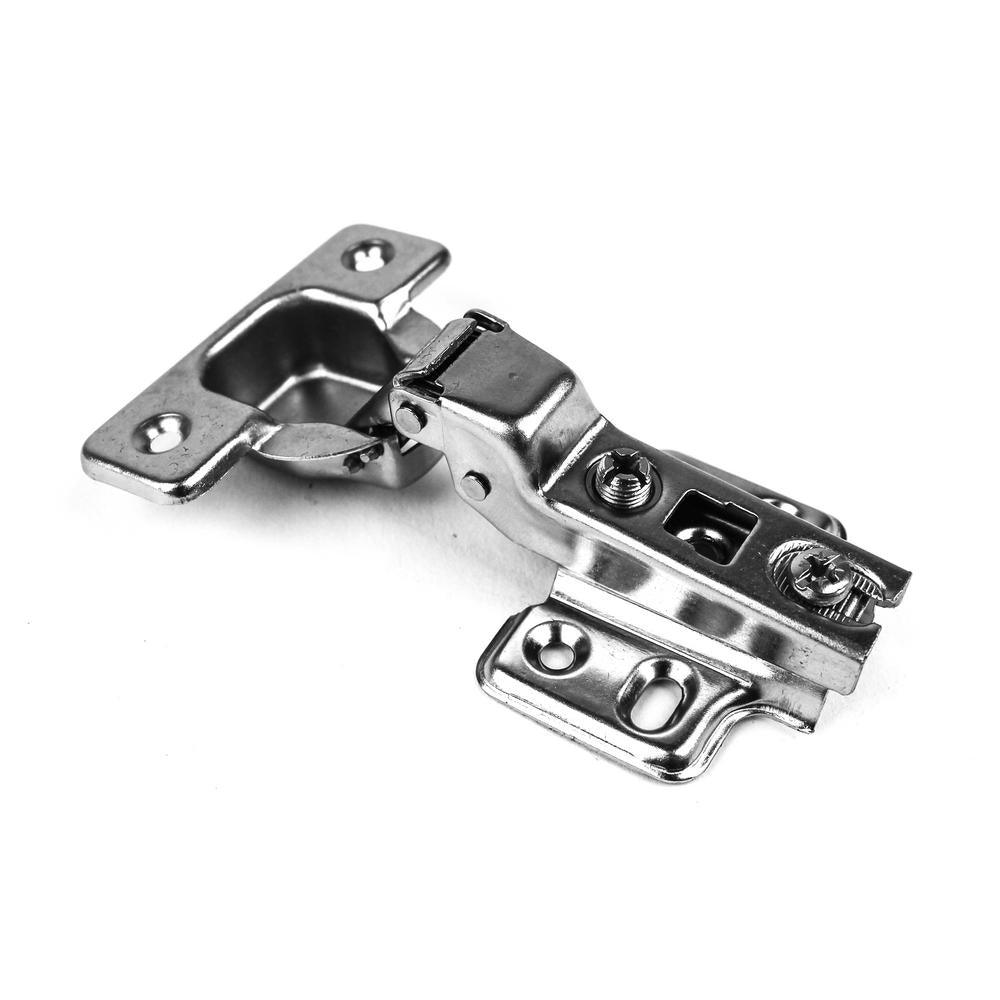

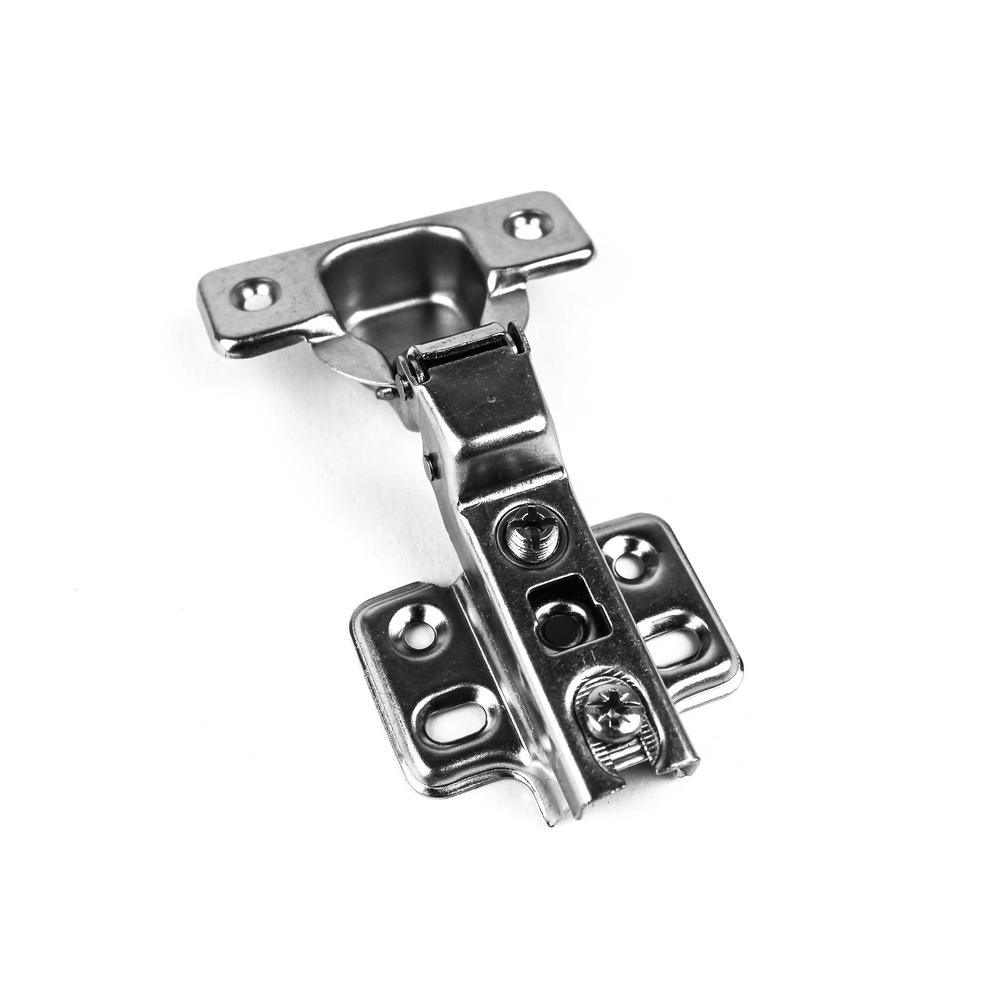

105-Degree 35 mm Half Overlay Frameless Cabinet Hinges with Installation Screws (1-Pair)

$4.69

/
Shipping calculated at checkout.
These hinges are a type of hinge that has a spring built into it so when you start to close a cabinet door, the spring, at some point, takes over and pulls the cabinet door closed with a tap. Half overlay hinges are useful for pairs of doors in the middle of a run of cabinets. Designed for frameless cabinet doors, these small hinges help save space in otherwise tight cabinets to improve kitchen convenience.
  • Hinge requires that the cup drilled in the back of your door is at least 13 mm (1/2 in. D), top hinges required a 12.5 mm cup depth, we recommend that you measure the cup depth on your doors before ordering, many cabinet makers used a 13 mm cup depth even though the requirement was only 12.5 mm so yours may actually already be drilled to 13 mm, each hinge uses 4 each #6 flat head screws and screws are included
  • Opening angle: 105°, overlay: half overlay, cup diameter: 1-2/5 in. (35 mm), cup depth: 1/2 in. (12.5 mm)
  • Suitable door thickness: 3/5 in. to 1 in. (16 mm to 24 mm), screw hole center to center: 1-4/5 in. (45 mm), material: cold rolled-steel, finish: nickel plated
  • Adjustment: 3-way adjustable: side (minus 3 mm to plus 1 mm), depth (plus 3 mm to minus 1 mm) and height (plus 2 mm to minus 2 mm), cabinet type: frameless, bore distance: 1/8 in. (3 mm)


Features
Item Weight 0.36
Hardware Finish Family Nickel
Hinge Opening (Degrees) 105
Cabinet Frame Type Frameless
Finish Nickel Plated
Hinge Type Half overlay
Number of Holes 6
Features Self Closing
Returnable 180-Day
Package Quantity 2
Material Stainless Steel
Builders Hardware Product Type Cabinet hinge
Product Depth (in.) 0.5
Product Width (in.) 2.1
Product Height (in.) 3
Manufacturer Warranty Yes
