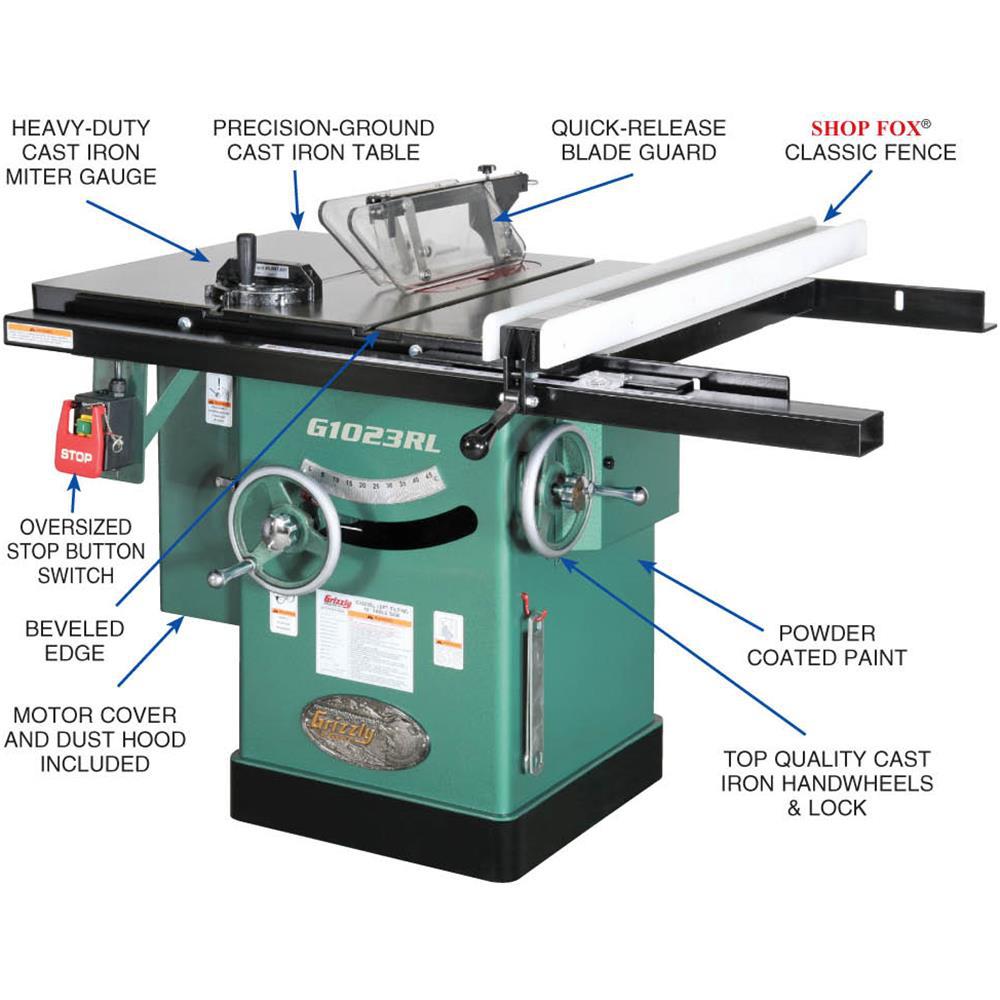

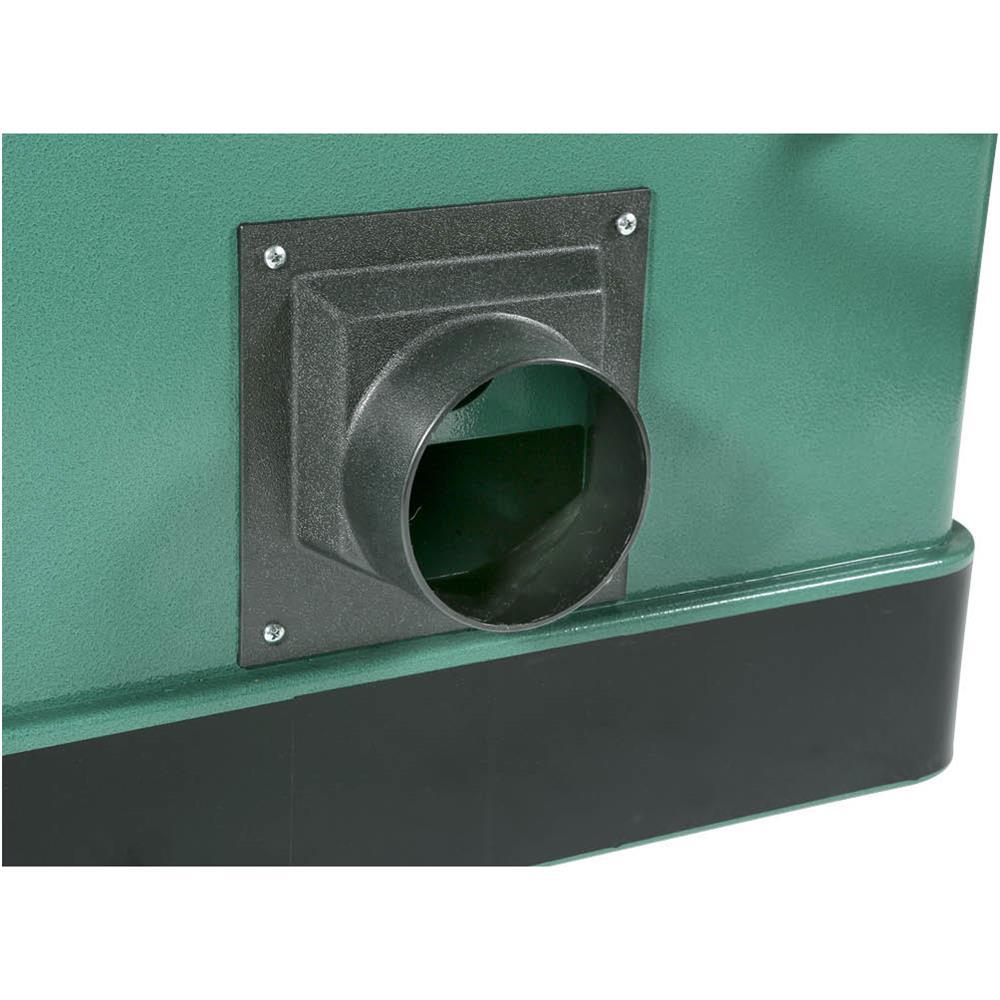

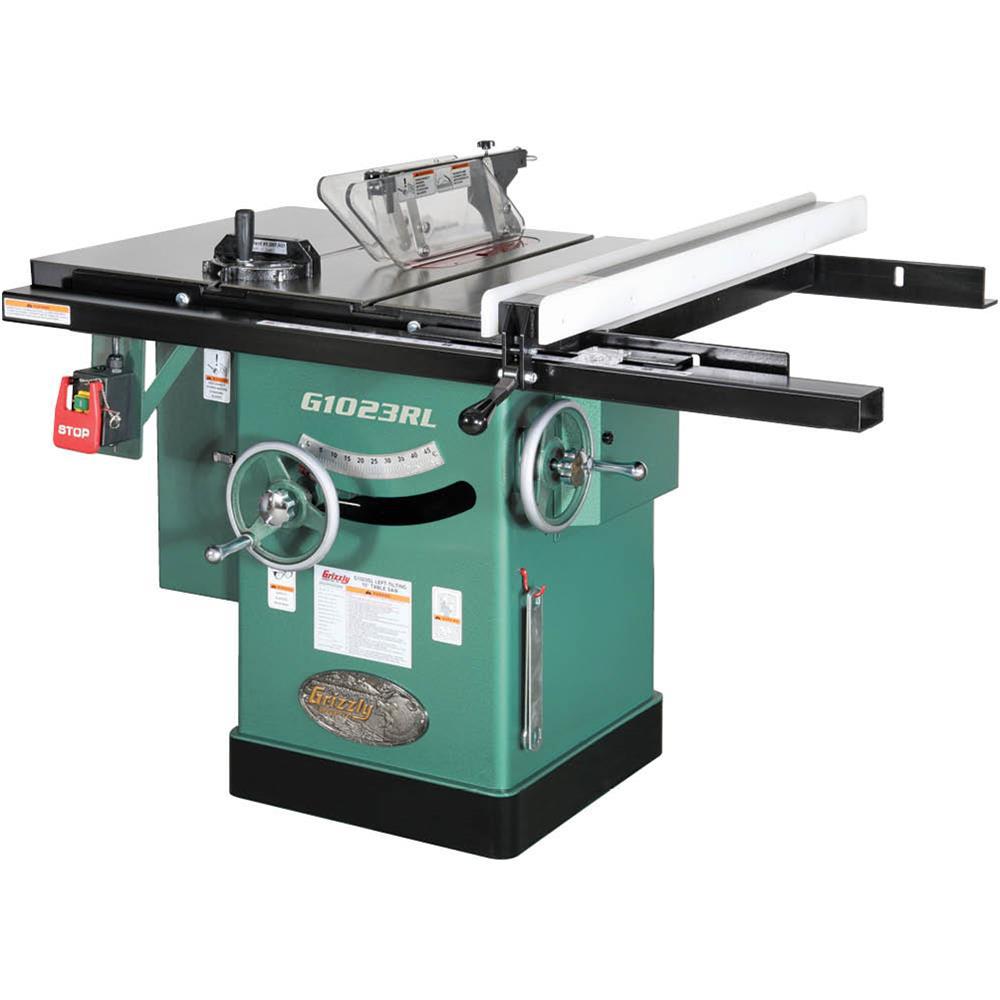

It took nearly 2-years of refinement and design optimization to improve our best-selling "G1023S" series table saws. The result is our new line of "G1023R" series table saws, featuring all the best from the old models plus a new riving knife system, serpentine-belt power transfer that runs quieter and smoother, encapsulated dust collection around the underside of the blade, and an improved quick-release blade guard. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards. Features: Motor: 3HP, 240-Volt, single-phase, 14 Amp, 3450 RPM. Solid cast iron table is first heat treated for strength then milled perfectly flat and ground to a mirror-like finish. Table size (with 2 solid extension wings attached) is 40 in. x 27 in. Table has T-slots so your miter gauge will not fall off the table when retracted. 5/8 in. Dia arbor is long enough to accept dado blades up to 13 in./16 in. Extra large handwheels really ease arbor movement. Quick change between riving knife and splitter guard. Cutting capacity: 8 in. left, 32 in. right of blade. Maximum depth of cut at 90° 3 in. Maximum depth of cut at 45° 2-1/8 in. 4 in. dust port included. Magnetic safety switch is standard. 1-piece steel cabinet type stand. All sealed ball bearing construction. Poly-V serpentine belt system transfers power more efficiently and with less noise than standard V-belts. Powder coated paint. Footprint: 20-1/2 in. x 20-1/2 in. Approximate shipping weight: 508 lbs. includes 10 in. x 40T blade.
California residents
2 precision-ground cast-iron wings

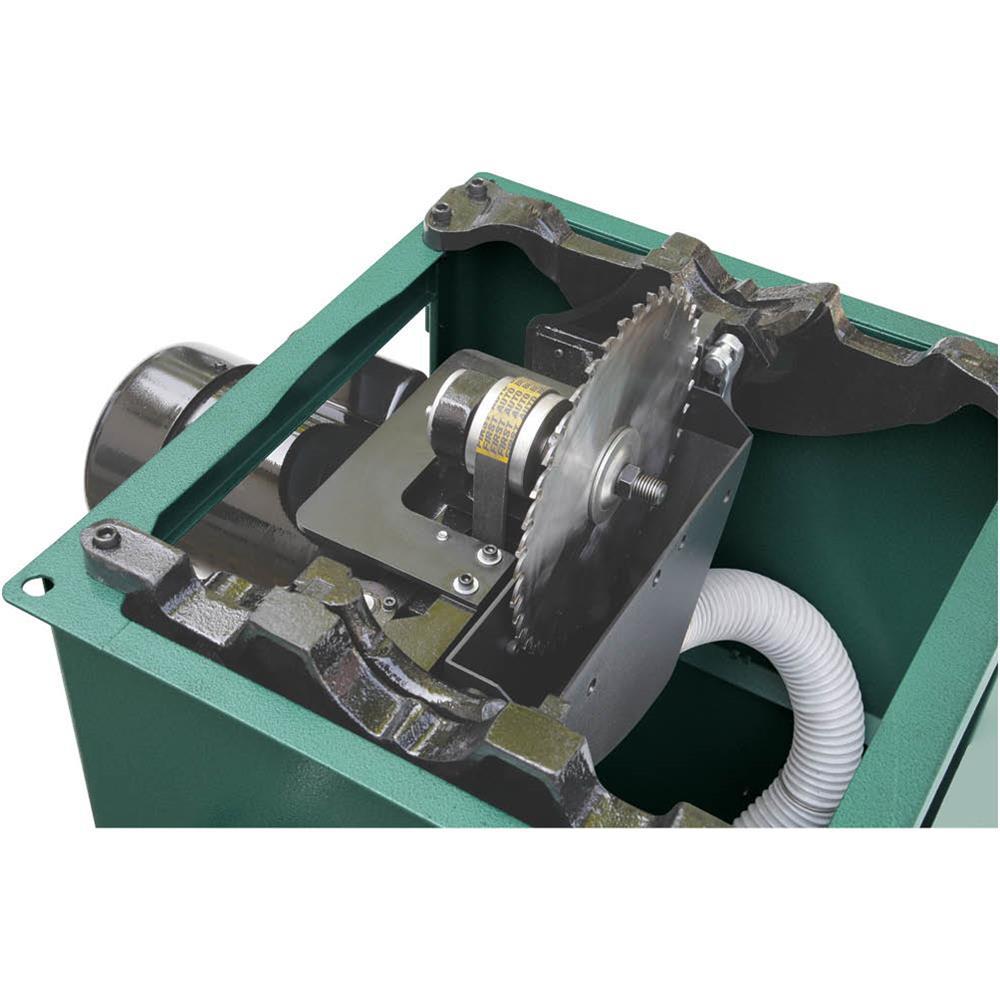

Angled dust chute in bottom of stand
Included 10 in. x 40 in. T carbide-tipped blade

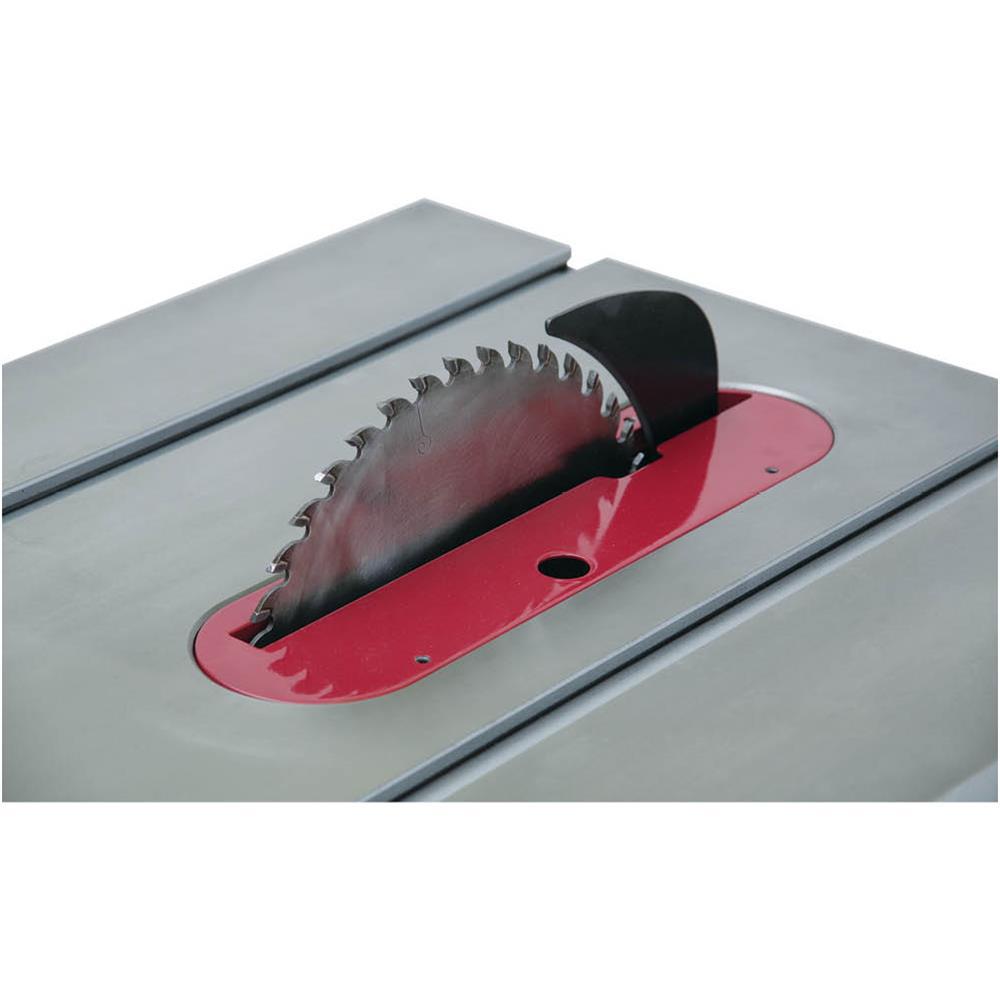

2 table inserts for blade and dado
Table has T-slots so your miter gauge will not fall off the table when retracted
1-piece steel cabinet-style stand
All sealed ball bearing construction
Quick-release blade guard and spreader
Inboard and outboard arbor bearing
Magnetic safety switch protects motor and operator
