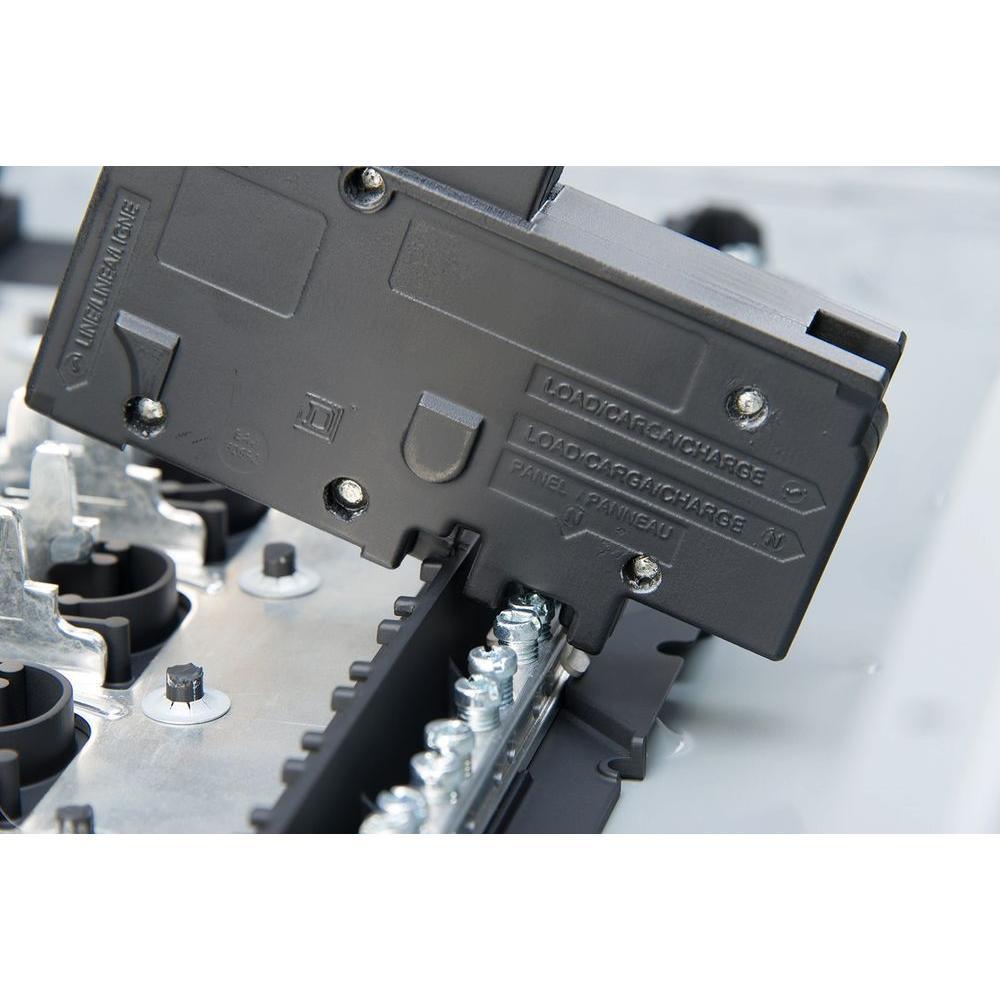

The Square D by Schneider Electric Homeline Value Pack 200 Amp 40-Space 80-Circuit Indoor Convertible Main Breaker Qwik-Grip Load Center for Plug-on Neutral breakers includes a cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
California residents

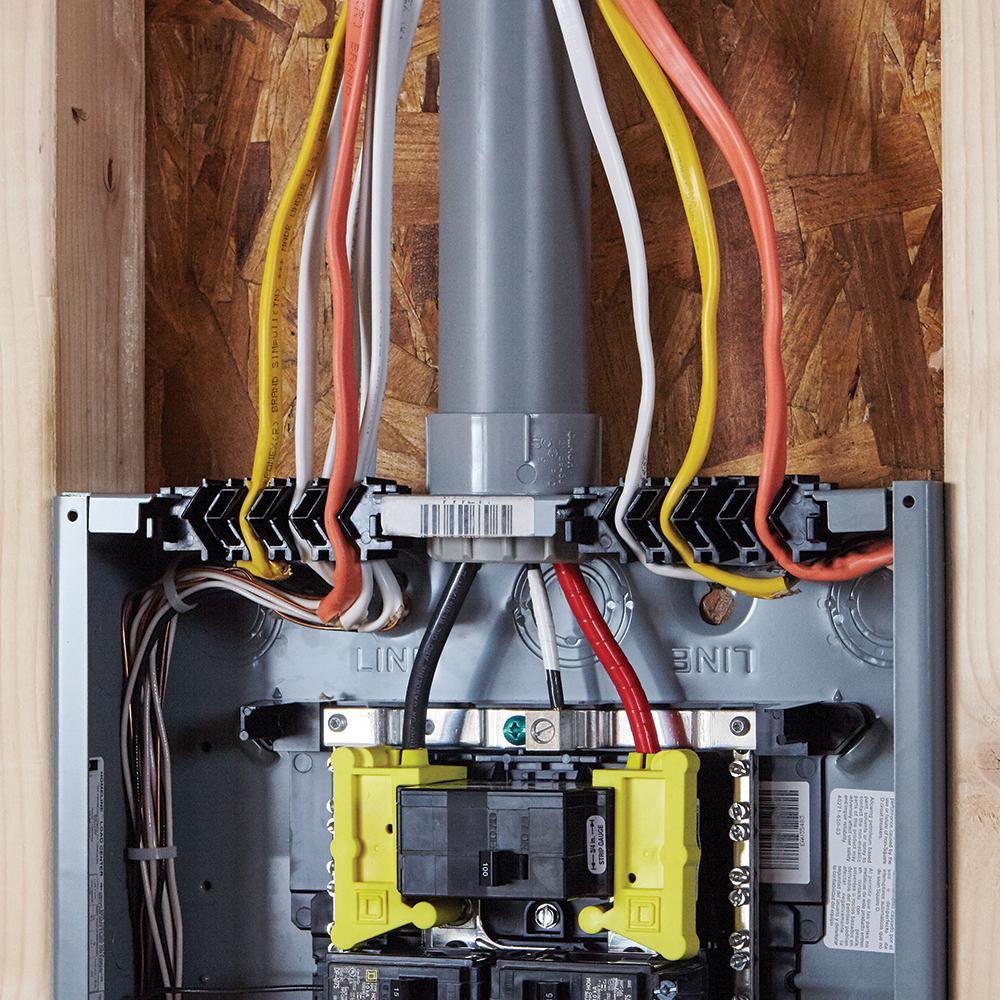

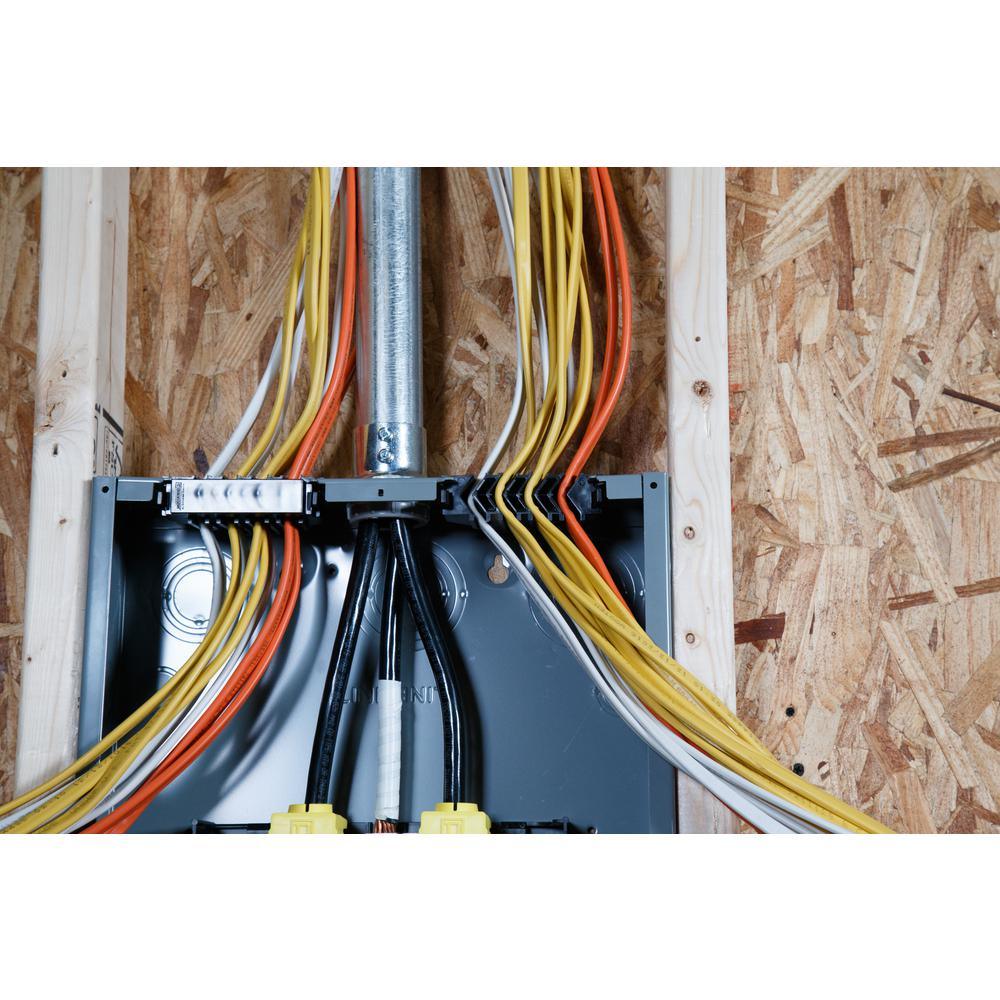

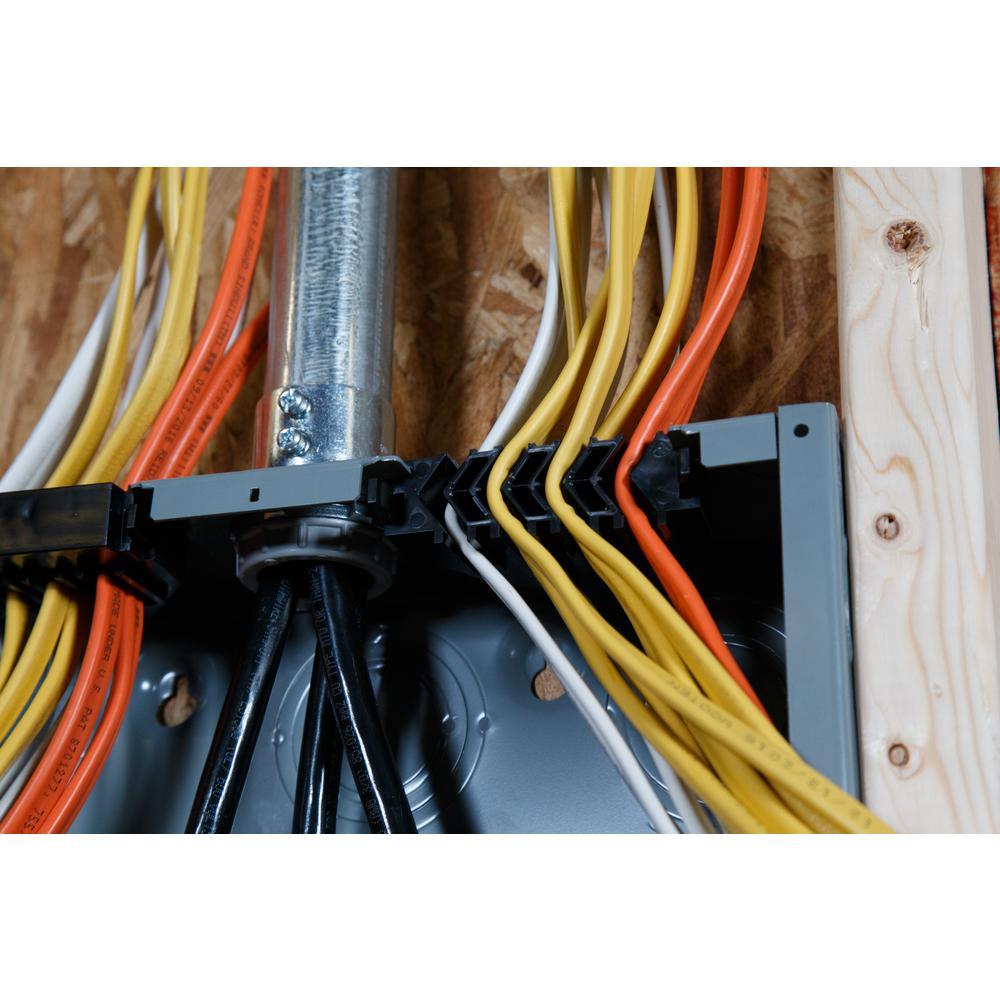

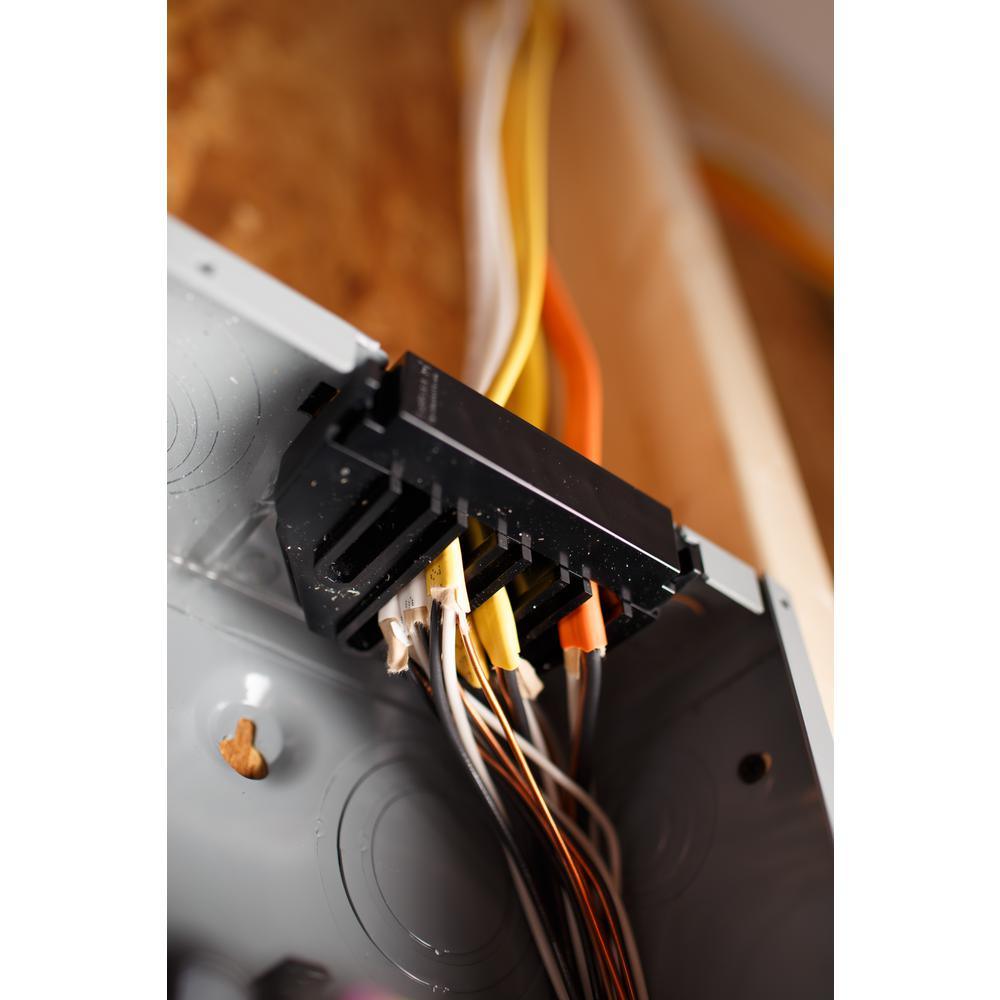

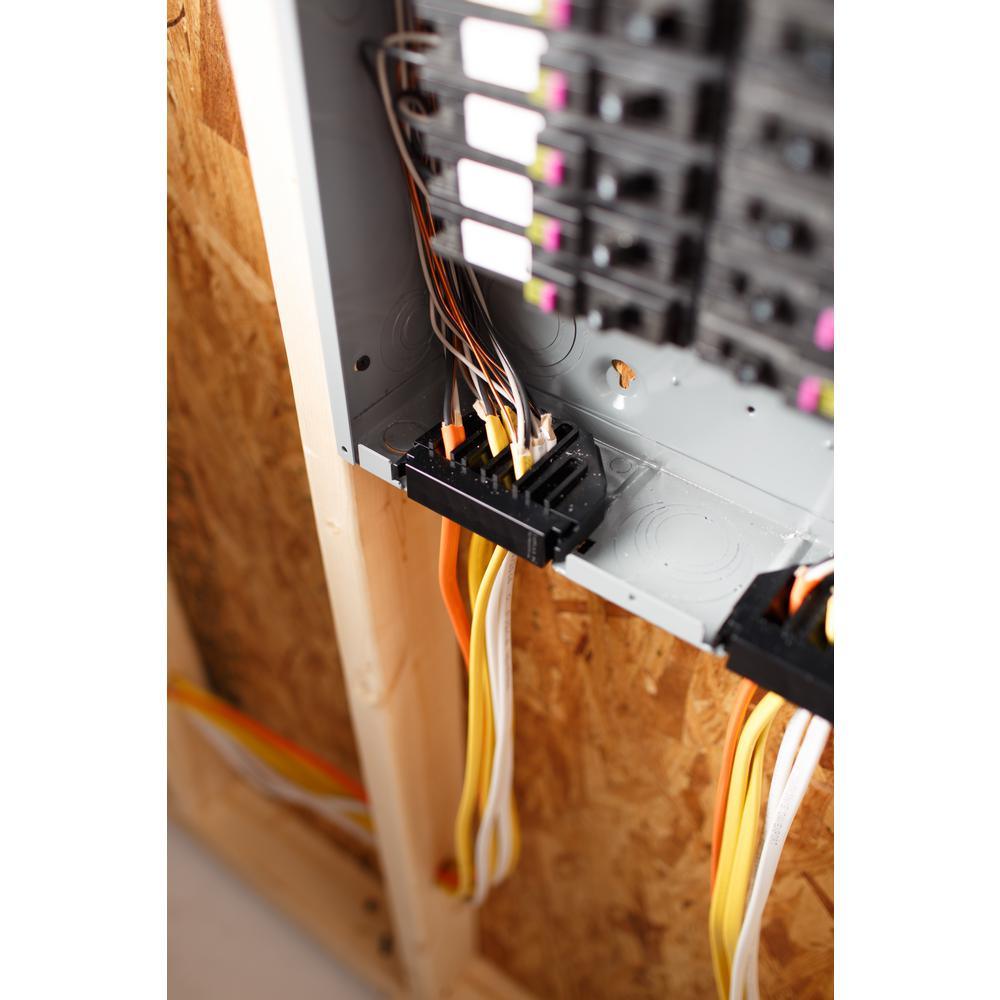

Innovative cable entry system quickly grips the branch wires while eliminating steel KO's and cable connectors for a faster installation

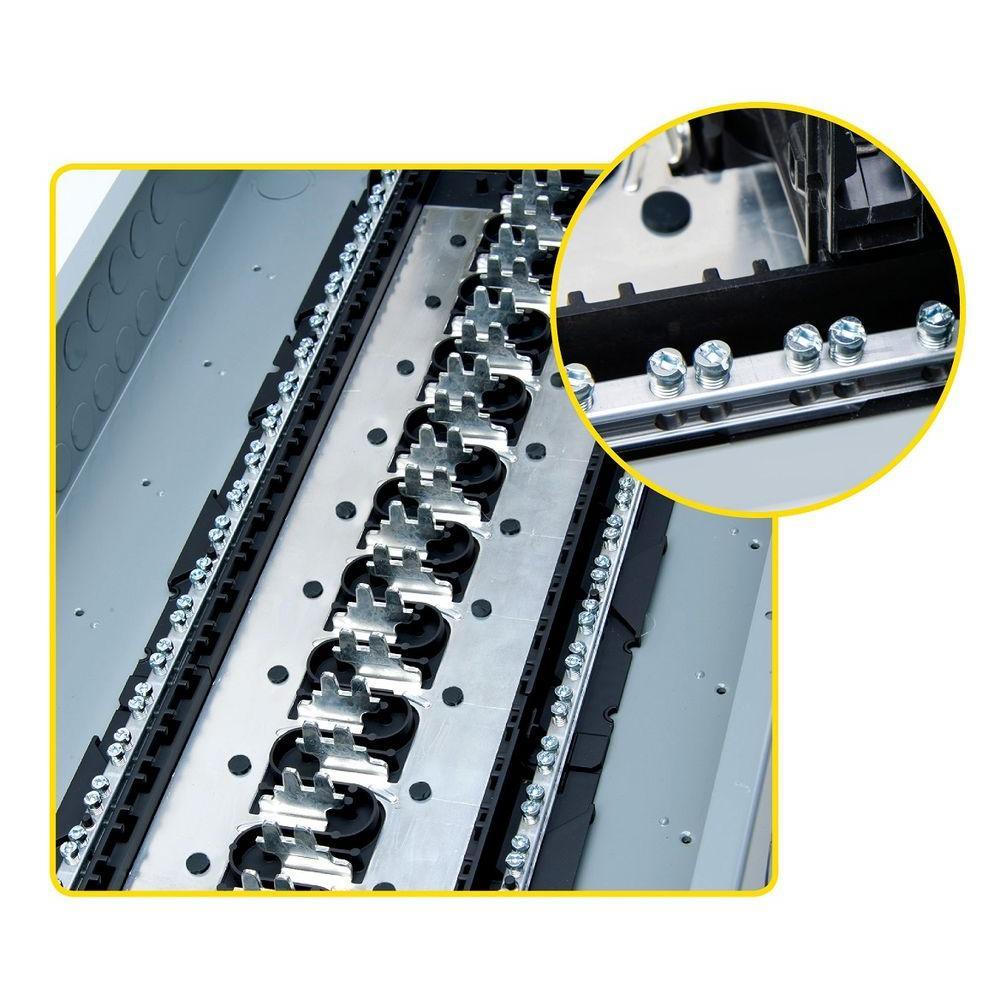

Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
Each pole space accepts full-size, tandem or quad breakers
Ground and neutral bars accept up to (3) #10-14 equipment grounds flush/surface indoor cover

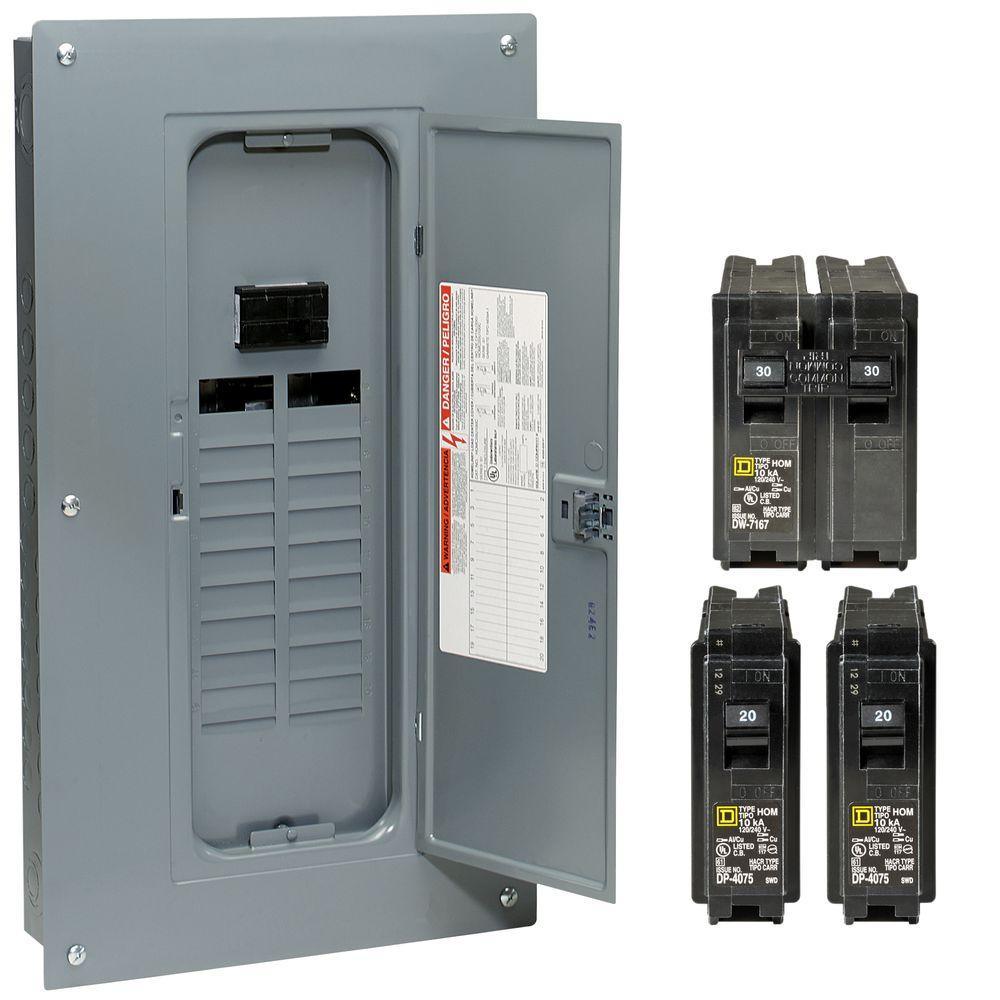

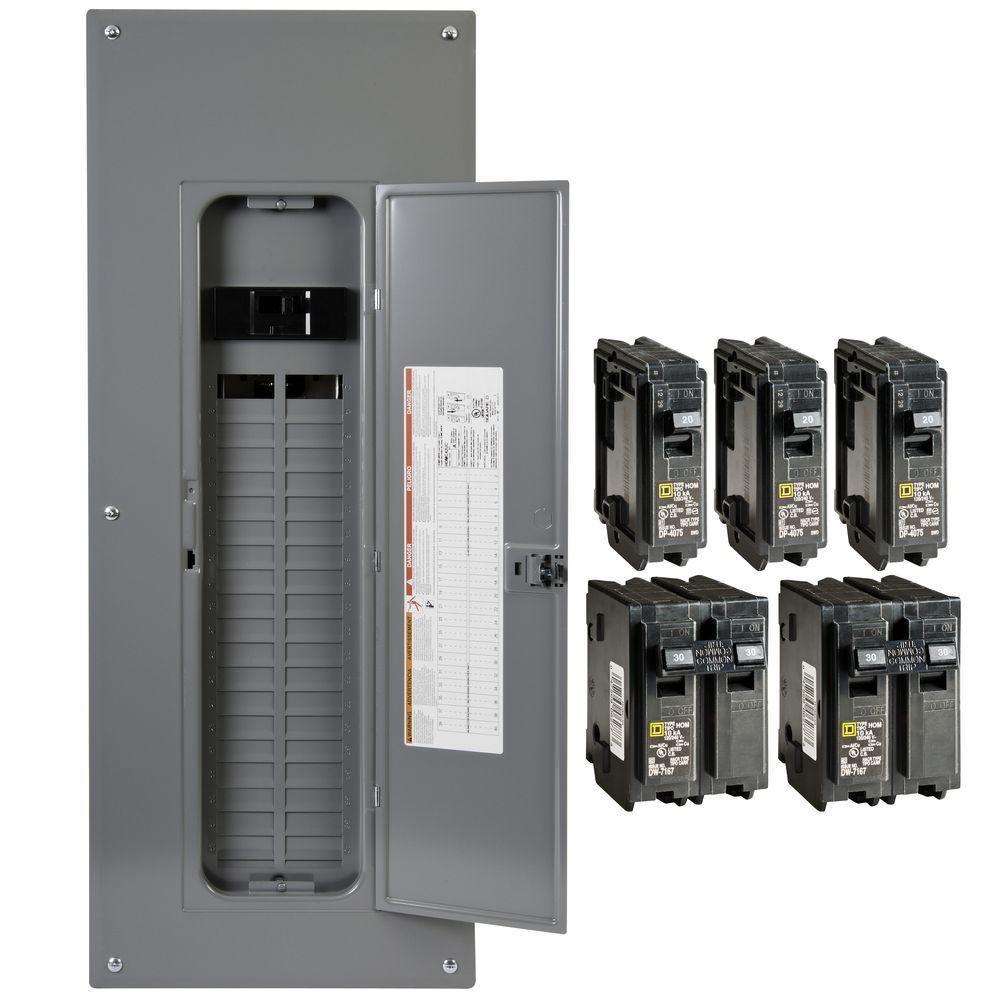

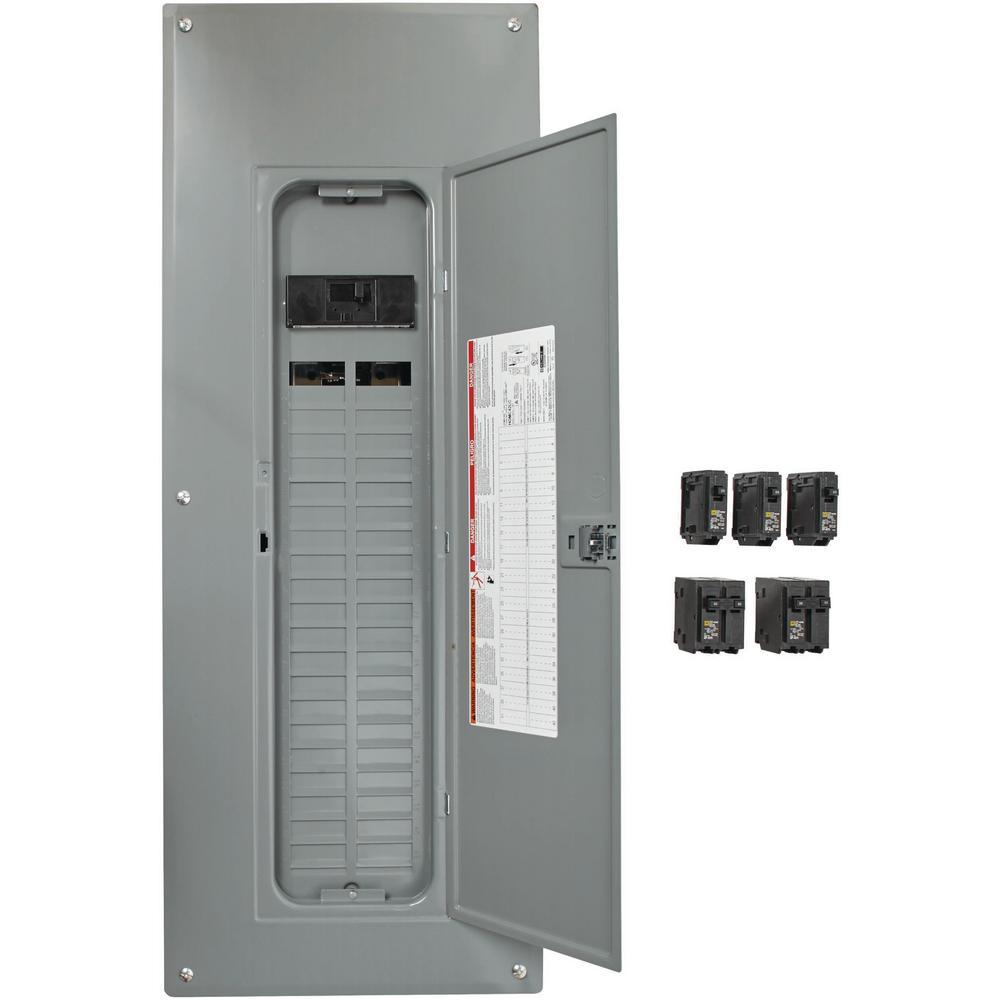

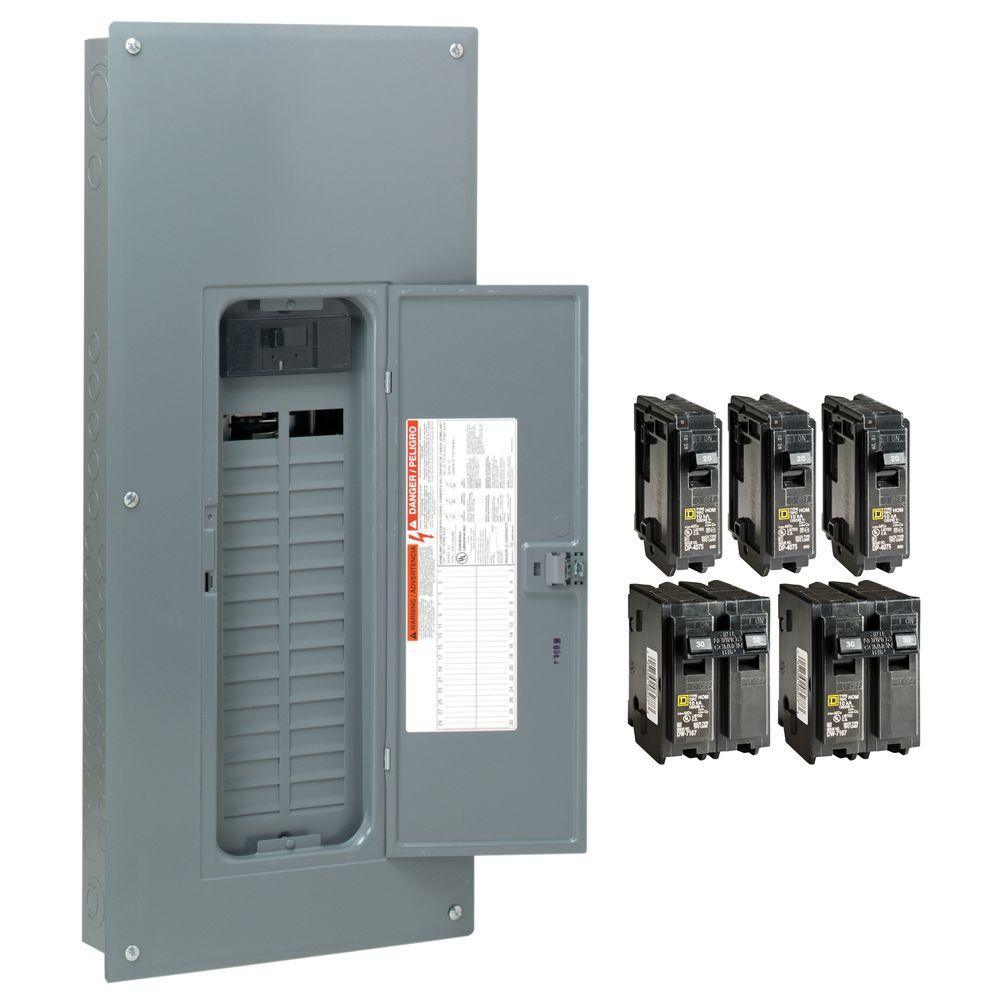

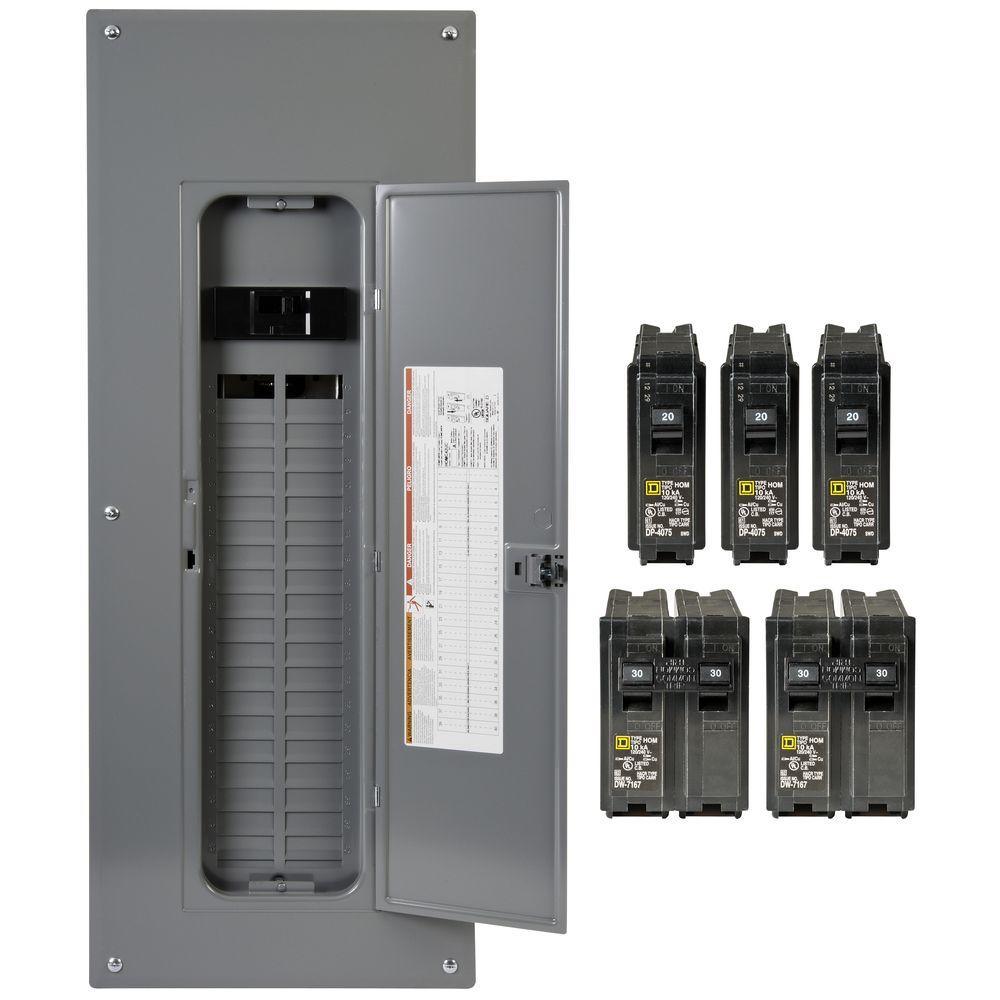

Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
Overhead/underground feed simply by rotating the device before installing
Single phase
Rated 120/240-Volt AC and 22,000 air short circuit current rating
Automatic flush adjusting cover requires less time to complete the job
Designed with straight-in mains to save expensive cable and time
Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
For protection from damage or theft on the job site, interiors can be easily removed with a single captive
3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Features
Item Weight
40.11
Load Center Mounting Type
Flush,Surface
Electrical Product Type
Load Center and Breaker Kit
Voltage (volts)
120/240
Product Weight (lb.)
40.11
Number of Spaces
40
Load Center Type
Main Breaker
Mounting Type
Plug-On Neutral
Number of Circuits
80
Indoor/Outdoor
Indoor
Returnable
180-Day
Phase Type
1 Phase
Maximum Amperage (amps)
200

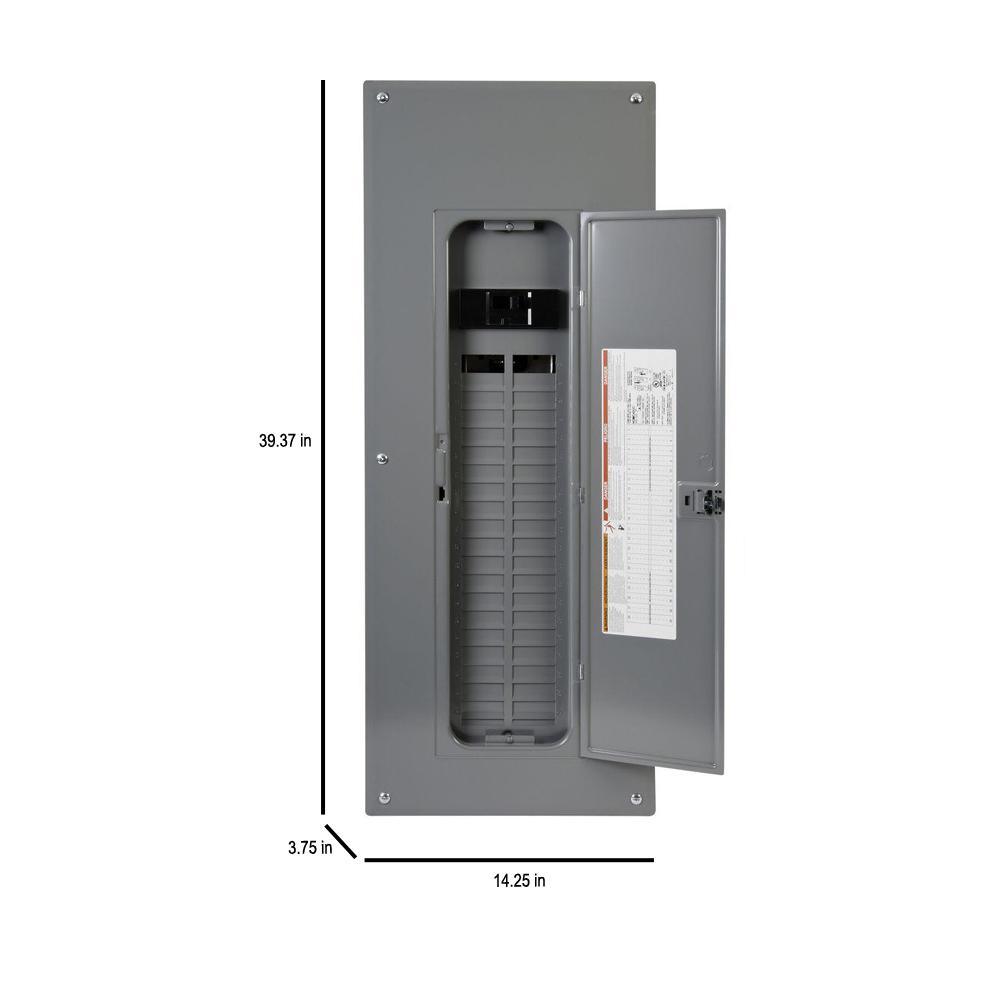

Load center width (in.)
14.25
Load center depth (in.)
3.75
Load center height (in.)
39.37
Manufacturer Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
