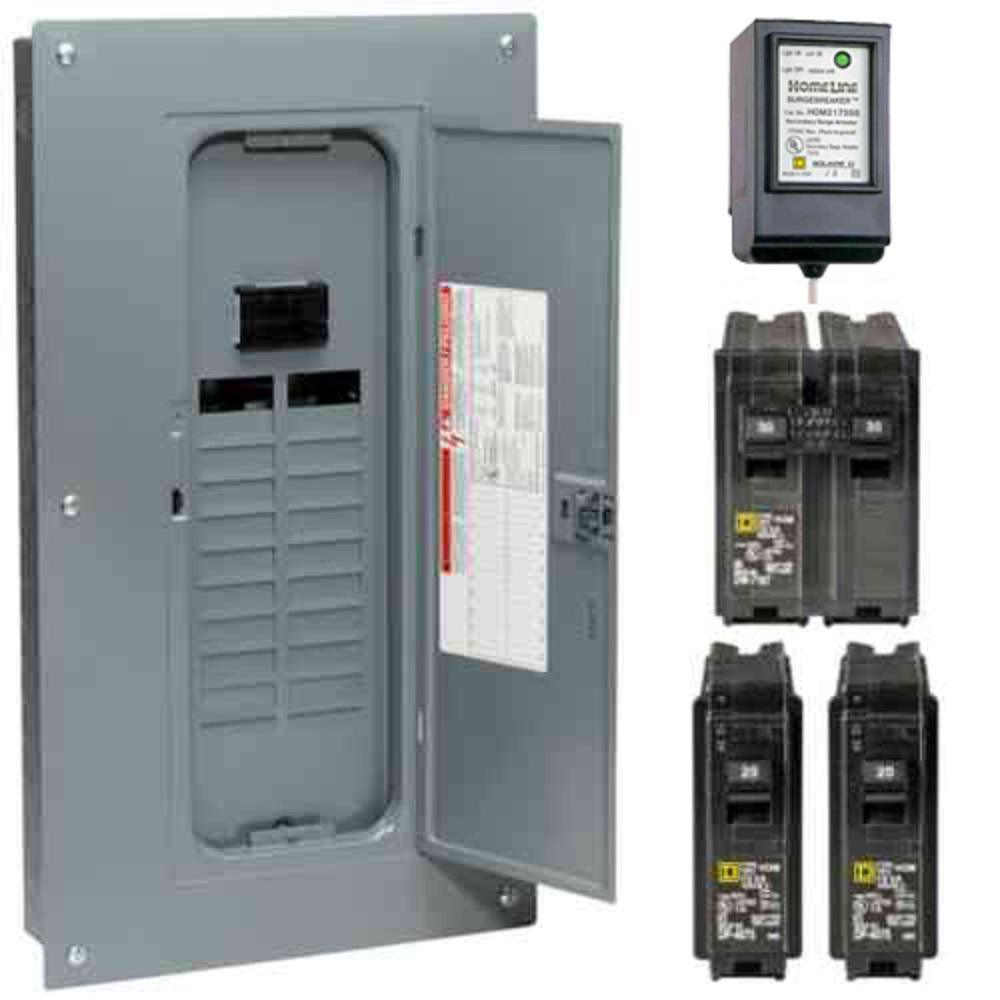

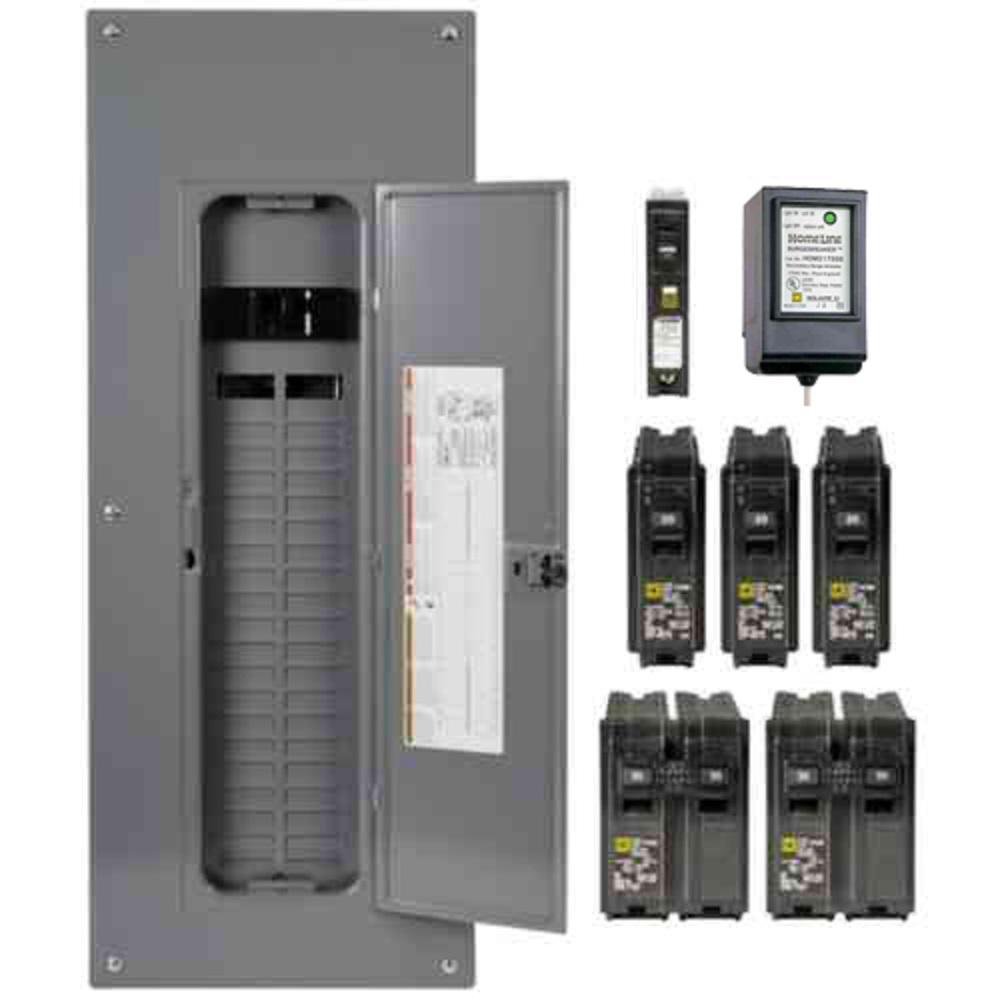

Homeline 150 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover, Surge SPD - Value Pack

$0.00

/
Shipping calculated at checkout.
The Square D Homeline Value Pack 150 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings. The Homeline Surge Breaker Surge Protective Device is designed as a quick plug-on unit for use in Homeline load centers and CSED devices. The SPD requires 2-pole spaces. This unit has 22,500 Amp Maximum Surge Capacity and has a 150 VAC line-to-ground maximum providing protection from electrical surges. This bundle comes with Schneider model numbers HOM3060M150PCVP and HOM2175SB.
  • California residents
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds

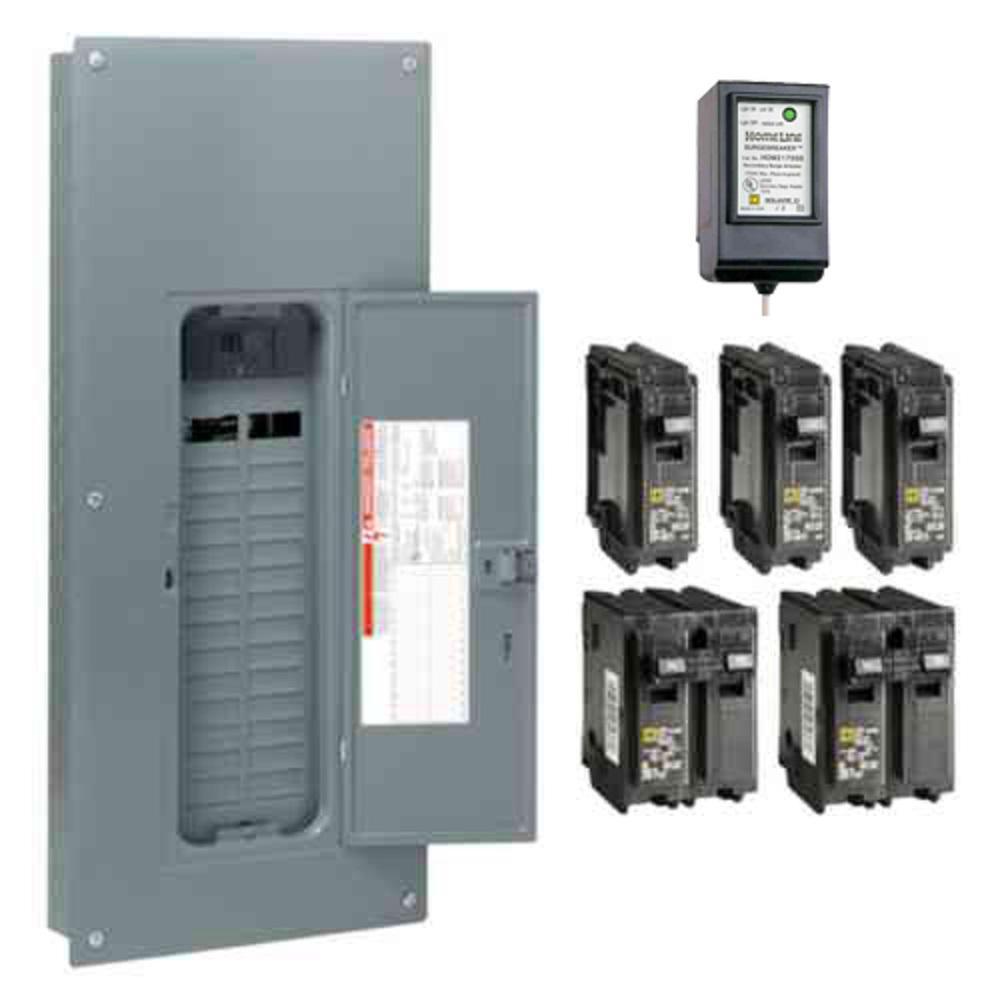

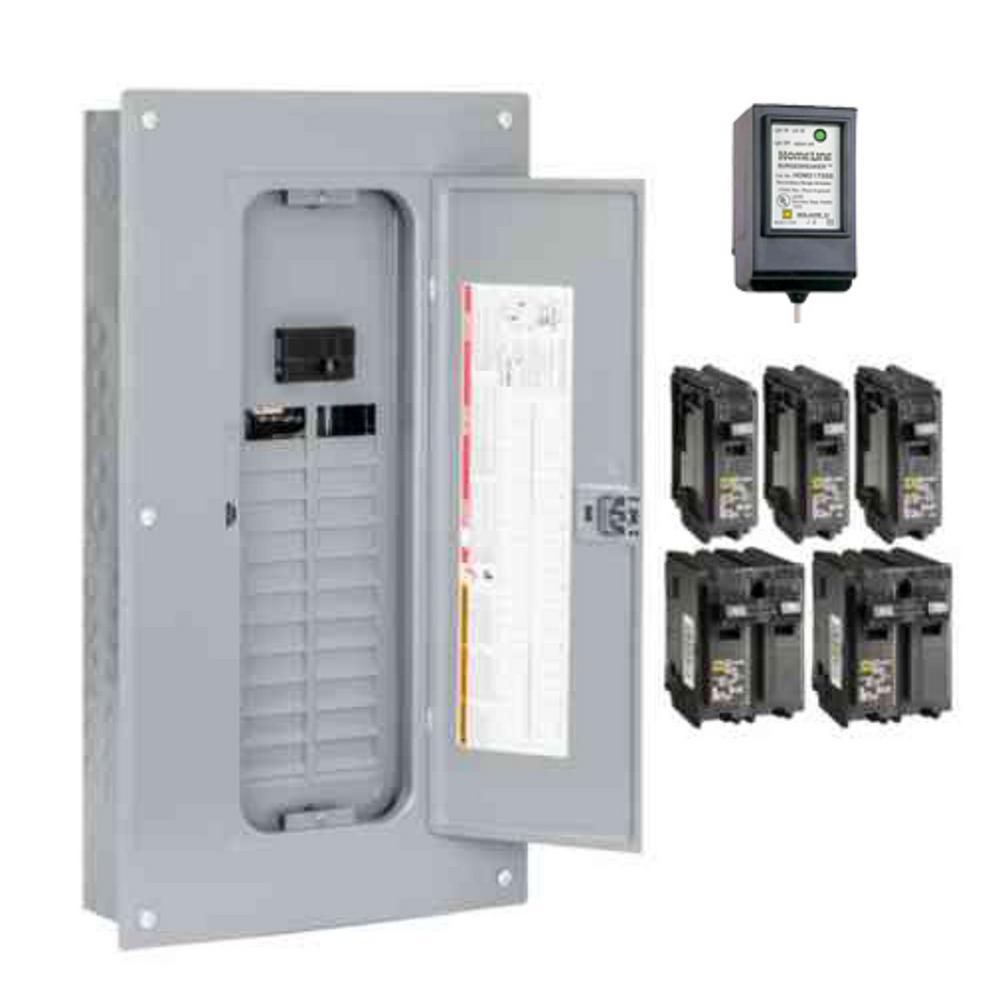

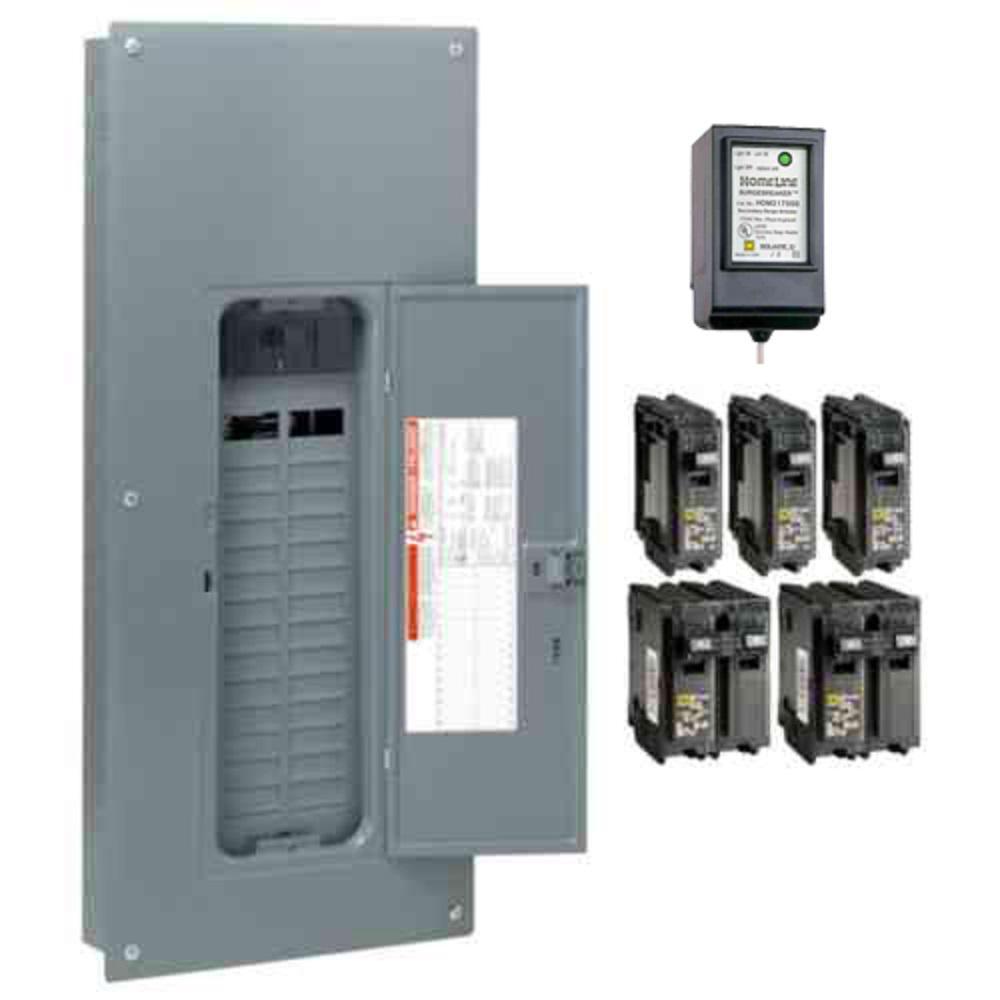

  • Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 22,000 air short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time
  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/Square Drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA
  • Equal protection to circuits and receptacles throughout home
  • Includes an LED indicator, can be used in service entrance locations, CSEDs and Homeline load centers





Features
Item Weight 34.83
Number of Circuits 60
Maximum Amperage (amps) 150
Electrical Product Type Load Center and Breaker Kit
Voltage (volts) 120/240
Load Center Type Main Breaker
Mounting Type Plug-On Neutral
Load Center Mounting Type Surface
Number of Spaces 30
Indoor/Outdoor Indoor
Returnable 180-Day
Phase Type 1 Phase
Product Weight (lb.) 34.83

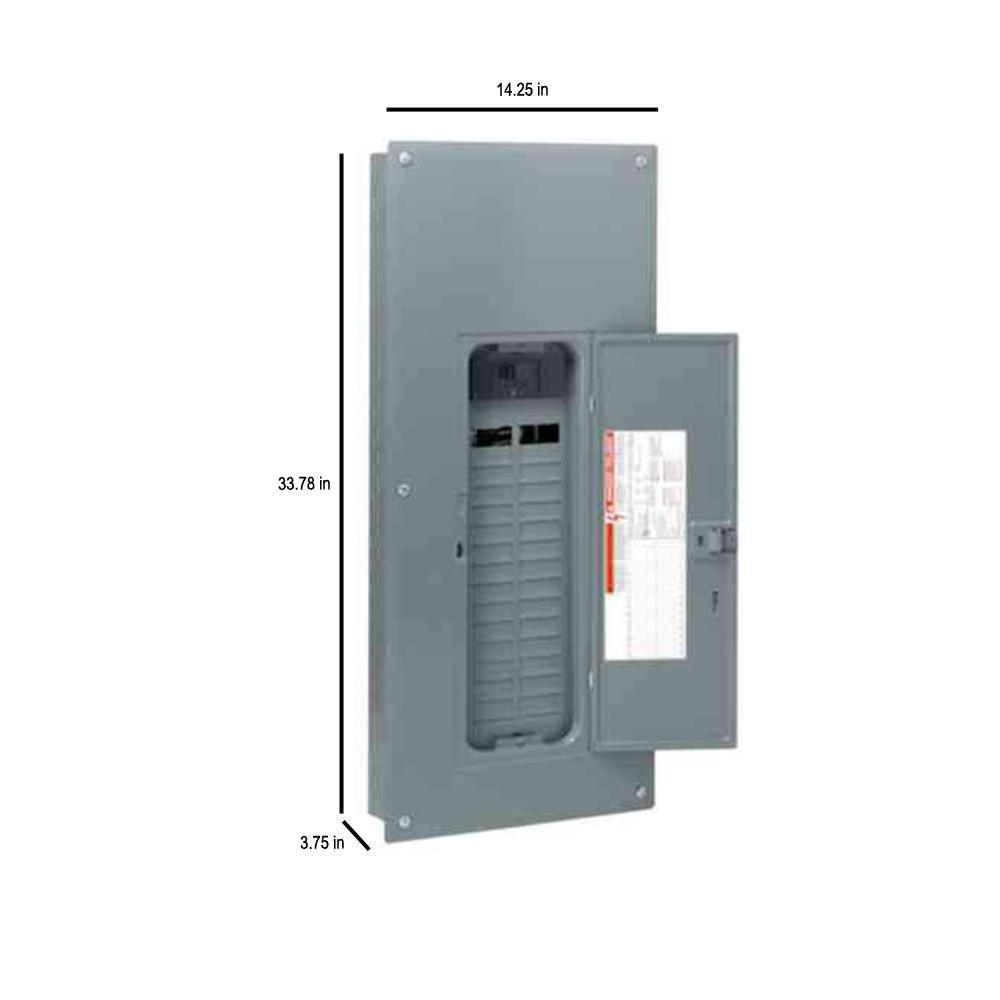

Load center height (in.) 33.78
Load center width (in.) 14.25
Load center depth (in.) 3.75
Manufacturer Warranty Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Certifications and Listings UL Listed

Subject to Approval & Availability
