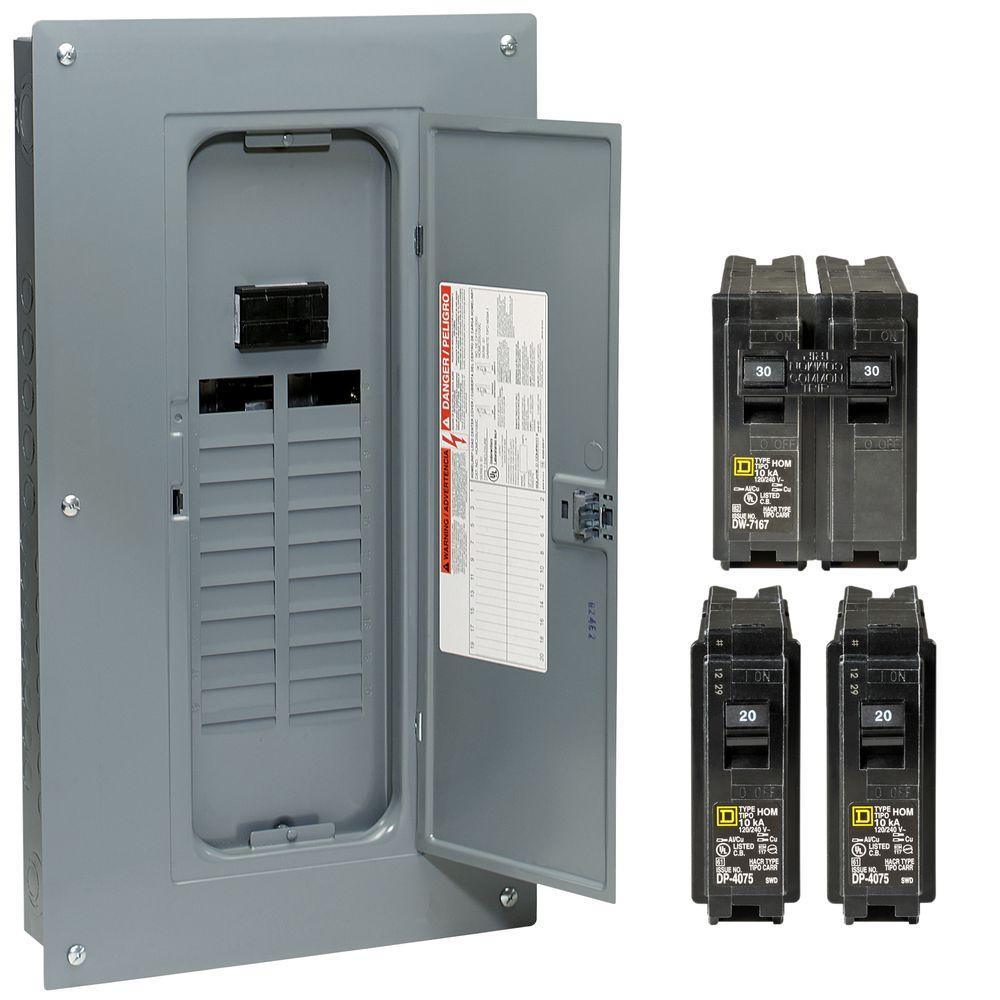

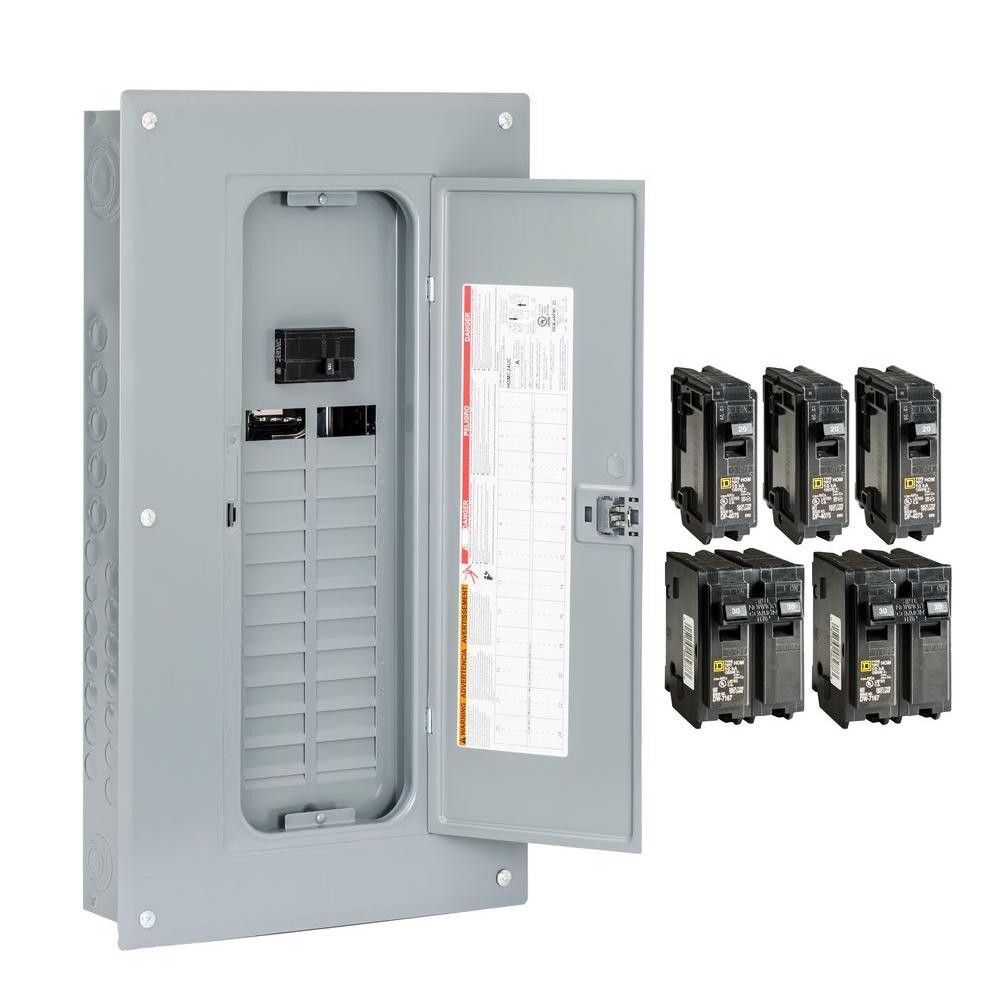

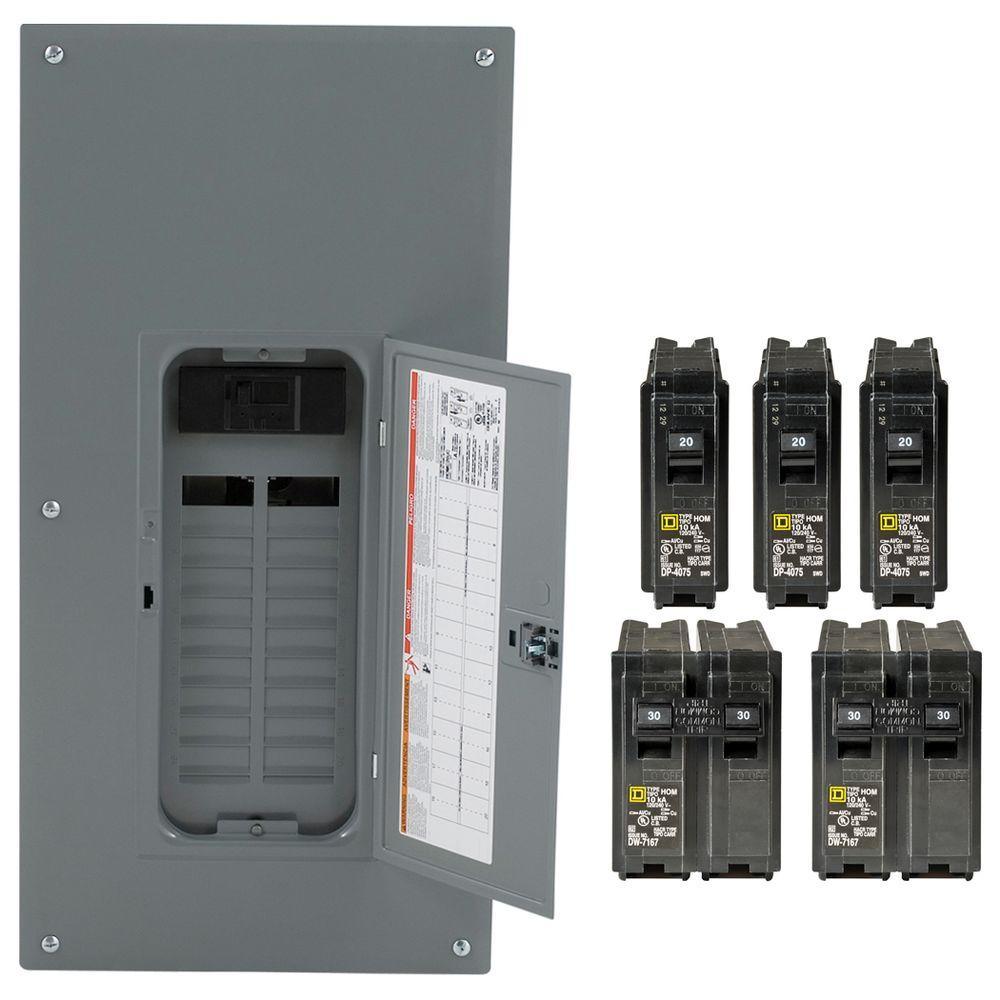

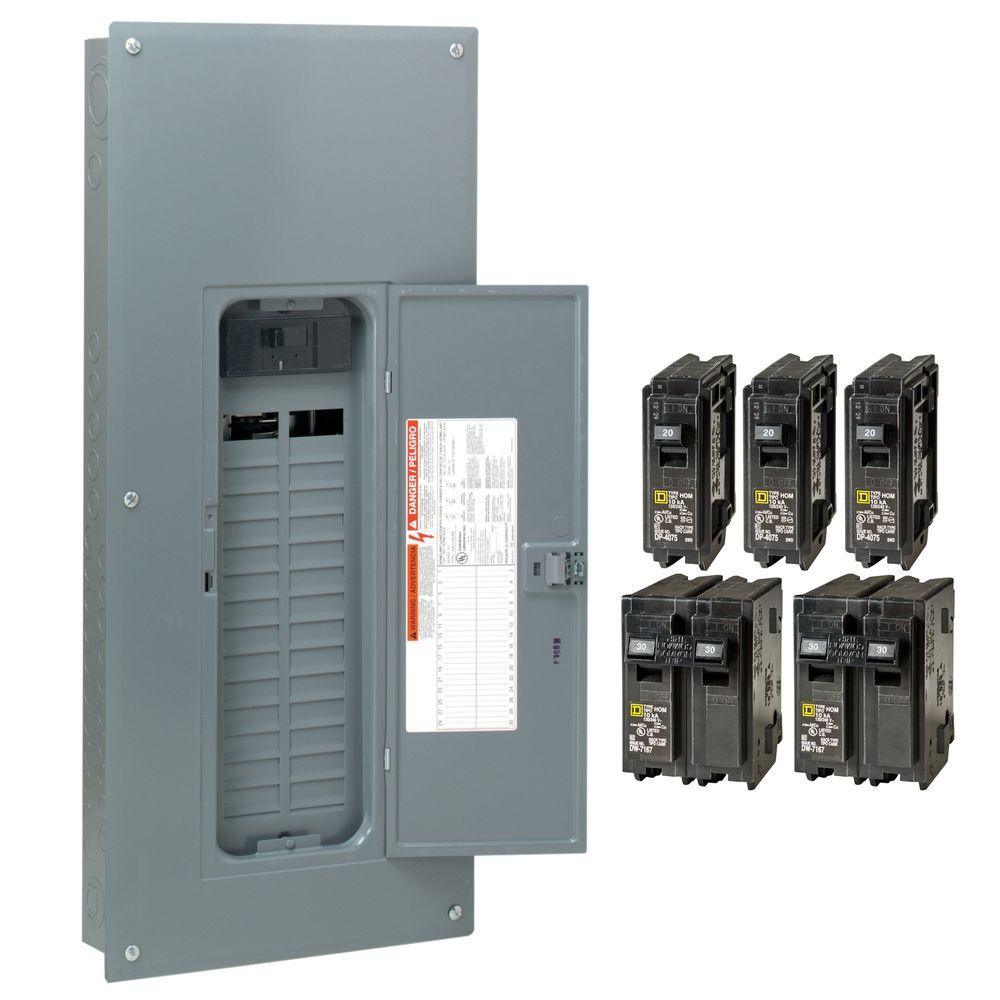

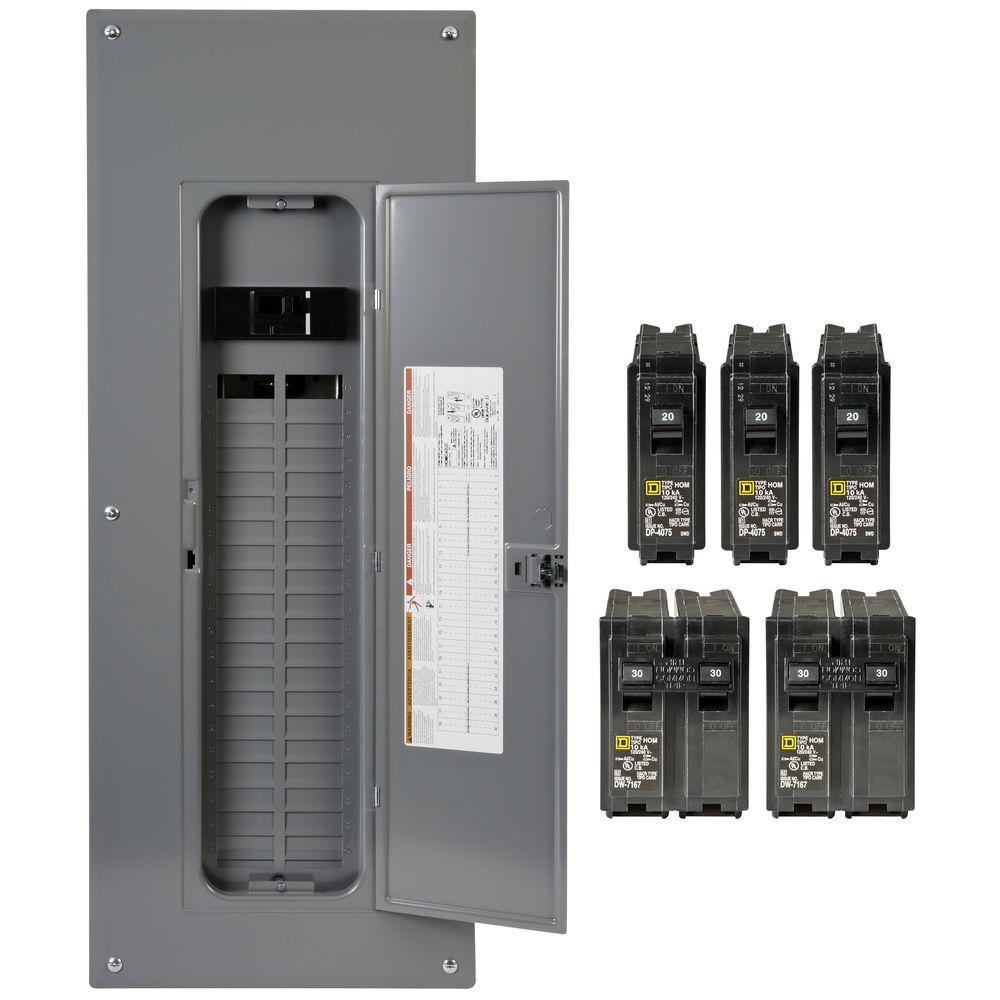

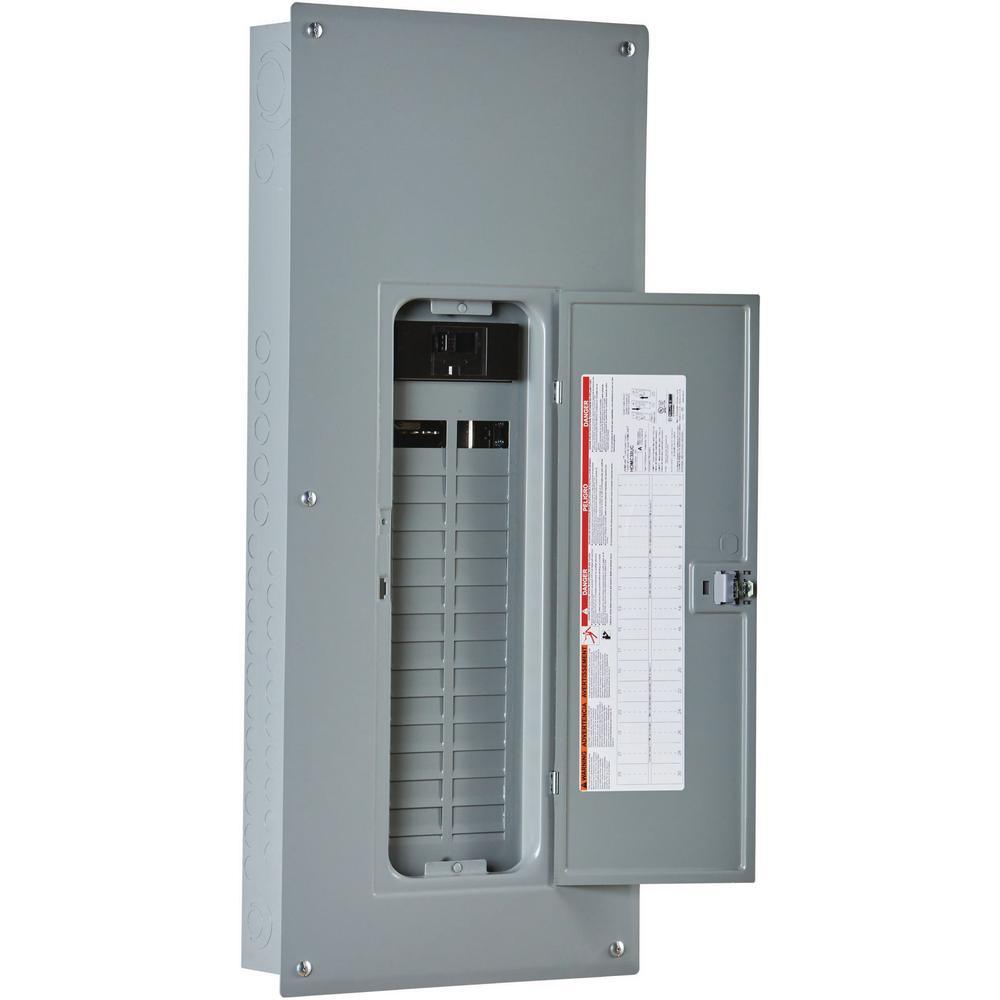

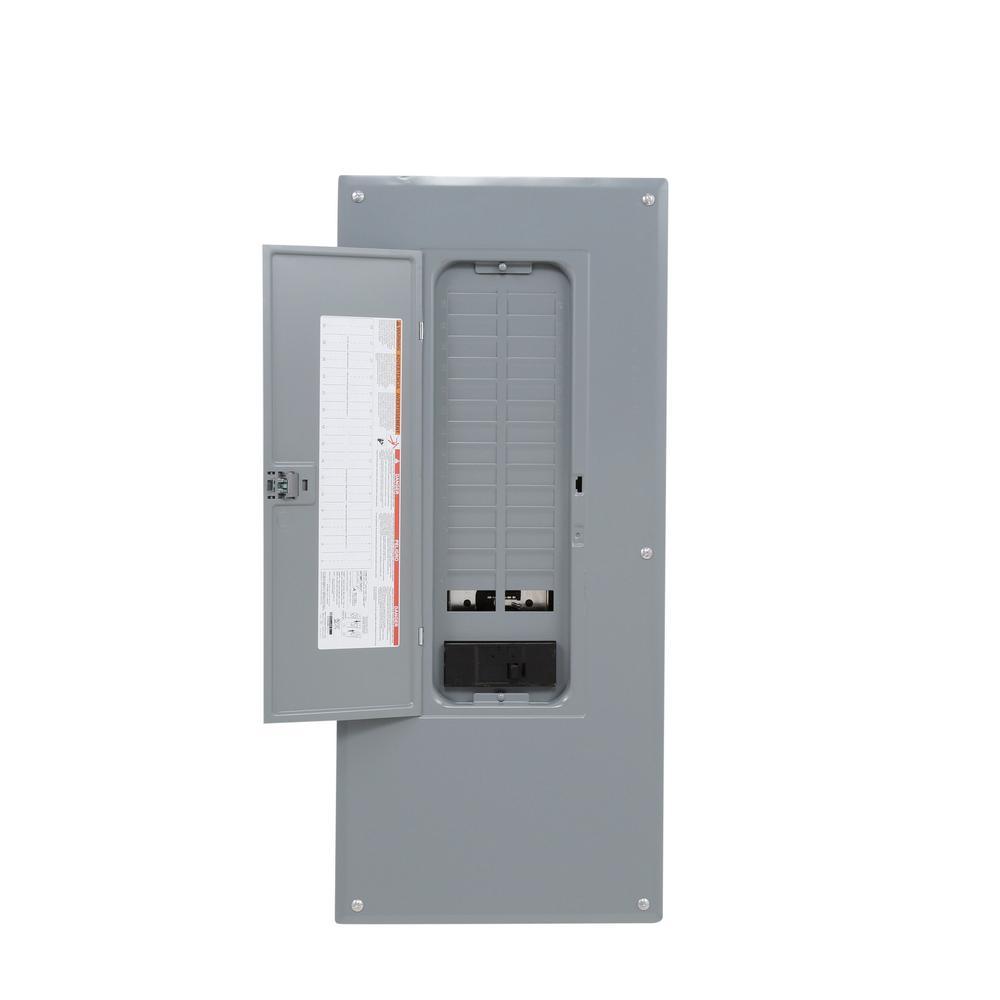

Designed for the value-minded contractor, remodeler or homeowner is this Square D by Schneider Electric Homeline Value Pack 200 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center. It is built with a plated, aluminum bus bar that is listed only for Homeline circuit breakers. They are engineered for fast installation and wire savings. Also UL listed for residential and commercial power distribution, this breaker is fully distributed.
California residents
Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
Each pole space accepts full-size, tandem or quad breakers
Ground and neutral bars accept up to (3) #10-14 equipment grounds

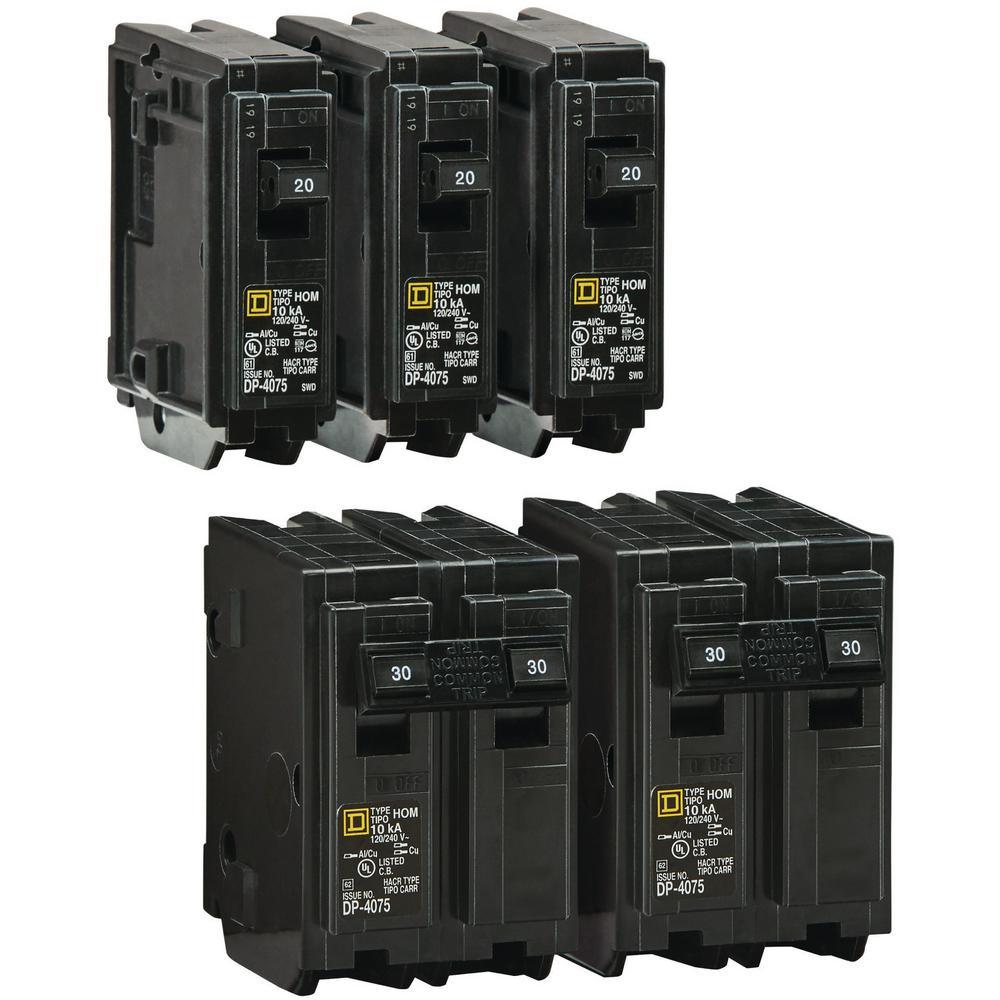

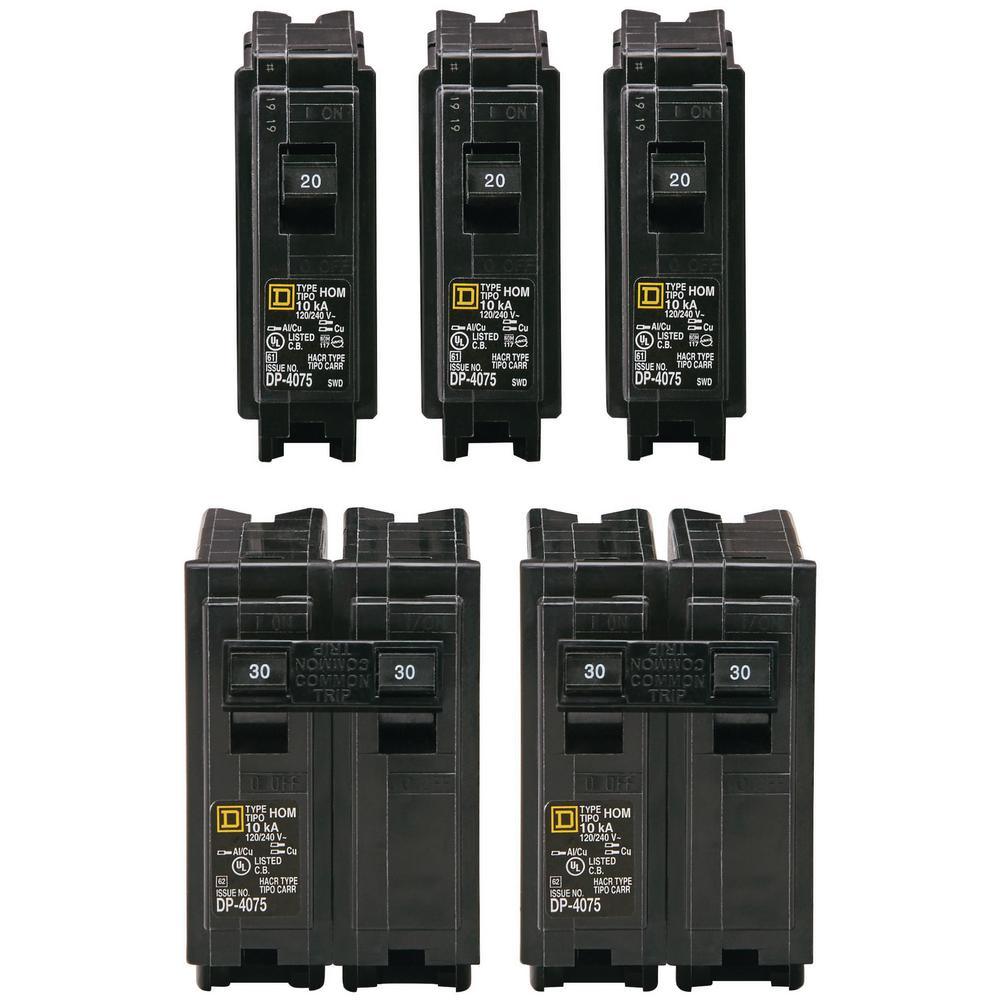

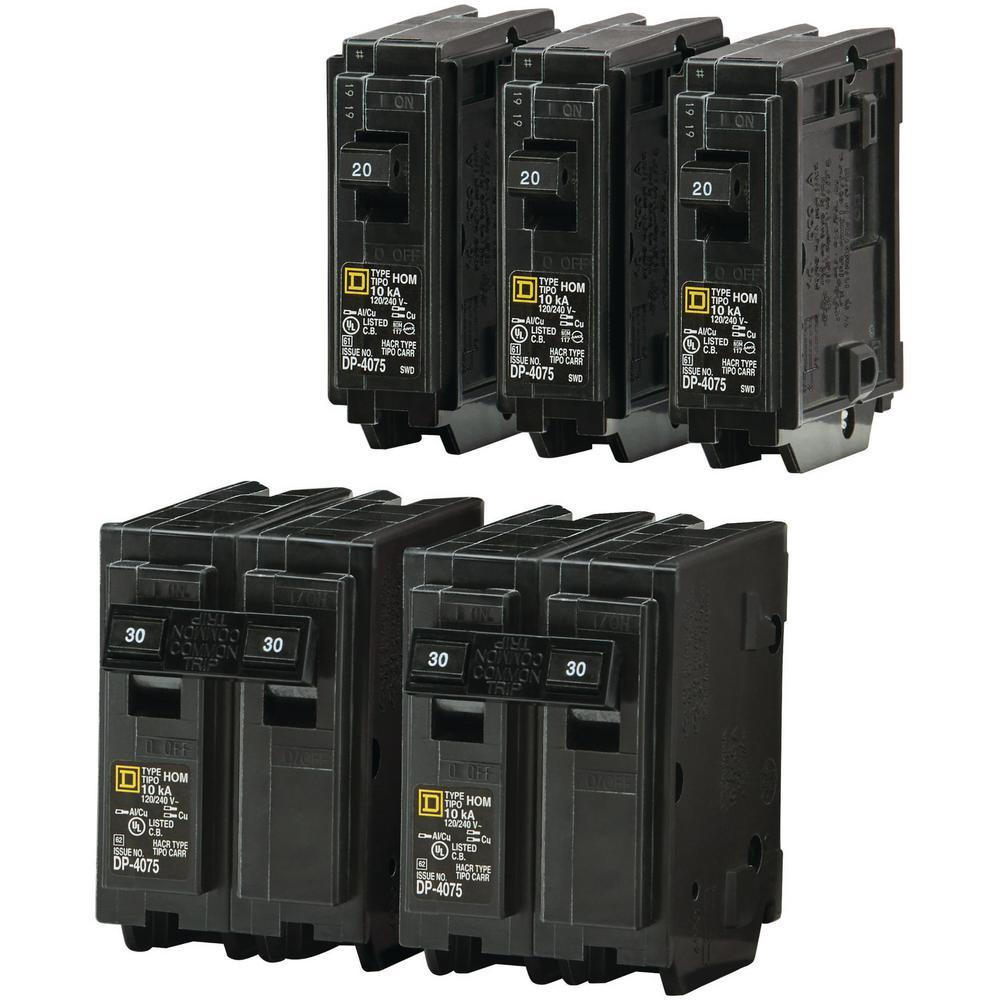

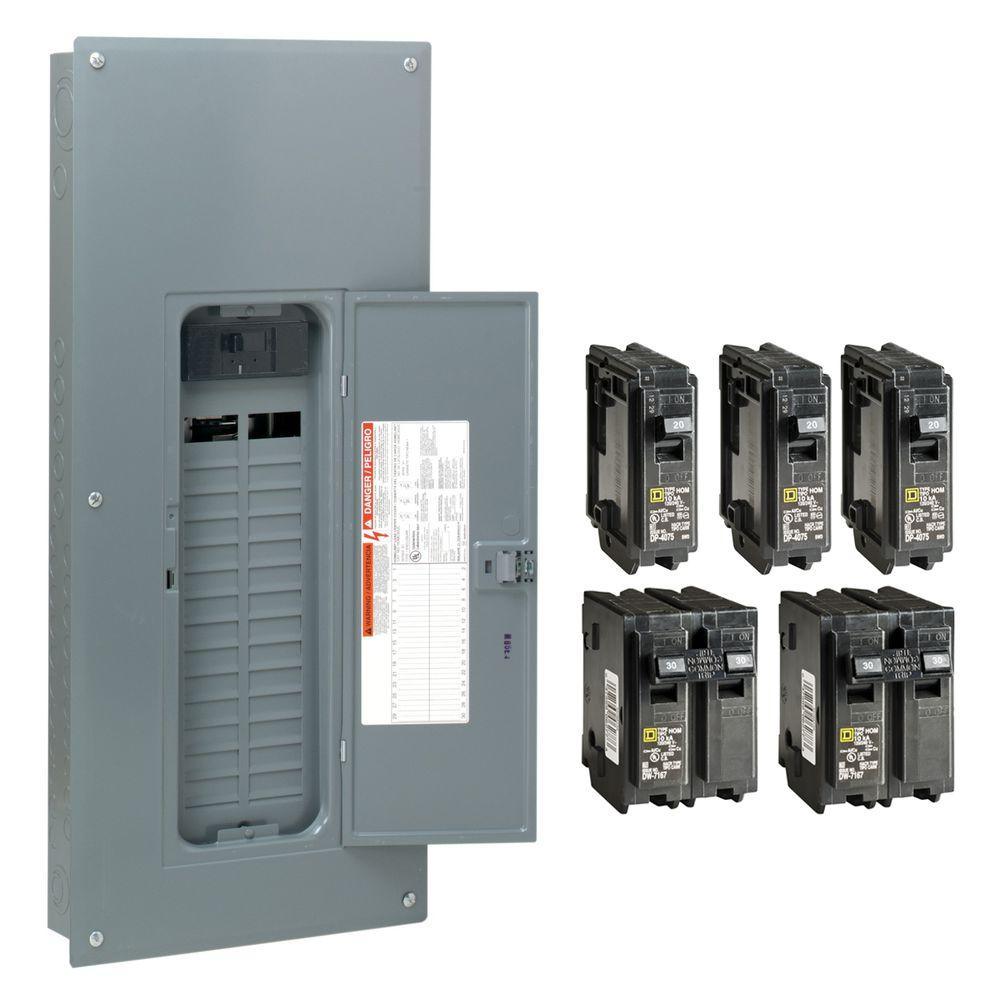

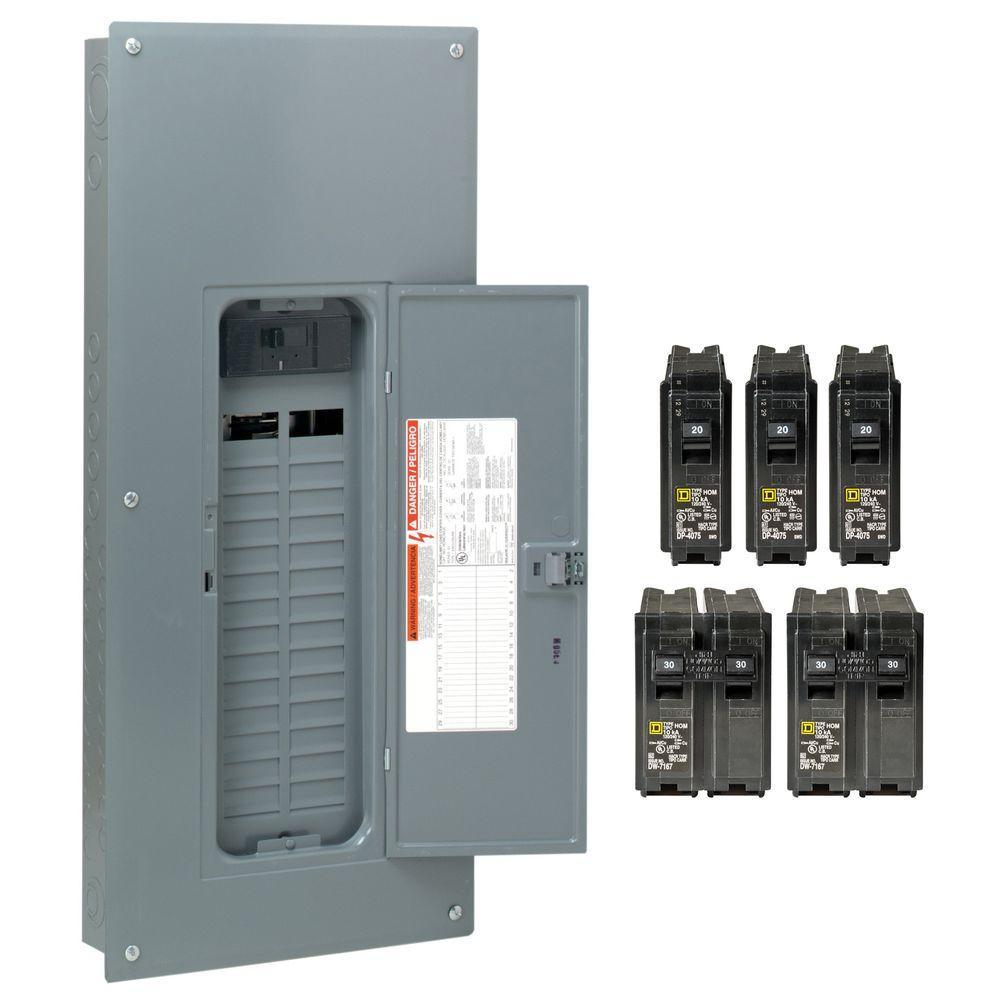

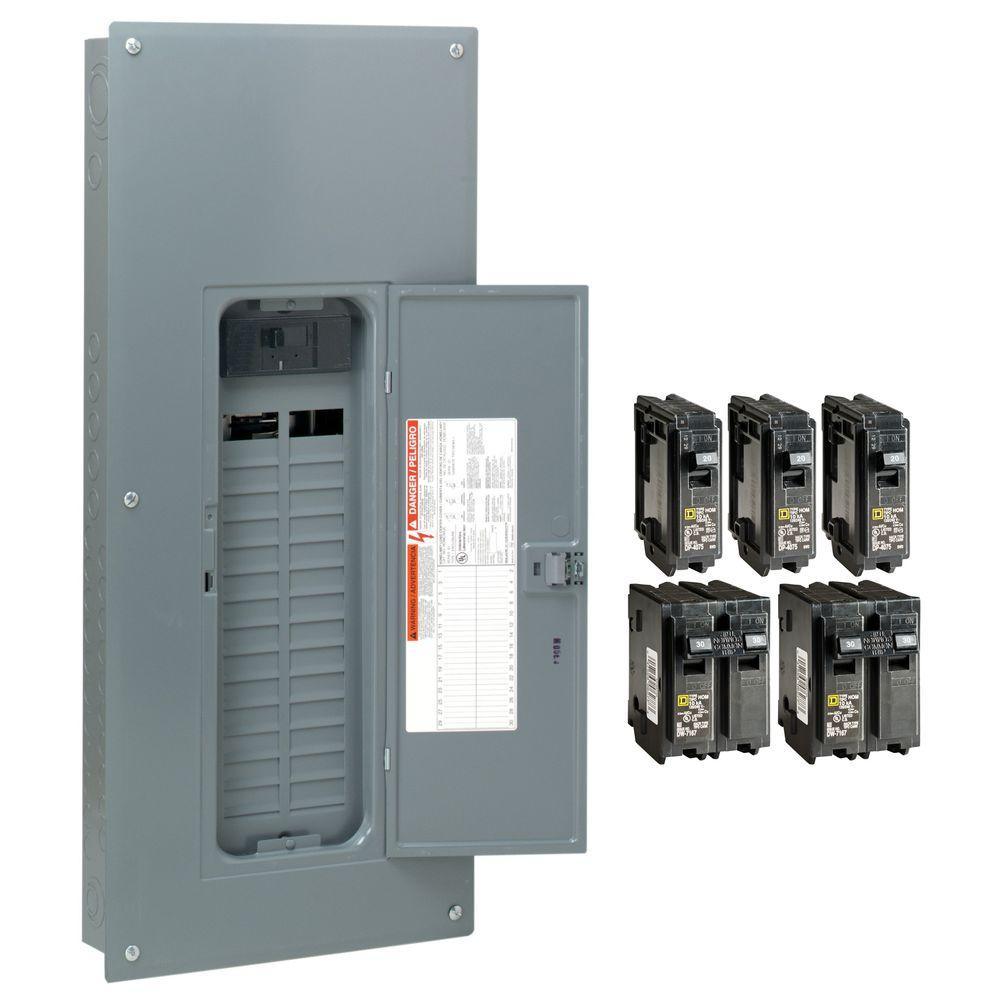

Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
Overhead/underground feed simply by rotating the device before installing
Single phase
Rated 120/240 VAC and 22,000 AIR short circuit current rating

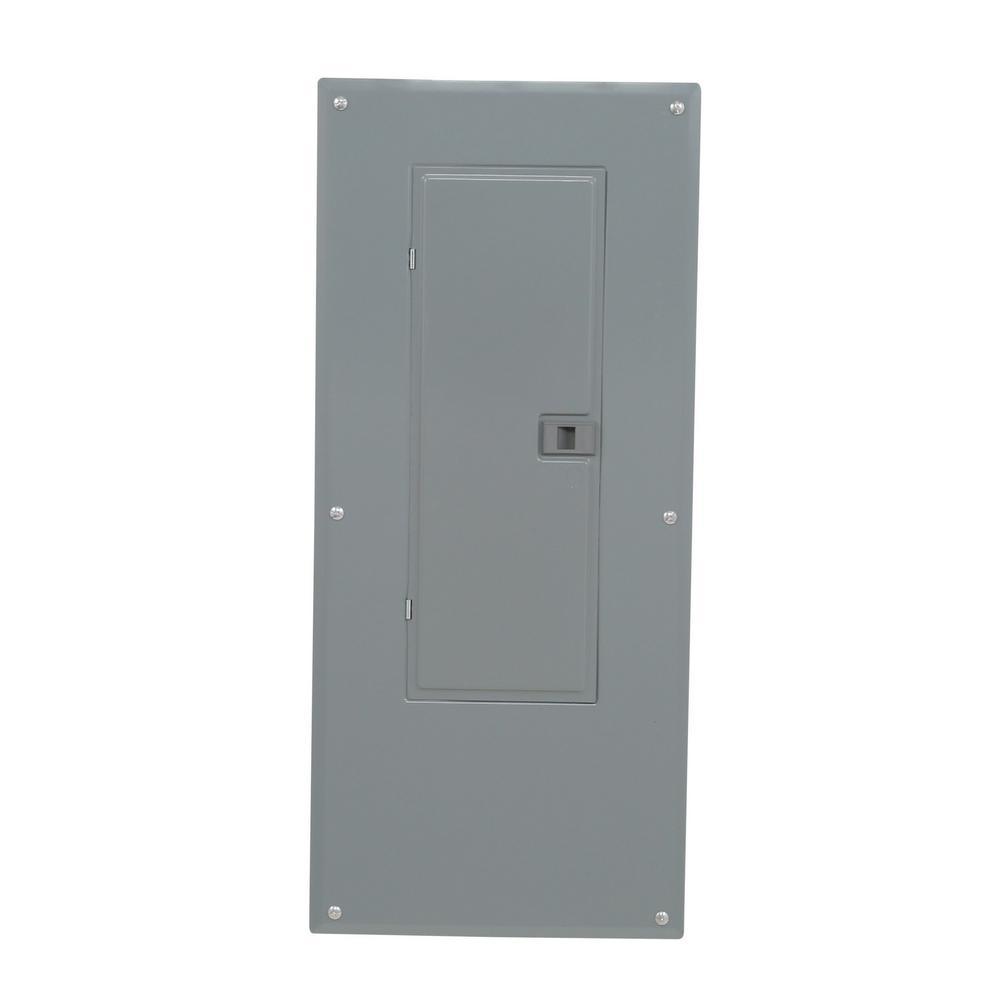

Automatic flush adjusting cover requires less time to complete the job

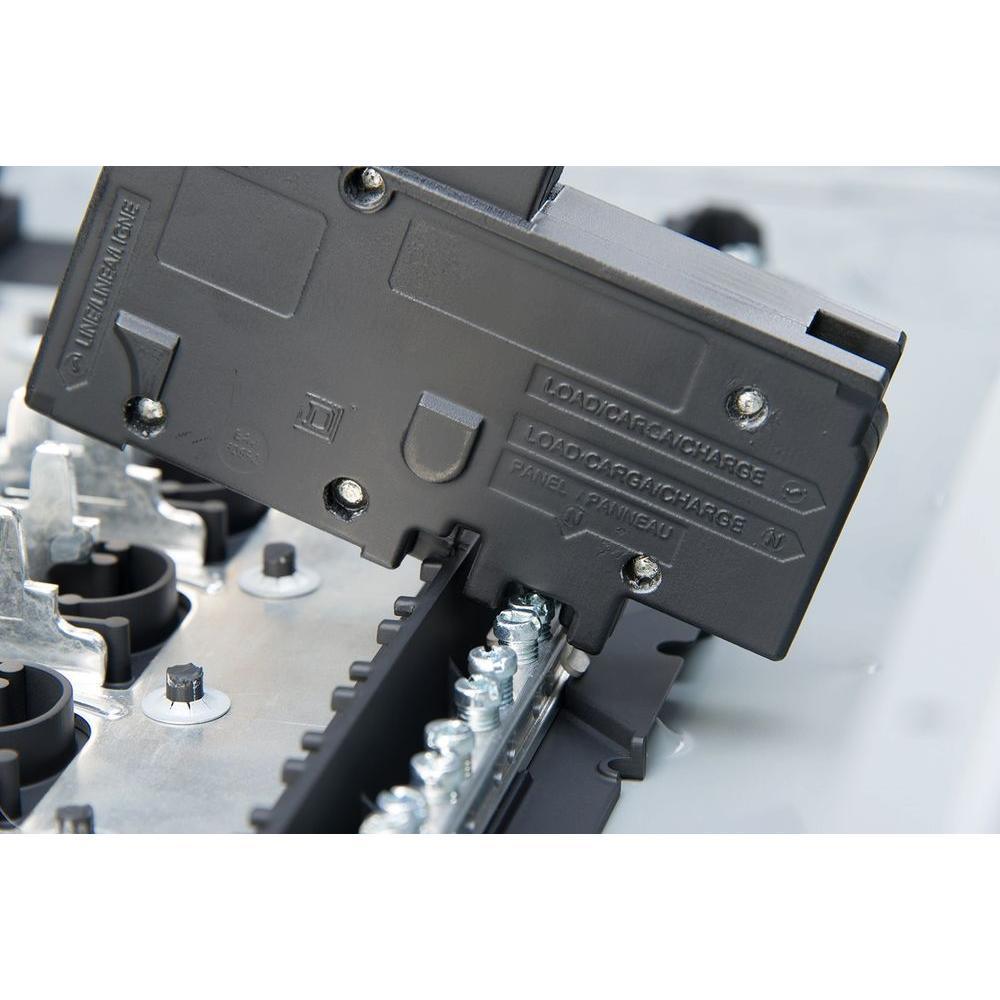

Designed with straight-in mains to save expensive cable and time

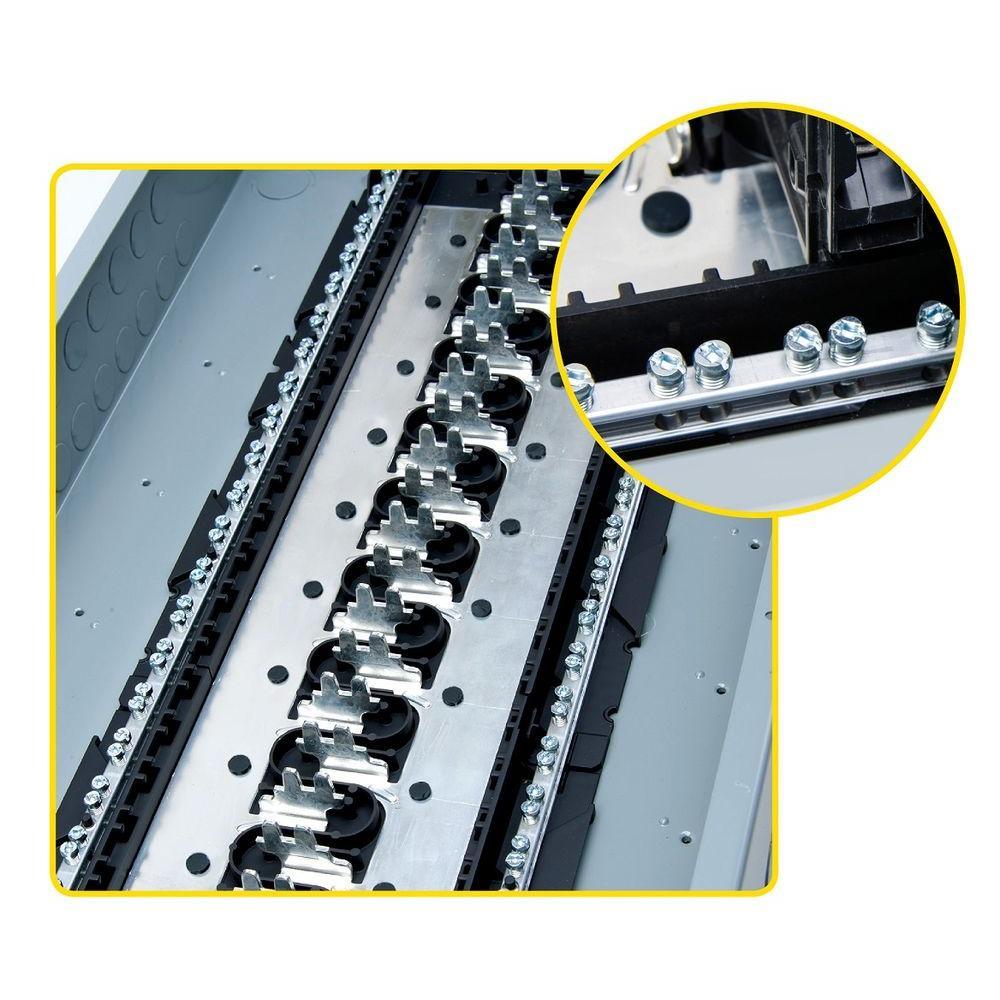

Distributed split branch neutral with terminal screws backed out offering up to 50% more terminals than UL requires; increases wiring flexibility, saves installation time and simplifies wiring
Thermoplastic interior assembly is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
3-ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
Features
Item Weight
34.83
Number of Circuits
60
Load Center Mounting Type
Flush,Surface
Electrical Product Type
Load Center and Breaker Kit
Voltage (volts)
120/240
Load Center Type
Main Breaker
Mounting Type
Plug-On Neutral
Number of Spaces
30
Indoor/Outdoor
Indoor
Returnable
180-Day
Phase Type
1 Phase
Product Weight (lb.)
34.83
Maximum Amperage (amps)
200

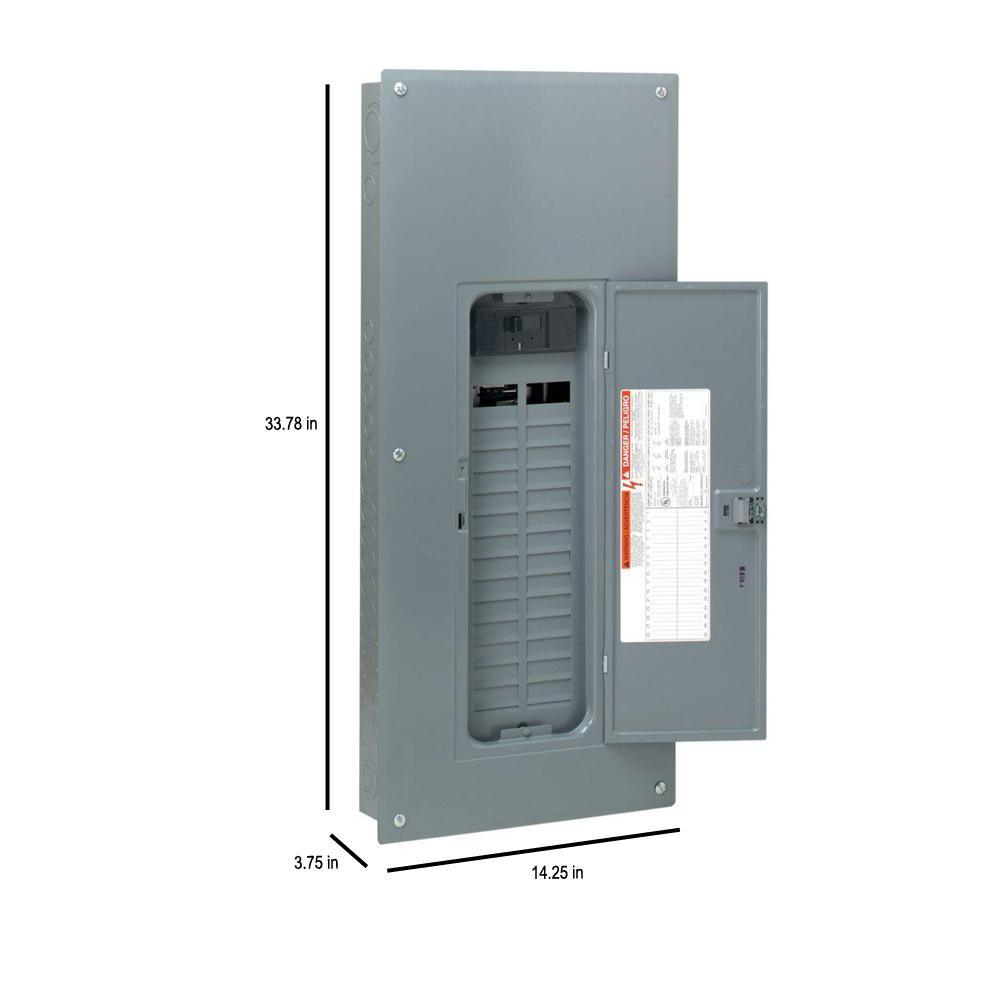

Load center height (in.)
33.78
Load center width (in.)
14.25
Load center depth (in.)
3.75
Manufacturer Warranty
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
