Homeline 200 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover - CAFI breaker ValuePack

$0.00

/
Shipping calculated at checkout.
The Square D Homeline Value Pack 200 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover and a selection of standard and arc fault breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Homeline load centers are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline load centers are engineered for fast installation and wire savings.
  • California residents

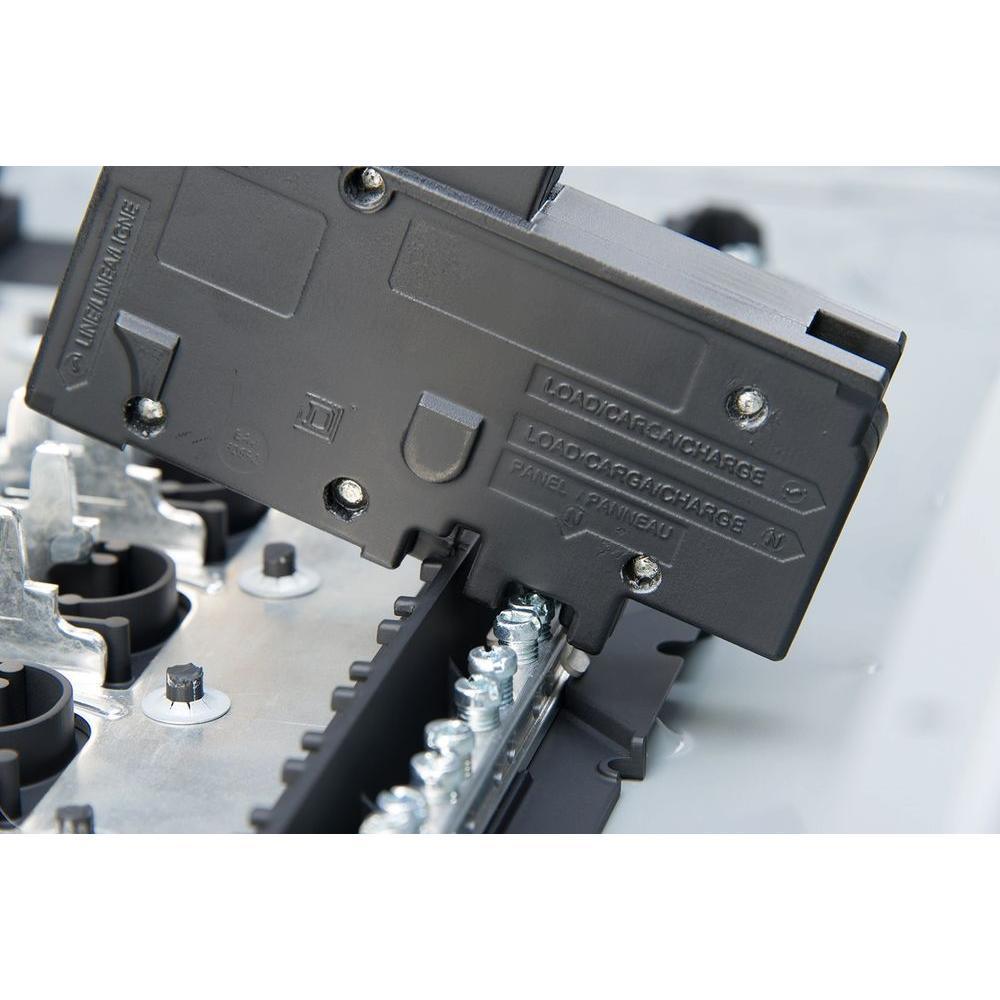

  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
  • Each pole space accepts full-size, tandem or quad breakers
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds

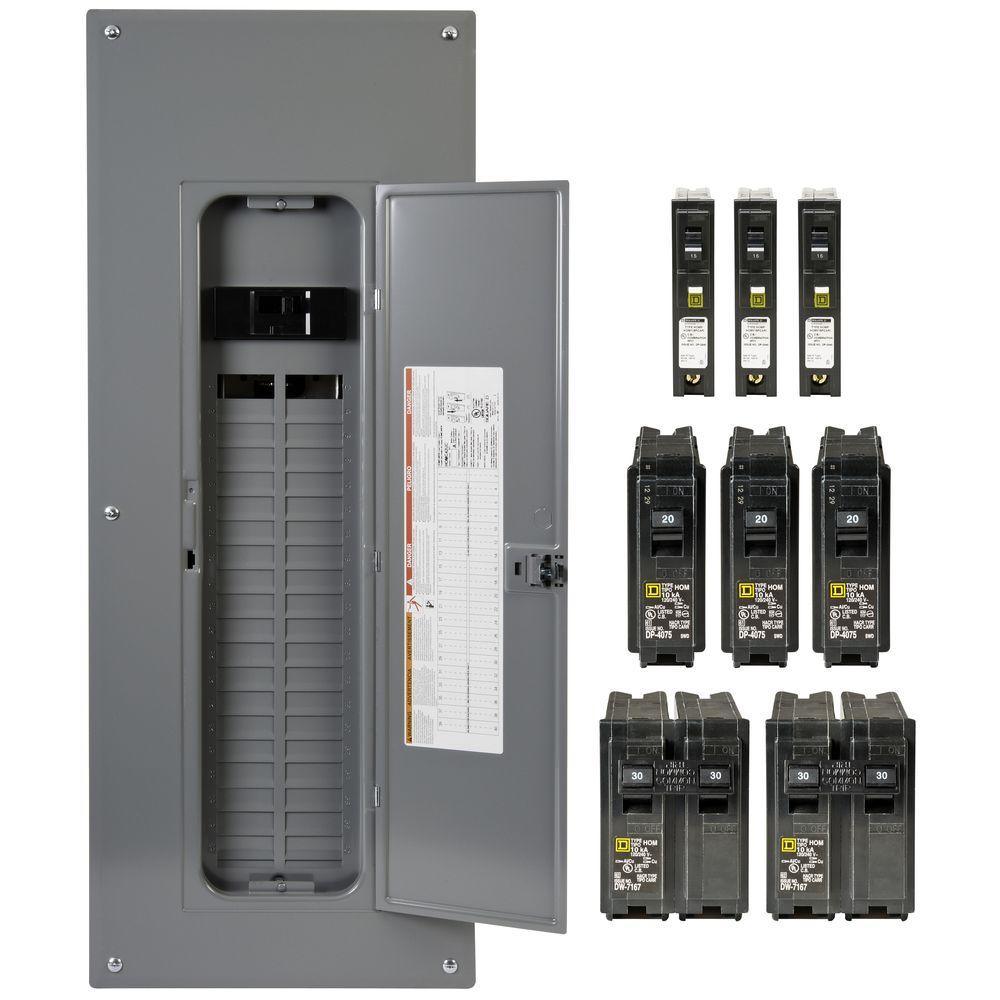

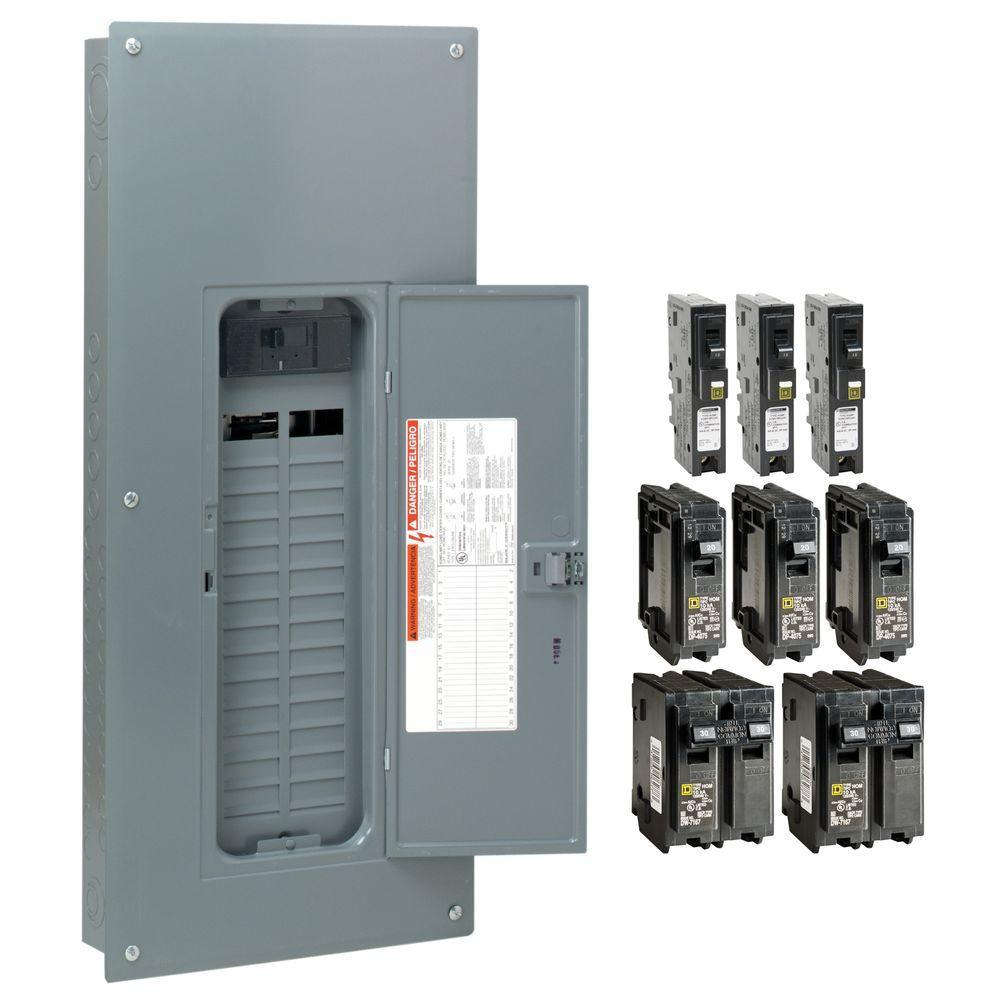

  • Includes (3) HOM115CAFI Homeline 15 Amp single-pole CAFI circuit breakers, (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers, a factory-installed 200 Amp main breaker and a combination flush/surface cover
  • Accommodates plug-on secondary surge arrestor (sold separately)
  • Overhead/underground feed simply by rotating the device before installing
  • Single phase
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Automatic flush adjusting cover requires less time to complete the job
  • Designed with straight-in mains to save expensive cable and time

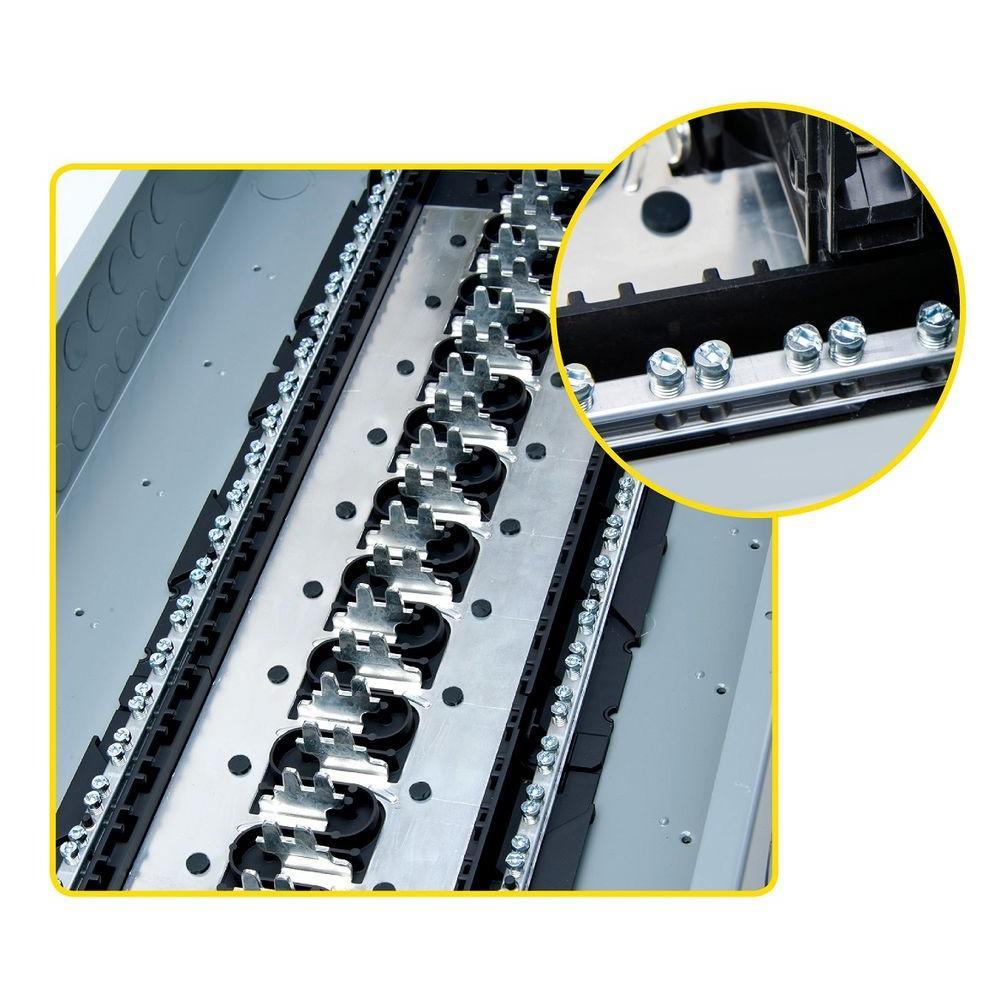

  • Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
  • 3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
  • Made in the USA





Features
Item Weight 32.87
Number of Circuits 60
Load Center Mounting Type Flush,Surface
Electrical Product Type Load Center and Breaker Kit
Voltage (volts) 120/240
Load Center Type Main Breaker
Mounting Type Plug-On Neutral
Product Weight (lb.) 32.87
Number of Spaces 30
Indoor/Outdoor Indoor
Returnable 180-Day
Phase Type 1 Phase
Maximum Amperage (amps) 200

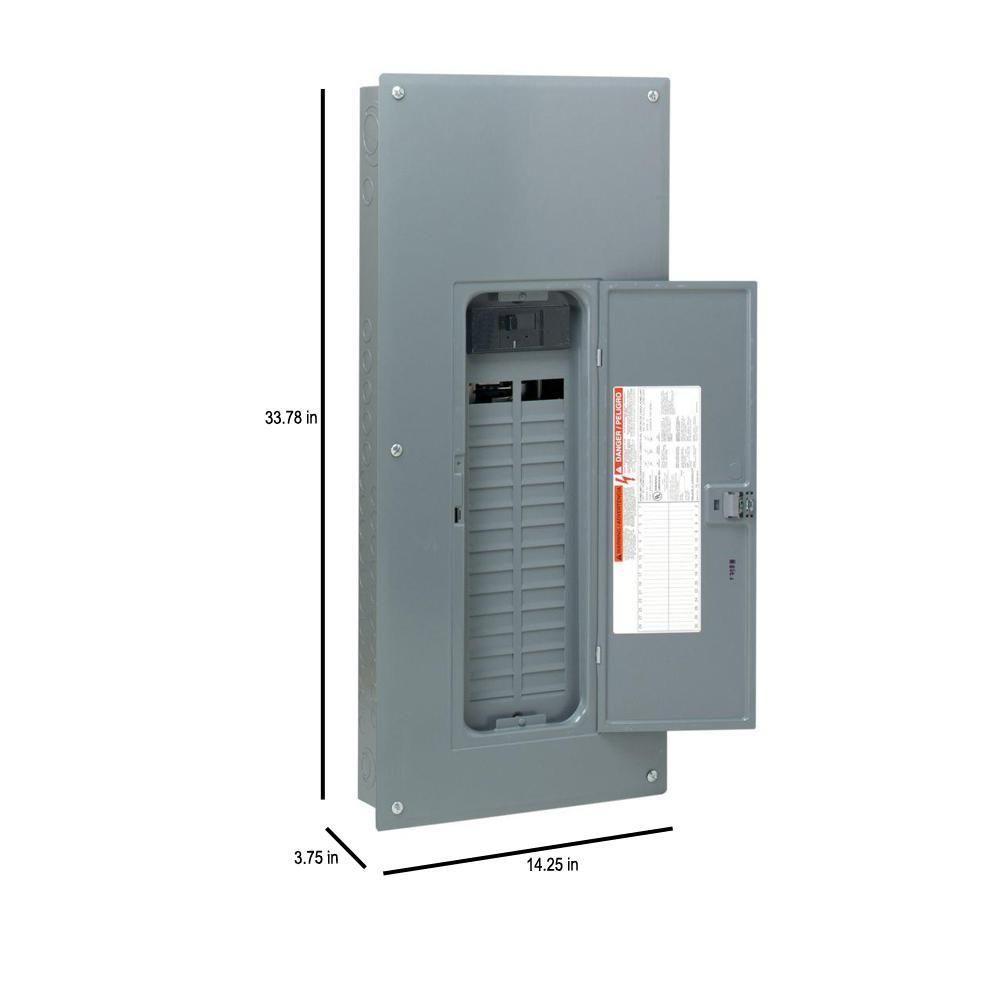

Load center height (in.) 33.78
Load center width (in.) 14.25
Load center depth (in.) 3.75
Manufacturer Warranty Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers.
Certifications and Listings UL Listed

Subject to Approval & Availability
