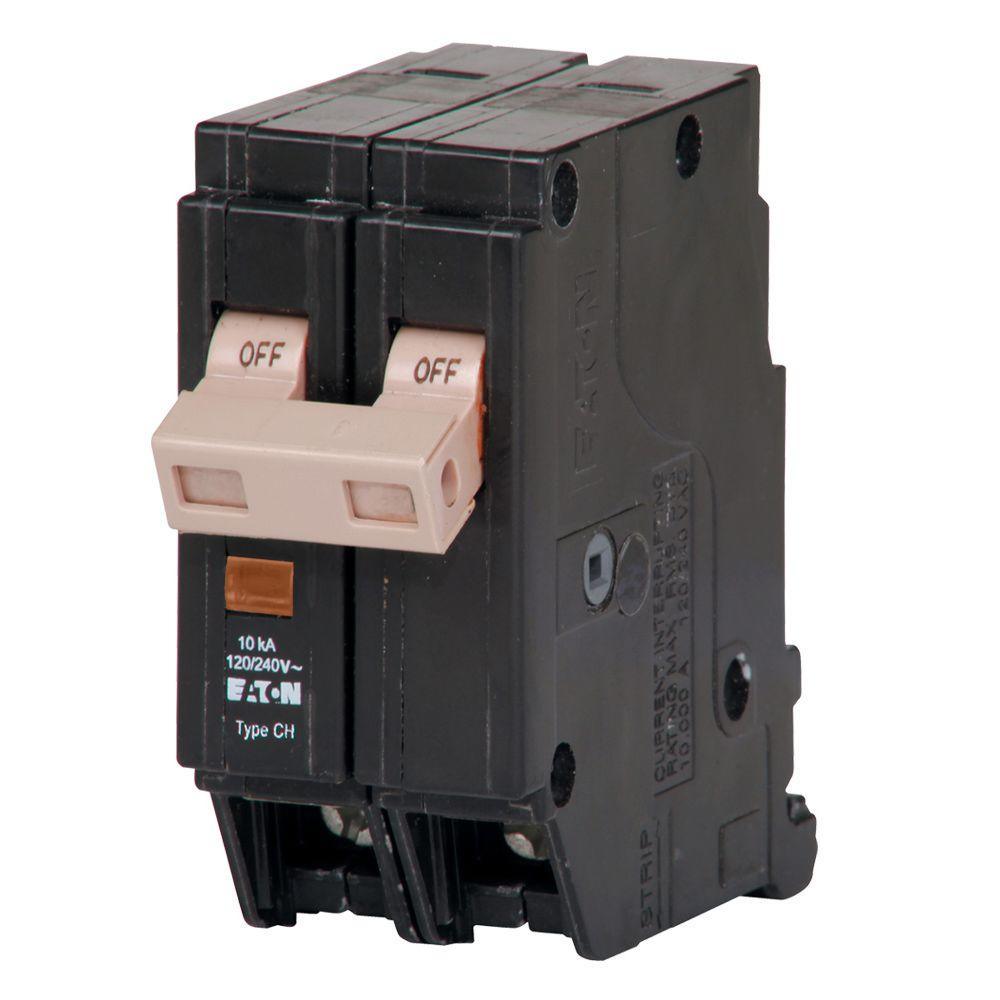

Eaton has enhanced its premium Type CH residential circuit breakers, making the best even better. In addition to the industry exclusive "Trip to OFF" and simple 1-Step Reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand.
Primary function of a circuit breaker is to protect the wire from overheating (overload) and fault currents (short circuit)
Amperage rating: 30 Amp
Double pole breaker

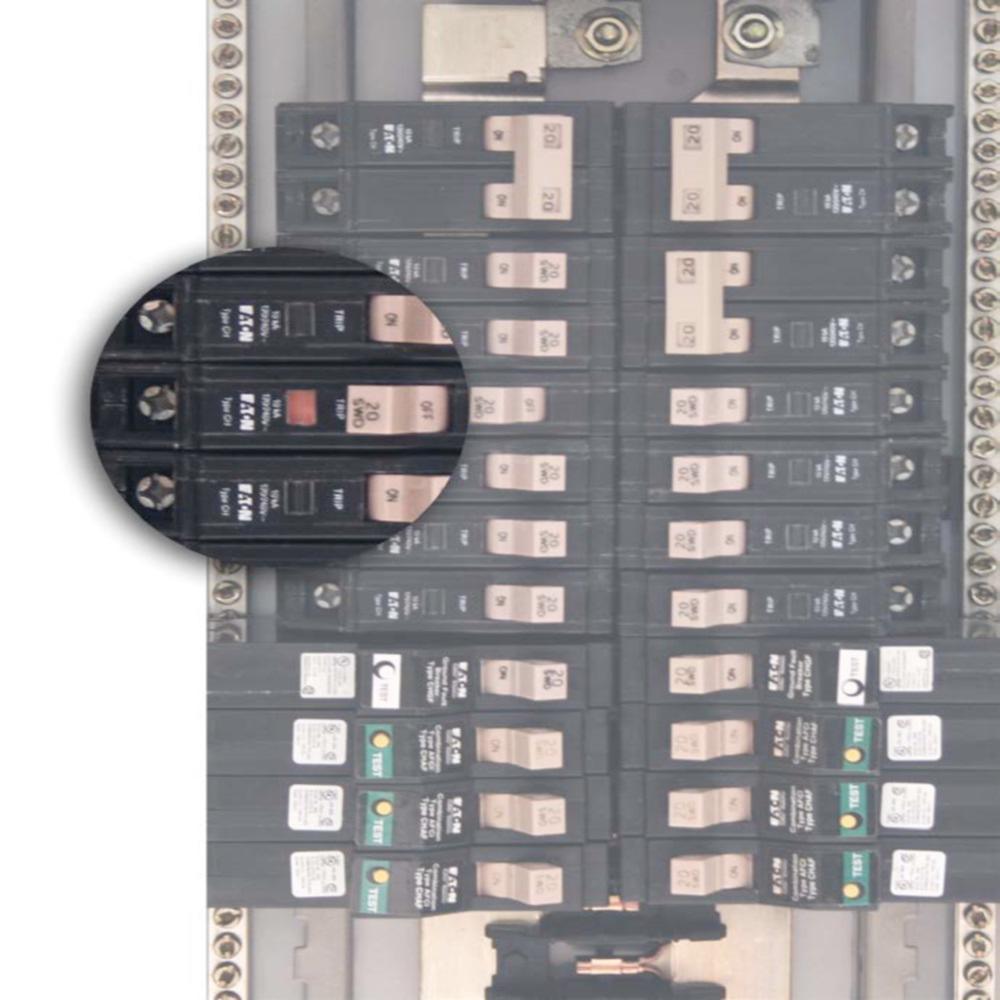

Flag visually confirms tripped status, making it easy for the homeowner to identify

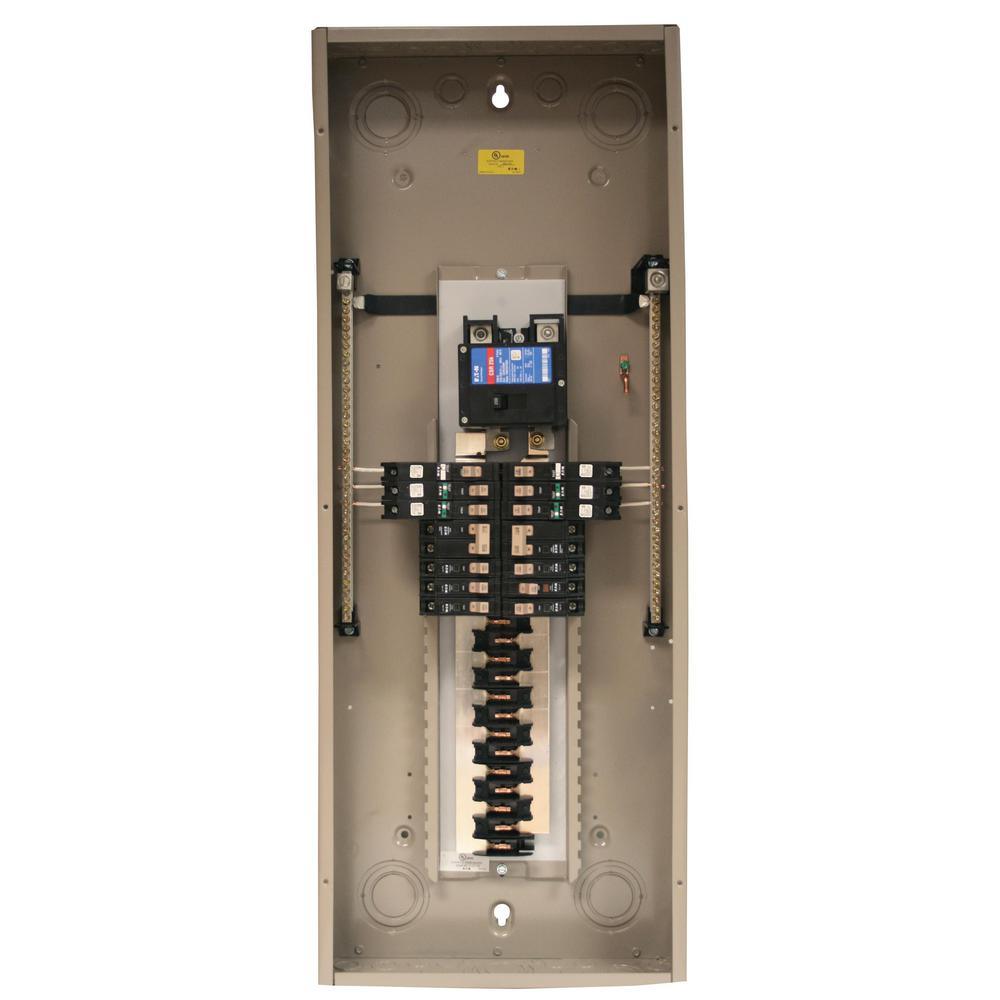

For use in type CH load centers only
Interrupt rating - 10 kAIC
Voltage rating is 120/240-Volt
(1) #14-8, (2) #14-10 AWG Cu/Al 60°C or 75°C
HACR rated
Features
Item Weight
.55
Voltage (volts)
240
Maximum Amperage (amps)
30
Number of Poles
2
Power Distribution Features
Trip Indicator
Pack Size
1
Mounting Type
Plug In
Returnable
180-Day
Interruption Type
Standard Trip
Breaker Type
Double Pole
Product Weight (lb.)
.55
Electrical Product Type
Breaker
Product Depth (in.)
10 in
Product Height (in.)
4 in
Product Width (in.)
1.50
Certifications and Listings
ANSI Certified,UL Listed
Manufacturer Warranty
Limited Lifetime Warranty according to the Warranty Policy
