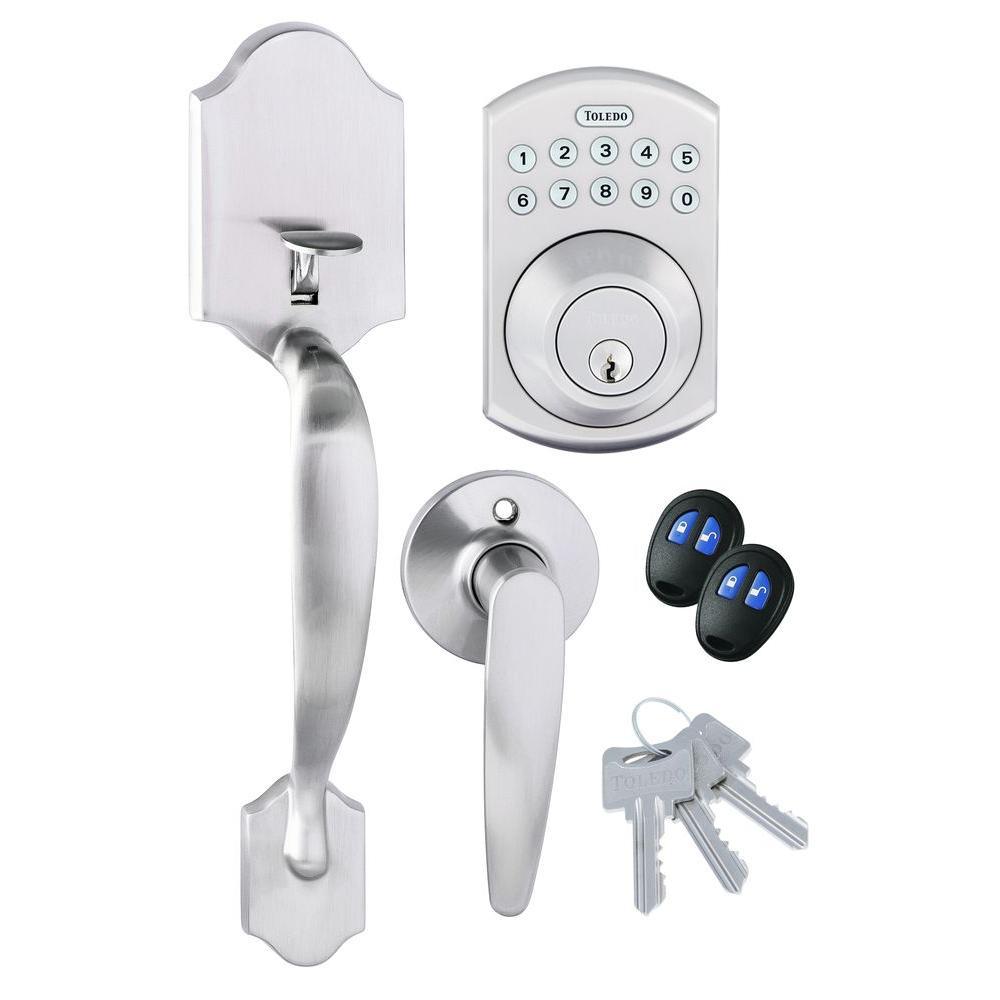

Toledo Electronic Stainless-Steel Deadbolt with handleset, is a combination of the latest technology and traditional craftsmanship. It features an Anti-Bump System in its cylinder for added security. Enjoy convenient keyless entry with the two remote controls or use one of the 3 keys included. Manage its auto lock feature to delay it closing timing. Fits standard backsets from 2 3/8” (60mm) to 2 3/4” (70) mm. Metal or wood door thickness of 1 3/8” a 2” (35mm-51mm) and diameter door face hole: 2 1/8” (54mm) deadbolt latch hole diameter 1” (25.4mm). Not intended for gates. Requires 4 AA alkaline batteries. Make an upgrade to your home security with this durable electronic lock. this lock has a lifetime warranty.
| Item Weight |
23.15 |
| Battery Size |
AA Battery |
| Door Handing |
Universal |
| Included |
Installation Instructions |
| Holding force (lb.) |
720 |
| Product Weight (lb.) |
3.85 |
| Door Lock Style |
Classic |
| Lock Type |
Keyed,Keypad |
| Commercial/Residential |
Residential |
| Handleset Product Type |
1 Piece Front & Back |
| Finish |
Satin Nickel |
| Deadbolt Type |
Single Cylinder Deadbolt |
| Security/ANSI Grade |
ANSI Grade 3 (Good) |
| Application Type |
Entry |
| Features |
Adjustable Backset,Easy Installation |
| Total Number of Keys Included |
3 |
| Lock Type2 |
Keyed Entry |
| Material |
Stainless Steel |
| Backset size (in.) |
Adjustable |
| Hardware Finish Family |
Nickel |
| Keyway |
No Keyway |
| Returnable |
180-Day |
| Door Locks & Knobs Product Type |
Keyed Handlesets |
| Deadbolt strike |
Square corner |
| Power Source |
Battery |
| Hardware Included |
Lock with Handleset |
| Minimum door thickness (in.) |
1.375 |
| Interior/Exterior |
Interior/Exterior |
| Number of Batteries Required |
4 |
| Electronic/Mechanical |
Mechanical |
| Knob/lever strike |
Square corner |
| Inside top plate width (in.) |
3 |
| Inside top plate length (in.) |
5 |
| Outside bottom handle plate width (in.) |
1.61 |
| Deadbolt cross bore diameter (in.) |
2.125 |
| Handle grip length (in.) |
12.12 |
| Knob/lever housing height (in.) |
7 |
| Knob/lever bore hole diameter (in.) |
2.125 |
| Knob/lever strike height (in.) |
2.75 |
| Projection (in.) |
2.43 |
| Faceplate depth (in.) |
3 |
| Knob/lever throw length (in.) |
5.52 |
| Knob/lever strike width (in.) |
1.10 |
| Knob/lever housing width (in.) |
2.56 |
| Outside bottom handle plate length (in.) |
2.56 |
| Deadbolt bore hole diameter (in.) |
2.125 |
| Deadbolt strike width (in.) |
2.75 |
| Faceplate width (in.) |
5 |
| Strike plate height (in.) |
1 |
| Outside key plate length (in.) |
4 |
| Strike plate width (in.) |
.75 |
| Faceplate height (in.) |
12 |
| Deadbolt strike height (in.) |
1.125 |
| Maximum door thickness (in.) |
1.75 |
| Deadbolt throw length (in.) |
1 |
| Knob/lever cross bore diameter (in.) |
1 |
| Outside top handle plate length (in.) |
12 |
| Deadbolt trim ring diameter (in.) |
2.56 |
| Outside top handle plate width (in.) |
5 |
| Outside key plate width (in.) |
5 |
| Certifications and Listings |
ADA Compliant,UL Listed |
| Manufacturer Warranty |
Lifetime Warranty |
