Cylinder Lock, 1-1/4 in., Schlage Shaped Keys
Regular price $7.53/
Shipping calculated at checkout.

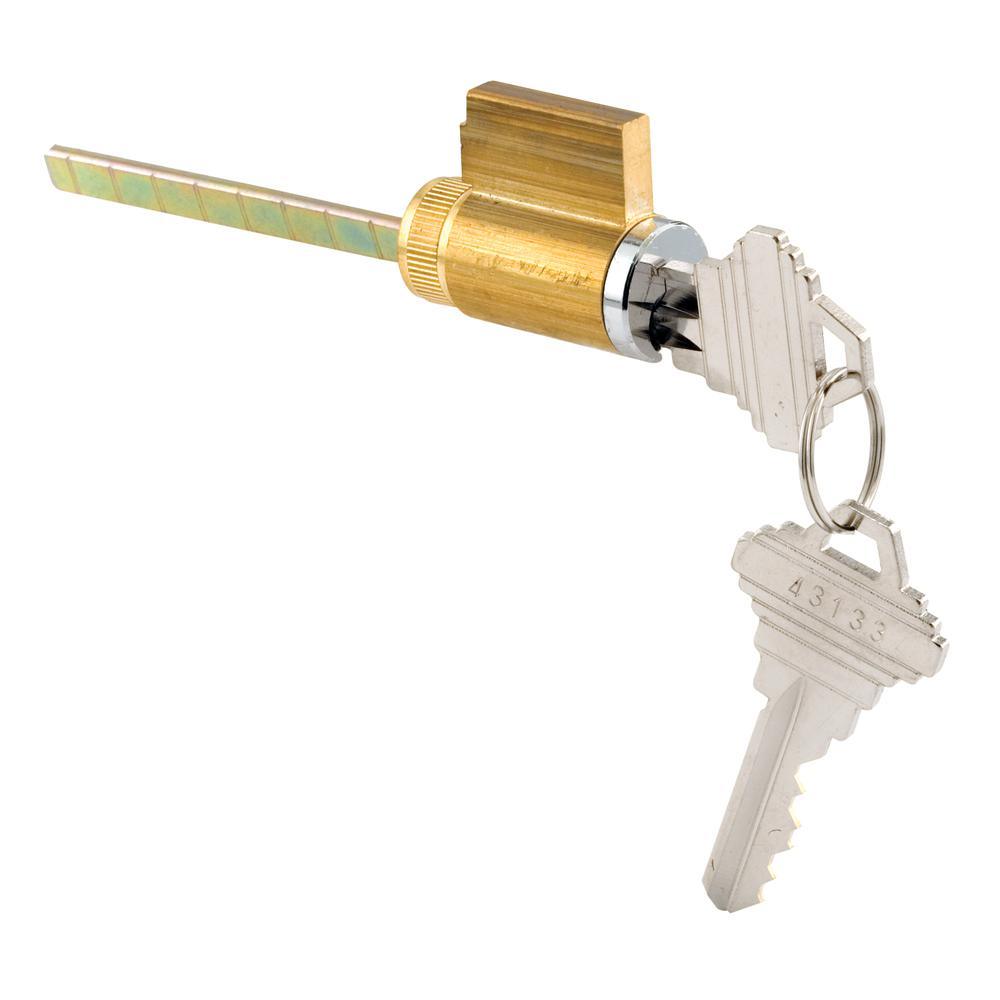

This Schlage-shaped keyway and cylinder lock was designed to only aesthetically match actual Schlage keys and keyways, as it was designed specifically to be used in surface-mounted patio door handle sets. This cylinder lock is constructed of brass, it comes finished with a chrome face and features a hardened cut-away tailpiece. It works with vertical and 45 degree keyways (angle is determined when latch is extended to the locked position). *Tip: If keyed-alike cylinders are desired for more than one patio door handle set lock, kindly see Prime-Line part E 2104. Note: The components of these cylinder locks are not compatible and cannot be rekeyed to match other Schlage locks, nor will Schlage keys fit into this cylinder lock.
Features
- California residents
- 5-Pin Tumbler Lock
- Solid Brass Housing
- Cylinder Length 1-1/4 in.
- Schlage Shaped Keys
- Hardened break away tail piece

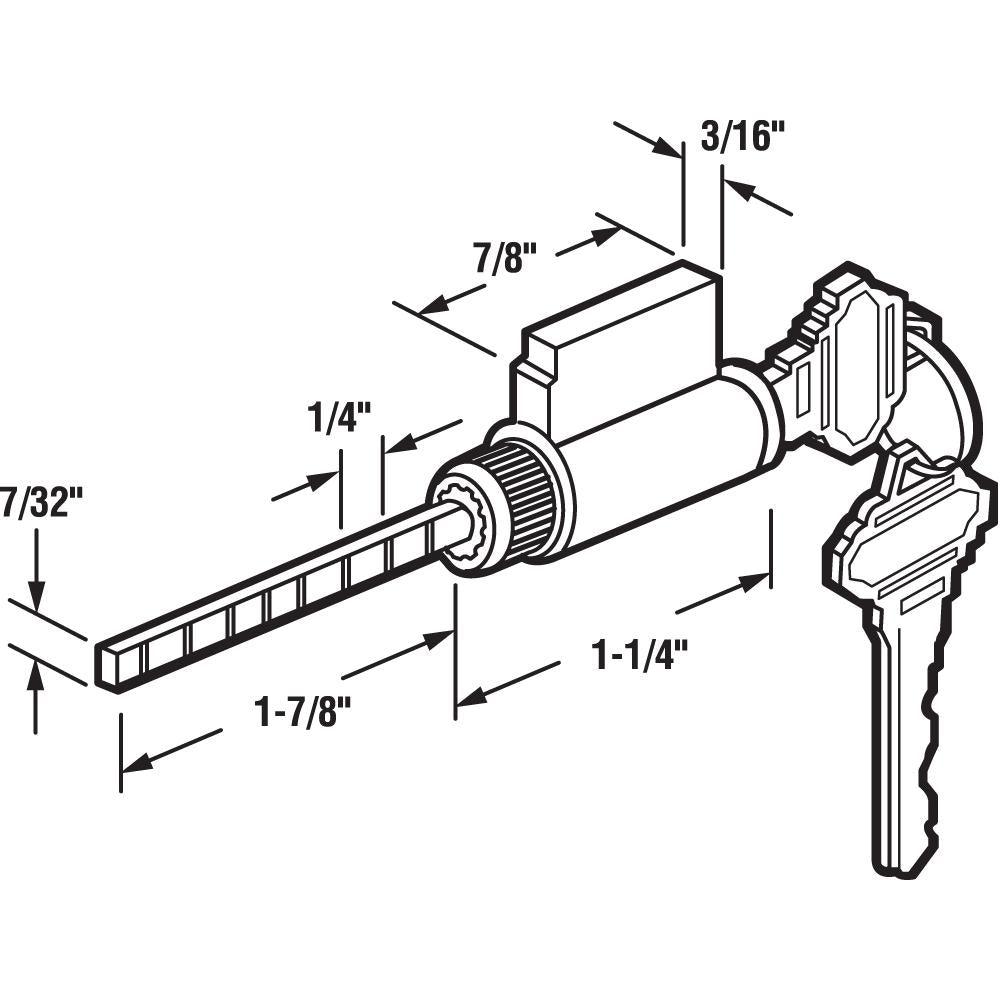

- For further dimensional information, please see the line drawing
- No tools are required for installation
- For further dimensional information, please see the Line Drawing
Features
| Item Weight | 0.19 |
| Door Locks & Knobs Product Type | Cylinders |
| Commercial/Residential | Commercial,Residential |
| Finish | Brass |
| Interior/Exterior | Interior/Exterior |
| Security/ANSI Grade | N/A |
| Hardware Finish Family | Brass |
| Product Weight (lb.) | .20 |
| Returnable | 180-Day |
| Material | Cast Metal |
| Kit, Part, & Accessory Type | Cylinders |
| Product Depth (in.) | 3.125 |
| Product Height (in.) | 7.438 |
| Product Width (in.) | 3.813 |
| Manufacturer Warranty | Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse. |
| Certifications and Listings | No Certifications or Listings |
