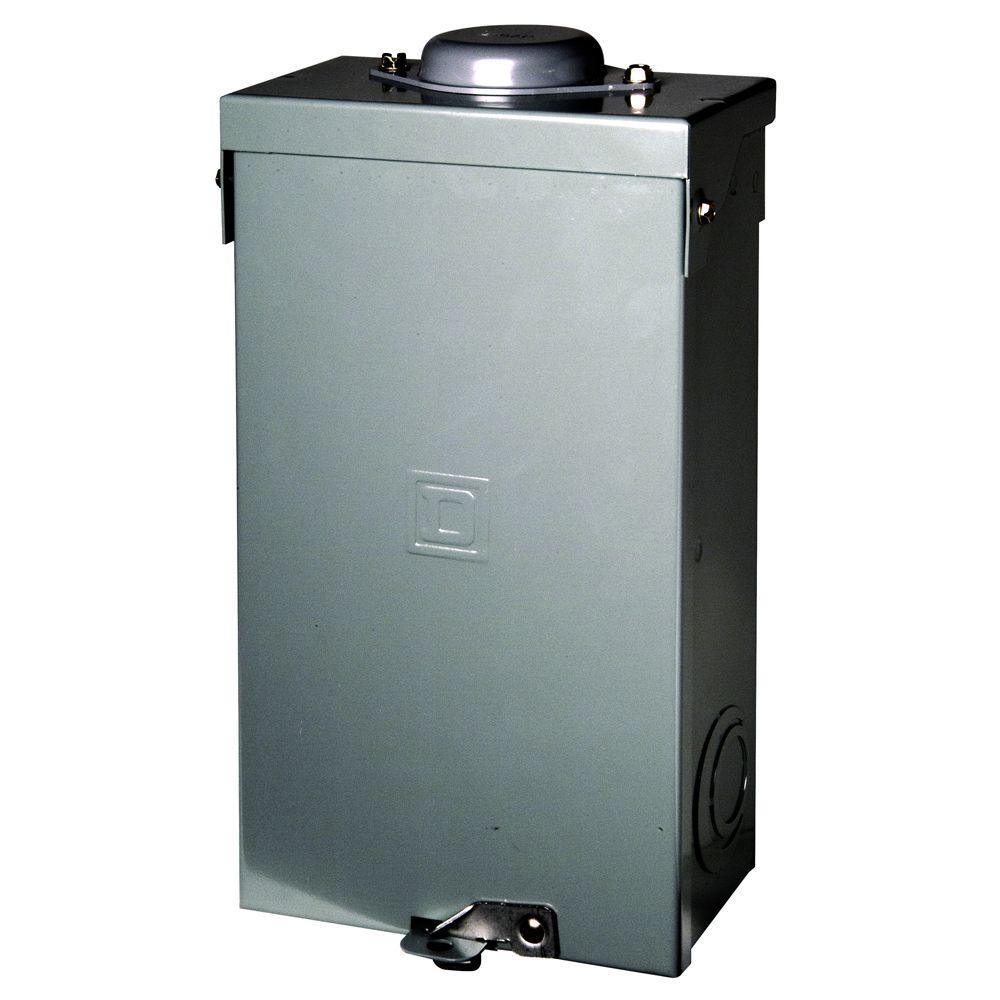

QO 100 Amp 2-Pole Outdoor Circuit Breaker Enclosure

$0.00

/
Shipping calculated at checkout.
The Square D by Schneider Electric QO Outdoor Circuit Breaker Enclosure accepts QO two-pole breakers up to 100 Amps and is suitable for use as service entrance equipment. This device is rated Type-3R for outdoor use. This enclosure accepts a B-Hub for top feed applications (Circuit Breakers and B-Hubs sold separately). For non-service entrance equipment applications, ground bar PKOGTA-2 may be needed and is sold separately.
  • California residents
  • QO 100 Amp outdoor circuit breaker enclosure
  • PKOGTA-2 ground bar kit and B-hubs sold separately
  • Not for use with single-pole breakers. Two-pole QO, QO-GFI, QO-AFI, QO-EPD and QO-PL circuit breakers sold separately
  • Type-3R enclosure for outdoor use
  • Single-phase, 100 Amp, 120/240-Volt AC rated
  • 2-1/2 in. type-B hub on the top and a 1-1/2 in. maximum knockout on the bottom
  • Surface mountable for easy installation
  • ANSI certified and UL listed


Features
Item Weight 8.42
Maximum Amperage (amps) 100
Product Weight (lb.) 8.42 lb
Number of Circuits 2
Voltage (volts) 120/240
Load Center Type Main Breaker
Load Center Mounting Type Surface
Electrical Product Type Load Center
Indoor/Outdoor Outdoor
Returnable 180-Day
Phase Type 1 Phase
Mounting Type Plug-On
Number of Spaces 2

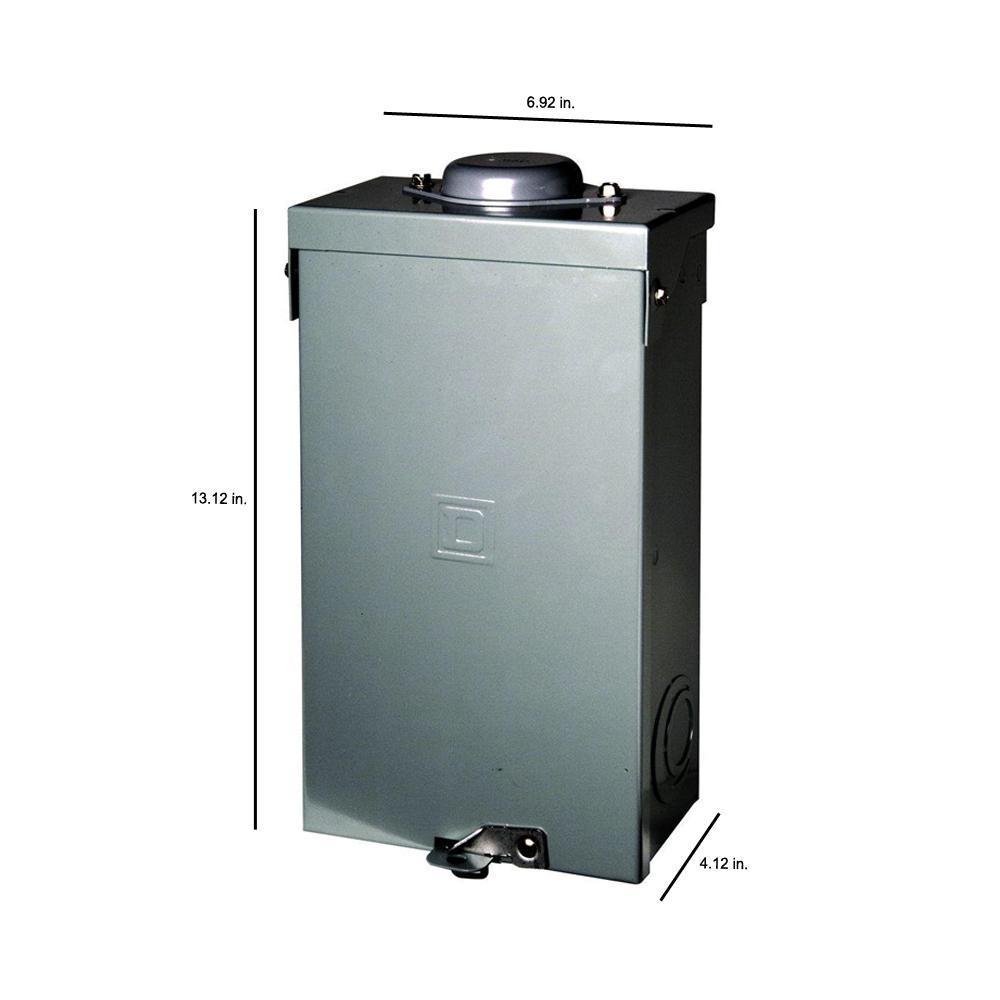

Load center width (in.) 6.92
Load center depth (in.) 4.12
Load center height (in.) 13.12
Manufacturer Warranty Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.
Certifications and Listings UL Listed
