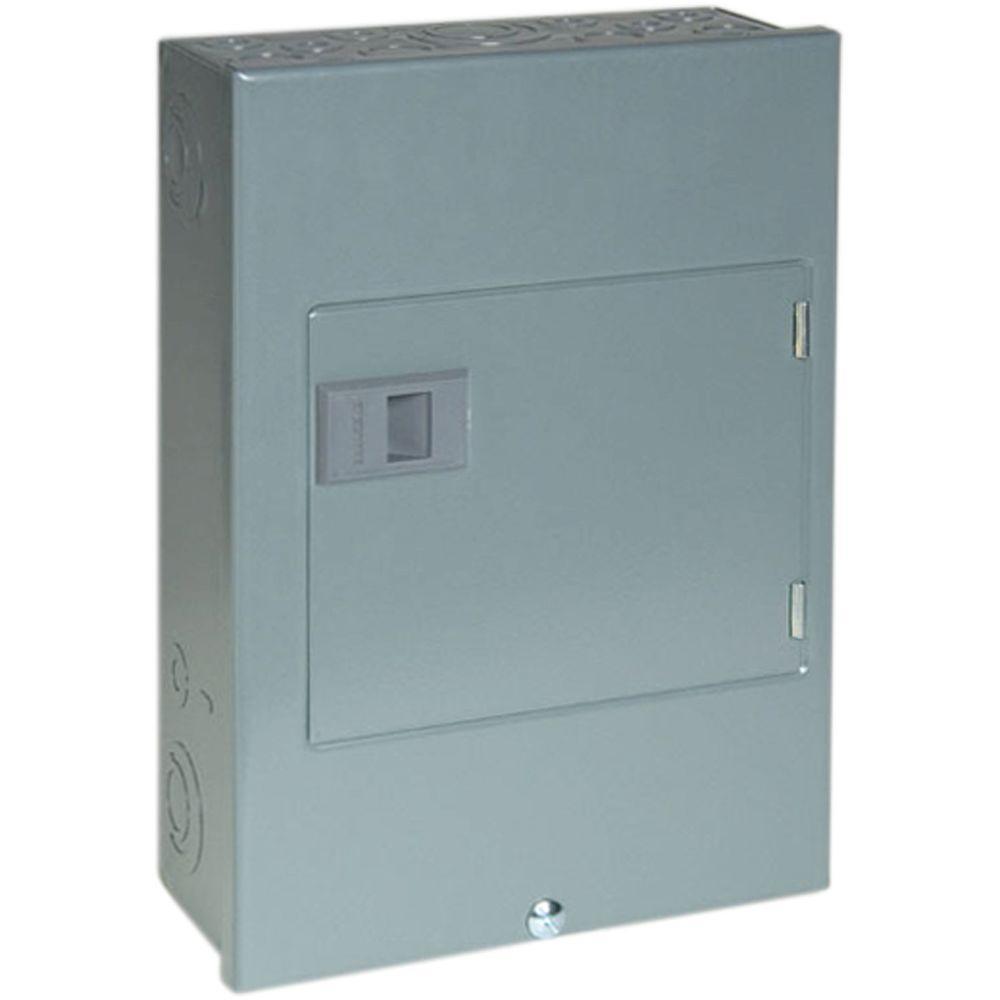

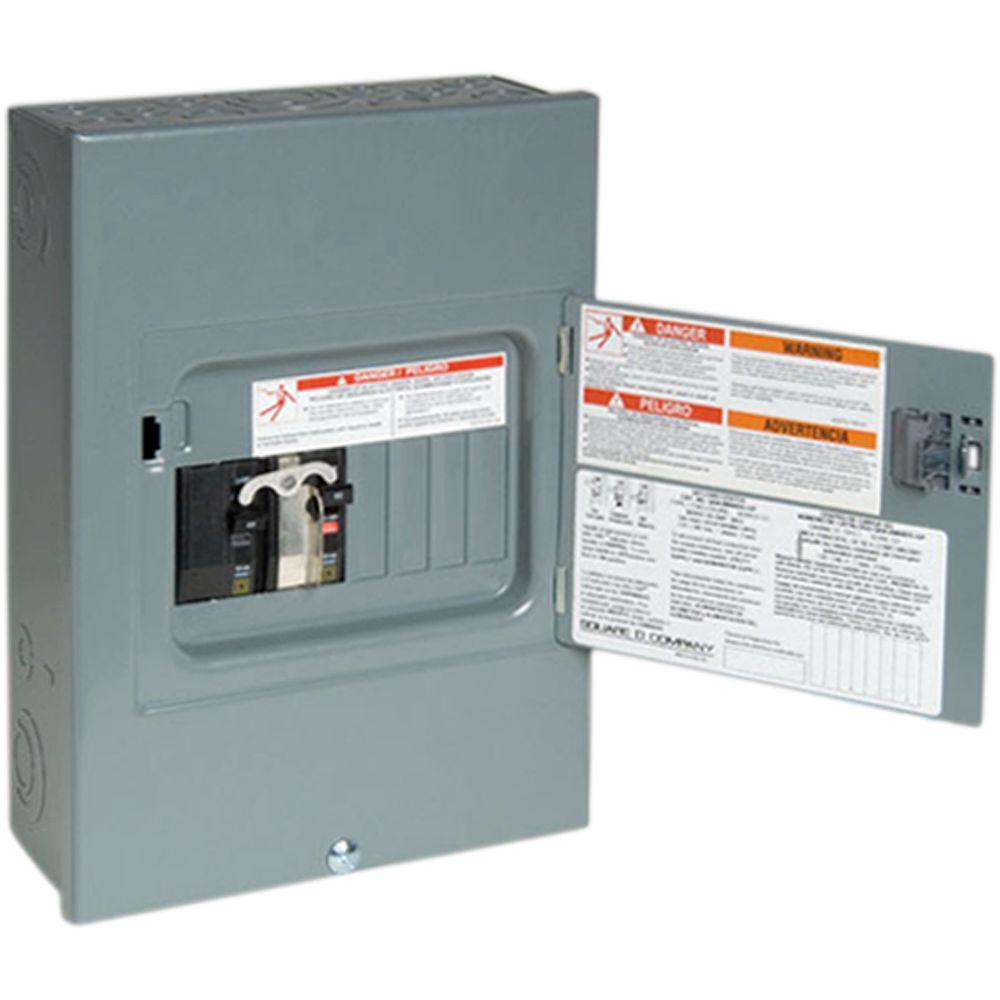

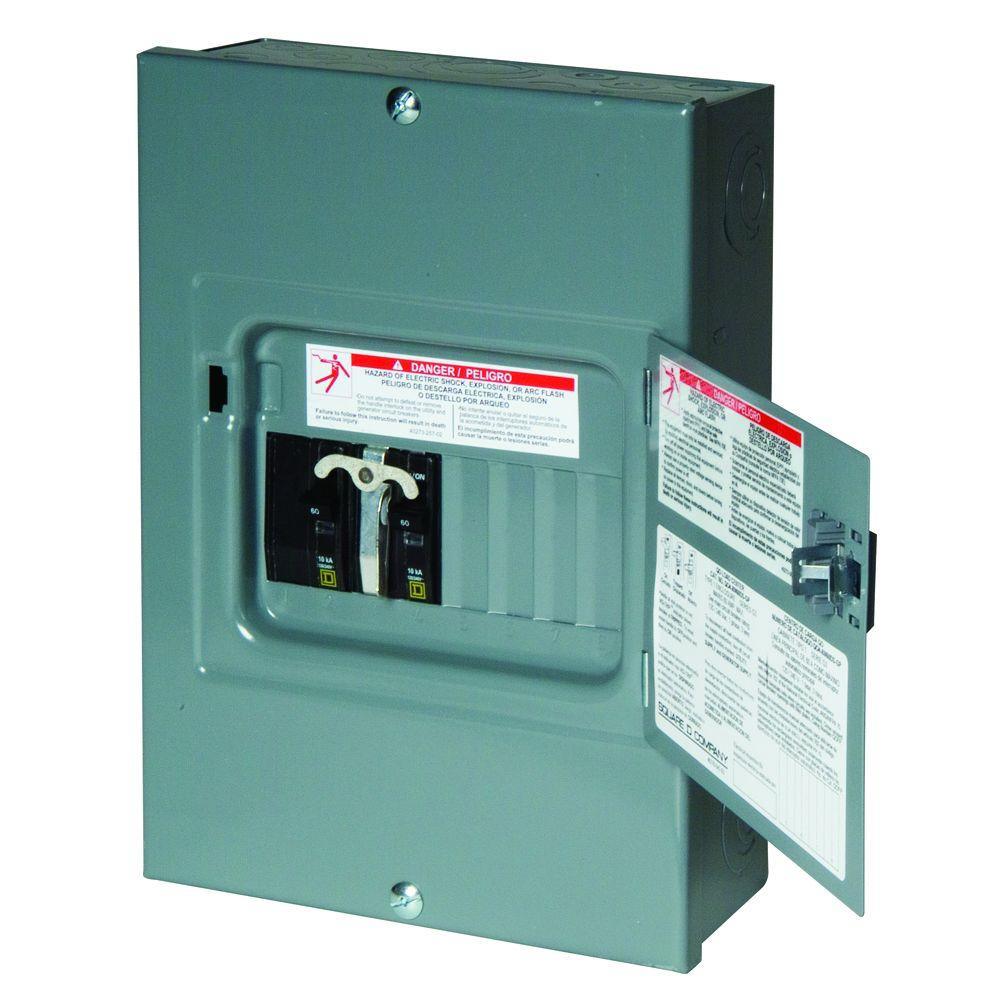

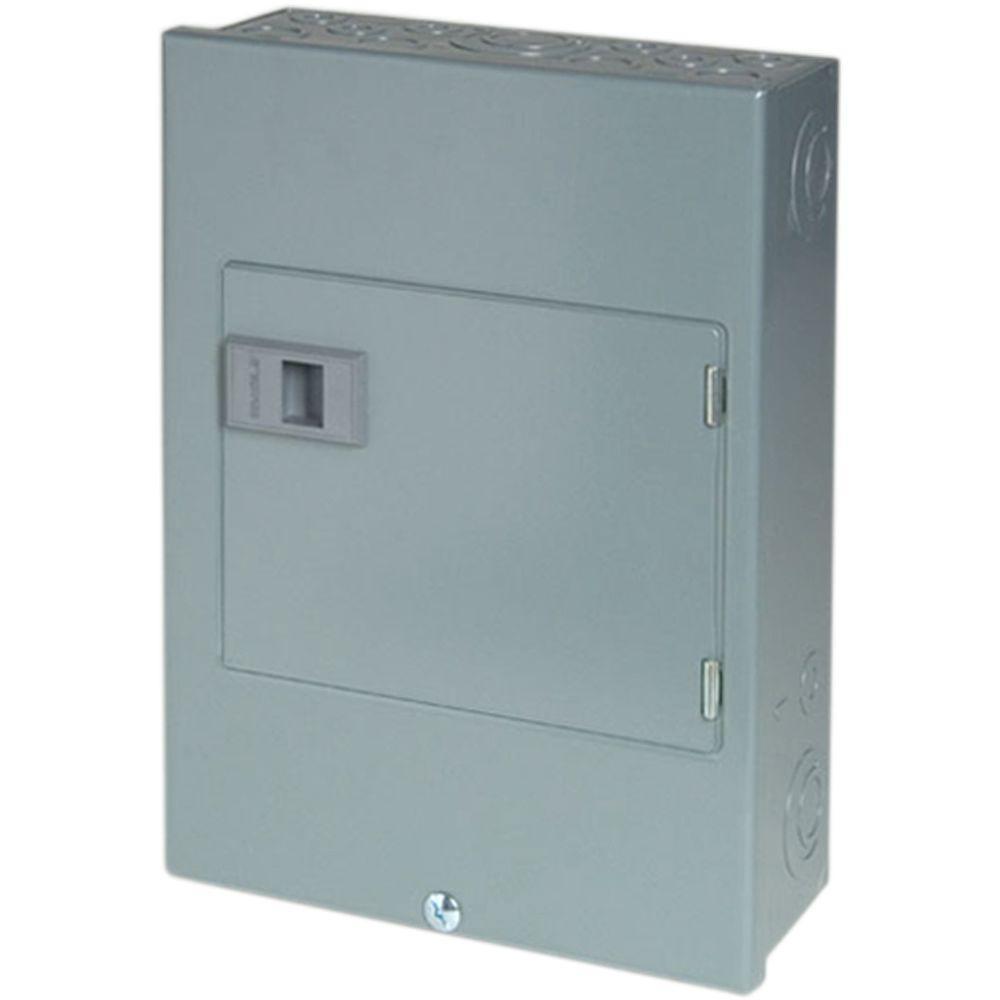

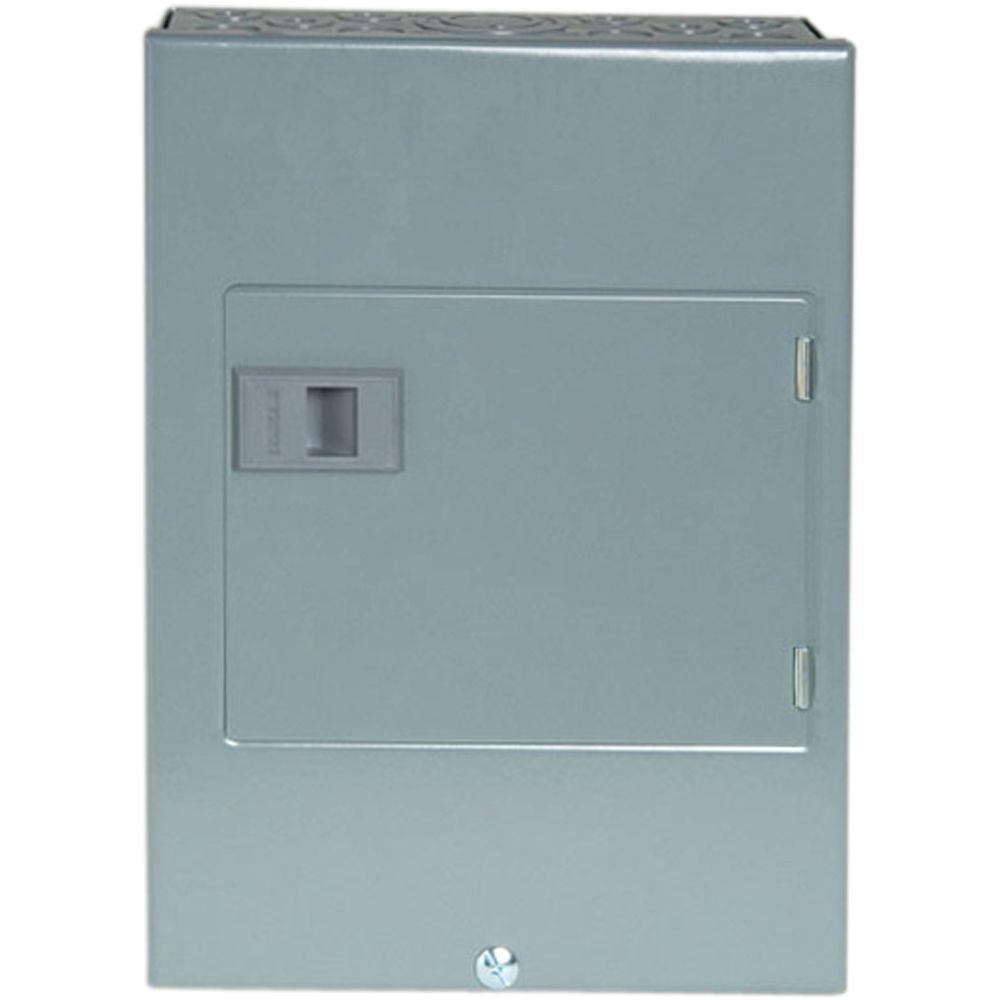

The QO 60-Amp 4-Space 8-Circuit Generator Panel is intended to switch between utility power and a standby power source. The panel can accommodate overhead or underground feed with 1-1/2 in. maximum knockouts in the top and bottom end walls. The generator panel features 2 factory-installed main circuit breakers and a mechanical interlock to help ensure that only 1 main circuit breaker is in the on position at any time. In the event of power outages, the Square D QO Generator Panel is the ideal way to safely connect specific circuits in the home to an alternate power source, allowing for uninterrupted service.
California residents
Change from the utility power to a standby source with the flip of 2 QO main circuit breakers
PK7GTA ground bar kit is sold separately
Overhead/underground feed simply by rotating the device before installing
Single phase
Rated 120/240 VAC and 10,000 AIR short circuit current rating
Automatic flush adjusting cover requires less time to complete the job
Designed with straight-in mains to save expensive cable and time
Split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
Thermoplastic interior is among the most rugged in the industry
Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
Convertible mains allow you to meet changing job site requirements by field converting main breaker load centers to main lugs and vice versa
For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
3 ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
ANSI certified and UL listed
Features
Item Weight
9.45
Number of Spaces
4
Maximum Amperage (amps)
60
Number of Circuits
8
Load Center Mounting Type
Flush,Surface
Voltage (volts)
120/240
Load Center Type
Main Breaker
Electrical Product Type
Load Center
Indoor/Outdoor
Indoor
Product Weight (lb.)
9.56
Returnable
180-Day
Phase Type
1 Phase
Mounting Type
Plug-On
Load center depth (in.)
3.8
Load center width (in.)
8.88
Load center height (in.)
12.57
Manufacturer Warranty
Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty.
