3/4 in. 150 psi RJ Anti-Siphon Valve with Flow Control

$0.00

/
Shipping calculated at checkout.

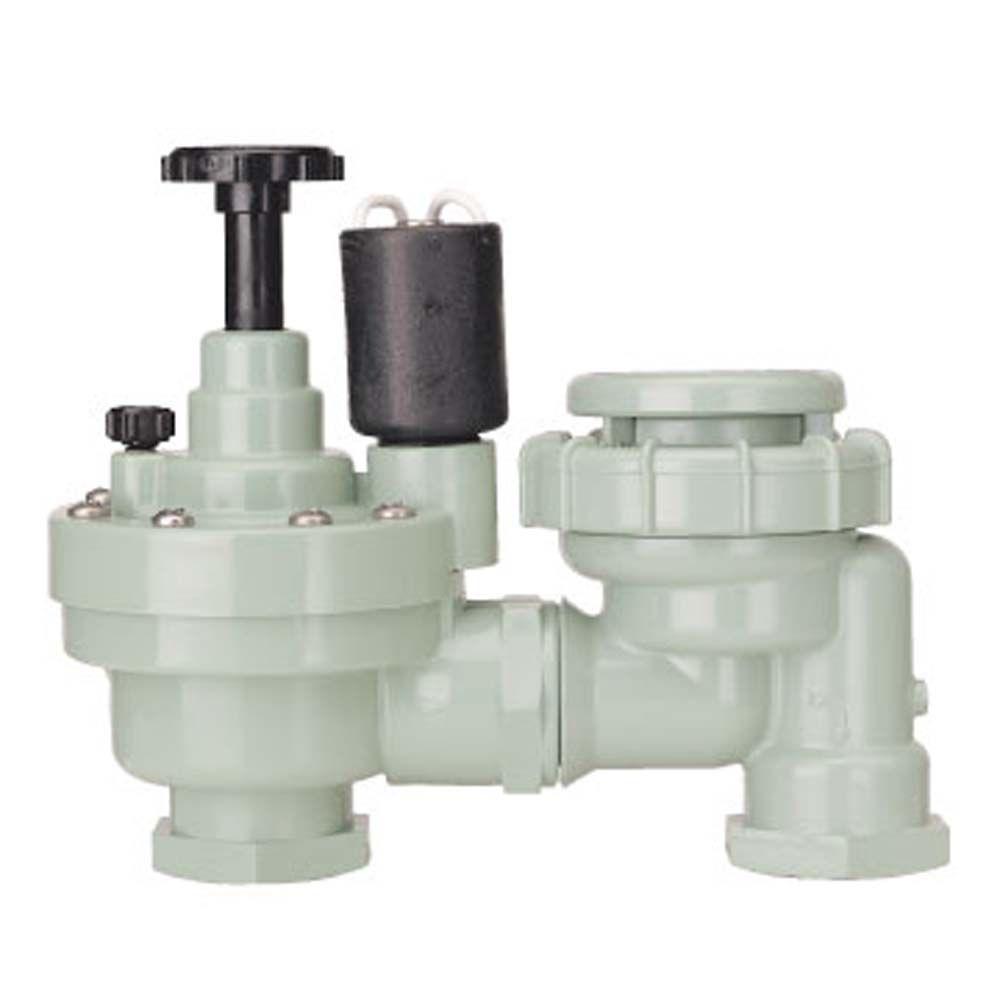

Use this Lawn Genie 150 psi RJ Anti-Siphon Valve with Flow Control to help prevent irrigation water contaminants from entering the drinking water supply. This anti-siphon valve features a pressure-activated double-beaded diaphragm to strengthen the seal between the body and bonnet, external bleed, as well as flow control. The valve's low-voltage 24 VAC solenoid with captured plunger and a stainless-steel metering pin are built for durability and longevity.
  • Use in 24 VAC systems to help prevent irrigation water contaminants from entering the drinking water supply
  • Installed height should not be less than 6 in. above the highest downstream outlet
  • Self-aligning bonnet ensures correct installation
  • 5 - 25 GPM flow rate
  • Precise flow control adjustment reduces misting and fogging at the sprinkler to save water
  • Stainless-steel metering pin
  • 3/4 in. FNPT inlet and outlet
  • Captive solenoid plunger to help prevent lost parts during maintenance
  • Pressure-activated double-beaded diaphragm to strengthen the seal between the body and bonnet
  • External bleed to flush out dirt from the supply and lateral lines during new installations or repairs
  • 4-1/4 in. footprint size (center to center of inlet/outlet)


Features
Item Weight 1.3
Installation Above Ground
Connection Female Pipe Thread
Returnable 180-Day
Number of Outlets 1
Thread Type Female
Material PVC
Compatible Pipe Material PVC
Product Weight (lb.) 1.185
Irrigation System Component Valve
Pressure Rating 150 PSI
Maximum Working Temperature (F) 120
Maximum Pressure (psi) 150
Operation Automatic
Valve Type Anti-Siphone
Package Quantity 1
Outlet Size (in.) 2 or less
Product Length (in.) 5.125 in
Product Height (in.) 5.875
Inlet Size (in.) .75
Product Width (in.) 3.375 in
Manufacturer Warranty 1 year
