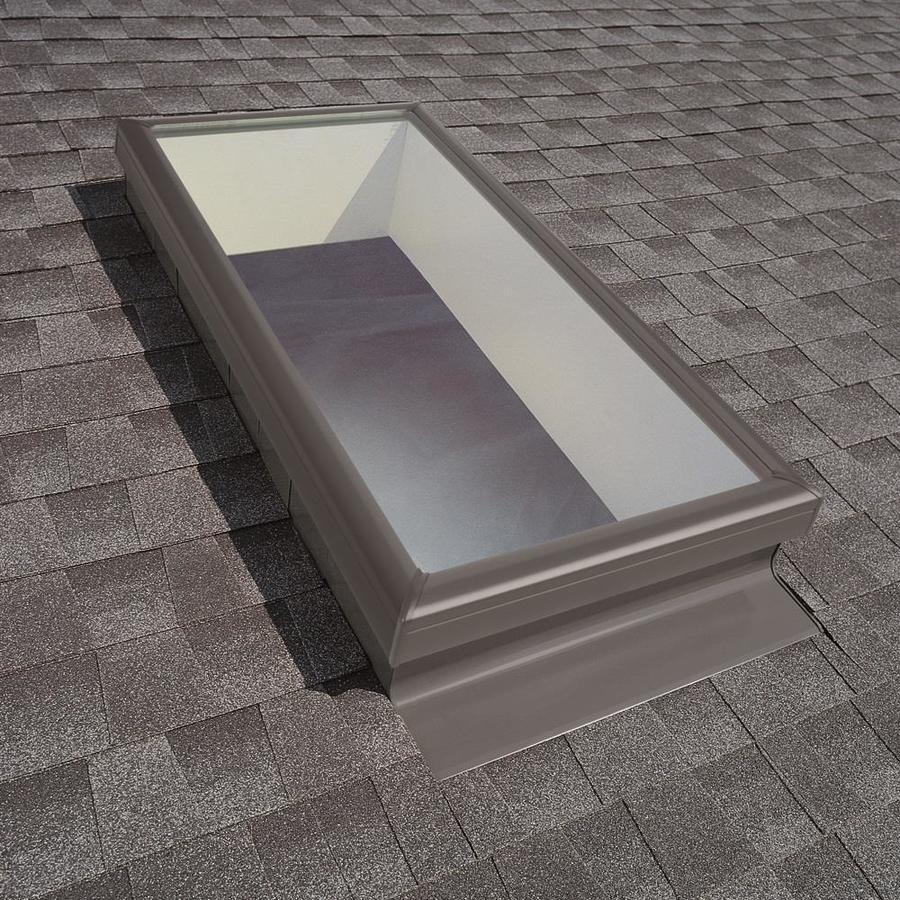

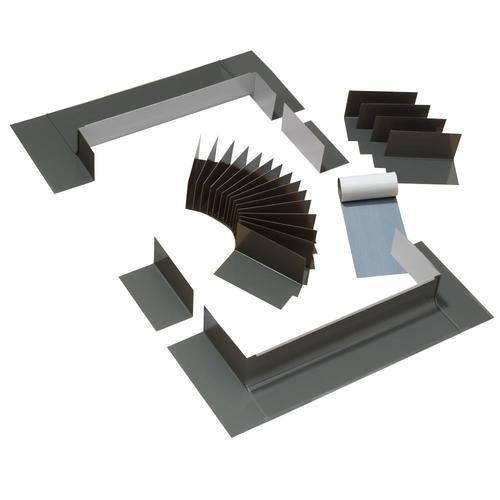

VELUX 2222, 2230, 2234, 2246 Shingle Roof Aluminum Curb Mount Skylight Flashing Kit

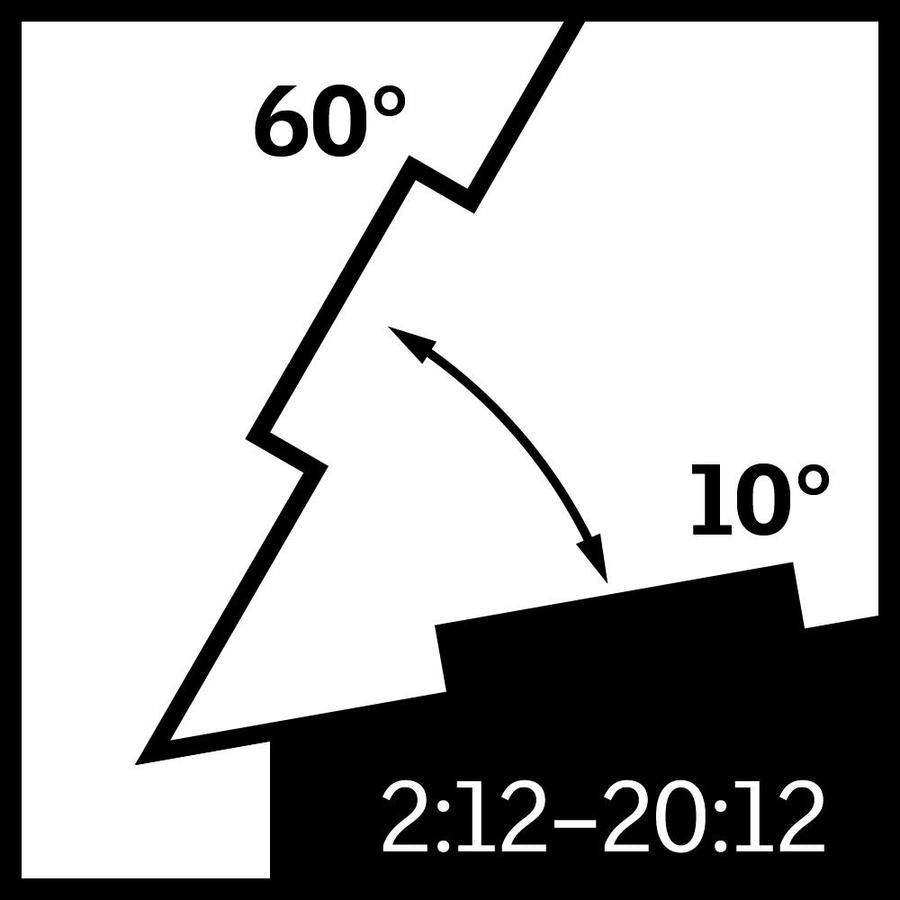

ECL flashing can be used with shingles, shakes, or slate roofs (up to 1/2 in. thickness) with a minimum pitch of 10 ° and a maximum pitch of 60 ° ECL 2246 flashing is designed specifically to fit VELUX curb mounted2222, 2230, 2234, and 2246 models with an outside curb width of 25-1/2 in and maximum length of 49-1/2 in Designedto work in conjunction with a site-built curb, and the ECL cannot be installed on skylights from other manufacturers, or other VELUX skylight models not noted above Curb mounted flashing kits for tile roofs are available (model ECW)

Features

Series Name	2222, 2230, 2234, 2246 Curb Mount Shingle Roof
Width (Inches)	31.5
Length (Inches)	56.5
For Use with Decks	No
For Use with Skylights	Yes
For Use with Chimneys	No
For Use with Windows	No
For Use with Roofs	No
For Use with Doors	No
For Use with Vents	No
For Use with Pipes	No
For Use with Gutters	No
For Use with Egress Windows	No
Gauge	23
Color/Finish Family	Gray
Manufacturer Color/Finish	Neutral gray
Warranty	10-year limited
Type	Curb mount skylight flashing kit
Application	Shingle roof
Material	Aluminum
Profile	Low
CA Residents: Prop 65 Warning(s)	Yes
