This single cylinder deadlock is constructed of diecast and it comes in a satin nickel finish. It features a jimmy-resistant design which prohibits forced entry when attempts are made to spread the door away from the frame. This is a surface-mounted, cross-bolt locking device which can be mounted to 1-3/8 in. to 2-3/8 in. thick, wood or metal doors. This door lock includes an angled strike, a rim cylinder, 2 keys, a cylinder trim ring, fasteners, a mounting plate, instructions and a tamper-resistant shutter guard. This lock requires a 1-1/4 in. hole and uses a Kwikset keyway.
California residents
For use on doors that are 1-3/8 in. to 2-3/8 in. thick
2-9/32 in. backset
Ideal as a replacement lock cylinder for rim cylinder-style locksets
Diecast painted in a satin nickel finish

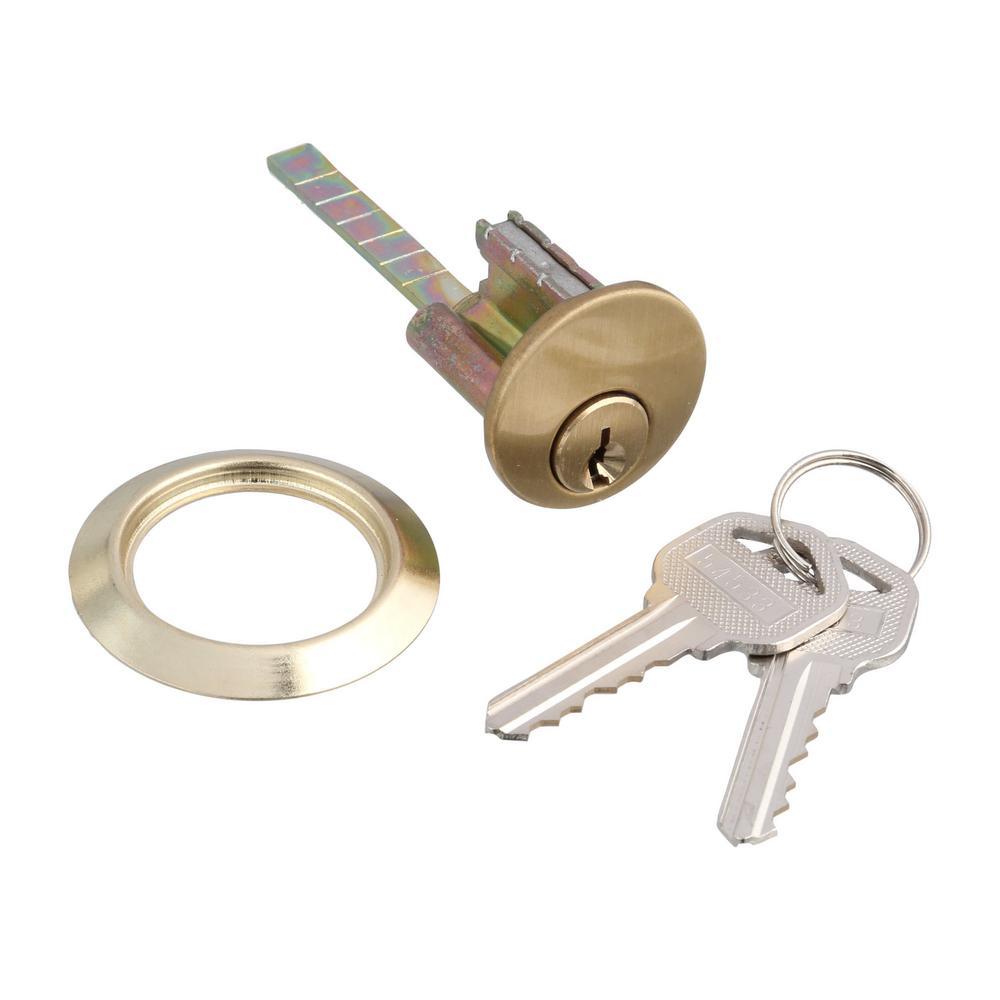

5-pin rekeyable Kwikset keyway tumbler cylinder
All the necessary mounting hardware is included for a quick and easy installation
A Phillips head screwdriver is required for installation
For further dimensional information, please see the line drawing
Features
Item Weight
1.5
Hardware Finish Family
Nickel
Material
Metal
Door Handing
Universal
Door Locks & Knobs Product Type
Deadbolts
Lock Type
Keyed
Product Weight (lb.)
1.514
Security/ANSI Grade
N/A
Included
No Additional Items Included
Commercial/Residential
Residential
Door Lock Style
Antique
Total Number of Keys Included
2
Wired or Wireless
No electrical connectivity
Keyway
No Keyway
Returnable
180-Day
Deadbolt strike
Square corner
Deadbolt Type
Single Cylinder Deadbolt
Interior/Exterior
Interior/Exterior
Electronic/Mechanical
Mechanical
Lock Type2
Keyed Entry
Features
No Additional Features
Backset size (in.)
Adjustable
Finish
Satin Nickel
Deadbolt bore hole diameter (in.)
1.25
Deadbolt cross bore diameter (in.)
0
Assembled Depth (in.)
1 in
Deadbolt trim ring diameter (in.)
0.0
Assembled Height (in.)
2.875 in
Deadbolt strike width (in.)
0.0
Required door thickness (in.)
1 3/8 to 1 3/4
Assembled Width (in.)
4.3125 in
Deadbolt strike height (in.)
0.0
Deadbolt throw length (in.)
0.0
Projection (in.)
0.0
Manufacturer Warranty
Goods are warranted against defects in manufacturing for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
