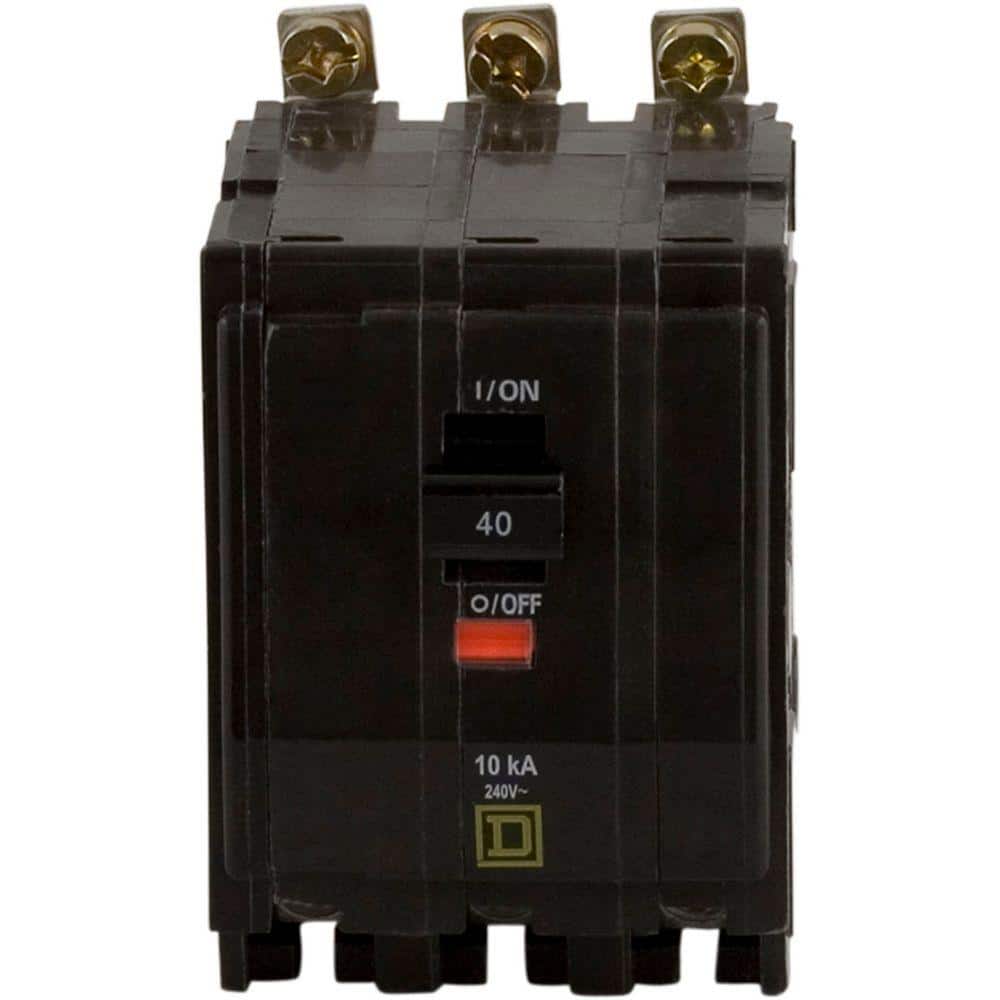

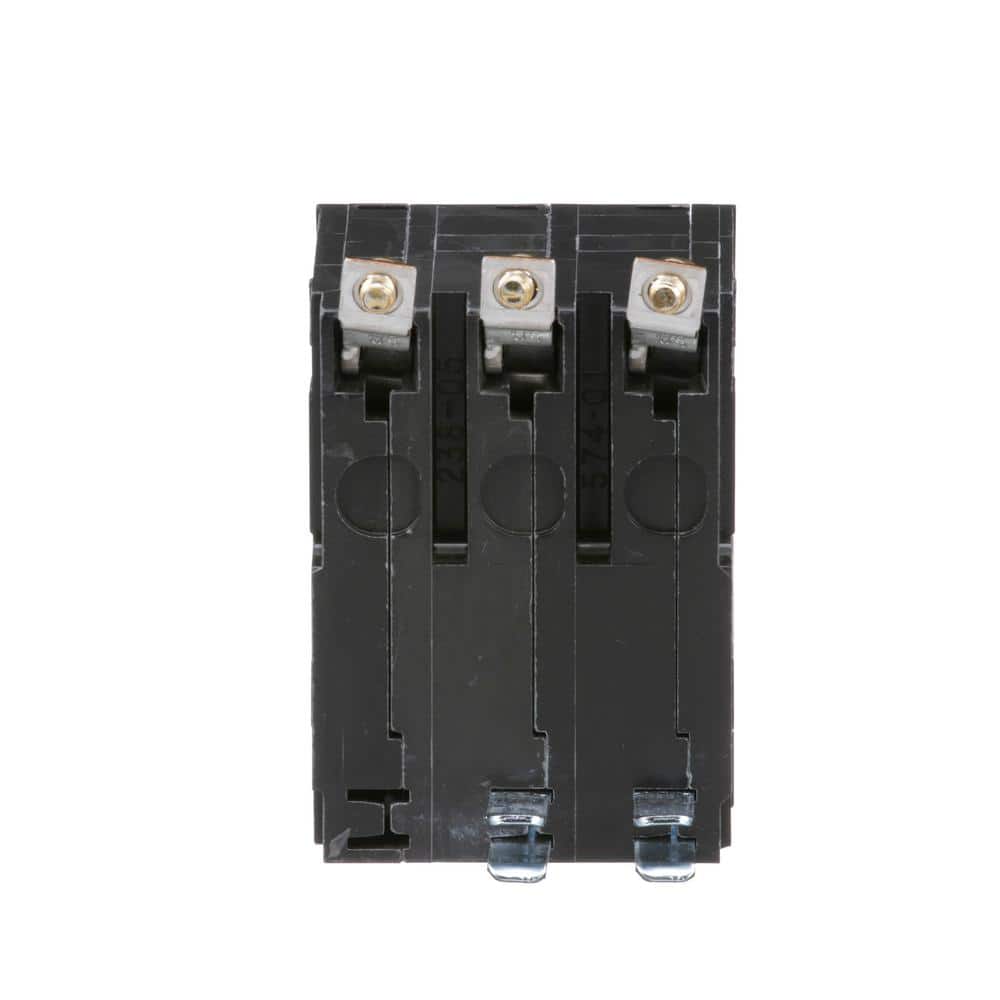

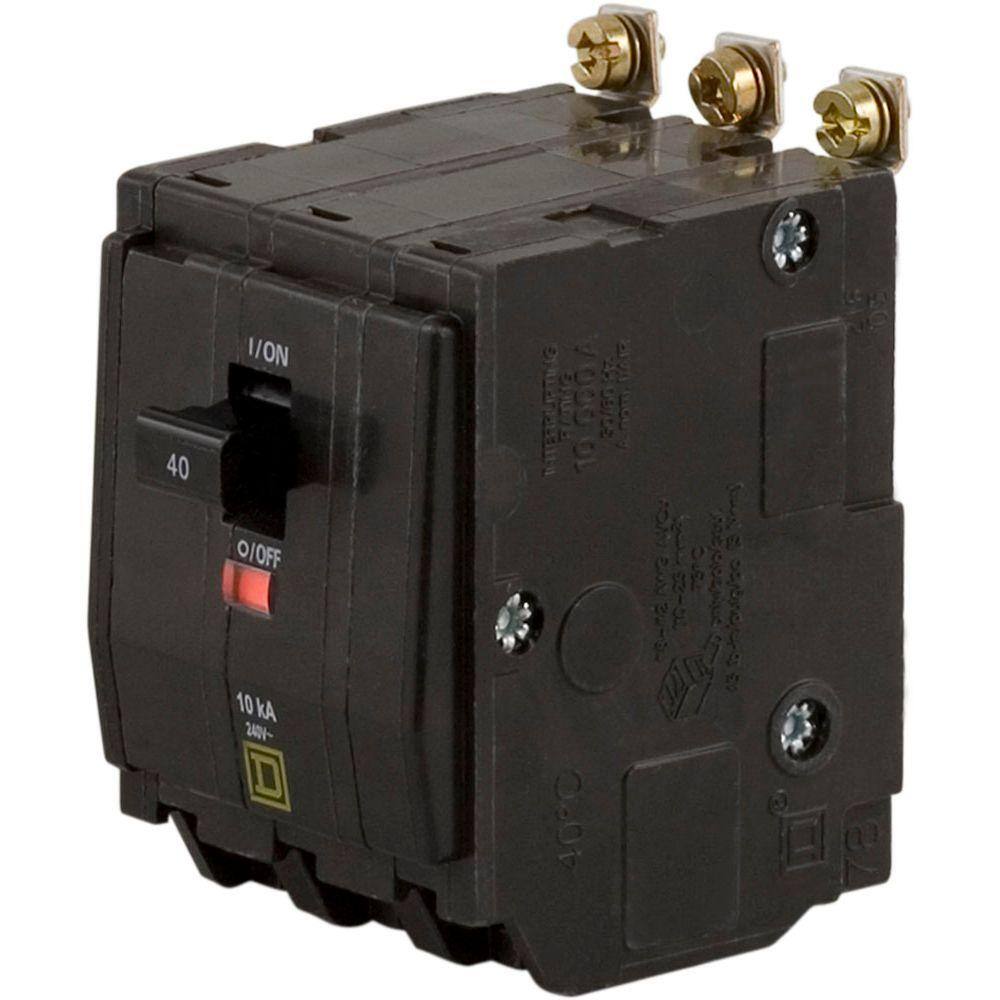

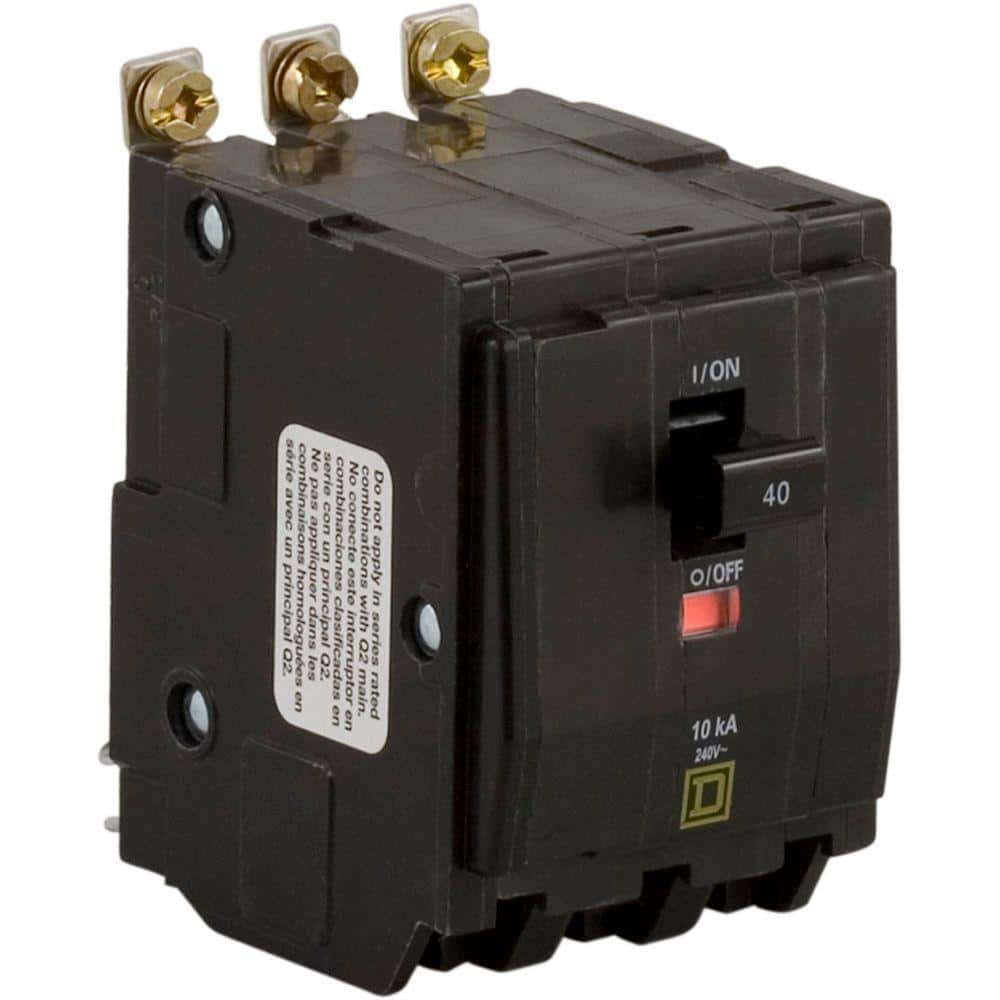

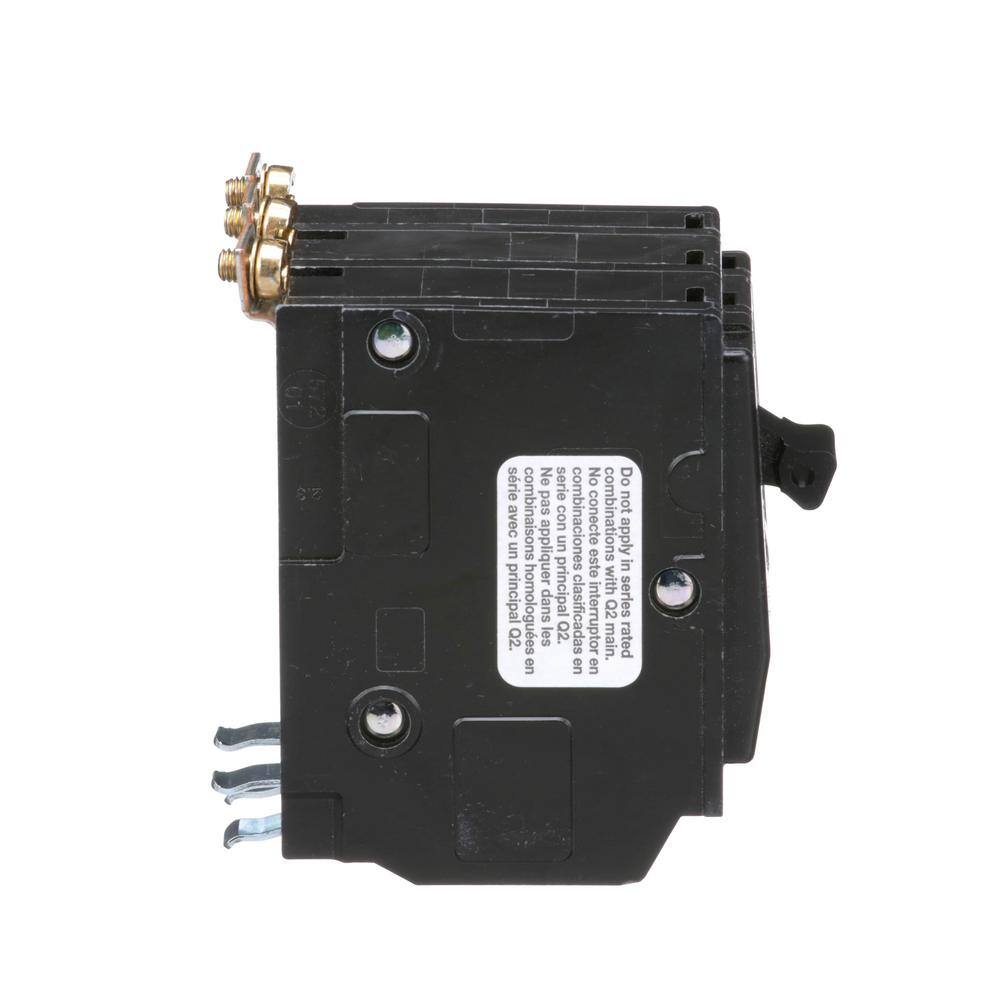

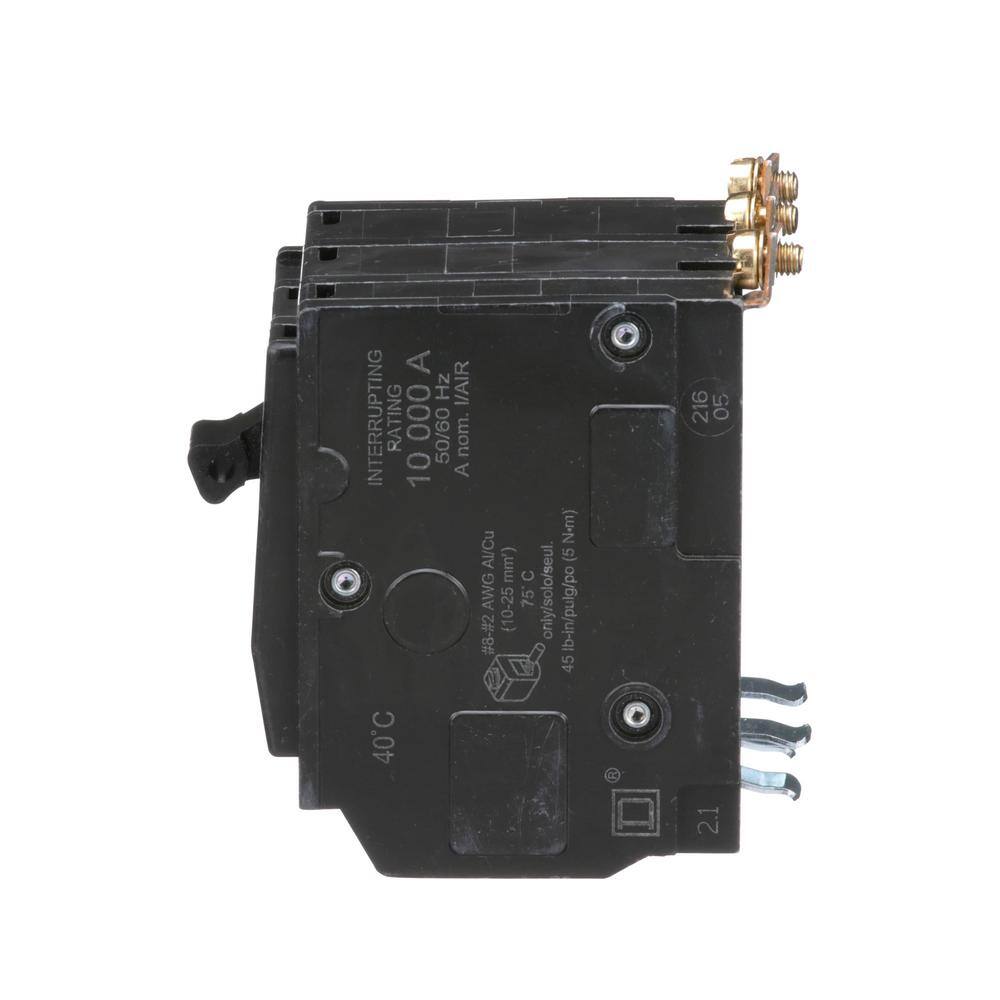

Square D QO 40 Amp 3-Pole Bolt-On Circuit Breaker

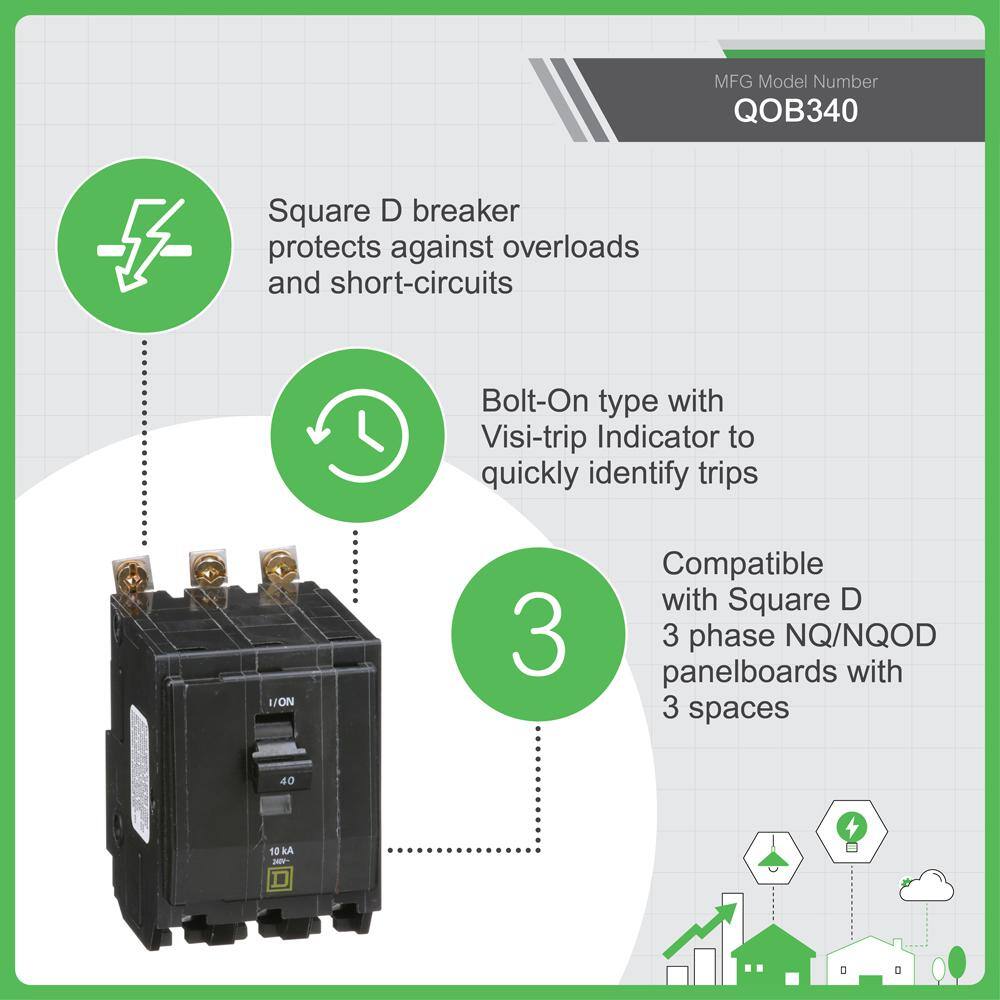

The Square D QO 40 Amp 3-Pole Bolt-On Circuit Breaker safeguards your electrical system from overloads and short circuits with unmatched reliability. Featuring the unique Visi-Trip indicator, this breaker allows easy identification of tripped circuits in a busy load center.

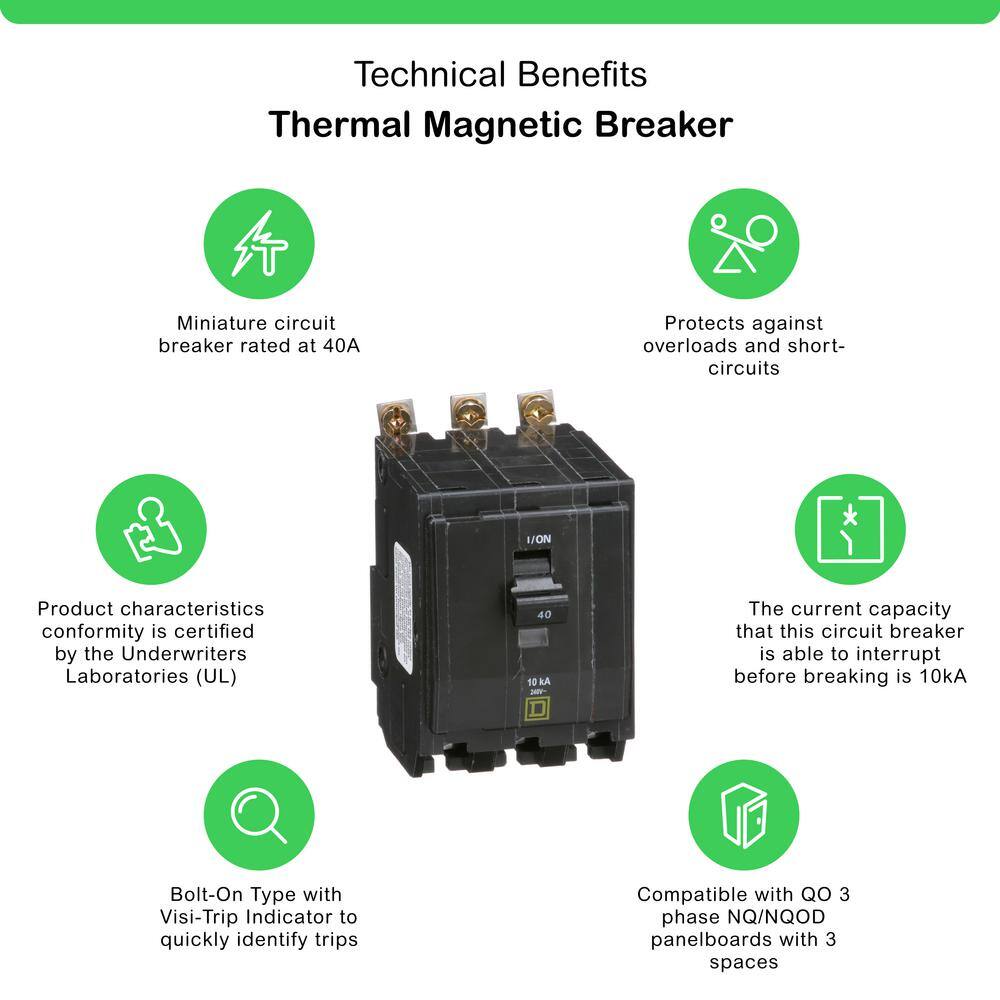

Key Features:
-
Overload & Short-Circuit Protection: Ensures the safety of your electrical systems.
-
Visi-Trip Indicator: Quickly locate tripped breakers with the red visual indicator.
-
Bolt-On Installation: Secure fit within compatible panel boards.
-
UL Listed & ANSI-Certified: Meets high safety and quality standards.
-
Limited Lifetime Warranty: Confidence in long-term performance.
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Non-Neutral |
| Interruption Type |
Standard Trip |
| Maximum Amperage (A) |
40 A |
| Mounting Type |
Bolt-On |
| Number of Poles |
Triple |
| Number of Spaces |
3 |
| Pack Size |
1 |
| Product Weight (lb.) |
0.83 lb |
| Series Type |
QO |
| Trip Unit |
Thermal Magnetic |
| Voltage (V) |
240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |

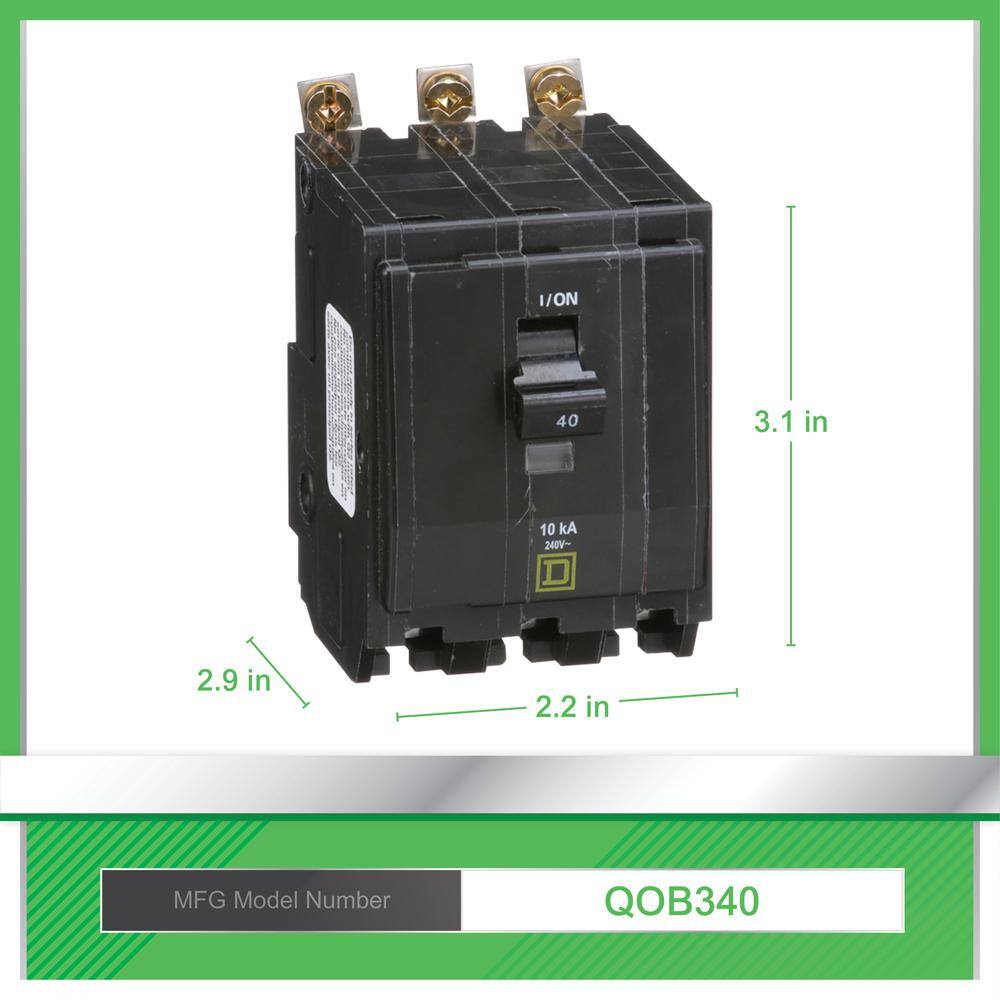

| Product Depth (in.) |
2.9 in |
| Product Height (in.) |
3.1 in |
| Product Width (in.) |
2.2 in |
Frequently Asked Questions (FAQ):
Q: How do I install this circuit breaker?
A: The Square D QO circuit breaker is designed for bolt-on installation within compatible QO panel boards. Ensure the power is off before installation and consult a licensed professional if needed.

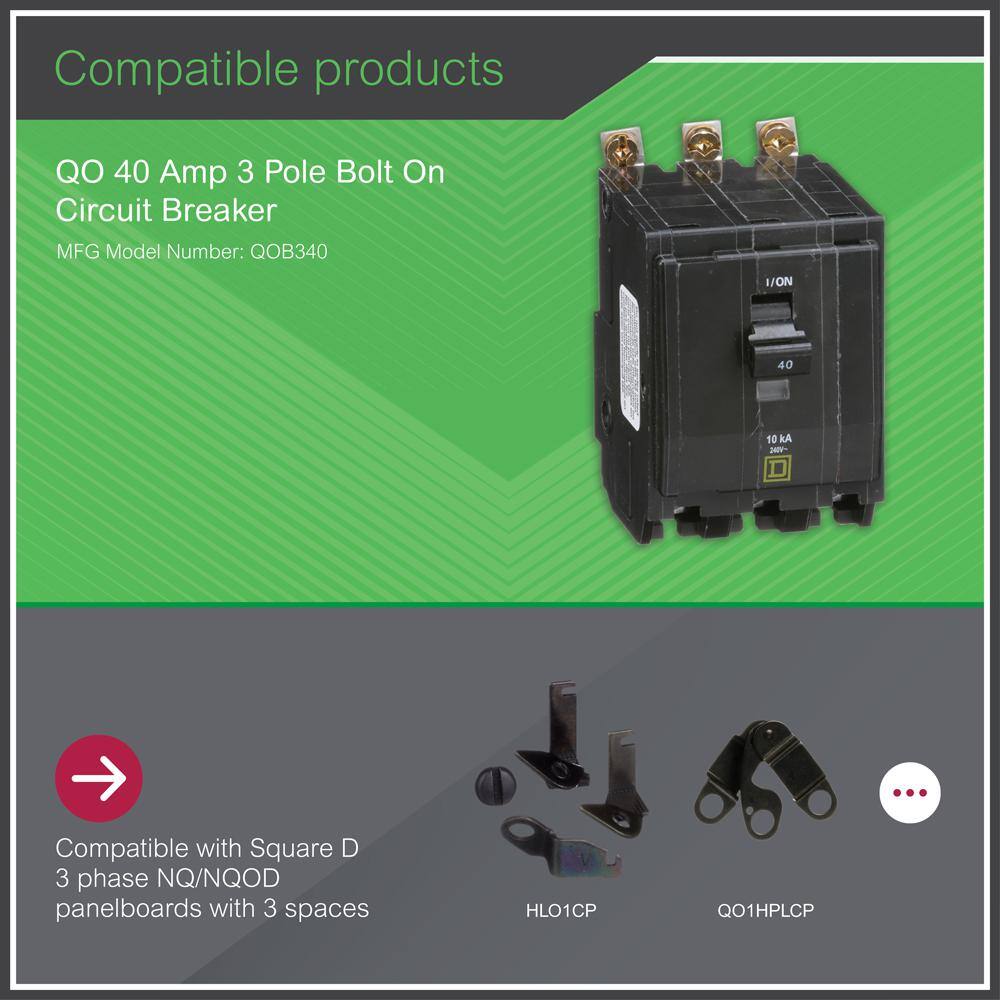

Q: What panel boards is this breaker compatible with?
A: This breaker is compatible with Square D QO load centers and NQOD panel boards.
Q: How does the Visi-Trip indicator work?
A: When the breaker trips, the Visi-Trip handle moves to a midpoint position between 'Off' and 'On', displaying a red indicator for easy identification.
Q: Can this circuit breaker handle multiple circuits?
A: Yes, with its 3-pole configuration, this breaker can manage three separate circuits effectively.
Q: What is the warranty on this circuit breaker?
A: Square D offers a limited lifetime warranty, ensuring it’s free from defects in materials and workmanship under normal, residential use.
Elevate Your Electrical System with Precision
This innovative circuit breaker by Square D impeccably fuses functionality and design, transforming your electrical infrastructure into a seamless, sleek operation. The standout feature, its Visi-Trip indicator, combines efficiency with elegance, simplifying maintenance with its intuitive design. Integrate this essential component into your home's framework for not only enhanced safety but also a touch of technical sophistication, ensuring a luxurious living experience.
Enhance the safety and efficiency of your electrical systems by investing in the Square D QO Circuit Breaker today.
