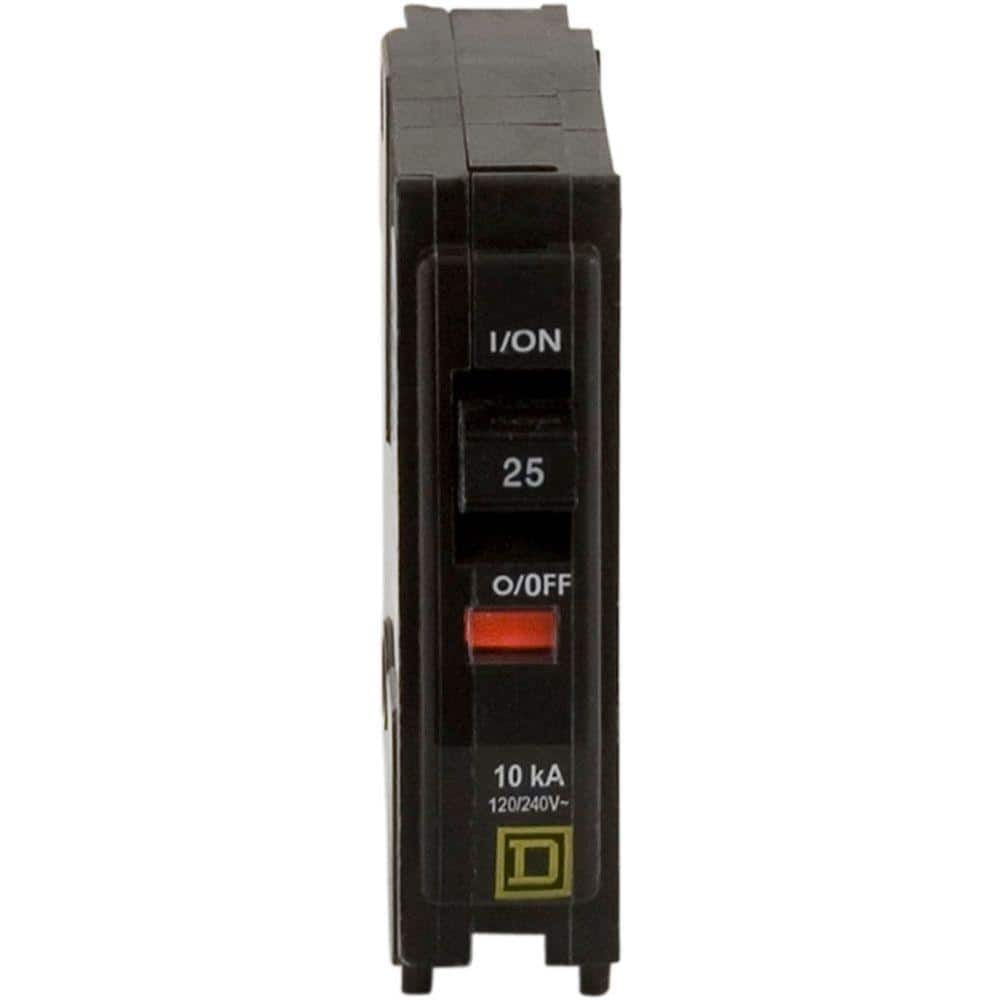

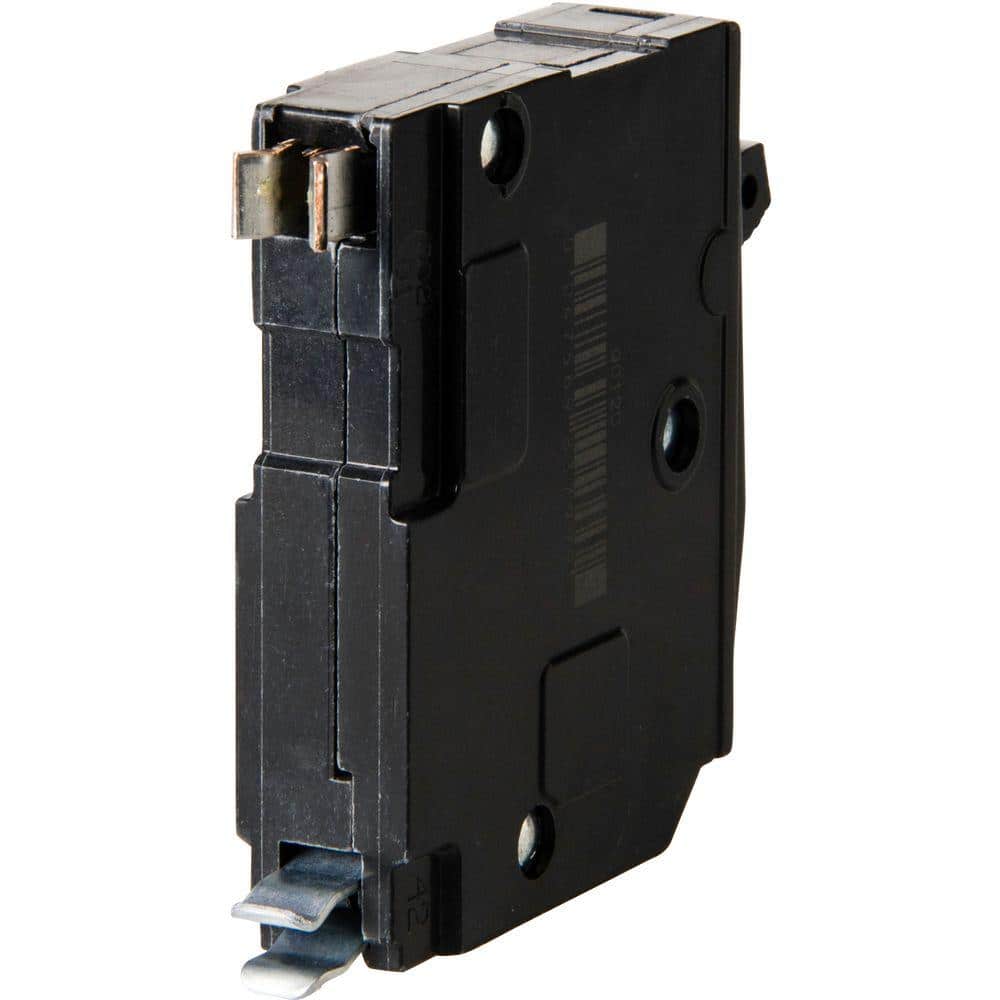

Square D 25 Amp Visi-Trip Circuit Breaker
Ensure reliable protection for your electrical system with the Square D QO 25 Amp Single-Pole Circuit Breaker. Its renowned Visi-Trip indicator simplifies maintenance by clearly showing a tripped breaker, making it a go-to choice for professionals and DIY enthusiasts alike. Designed for efficiency and safety, this ANSI-certified and UL-Listed breaker excels in safeguarding against overloads and short-circuits.
Key Features:
-
Visi-Trip Indicator: Instantly identifies tripped breaker for easy maintenance.
-
Plug-On Design: Quick and straightforward installation for faster project completion.
-
UL-Listed and ANSI-Certified: Meets stringent safety standards for reliability.
-
Compatible with QO Panels: Works seamlessly with Square D QO load centers, CSED, and NQOD panel boards.
-
Lifetime Warranty: Offers peace of mind with a commitment to quality and durability.
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Non-Neutral |
| Interruption Type |
Standard Trip |
| Maximum Amperage (A) |
25 A |
| Mounting Type |
Plug-On |
| Number of Poles |
Single |
| Number of Spaces |
1 |
| Pack Size |
1 |
| Product Weight (lb.) |
0.27 lb |
| Series Type |
QO |
| Trip Unit |
Thermal Magnetic |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the QO load center in which it is installed. |

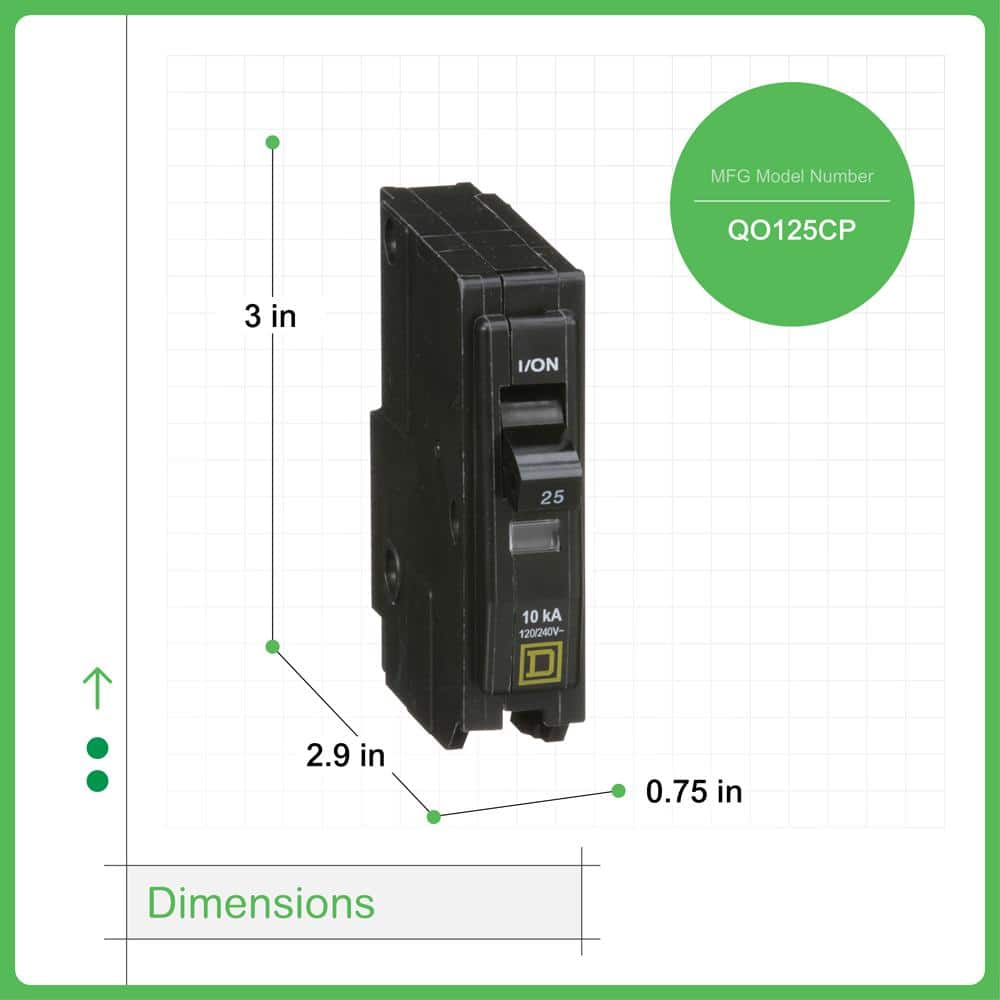

| Product Depth (in.) |
2.9 in |
| Product Height (in.) |
3 in |
| Product Width (in.) |
.75 in |
Frequently Asked Questions (FAQ):
Q: How do I install the Square D QO circuit breaker?
A: The Square D QO circuit breaker features a plug-on design for easy installation. Simply align it with the bus bar in the panel and push until it snaps into place.
Q: What makes the Visi-Trip indicator unique?
A: The Visi-Trip indicator on the Square D circuit breaker provides a clear visual signal when a breaker is tripped, reducing downtime and simplifying troubleshooting.
Q: Is this circuit breaker suitable for residential use?
A: Yes, the Square D QO 25 Amp Circuit Breaker is designed for both residential and light commercial applications, offering robust protection against overloads and short-circuits.
Q: Can I use this breaker with older QO panels?
A: The breaker is compatible with QO load centers, ensuring reliable performance even in older panel models. Always check panel compatibility before installation.
Q: Does this come with a warranty?
A: Yes, this circuit breaker comes with a lifetime warranty from Square D, ensuring long-term reliability and performance.
Illuminate Your Electrical Intelligence
Transform the integral functionality of your space with the Square D 25 Amp Circuit Breaker, where safety meets sophistication. The distinctive Visi-Trip indicator not only enhances performance but also adds a dash of technical finesse to your utility panel. Position it as the understated hero of your smart home setup, ensuring seamless electrical efficiency. Envision this element as a cornerstone of modern living, where reliability and design converge.
Empower your electrical system with the Square D Visi-Trip Circuit Breaker, and experience unparalleled safety and performance today.
