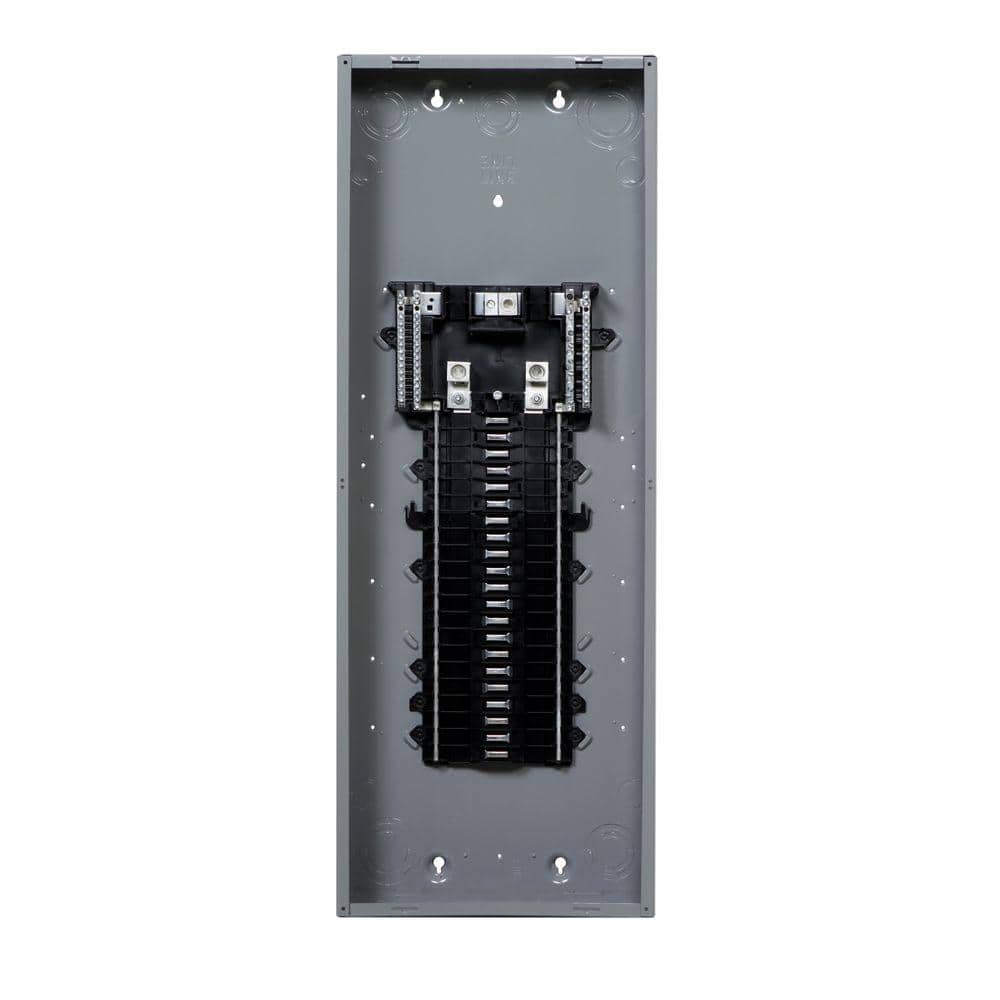

Square D QO 225 Amp 42-Space 42-Circuit Indoor Main Lug Plug-On Neutral Load Center with Cover, Ground Bar
Regular price $267.58Square D QO 225 Amp Indoor Load Center
The Square D QO 225 Amp Indoor Load Center is designed to streamline your power distribution projects with its quick plug-on neutral connections and convertible design. Built to accommodate up to 42 circuits, this durable unit features a shielded copper bus bar for enhanced reliability, making it ideal for both residential and commercial settings. Equipped with a cover and ground bar, it is engineered for efficient installation and wiring flexibility.
Key Features:

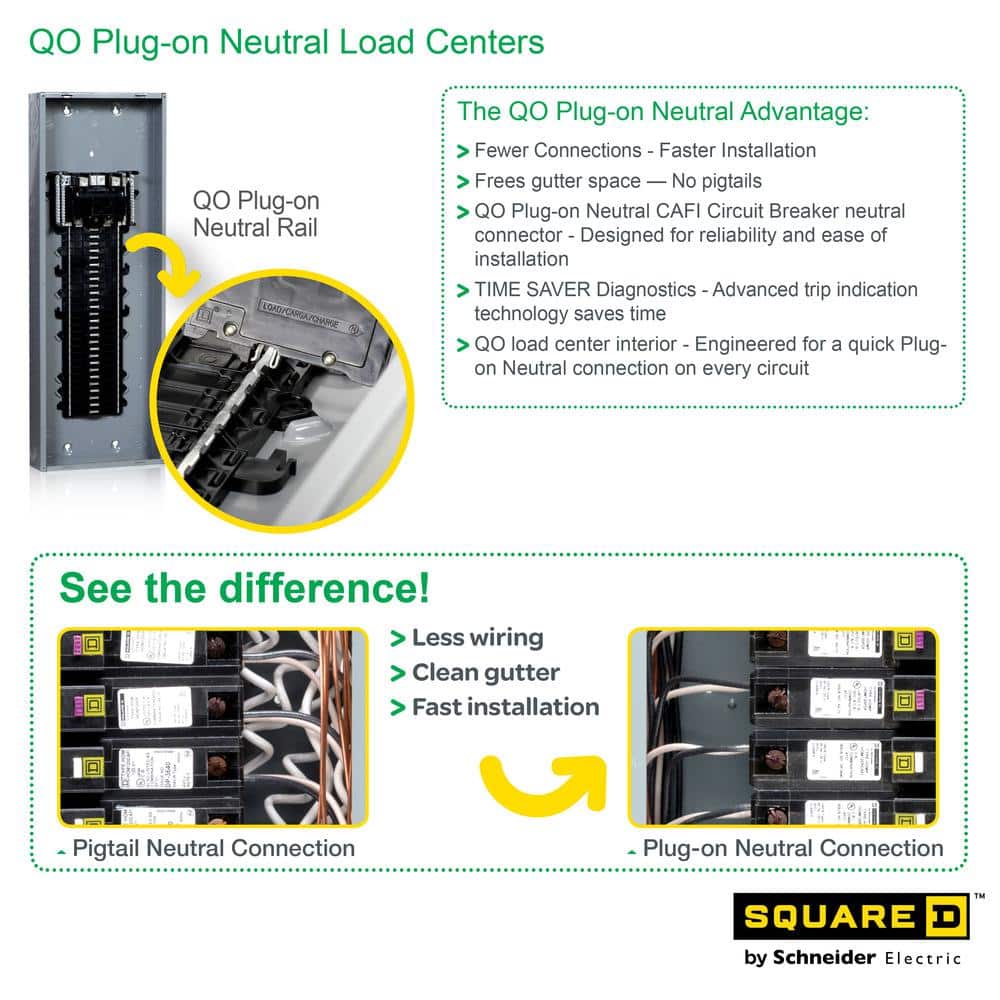

- Plug-On Neutral: Streamlines wiring with faster installation and no pigtails needed.
- Durable Design: Includes shielded copper bus bar and rugged thermoplastic interior.
- Convertible Main: Easily transitions between main lug and main breaker configurations.
- Complete Installation: Comes with cover, ground bar, and versatile mounting options.
- Flexible Wiring: Accommodates overhead/underground feed and accepts plug-on surge arrestors.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Subpanel |
| Connection Type | Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 225 A |
| Mounting Type | Flush,Surface |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 42 |
| Number of Spaces | 42 |
| Product Weight (lb.) | 34.5 lb |
| Series Type | QO |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | Square D warrants its QO branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in which it is installed. QO brand load centers are also covered under the same lifetime warranty. |

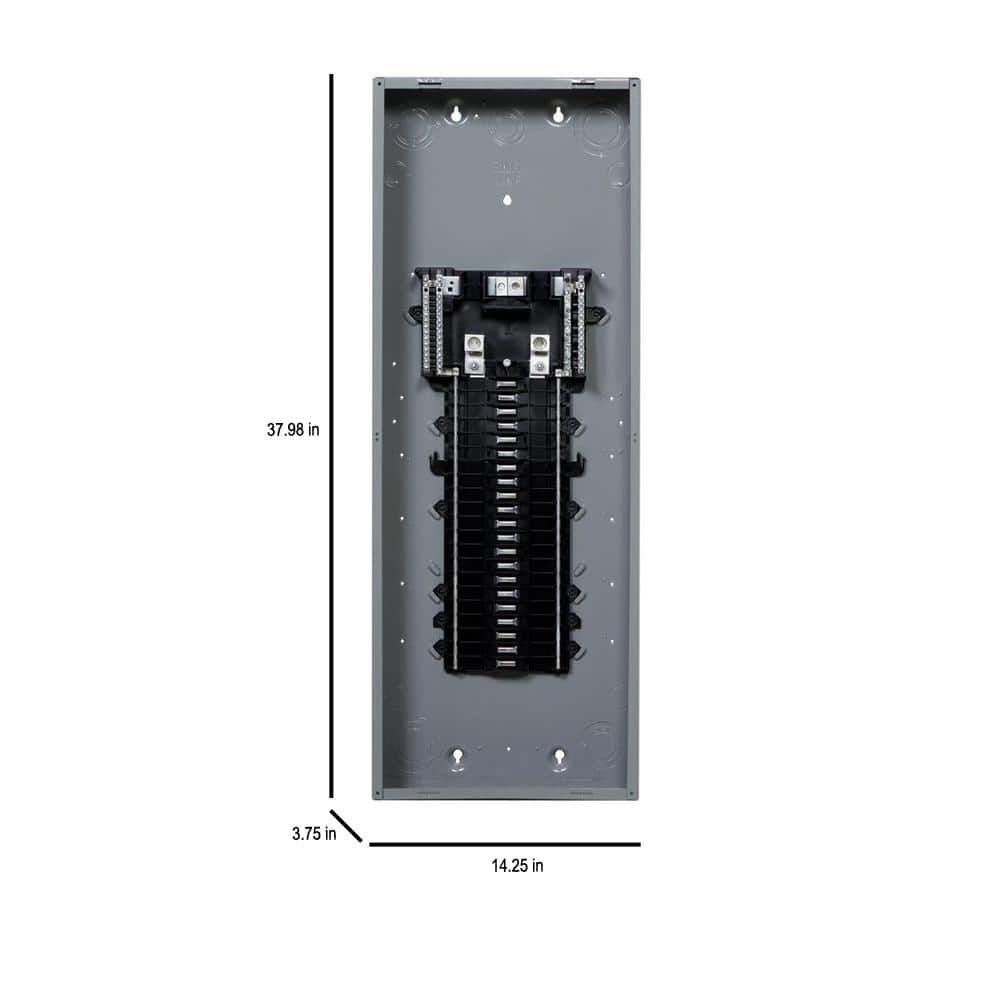

| Product Depth (in.) | 3.75 in |
| Product Height (in.) | 37.98 in |
| Product Width (in.) | 14.25 in |
Frequently Asked Questions (FAQ):
Q: Can this load center be used outdoors?
A: No, this load center is designed for indoor use only. It has a NEMA 1 configuration suitable for indoor environments.
Q: Is installation of this panel complex?
A: The Square D QO load center is designed for quick and easy installation, featuring a plug-on neutral design that reduces wiring and speeds up the installation process.
Q: Can the main lug be converted to a main breaker?
A: Yes, this load center is convertible from main lug to main breaker with the installation of a QOM2 main breaker, which is sold separately.
Q: What type of circuit breakers are compatible with this load center?
A: This load center is compatible with QO circuit breakers, excluding CTL Tandems, ensuring efficient and reliable connections.
Q: Does this load center come with a warranty?
A: Yes, Square D warrants the QO load center against defects in material and workmanship for the lifetime of the unit when used in a residential installation.
Elevate Utility with Refined Energy Distribution
The Square D QO 225 Amp Indoor Load Center not only empowers your electrical framework but elevates it with a sophisticated, efficient heart. Its polished form and shielded copper core resonate with strength, perfectly complementing industrial chic or modern minimalist spaces. Integrate it into a utility room adorned with industrial lighting and suave, muted tones for a holistic design. Essential to a harmonious, uninterrupted energy flow, this load center proves that reliability and style coexist seamlessly.
Transform your power distribution with the Square D QO Load Center—engineered for quick installation and adaptable efficiency, it's time to upgrade now.
