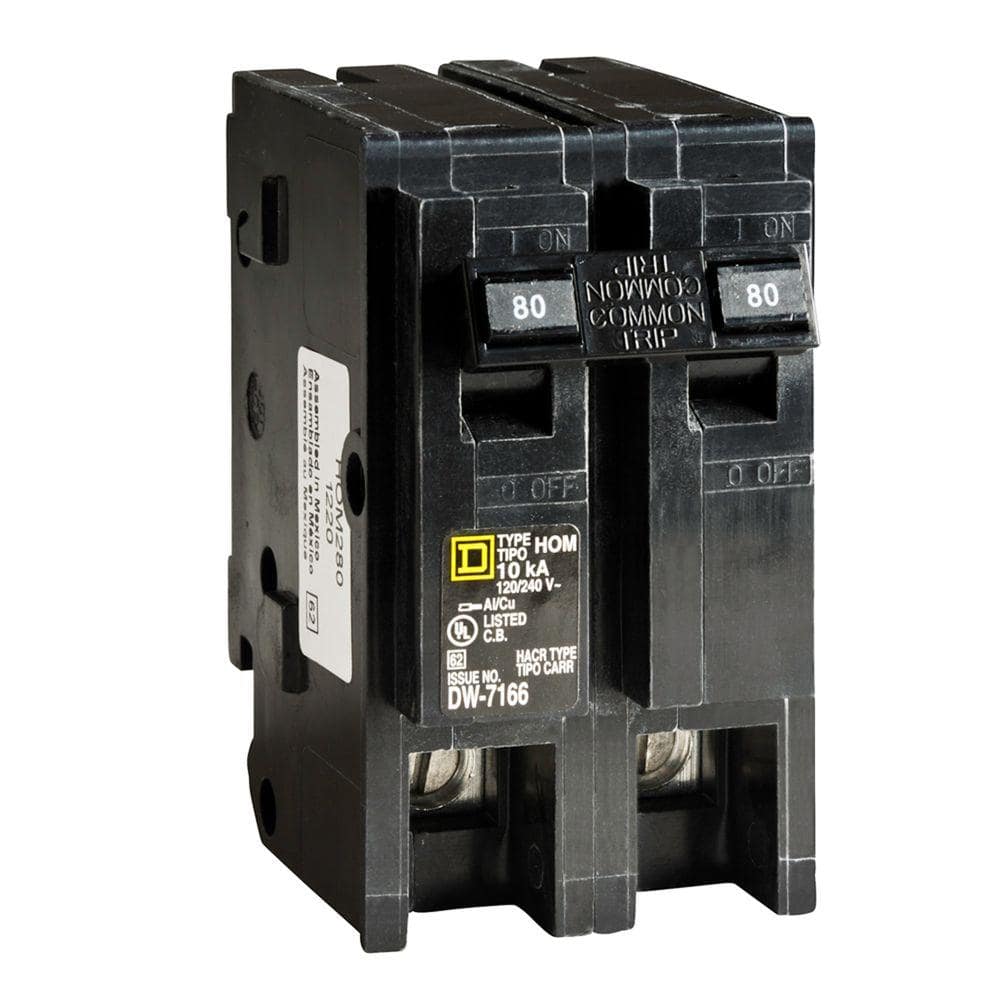

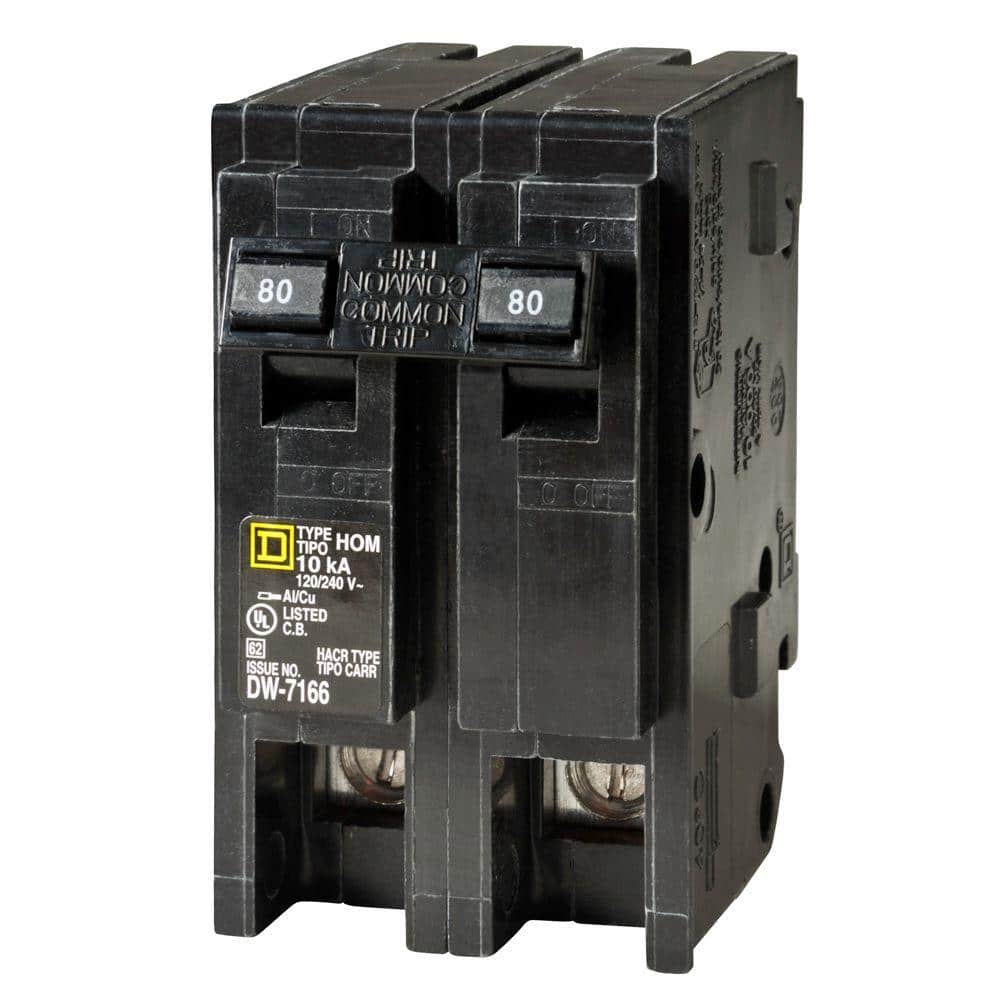

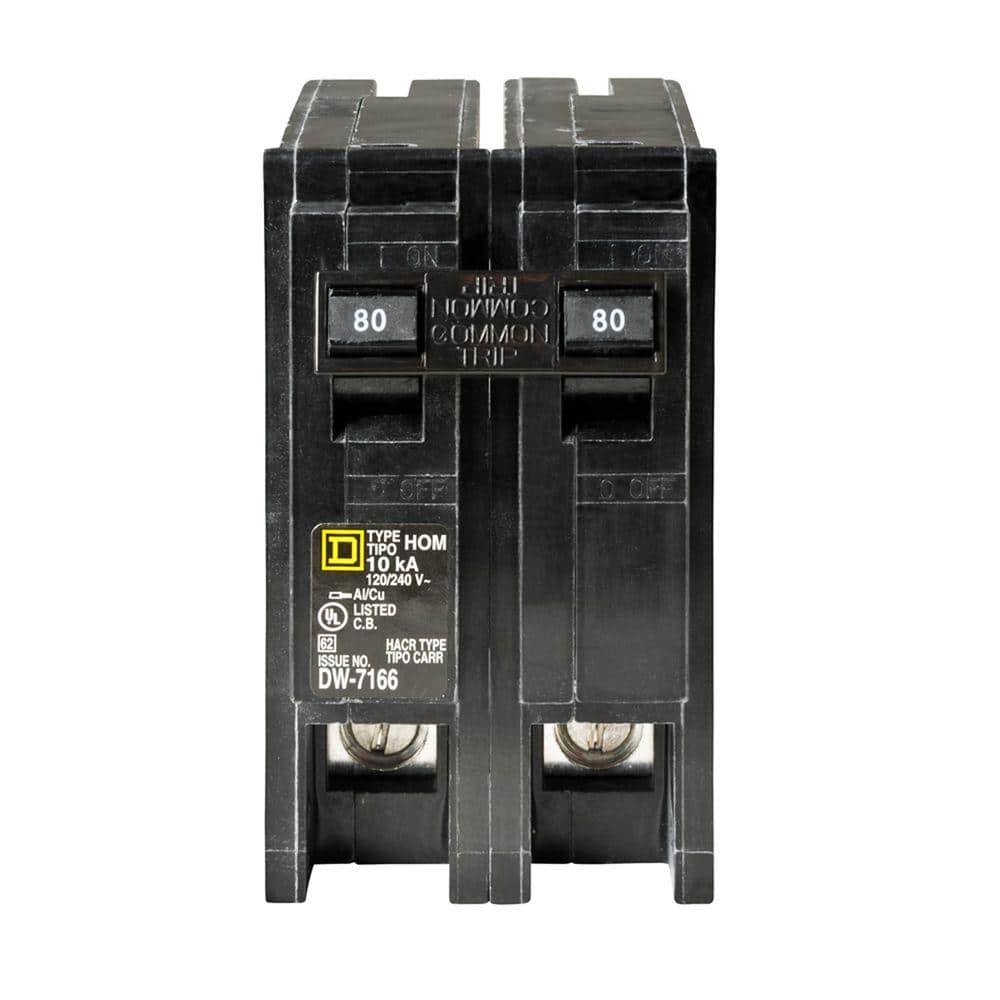

80 Amp 2-Pole Circuit Breaker
Ensure unparalleled overload and short-circuit protection with the Square D Homeline 80 Amp 2-Pole Circuit Breaker. Designed for residential use, this breaker integrates seamlessly with Homeline load centers, offering exceptional safety standards with ANSI and UL certifications.
Key Features:
-
Plug-on Design: Enables easy installation and secure connection.
-

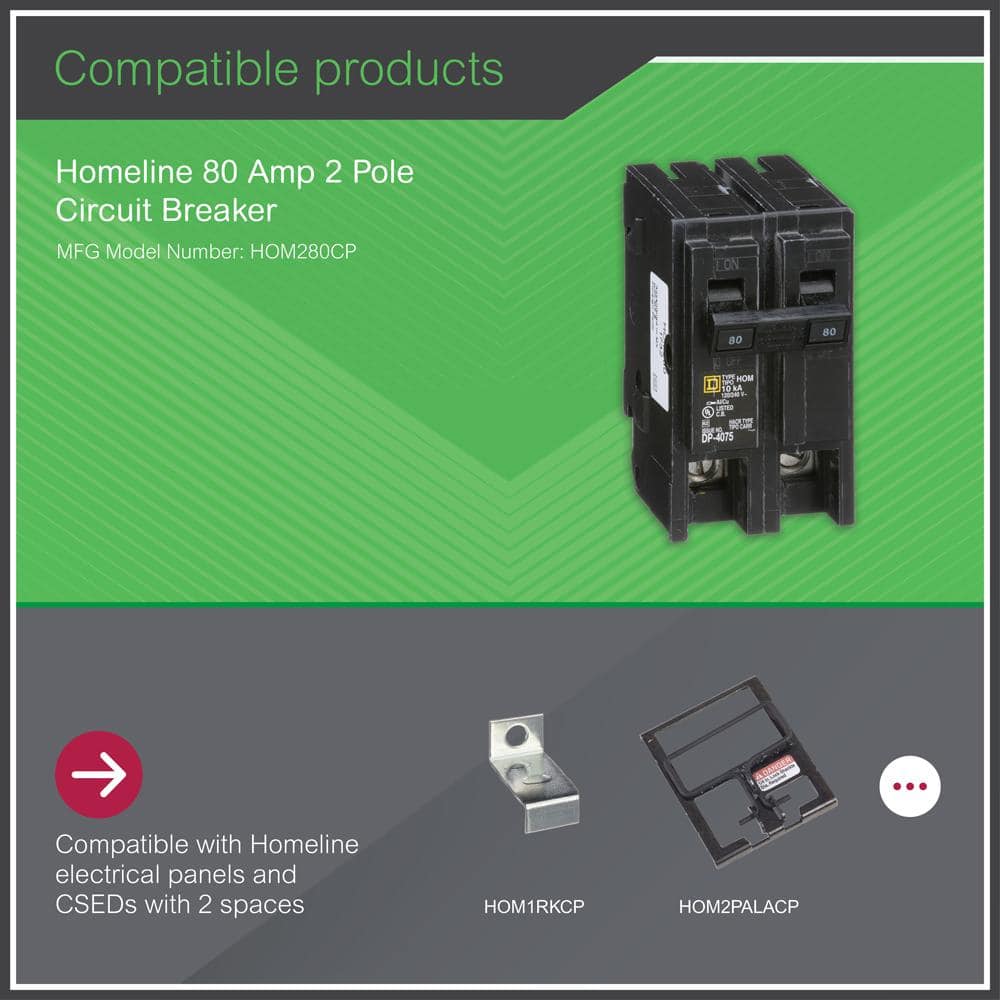

Residential Compatibility: Works with Square D Homeline breaker boxes and CSED devices.
-
Reliable Protection: Protects against overloads and short-circuits in 120/240-Volt AC systems.
-
Durable Warranty: Enjoy peace of mind with a limited lifetime warranty.
-
High AIR Rating: Rated at 10,000 Amperes Interrupting Rating (AIR) for reliable performance.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Non-Neutral |
| Interruption Type |
Standard Trip |
| Maximum Amperage (A) |
80 A |
| Mounting Type |
Plug-On |
| Number of Poles |
Quad |
| Pack Size |
1 |
| Product Weight (lb.) |
0.86 lb |
| Series Type |
Homeline |
| Trip Unit |
Thermal Magnetic |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |

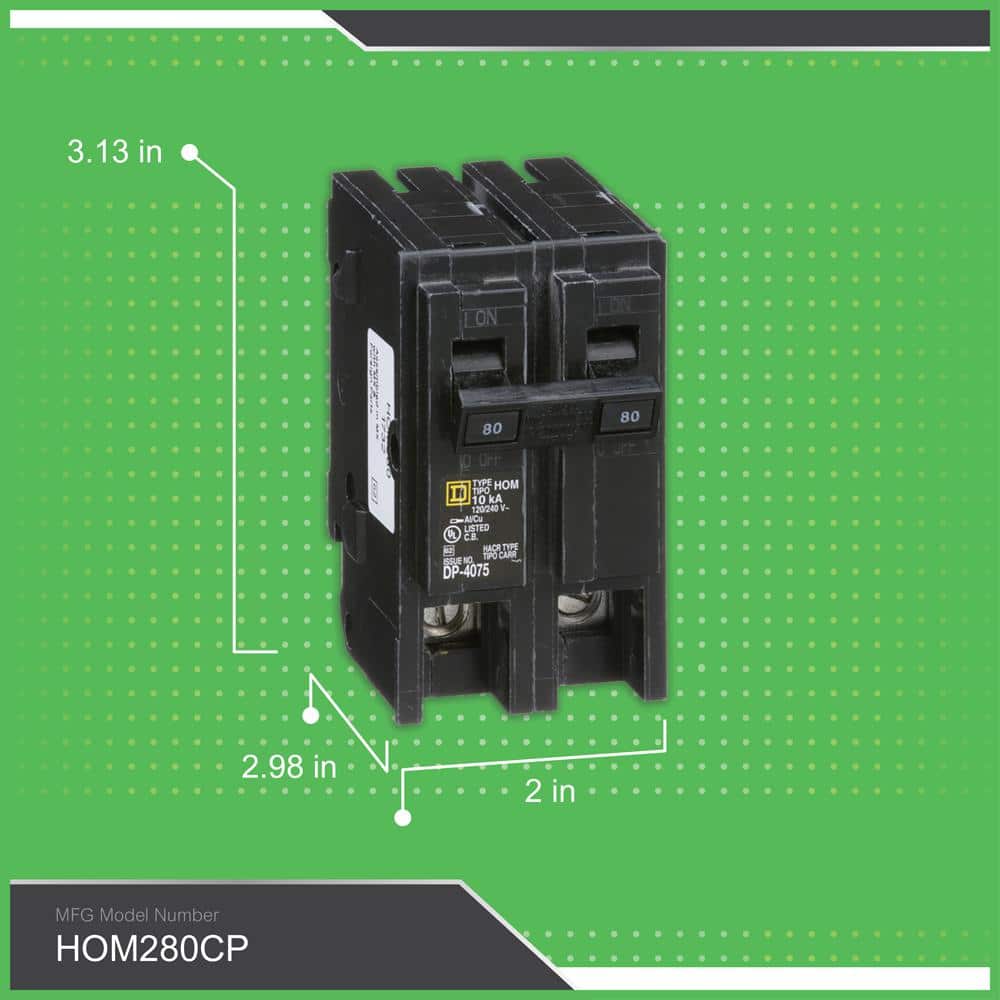

| Product Depth (in.) |
2.98 in |
| Product Height (in.) |
3.13 in |
| Product Width (in.) |
2 in |
Frequently Asked Questions (FAQ):
Q: Is this circuit breaker suitable for new construction?
A: Yes, the Square D Homeline 80 Amp Circuit Breaker is ideal for new residential construction and retrofit projects, fitting seamlessly into Homeline load centers.
Q: How easy is the installation process?
A: The breaker features a plug-on design, simplifying the installation process and ensuring a secure fit within compatible load centers.
Q: What type of protection does this circuit breaker offer?
A: This breaker provides both overload and short-circuit protection, safeguarding your electrical system from potential damage.
Q: Can this circuit breaker be used in commercial buildings?
A: While primarily designed for residential use, it can also be used for protecting entire branch circuits in light commercial applications.
Q: What are the electrical specifications for this breaker?
A: This circuit breaker is rated for 120/240 VAC and has a 10,000 Amperes Interrupting Rating (AIR).
Graceful Power Protection for Modern Homes
Embrace the perfect blend of safety and functionality with the Square D Homeline Circuit Breaker. This sophisticated component flawlessly integrates into your home's electrical system, providing sleek and understated assurance. Imagine this breaker as the silent guardian of your home's power, a testament to the harmonious balance of innovation and security. Let your wiring run free, untouched by chaos, in a luxurious electrified sanctuary.
Protect your home's electrical system with reliable excellence by choosing the Square D Homeline 80 Amp Circuit Breaker today.
