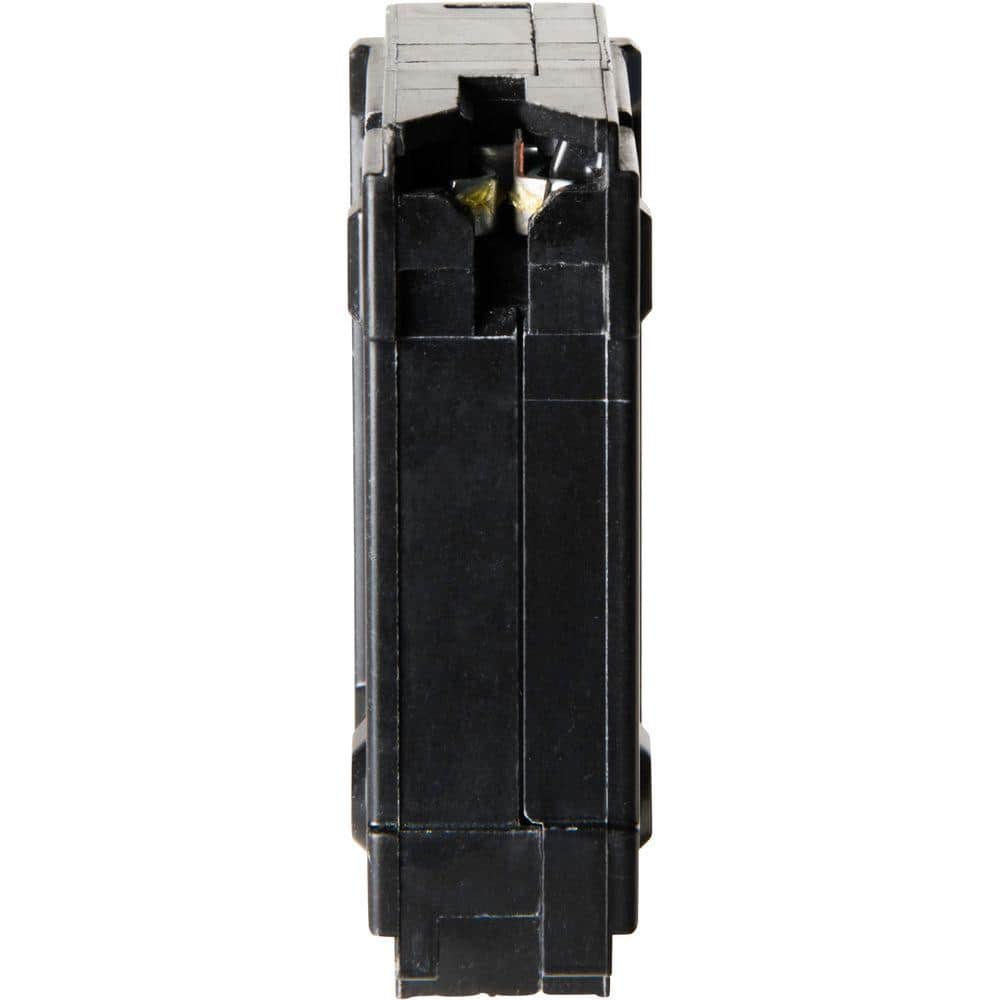

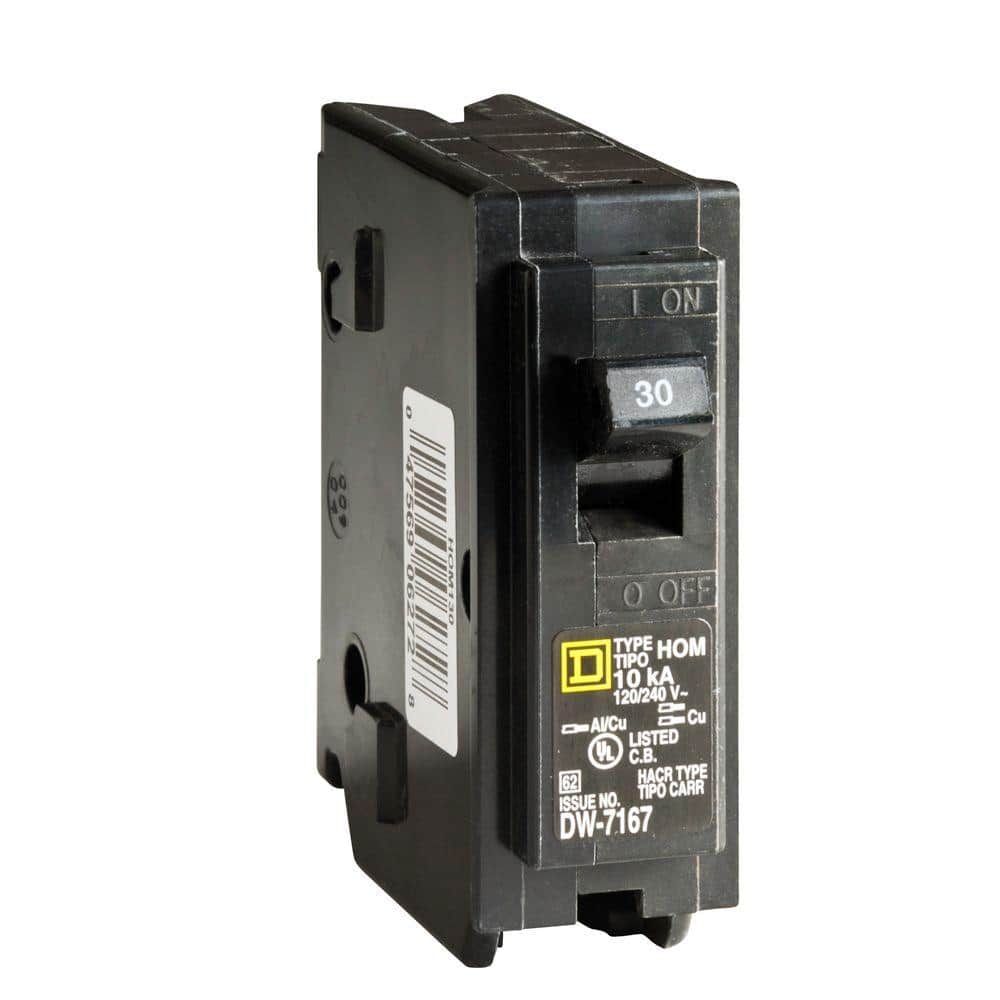

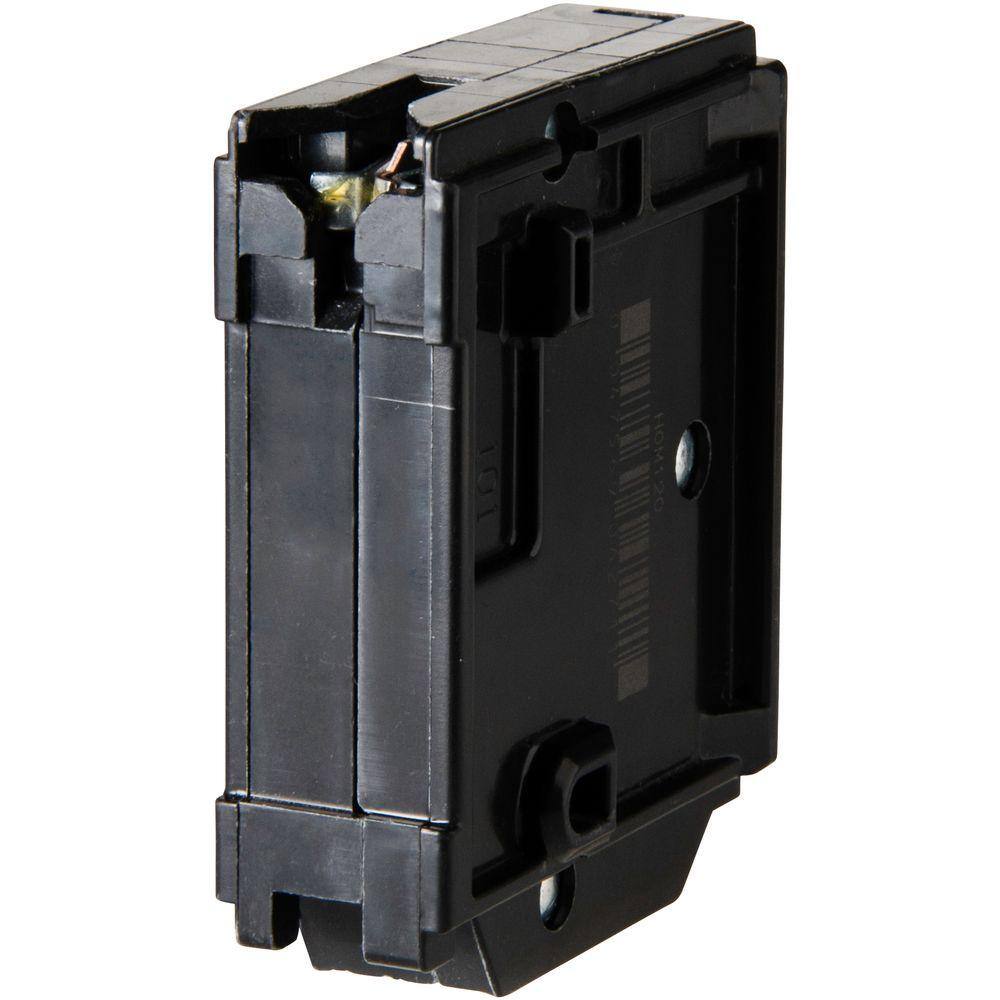

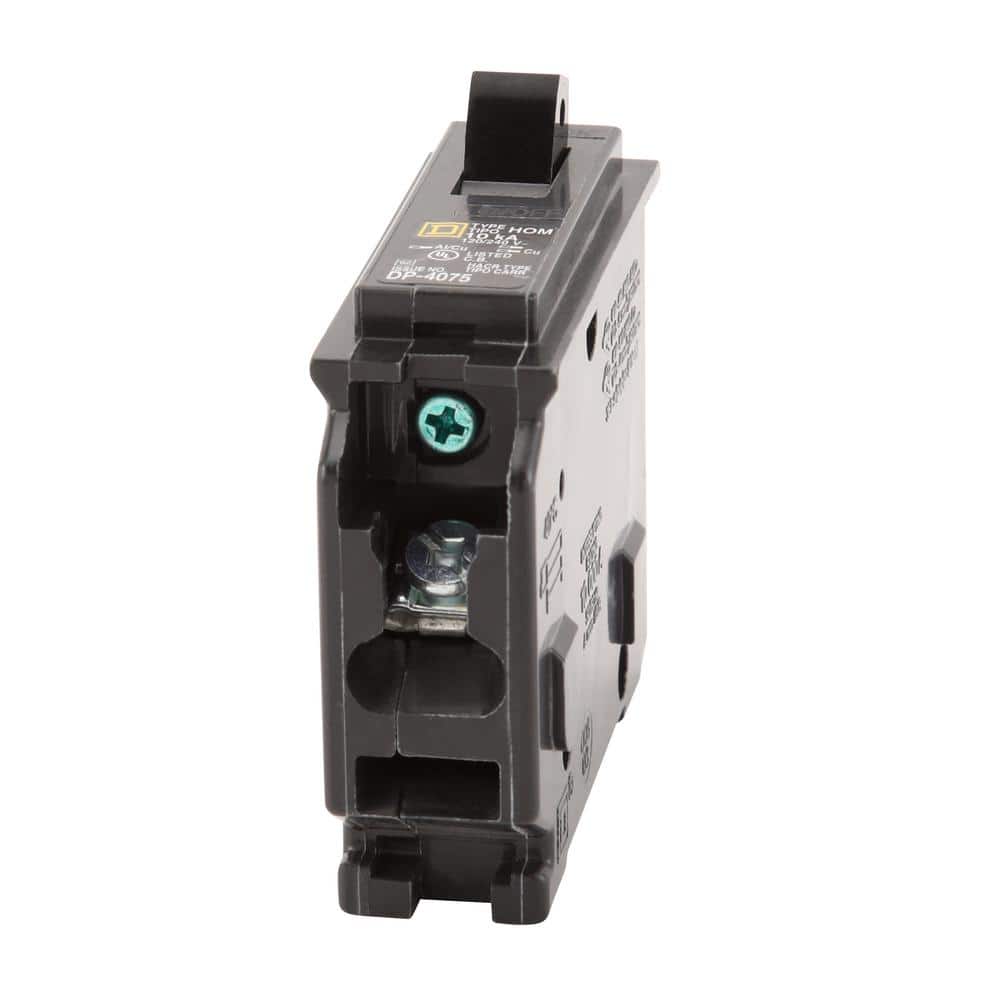

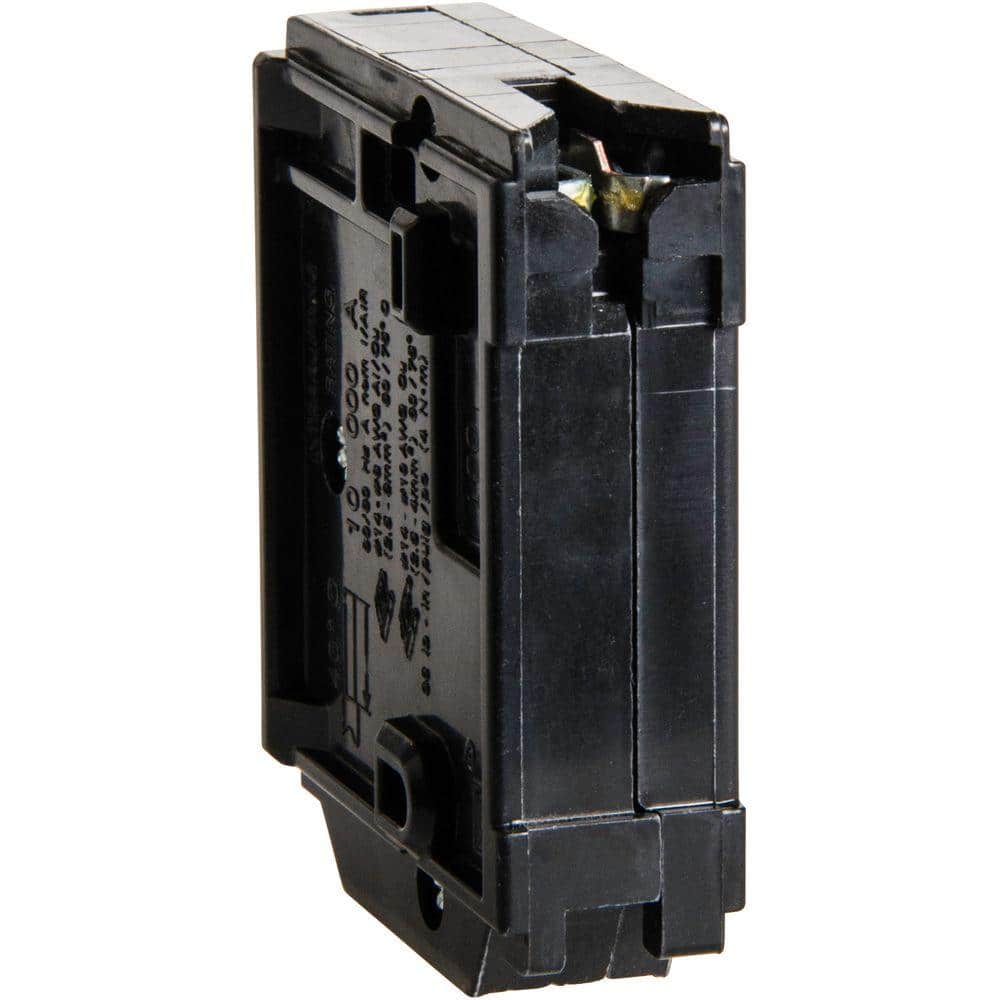

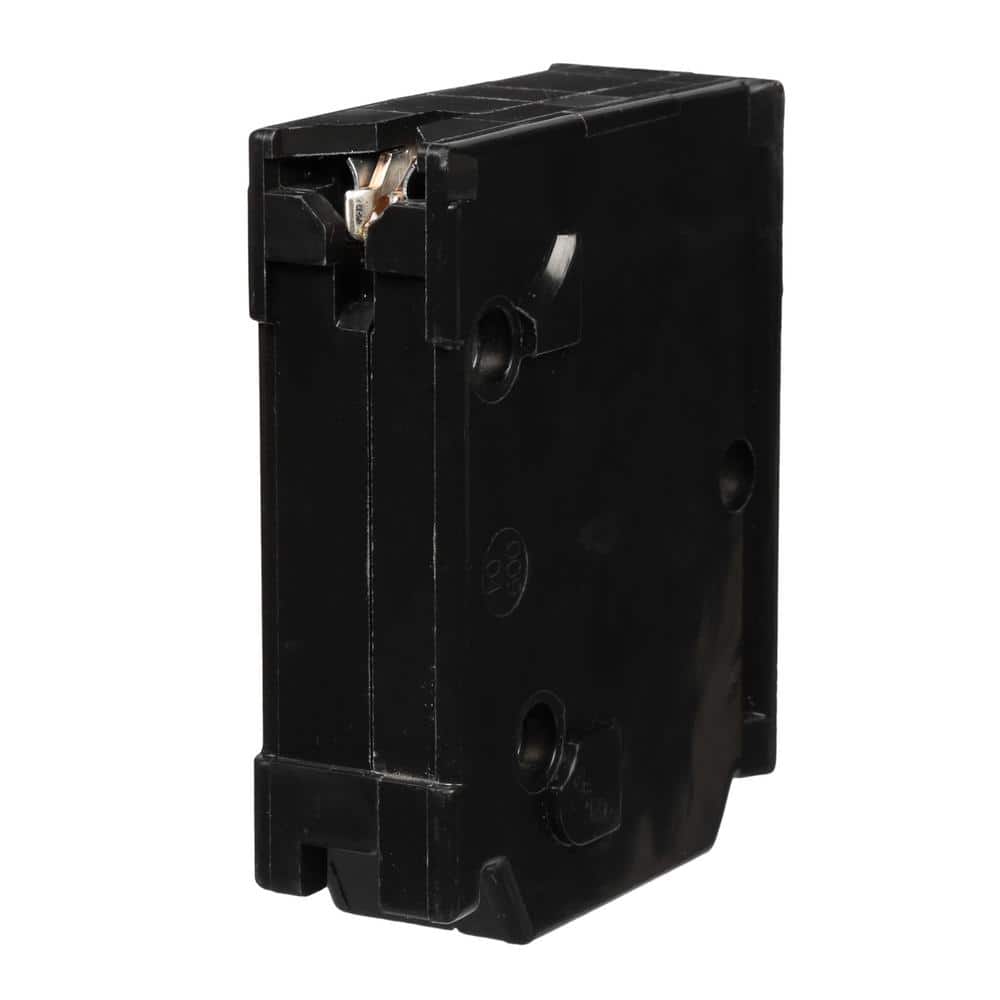

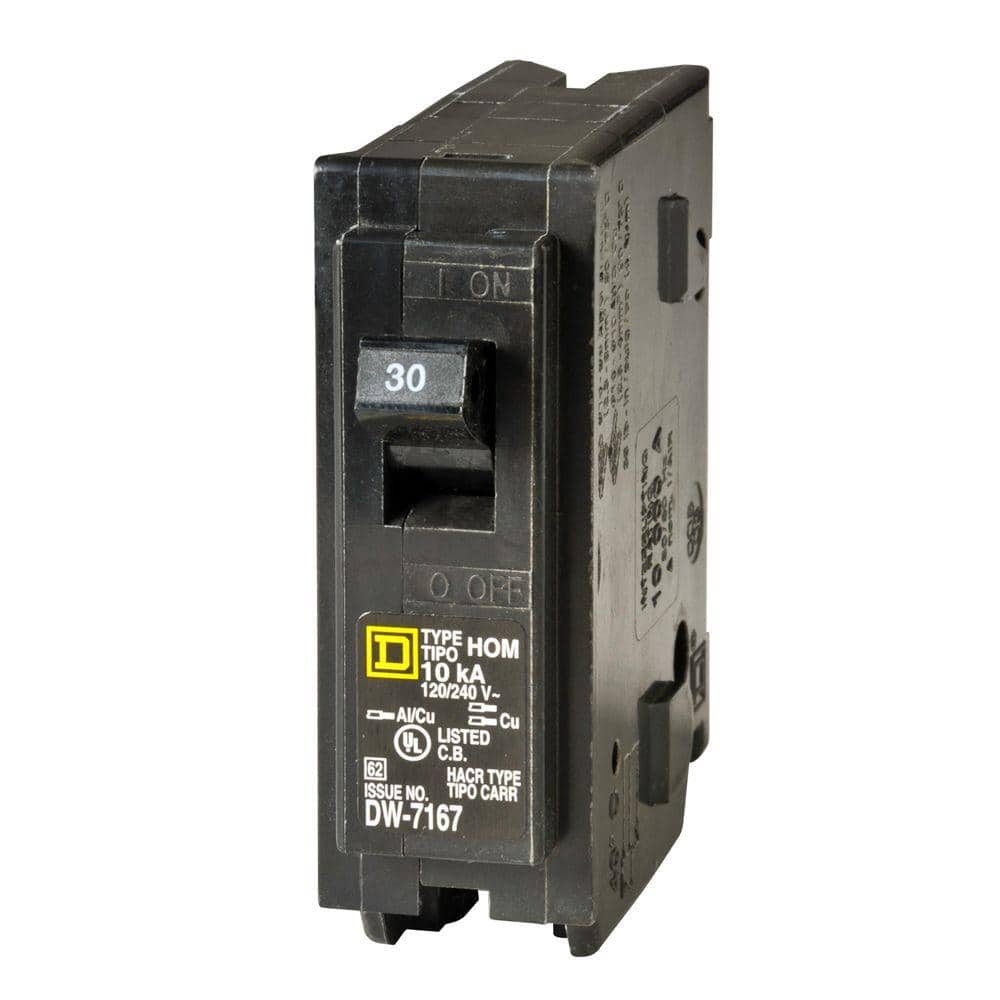

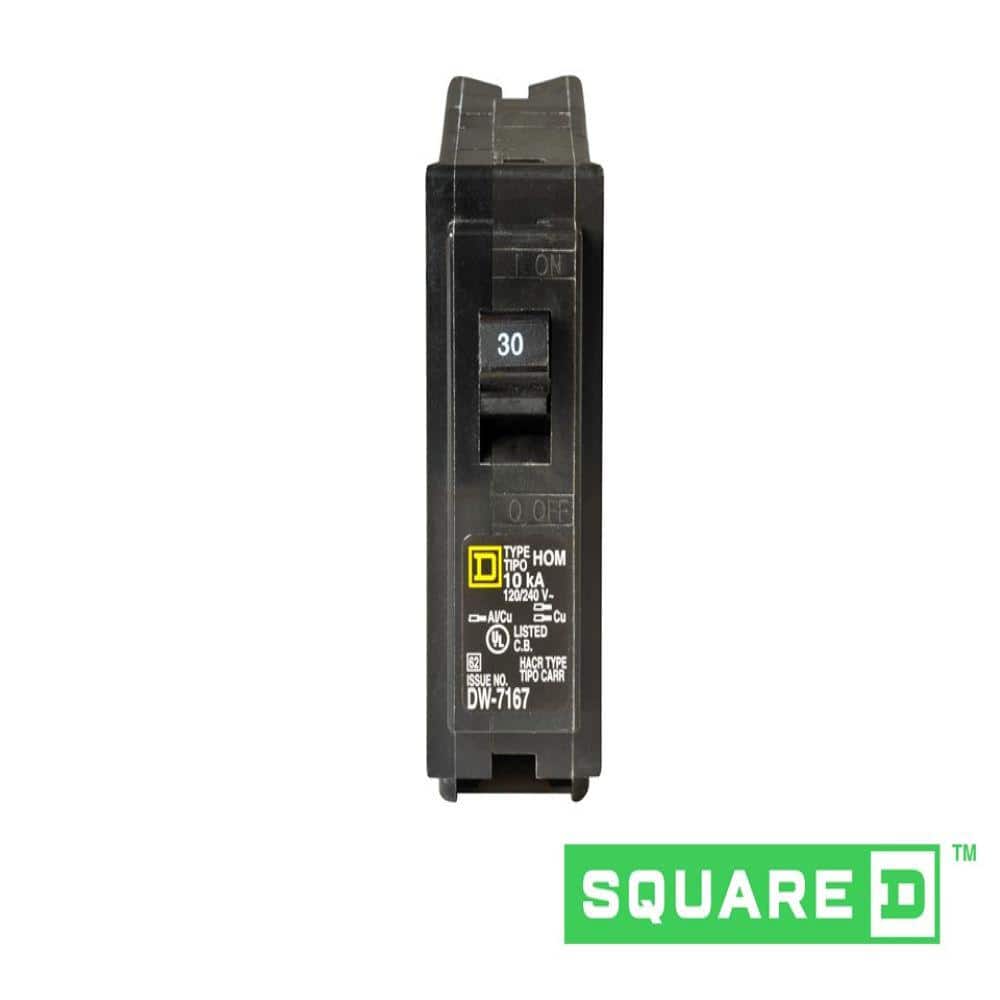

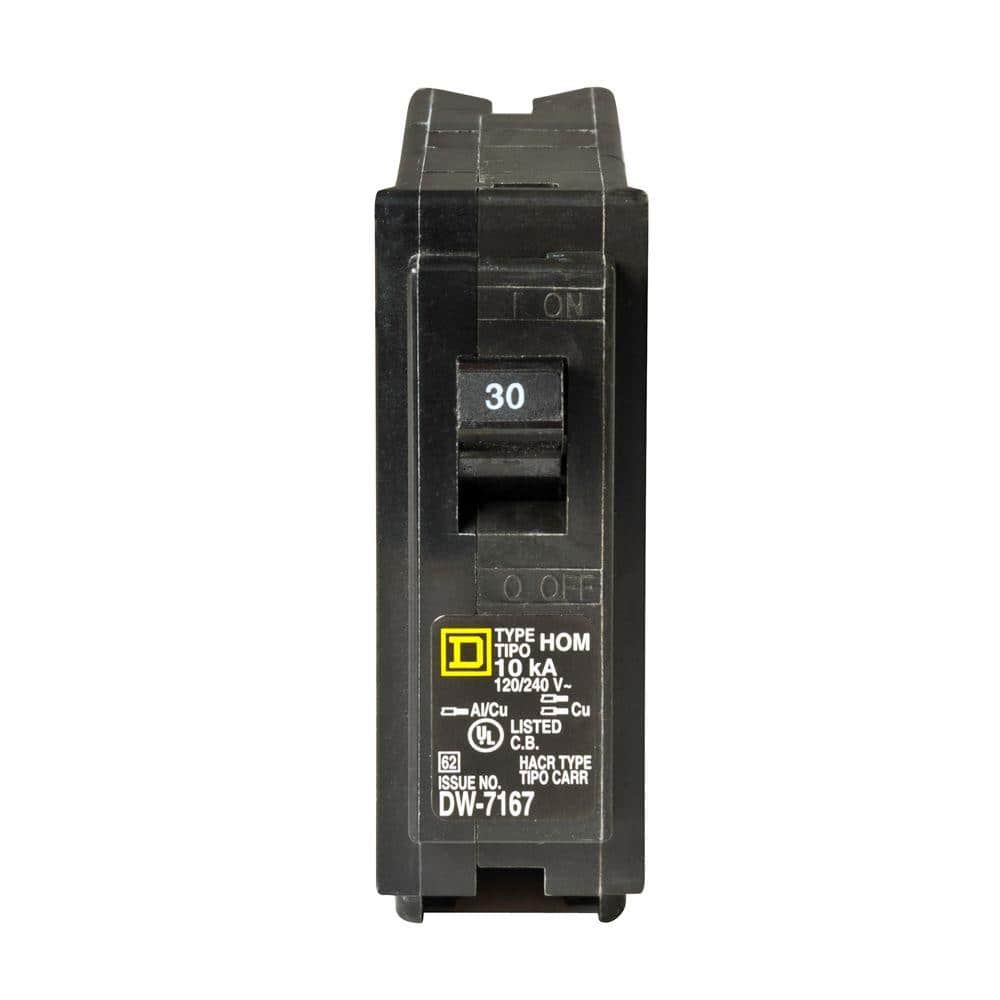

Square D 30 Amp Single-Pole Circuit Breaker
The Square D Homeline 30 Amp Single-Pole Circuit Breaker offers reliable overload and short-circuit protection for residential electrical systems. Designed for easy installation, this breaker seamlessly integrates with Square D Homeline load centers and CSED devices, delivering trusted performance at a competitive price point. ANSI-certified and UL-Listed for quality assurance.
Key Features:
-
Overload Protection: Safeguards against electrical system overloads.
-
Compatibility: Works with Homeline breaker boxes and CSEDs requiring one space.
-
Easy Installation: Plug-on design simplifies setup and maintenance.
-
Durable Construction: Built to meet ANSI standards and UL-listed for quality.
-
Lifetime Warranty: Backed by Square D's lifetime warranty for peace of mind.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Non-Neutral |
| Interruption Type |
Standard Trip |
| Maximum Amperage (A) |
30 A |
| Mounting Type |
Plug-On |
| Number of Poles |
Single |
| Number of Spaces |
1 |
| Pack Size |
1 |
| Product Weight (lb.) |
0.33 lb |
| Series Type |
Homeline |
| Trip Unit |
Thermal Magnetic |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |

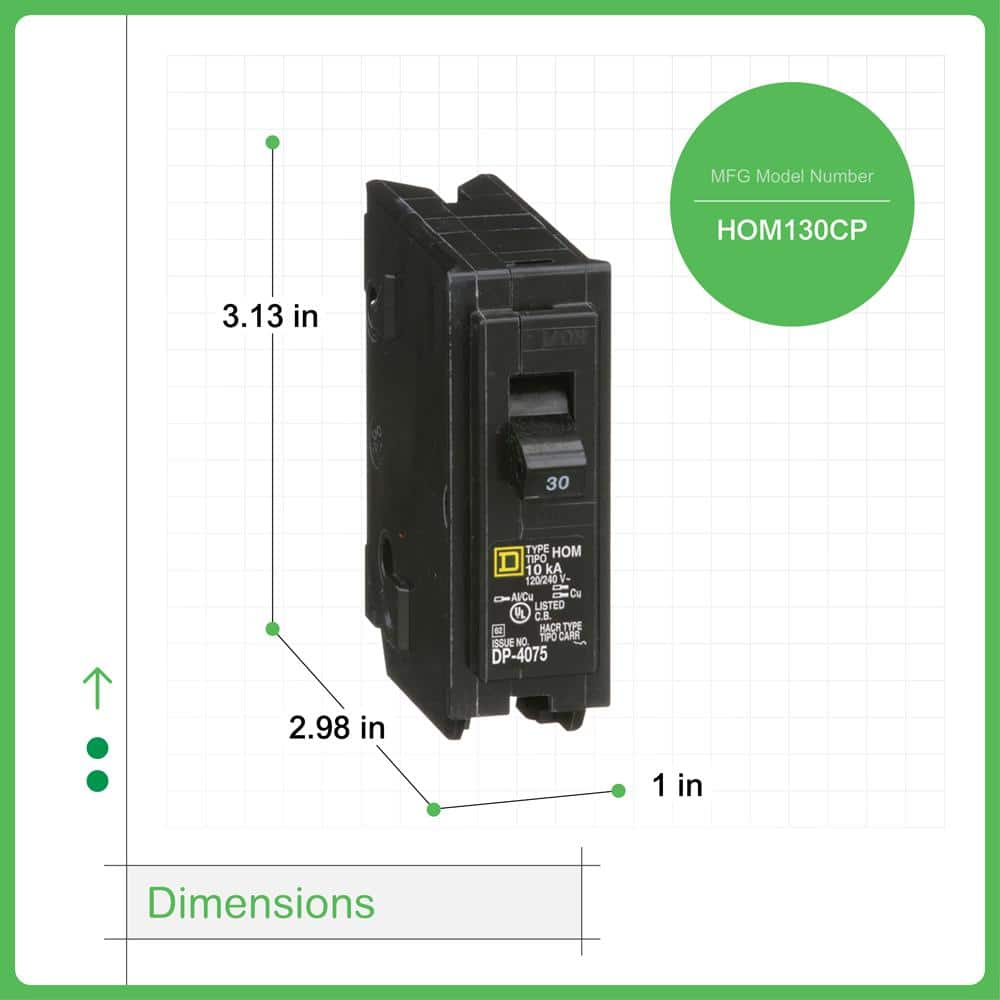

| Product Depth (in.) |
2.98 in |
| Product Height (in.) |
3.13 in |
| Product Width (in.) |
1 in |
Frequently Asked Questions (FAQ):
Q: Is this circuit breaker suitable for use with commercial panels?
A: While designed primarily for residential use, it can be employed in commercial setups compatible with Homeline panels.
Q: What type of load centers is this circuit breaker compatible with?
A: This breaker is compatible specifically with Square D Homeline load centers and CSED devices.
Q: How do I install this circuit breaker?
A: Installation involves plugging the breaker into the designated space on the load center. Refer to the installation guide for a step-by-step process.
Q: Does the product come with a warranty?
A: Yes, it is covered by a limited lifetime warranty from Square D, ensuring protection against defects in material and workmanship.
Q: What is the AIR rating of this circuit breaker?
A: The Square D Homeline circuit breaker has an AIR rating of 10,000.
Empower Every Home with Precise Protection
Imagine a home where elegance meets functionality, seamlessly blending energy flow and safety. The Square D Homeline Circuit Breaker embodies this harmony, providing robust overload protection while maintaining a subtle presence in your electrical panel. Its innovative design ensures easy installation, allowing you to stylishly safeguard your dwelling without unnecessary fuss. Elevate your home's allure with the trusted performance of Square D, ensuring peace of mind in luxurious living.
Ensure your home's electrical safety and efficiency by purchasing the Square D 30 Amp Homeline Circuit Breaker today.
