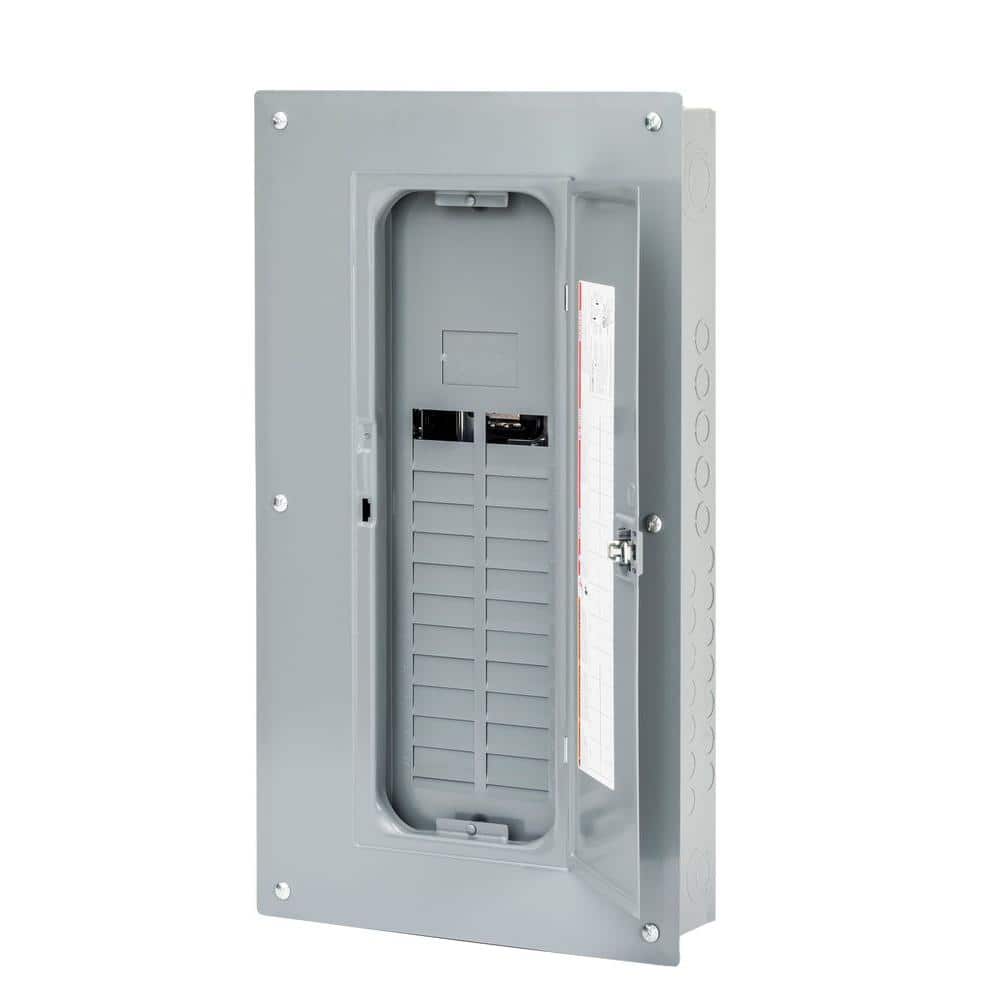

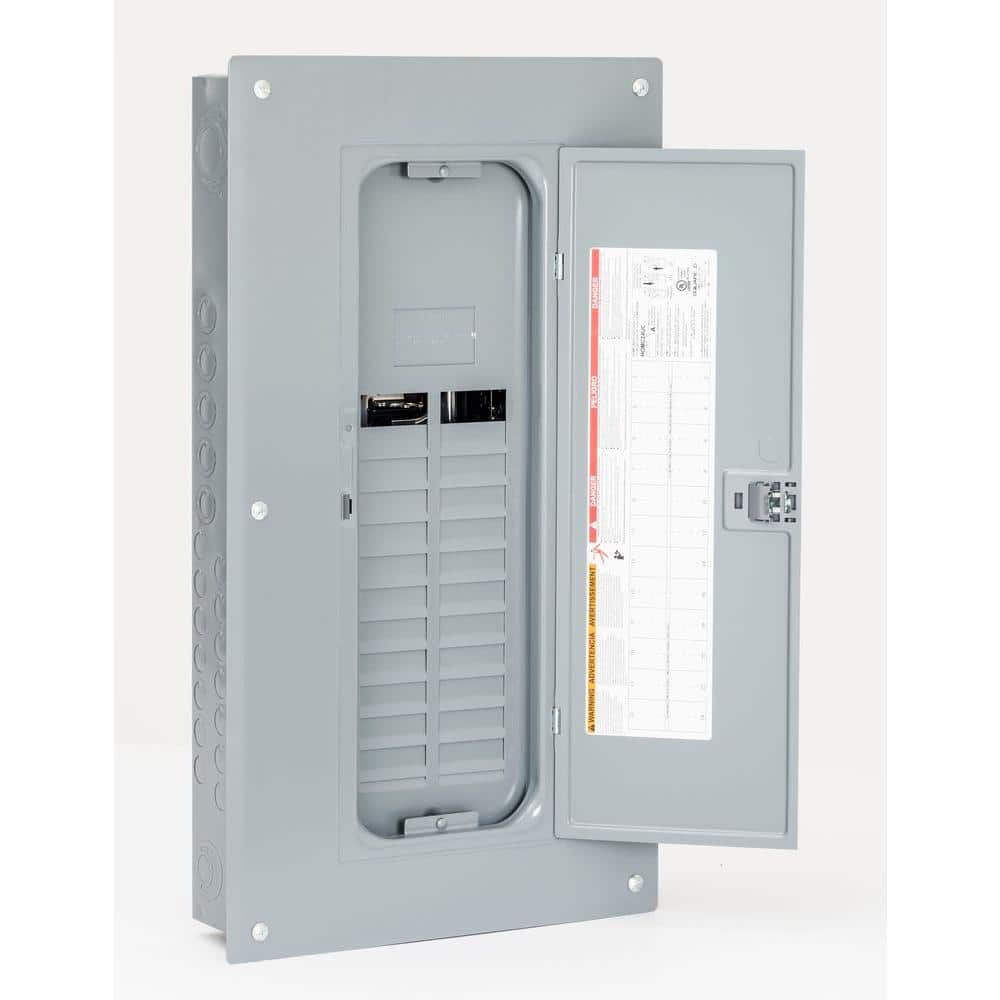

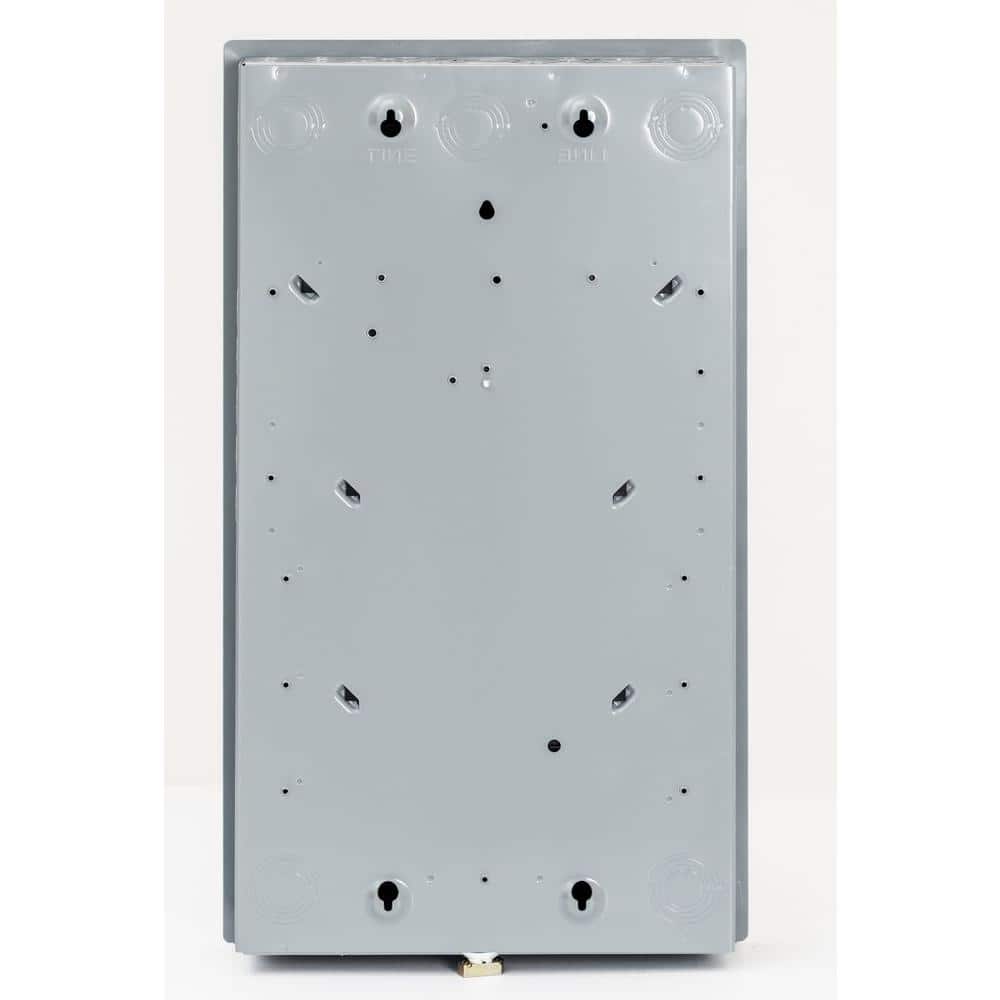

Square D Homeline 225 Amp Indoor Load Center
The Square D Homeline 225 Amp 40-Space Load Center is a top choice for professionals and DIY enthusiasts seeking reliable power distribution. With its innovative Qwik-Grip design and integrated surge protection, it simplifies installation while safeguarding home appliances from power surges. This load center's expansive circuit capacity accommodates diverse electrical needs, making it ideal for residential applications.
Key Features:
-

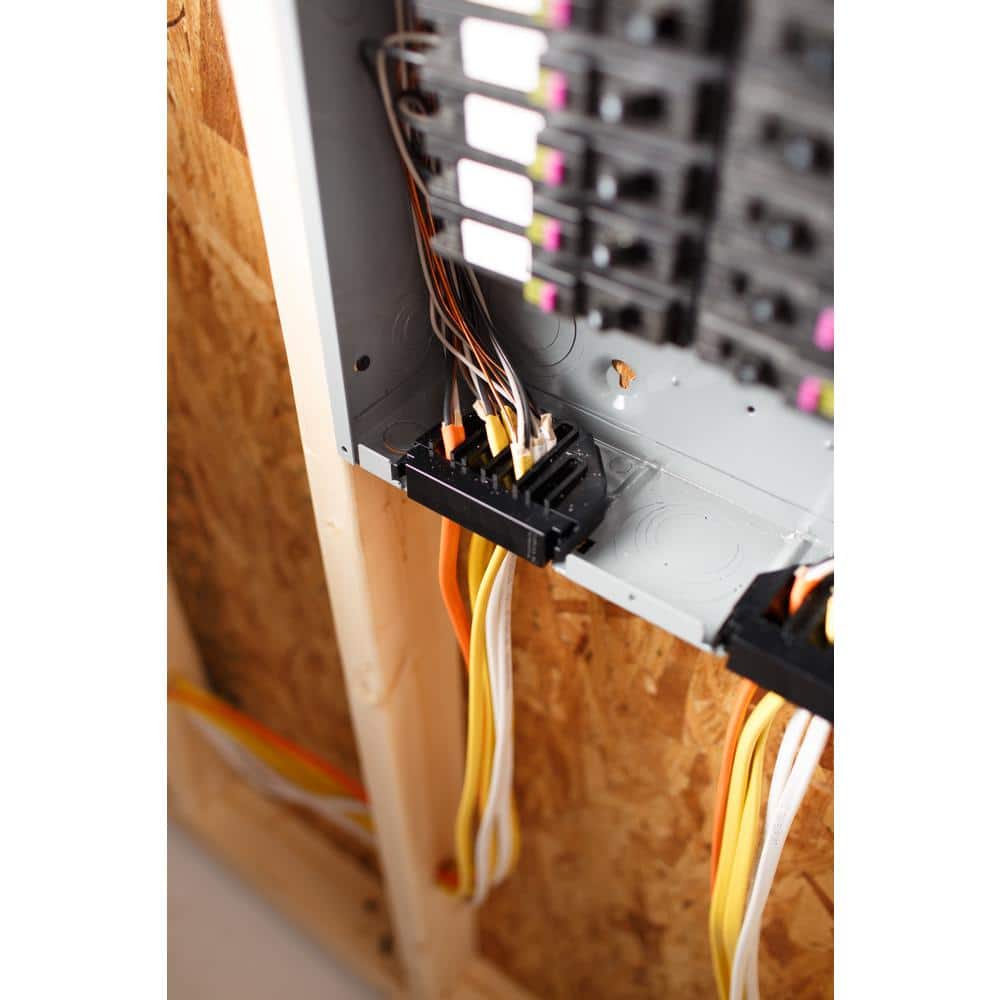

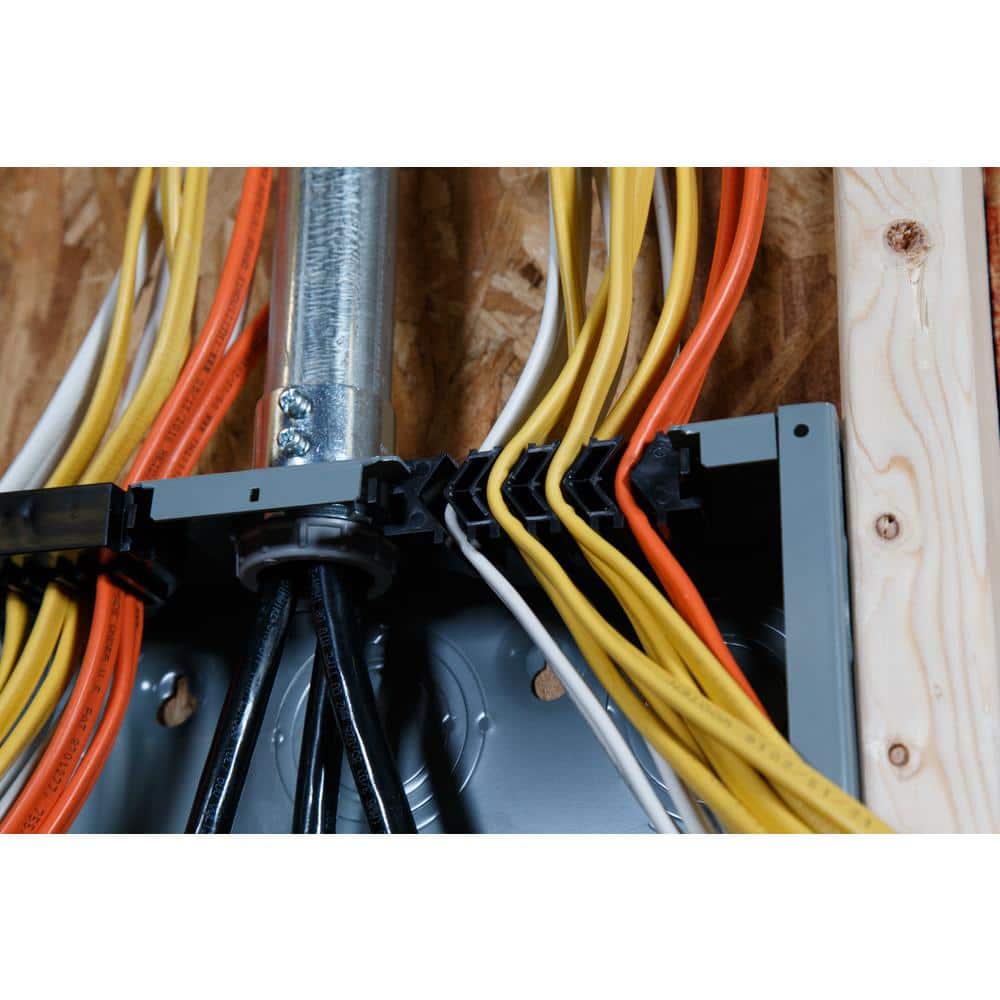

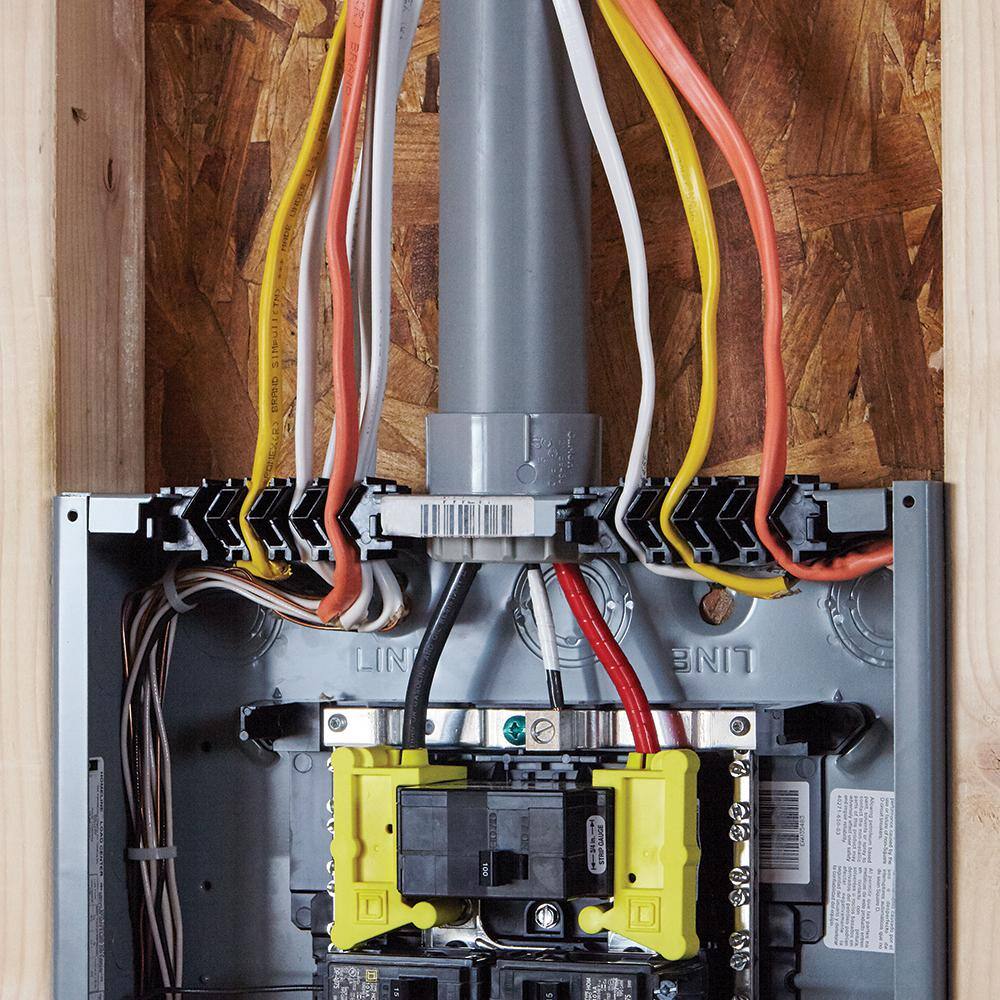

Qwik-Grip System: Enables fast and efficient wire installation, eliminating the need for costly connectors.
-

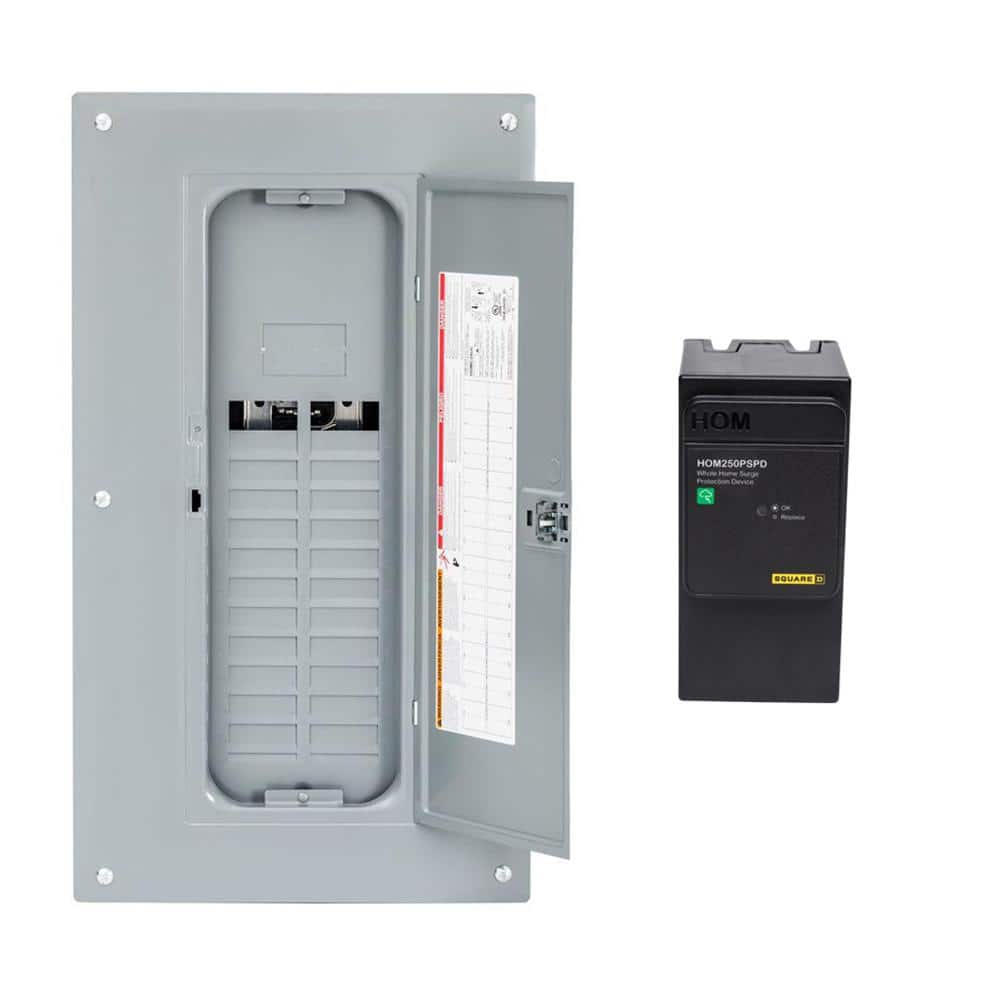

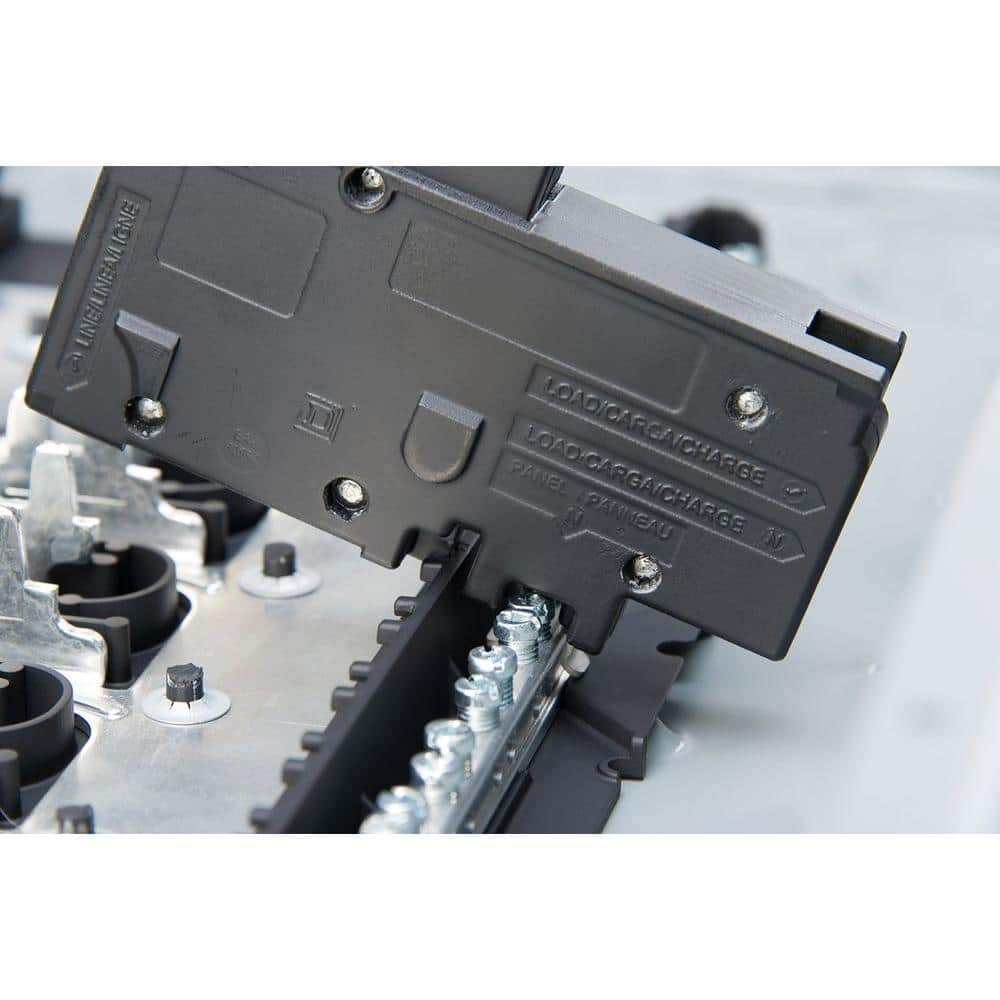

Surge Protection: Includes a 50kA surge protective device to protect essential appliances from power surges.
-
Versatile Breaker Compatibility: Accepts full-size, tandem, or quad Homeline breakers, enhancing flexibility.
-
Durable Build: Features a plated aluminum bus bar and rugged thermoplastic interior to ensure long-term dependability.
-
Efficient Grounding: Comes with two included ground bars with multiple mounting options for easy wiring configuration.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Breaker Box Type |
Subpanel |
| Connection Type |
Neutral |
| Indoor/Outdoor |
Indoor |
| Maximum Amperage (A) |
225 A |
| Mounting Type |
Flush,Surface |
| NEMA Configuration |
NEMA 1 |
| Number of Circuits |
80 |
| Number of Spaces |
40 |
| Product Weight (lb.) |
35.85 lb |
| Series Type |
Homeline |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

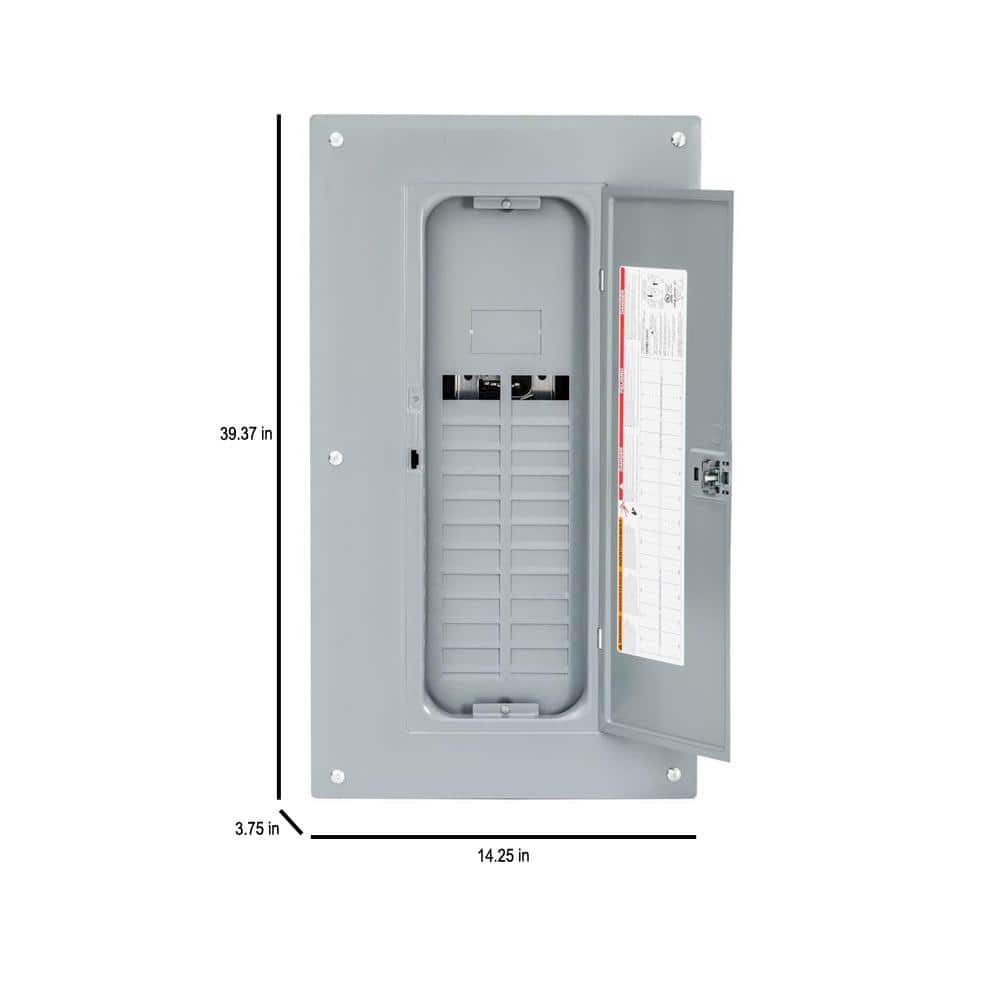

| Product Depth (in.) |
3.75 in |
| Product Height (in.) |
39.37 in |
| Product Width (in.) |
14.25 in |
Frequently Asked Questions (FAQ):
Q: Can the load center be used for both overhead and underground feeds?
A: Yes, the Square D Homeline Load Center is designed to accommodate both overhead and underground feeds by simply rotating the device before installation.
Q: Is this model suitable for outdoor use?
A: No, this load center is optimized for indoor applications and carries an NEMA 1 rating, which is not suited for outdoor environments.
Q: What type of breakers are compatible with this load center?
A: It is compatible with all Square D Homeline circuit breakers, including full-size, tandem, and quad types.
Q: Does the load center include a main breaker?
A: This model does not include a main breaker out of the box, but it can be converted to a main breaker load center with a QOM1 main breaker, which is sold separately.
Q: What protections are included with this load center?
A: The load center includes a whole-house surge protective device with a maximum surge current rating of 50,000 Amps to protect connected equipment.
Elevate Your Electrical Versatility
Transform your living space with the Square D Homeline Load Center, a hidden powerhouse of innovation. Its sleek, unobtrusive design enhances functionality without compromising aesthetics, providing a safer, clutter-free electrical experience. Envision a clean, organized utility space where this load center simplifies complex tasks, offering unparalleled flexibility and control. Redefine your home’s core functionality while contributing to a modern, streamlined environment essential for sophisticated living.
Upgrade your power infrastructure with confidence—explore the durable and efficient Square D Homeline Load Center now!
