200 Amp Homeline Load Center Panel
The Square D Homeline 200 Amp 40-Space 80-Circuit Panel is a versatile and economical solution for residential and commercial power distribution. This load center includes a cover and a selection of breakers, making it a convenient value pack for contractors and homeowners alike. Engineered for efficient, fast installation with its plated aluminum bus bar and Plug-on Neutral design, it's a smart choice for any electrical setup.
Key Features:
-

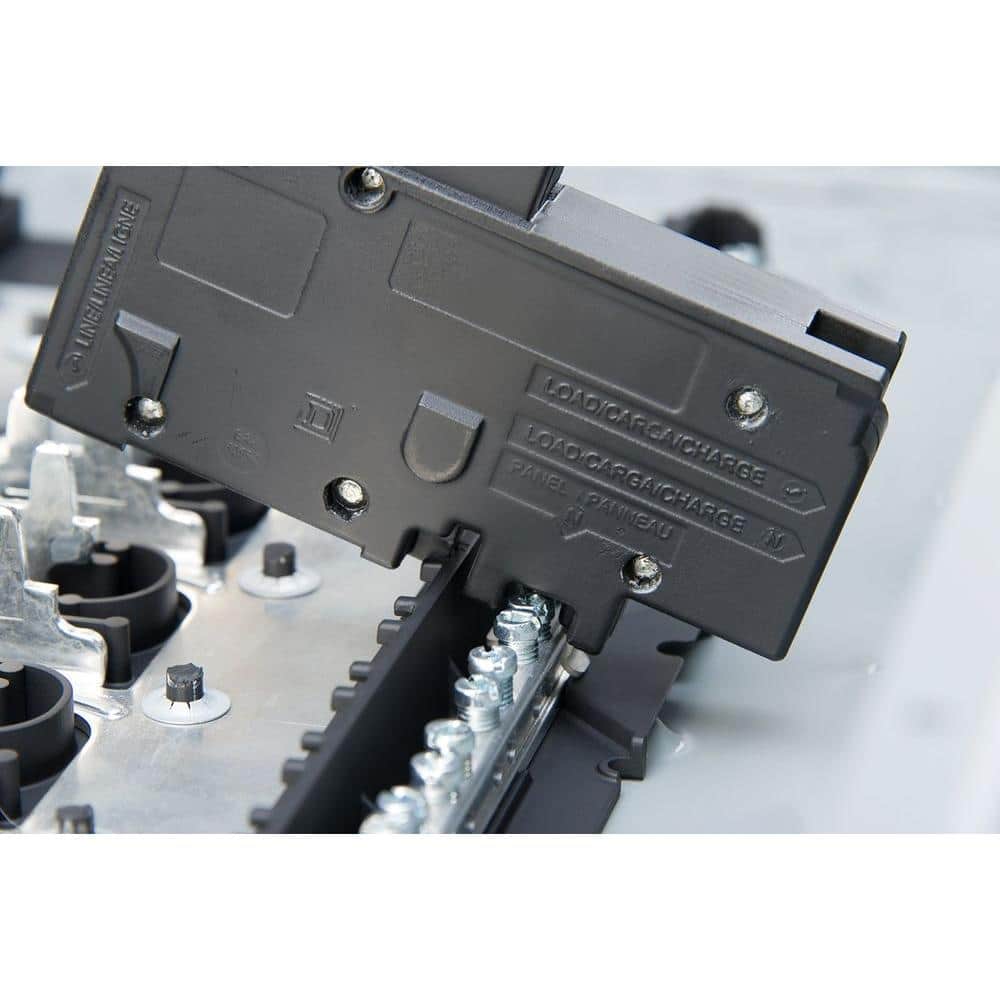

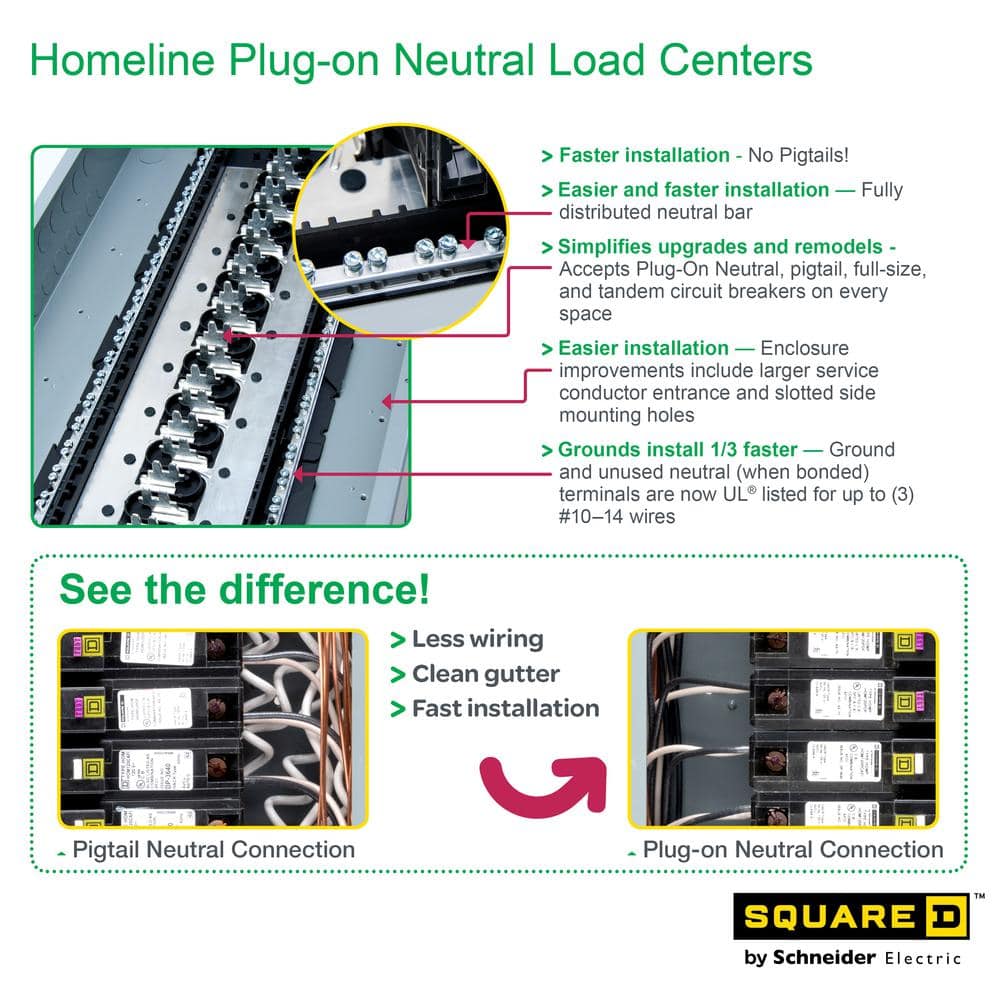

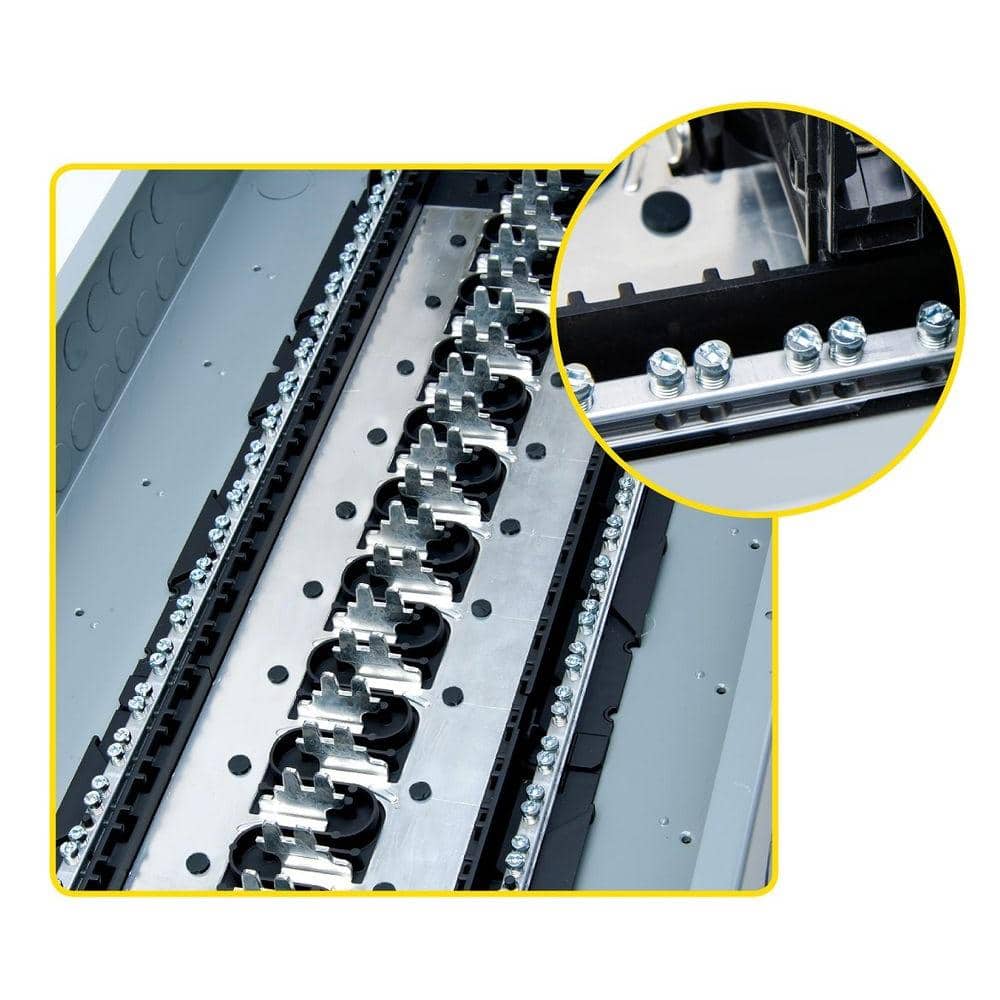

Plug-on Neutral: Simplifies installation and maximizes wire savings.
-
Ample Space: 40 spaces accommodate up to 80 circuits, providing ample room for expansion.
-

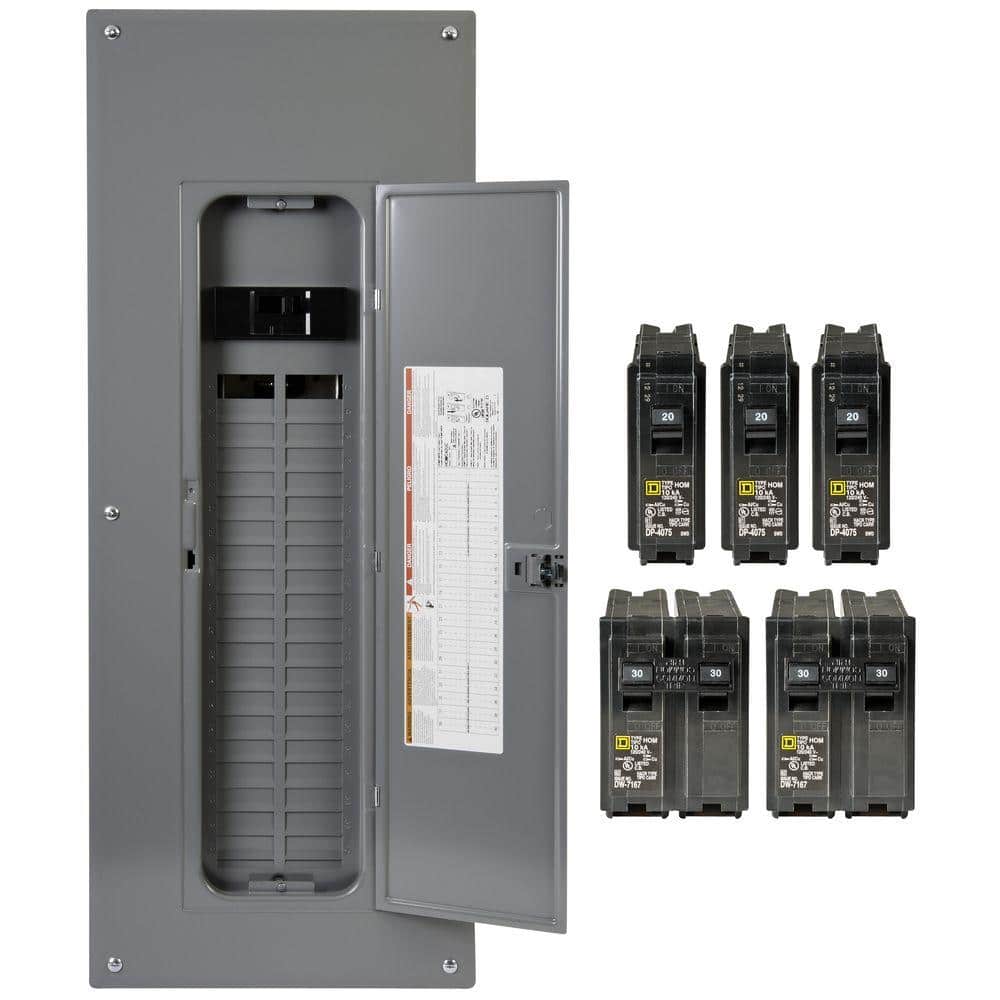

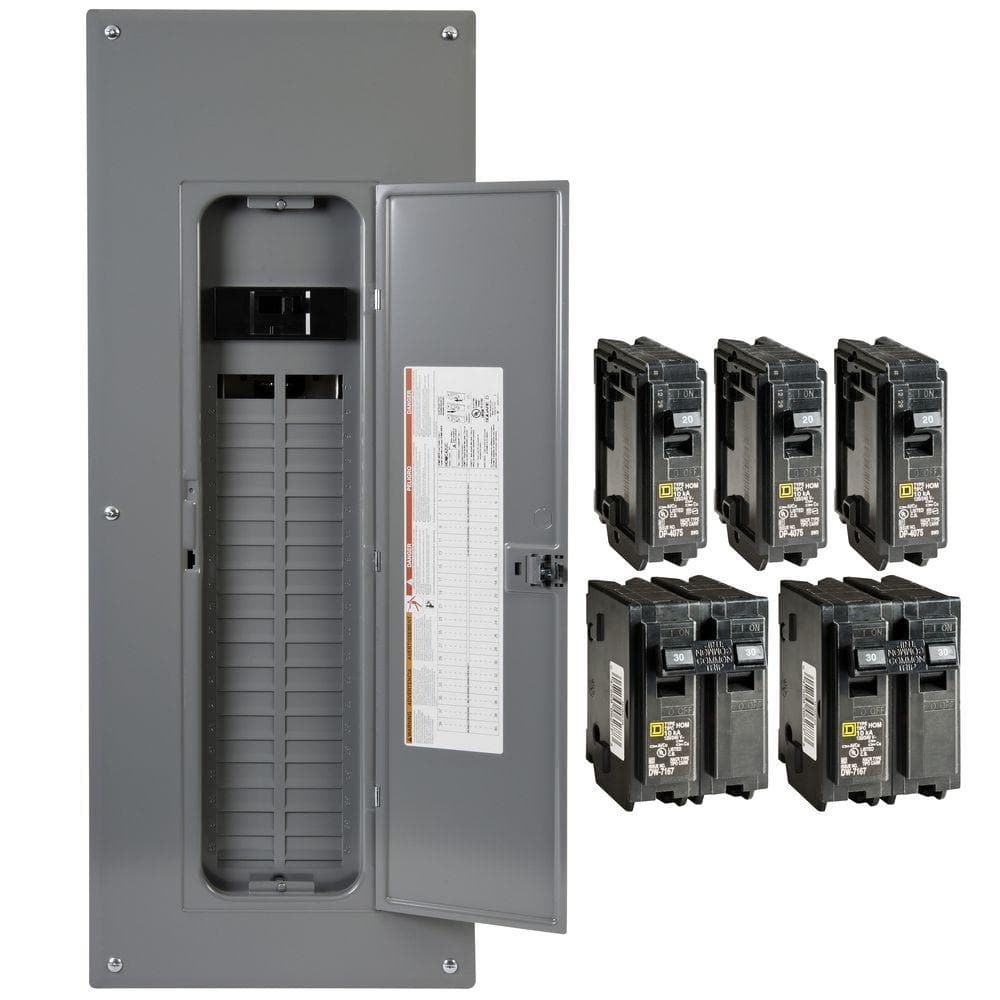

Included Breakers: Value pack includes 3x 20 Amp single-pole and 2x 30 Amp double-pole circuit breakers.
-
Durability: Made with a thermoplastic interior assembly for enhanced ruggedness.
-
Safe and Reliable: UL Listed with a short circuit current rating of 22,000 AIR.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Breaker Box Type |
Main Breaker Panel |
| Connection Type |
Neutral |
| Electrical Product Type |
Load Center and Breaker Kit |
| Included |
Circuit Breaker,Cover |
| Indoor/Outdoor |
Indoor |
| Maximum Amperage (A) |
200 A |
| Mounting Type |
Flush,Surface |
| NEMA Configuration |
NEMA 1 |
| Number of Circuits |
80 |
| Number of Pieces |
6 |
| Number of Spaces |
40 |
| Phase Type |
1 Phase |
| Product Weight (lb.) |
40.11 lb |
| Series Type |
Homeline |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

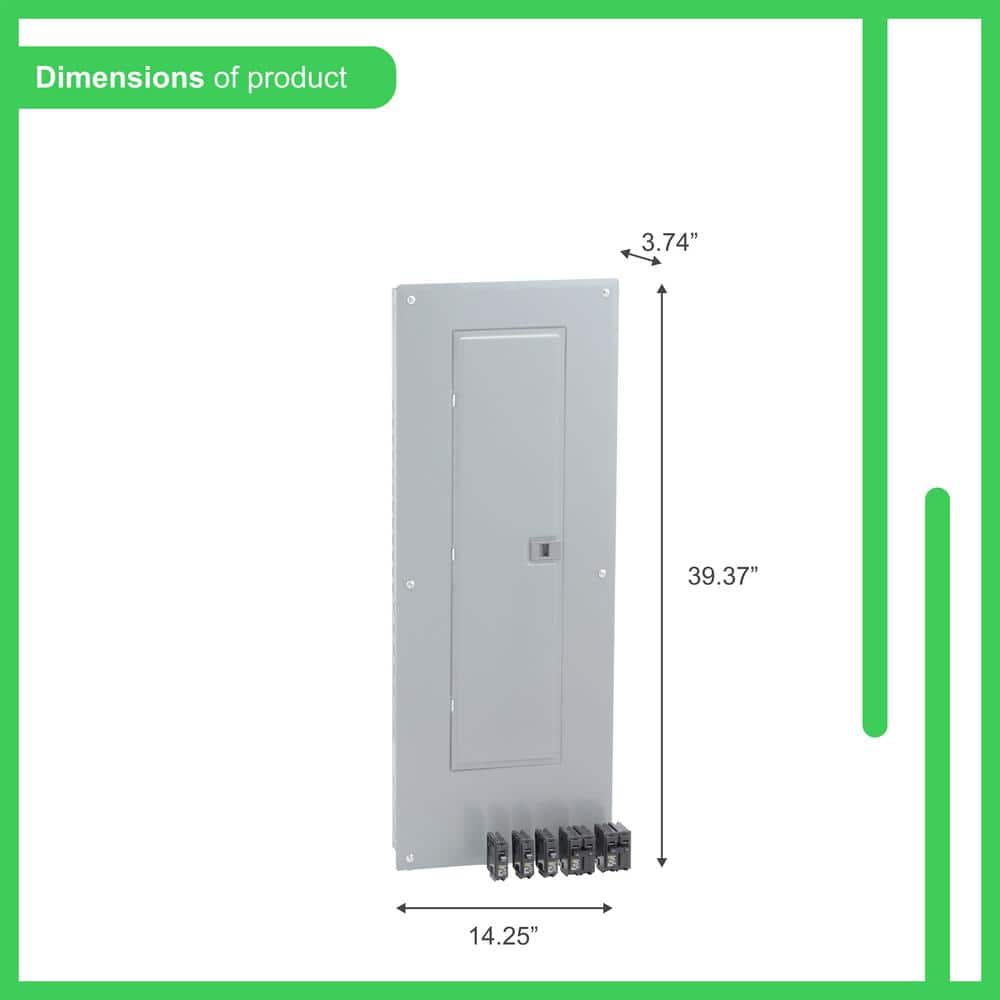

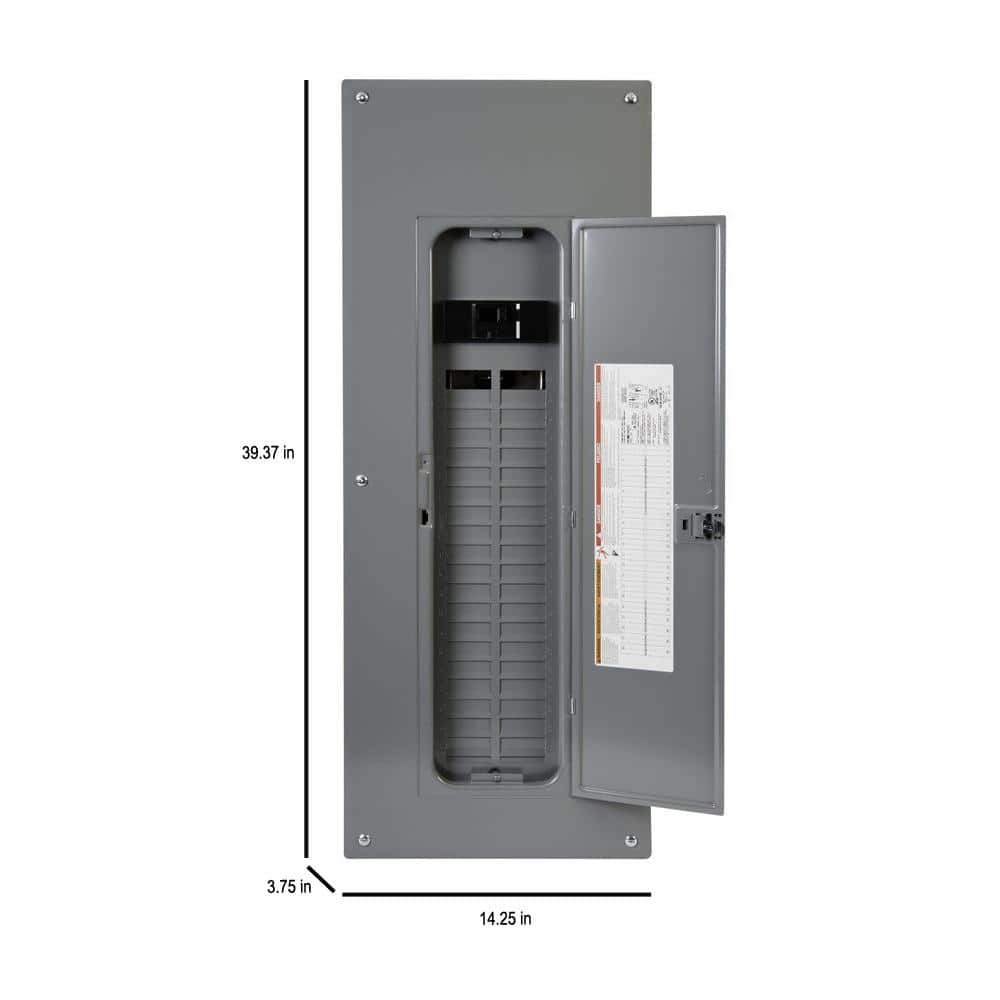

| Product Depth (in.) |
3.75 in |
| Product Height (in.) |
39.37 in |
| Product Width (in.) |
14.25 in |
Frequently Asked Questions (FAQ):
Q: How easy is it to install this load center?
A: The Homeline panel is designed for quick and easy installation, featuring straight-in mains and an automatic flush adjusting cover that saves time and money on wiring.
Q: Is this panel suitable for outdoor installation?
A: No, this panel is rated for indoor use only, suitable for residential and commercial interiors.
Q: Does this load center support future upgrades?
A: Yes, it is designed with 40 spaces supporting up to 80 circuits, allowing for expansion as your power needs grow.
Q: Are there any environmental considerations with this product?
A: Yes, the load center supports electronic recycling, contributing to sustainable practices.
Q: Does it come with a warranty?
A: Yes, Square D provides a 10-year warranty for defects in material and workmanship in residential applications.
Elevate Your Electrical Efficiency
Transform the backbone of a home’s electrical system with the incomparable reliability of Square D’s Homeline Load Center. This panel, with its streamlined design and aluminum bus bar, stands out as a subtle yet powerful component in modern living spaces. Imagine the clean installation lines, effortlessly contributing to a tidy and organized utility area. Embrace the security of a robust electrical hub that is as essential to contemporary design as a grand chandelier is to a lavish ballroom.
Upgrade your electrical system's capacity and efficiency with the Square D Homeline Load Center today!
