Homeline 200 Amp Electrical Panel with Breakers

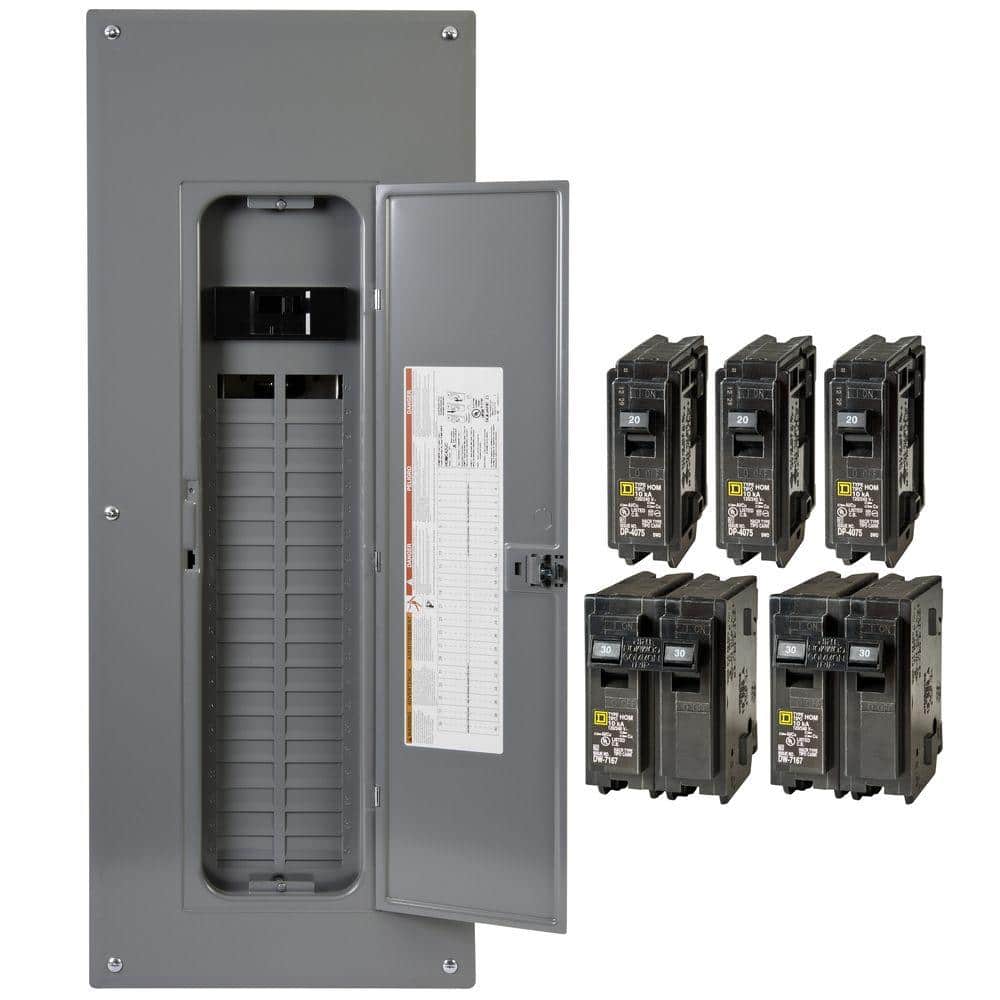

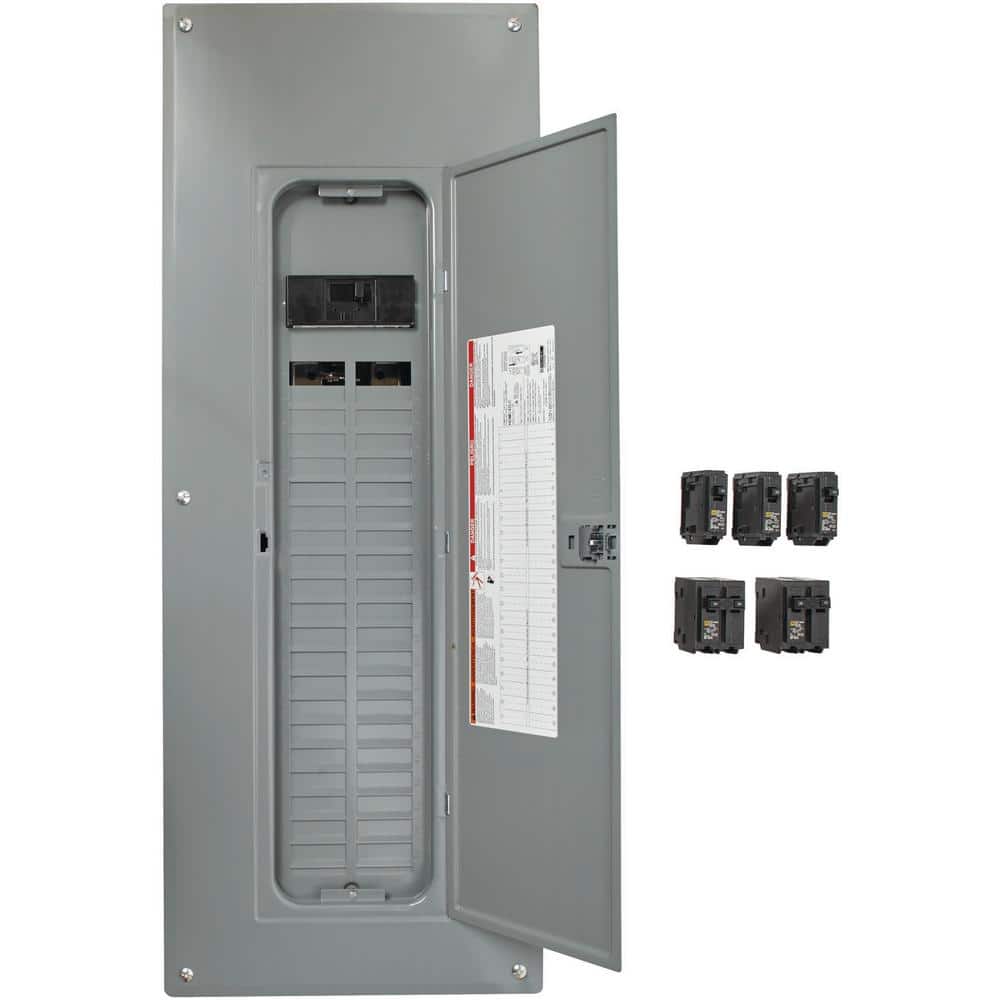

The Square D Homeline 200 Amp Electrical Panel is a smart choice for efficient and reliable power distribution in residential and commercial spaces. Featuring the innovative Qwik-Grip Plug-On Neutral system, it allows for swift installation, minimizing wiring work. This value pack comes with three 20 Amp single-pole and two 30 Amp double-pole circuit breakers, ensuring comprehensive protection.
Key Features:
-

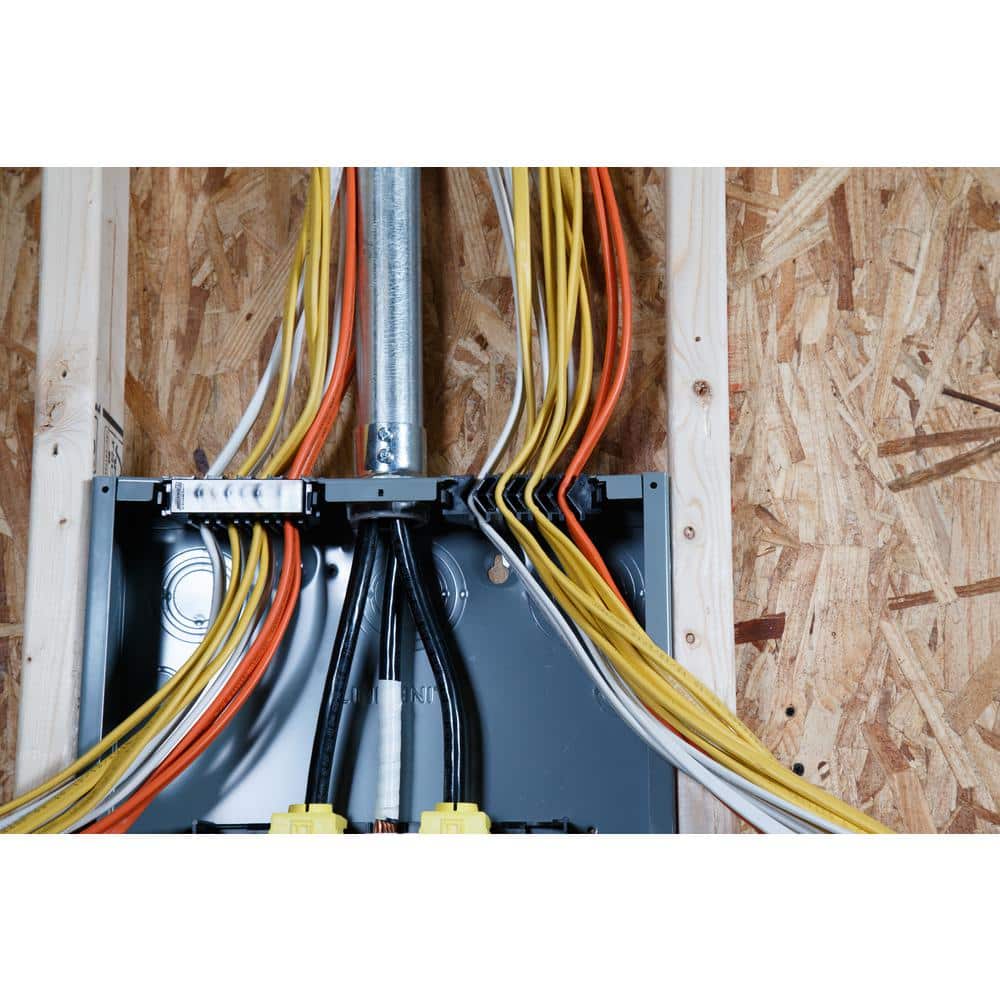

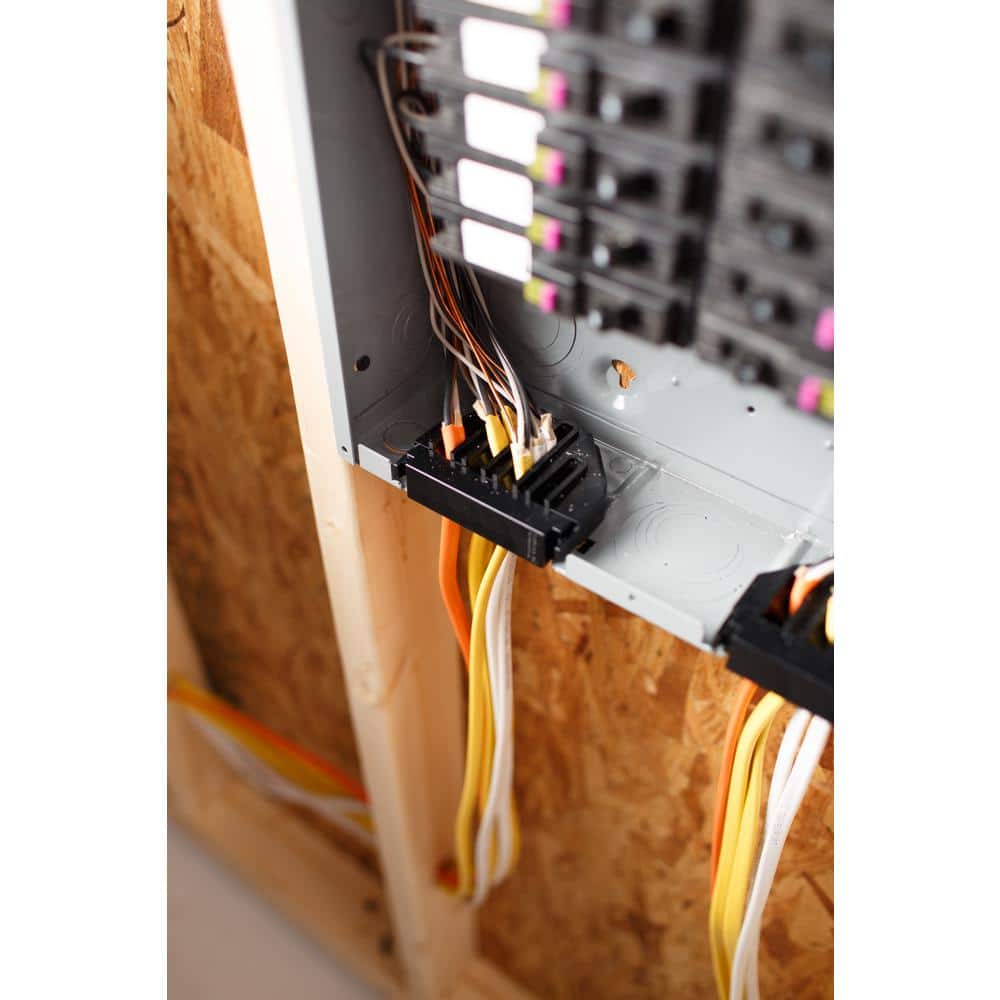

Qwik-Grip Technology: Allows for fast, simple cable management without using traditional knockouts and connectors.
-
High Capacity: Supports up to 80 circuits, ideal for extensive wiring needs in modern homes.
-

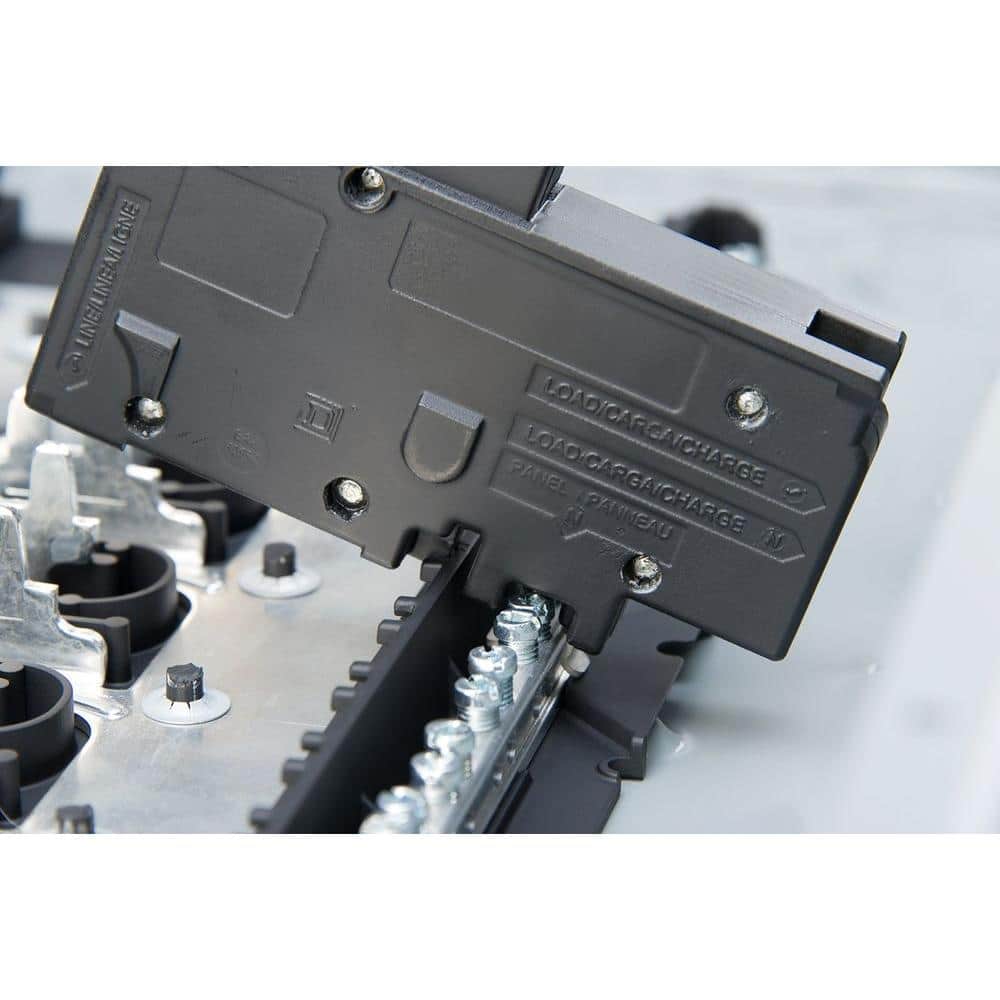

Enhanced Safety: Includes plug-on neutral compatibility with arc fault breakers for added safety.
-

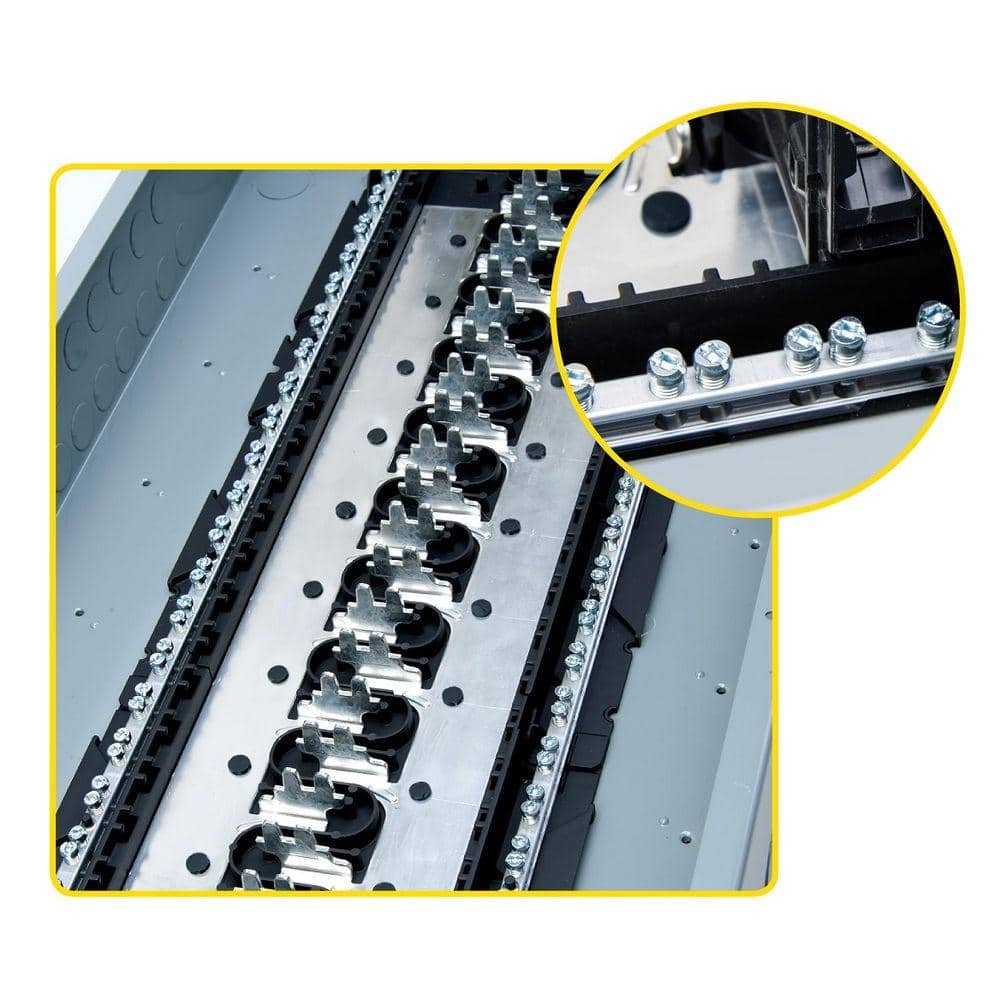

Robust Build: Designed with a plated aluminum bus for longevity and durability.
-
Versatile Installation: Offers both overhead and underground feed options to adapt to various setups.
Specifications Table:
| Specification |
Details |
| Breaker Box Type |
Main Breaker Panel |
| Connection Type |
Neutral |
| Electrical Product Type |
Load Center and Breaker Kit |
| Included |
Circuit Breaker,Cover |
| Indoor/Outdoor |
Indoor |
| Maximum Amperage (A) |
200 A |
| Mounting Type |
Flush,Surface |
| NEMA Configuration |
NEMA 1 |
| Number of Circuits |
80 |
| Number of Pieces |
6 |
| Number of Spaces |
40 |
| Phase Type |
1 Phase |
| Product Weight (lb.) |
40.11 lb |
| Series Type |
Homeline |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

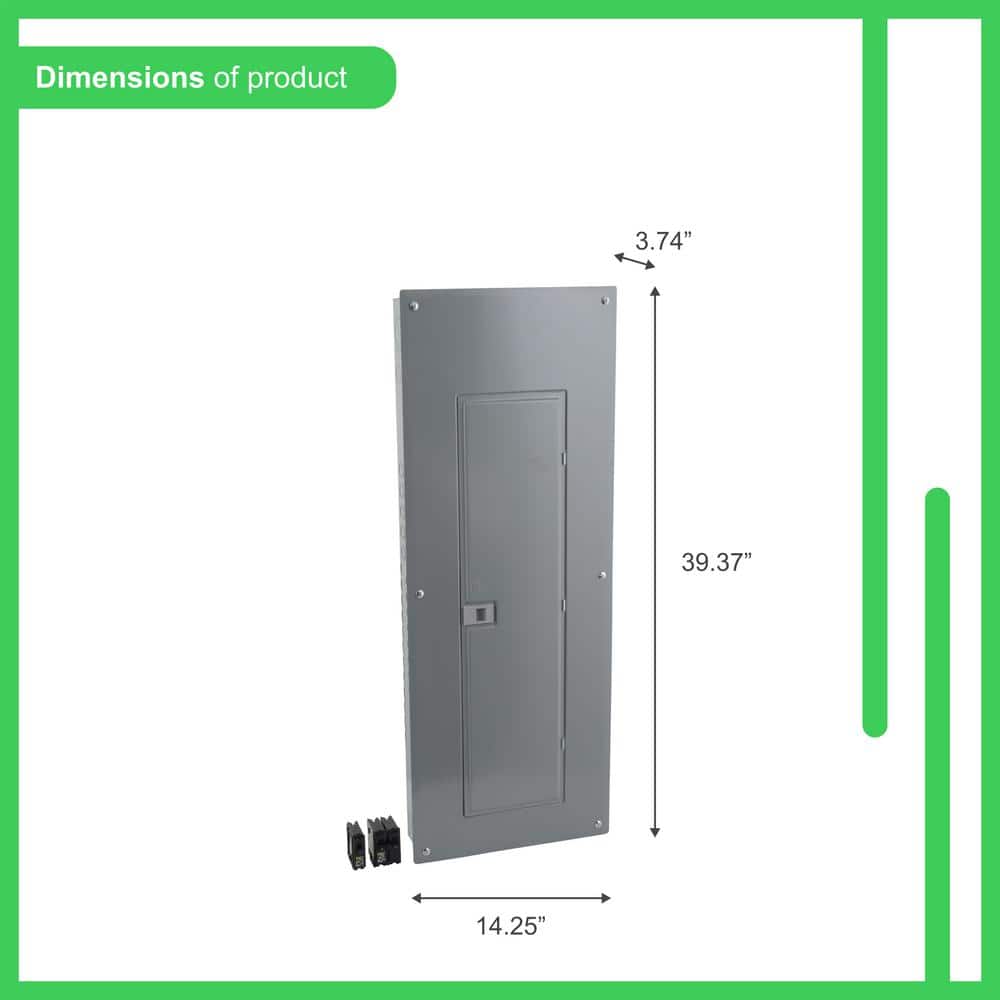

| Product Depth (in.) |
3.75 in |
| Product Height (in.) |
39.37 in |
| Product Width (in.) |
14.25 in |
Frequently Asked Questions (FAQ):
Q: What type of circuit breakers can be used with this panel?
A: This panel is compatible with Square D Homeline circuit breakers, providing flexibility in design and application.
Q: Is this panel suitable for both indoor and outdoor installation?
A: The panel is designed for indoor use only, ensuring safety and efficiency in controlled environments.
Q: How does the Qwik-Grip system benefit installation?
A: The Qwik-Grip system significantly reduces installation time by allowing branch wires to be inserted without the need for conduit entry fittings.
Q: What is the warranty on this electrical panel?
A: Square D offers a 10-year warranty against defects in material and workmanship for this Homeline panel when used with the appropriate Homeline breakers.
Q: Does it come with a cover for protection?
A: Yes, this value pack includes a cover, offering protection to the panel and its components.
Elevate Your Power Solution with Precision
The Homeline 200 Amp Electrical Panel by Square D is more than just a functional asset; it transforms your utility space into a powerhouse of efficiency and safety. Its innovative Qwik-Grip system elegantly hides complexity while reducing clutter. Style it with a sleek, modern utility room to showcase its robust build. Truly, it is an essential component for anyone seeking an unparalleled combination of sophistication and resilience in their residential or commercial design.
Discover the efficiency and reliability of the Homeline 200 Amp Electrical Panel, and electrify your next project today!
