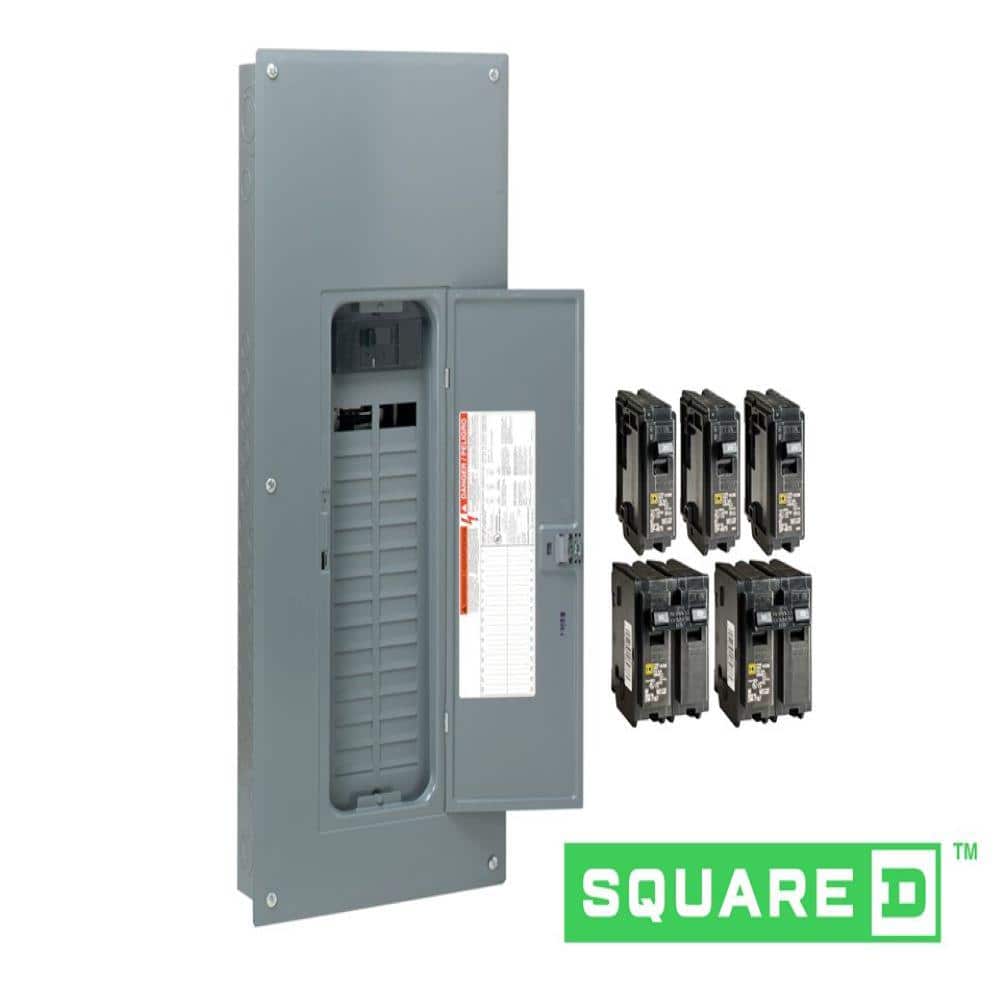

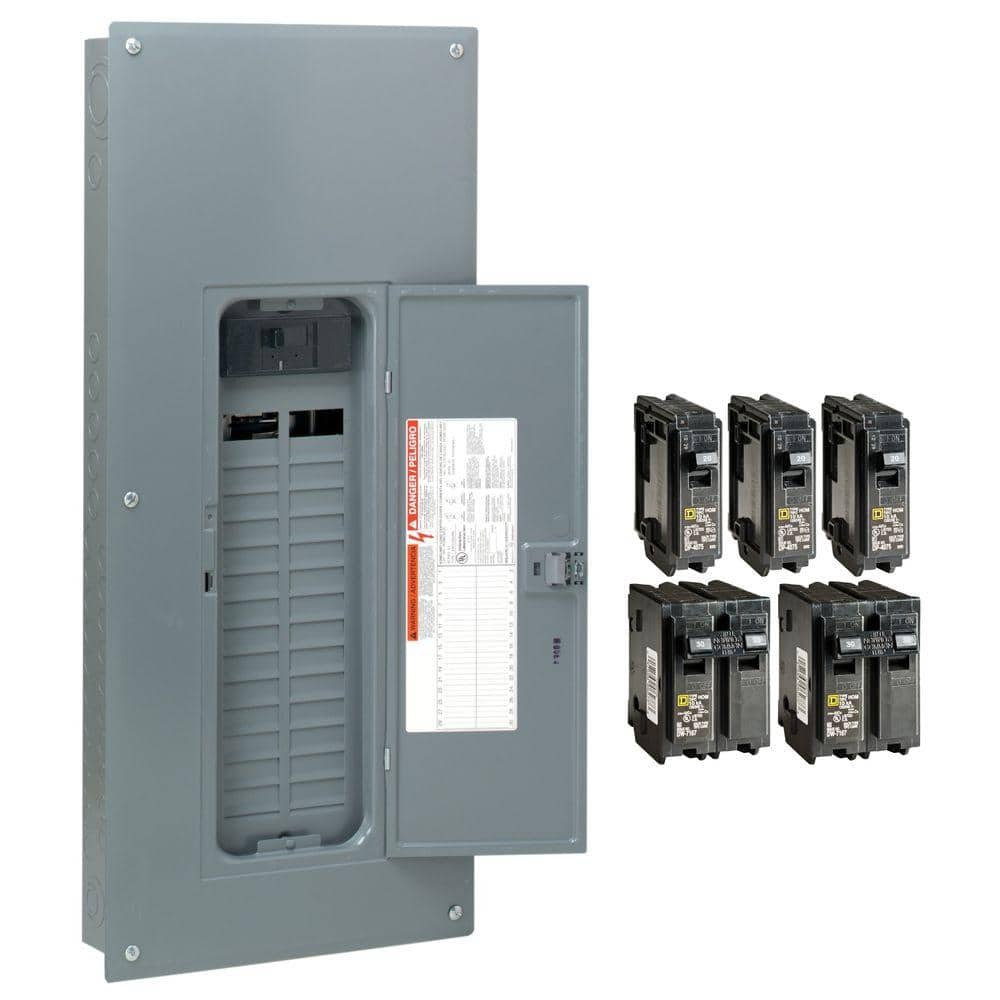

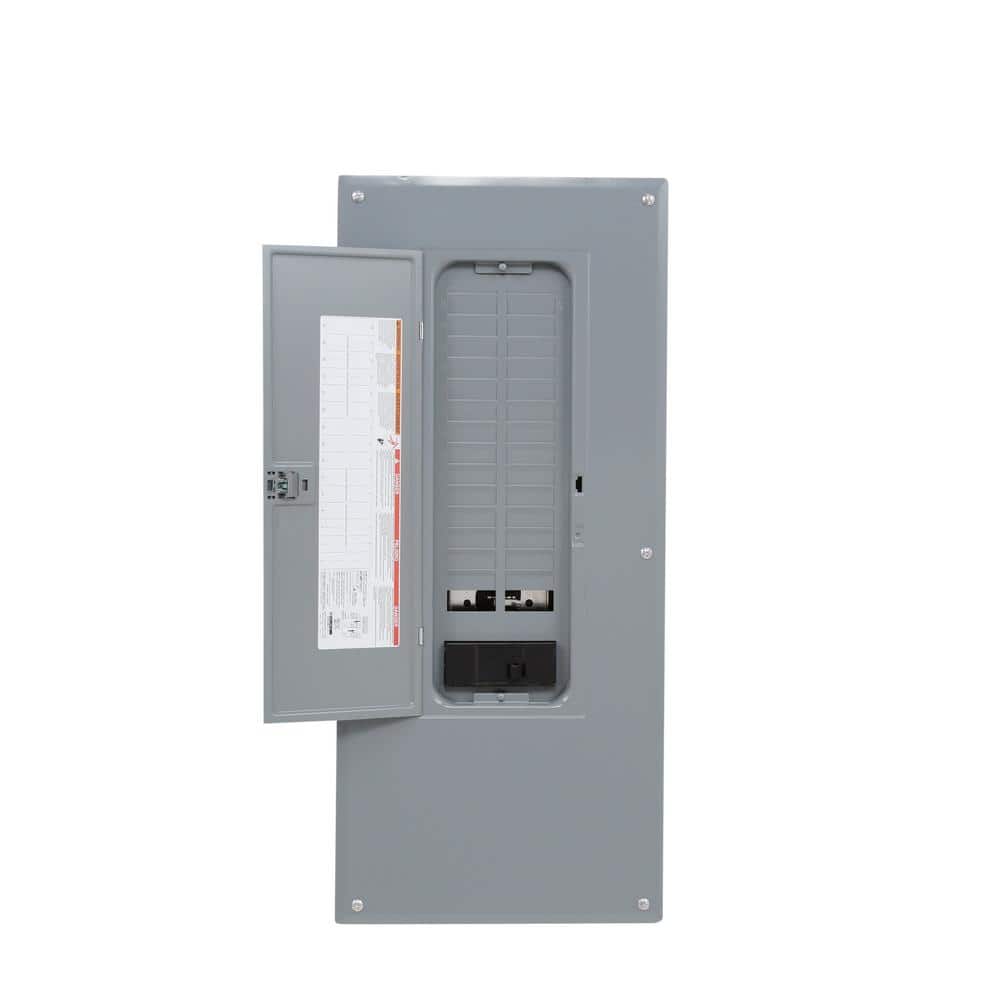

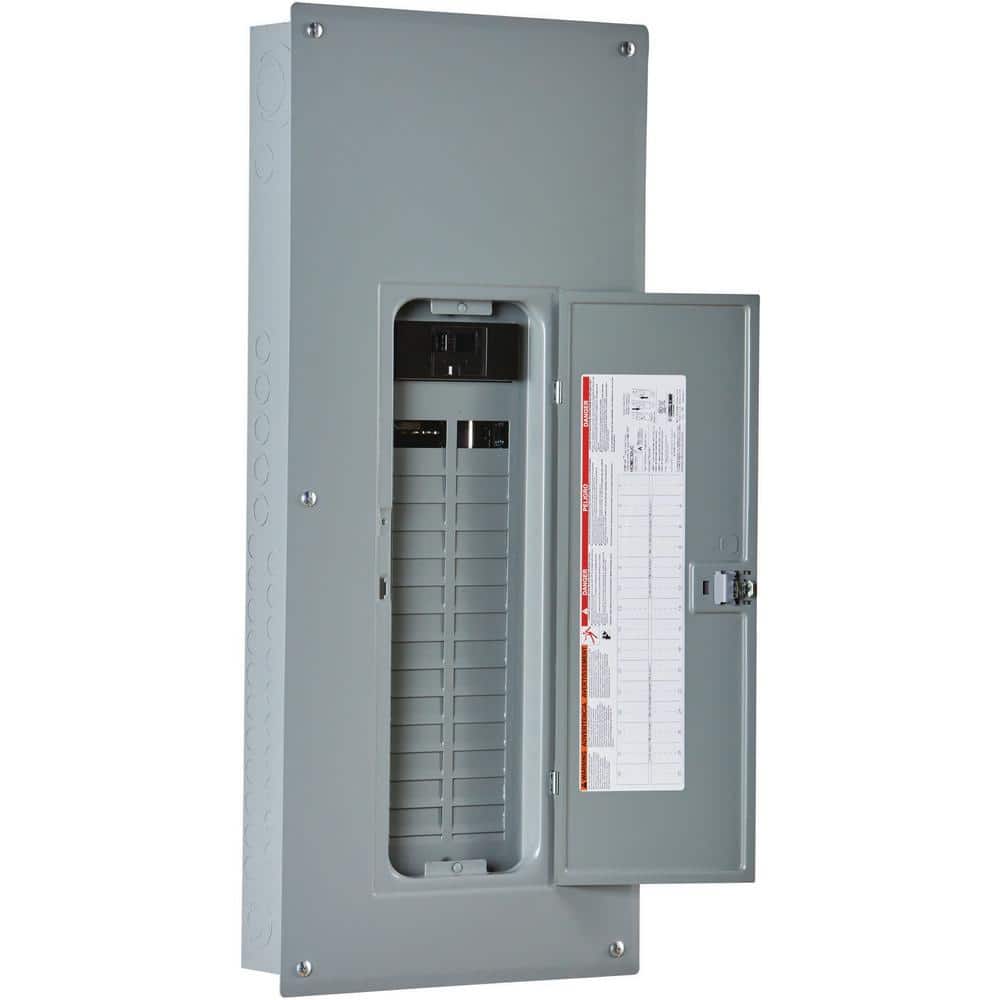

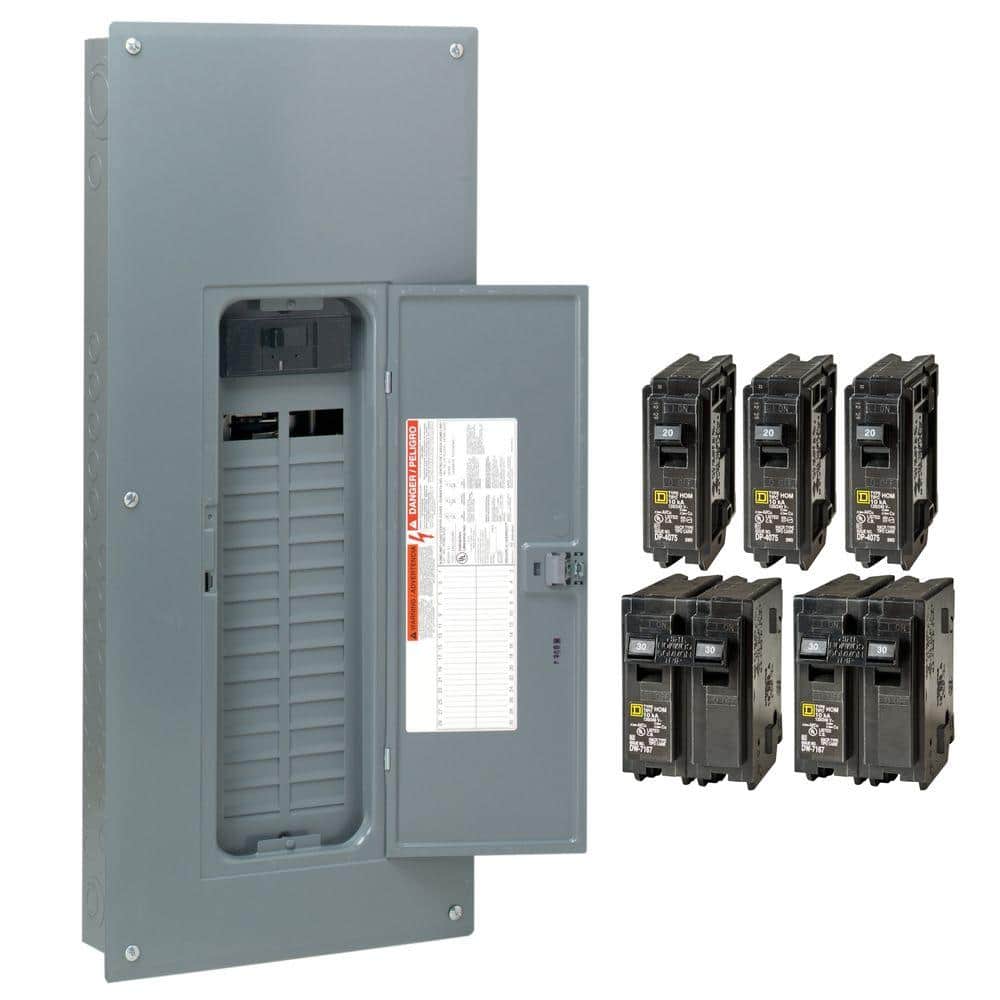

Square D Homeline 200 Amp Indoor Main Breaker Panel
The Square D Homeline 200 Amp Main Breaker Panel provides a safe and efficient power distribution solution for both residential and commercial spaces. Featuring a plug-on neutral design, this panel ensures quicker installation and reduced wiring hassle. Its durable aluminum bus bar is compatible with all Square D Homeline circuit breakers, enhancing energy management with reliability and ease.
Key Features:
-

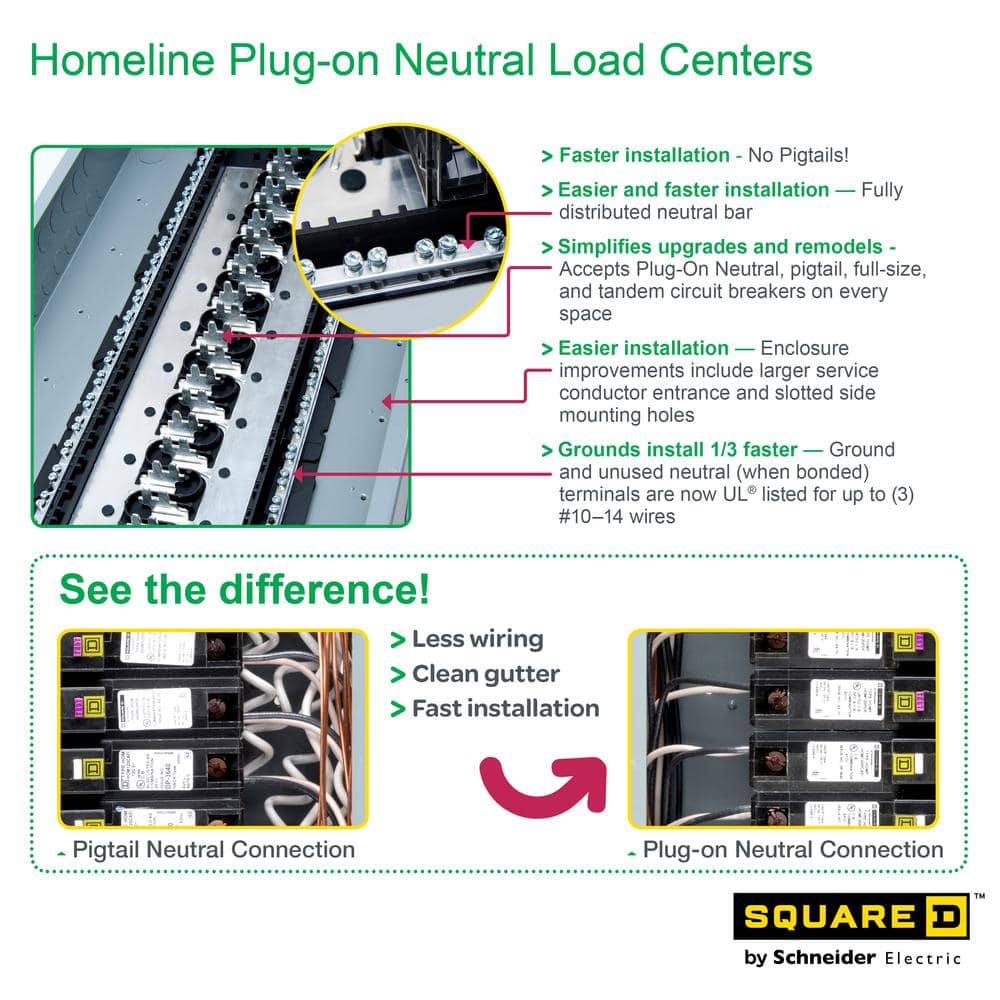

Quick Installation: Plug-on neutral design reduces the need for extra wiring, streamlining installation.
-

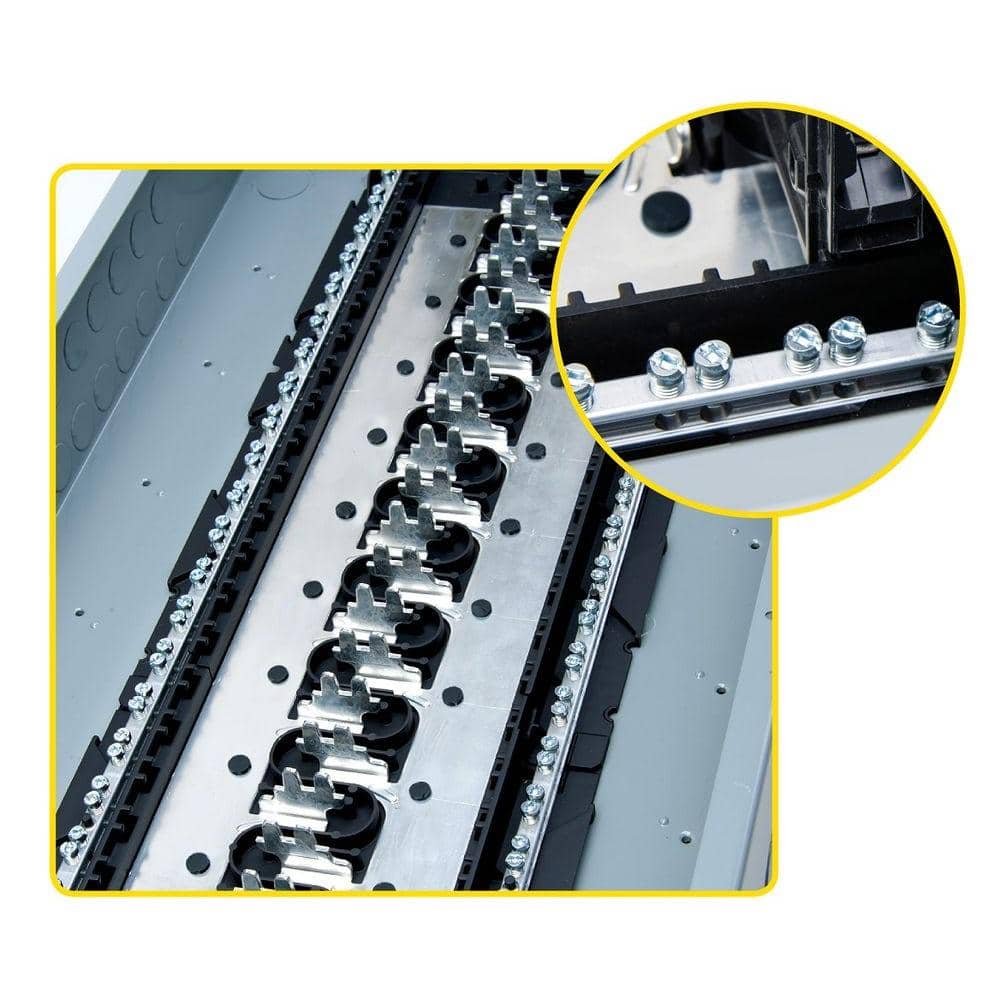

Durable Build: Made with a plated aluminum bus bar for long-lasting performance.
-

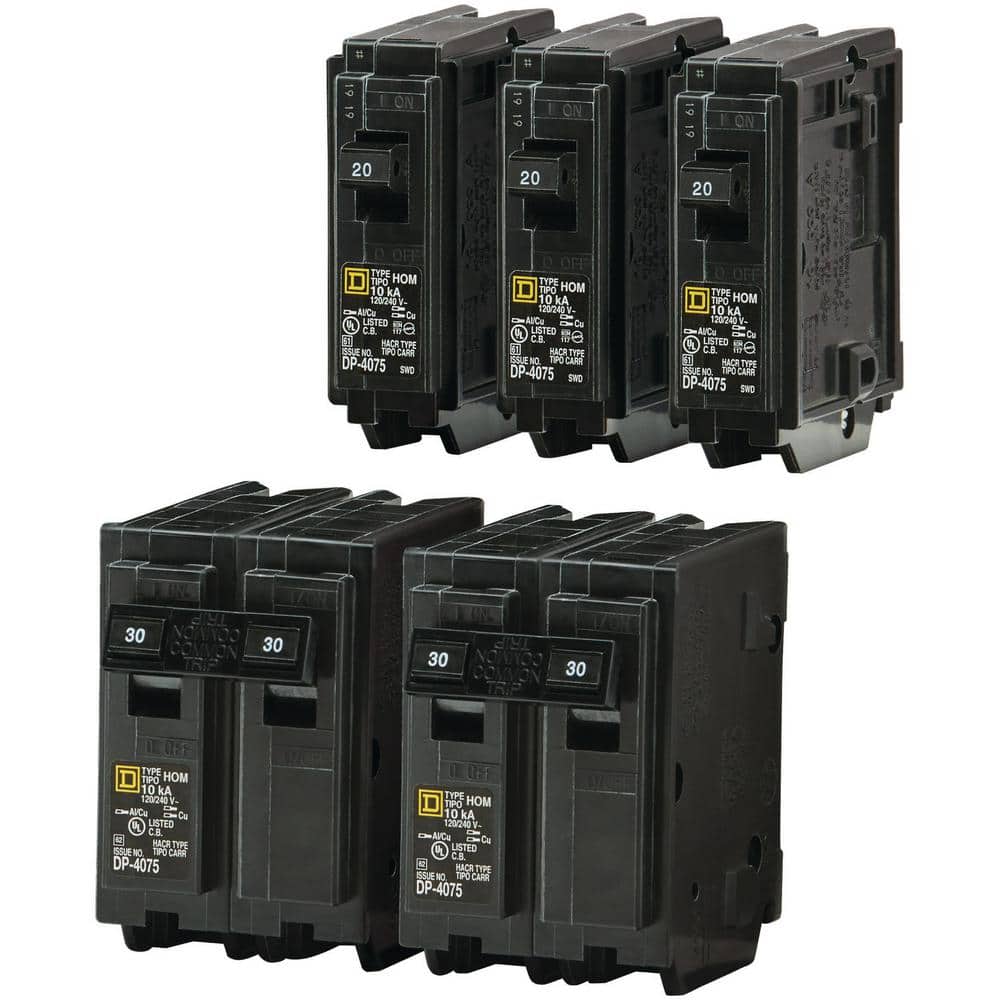

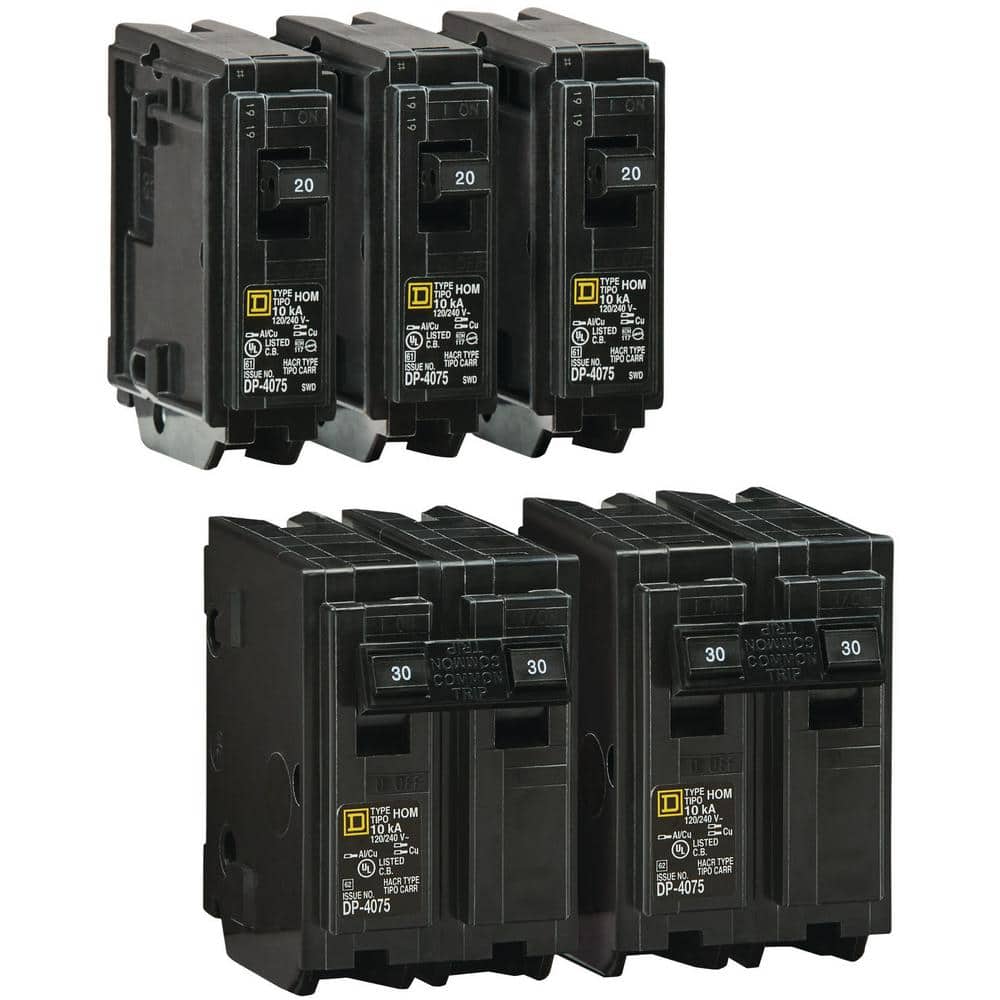

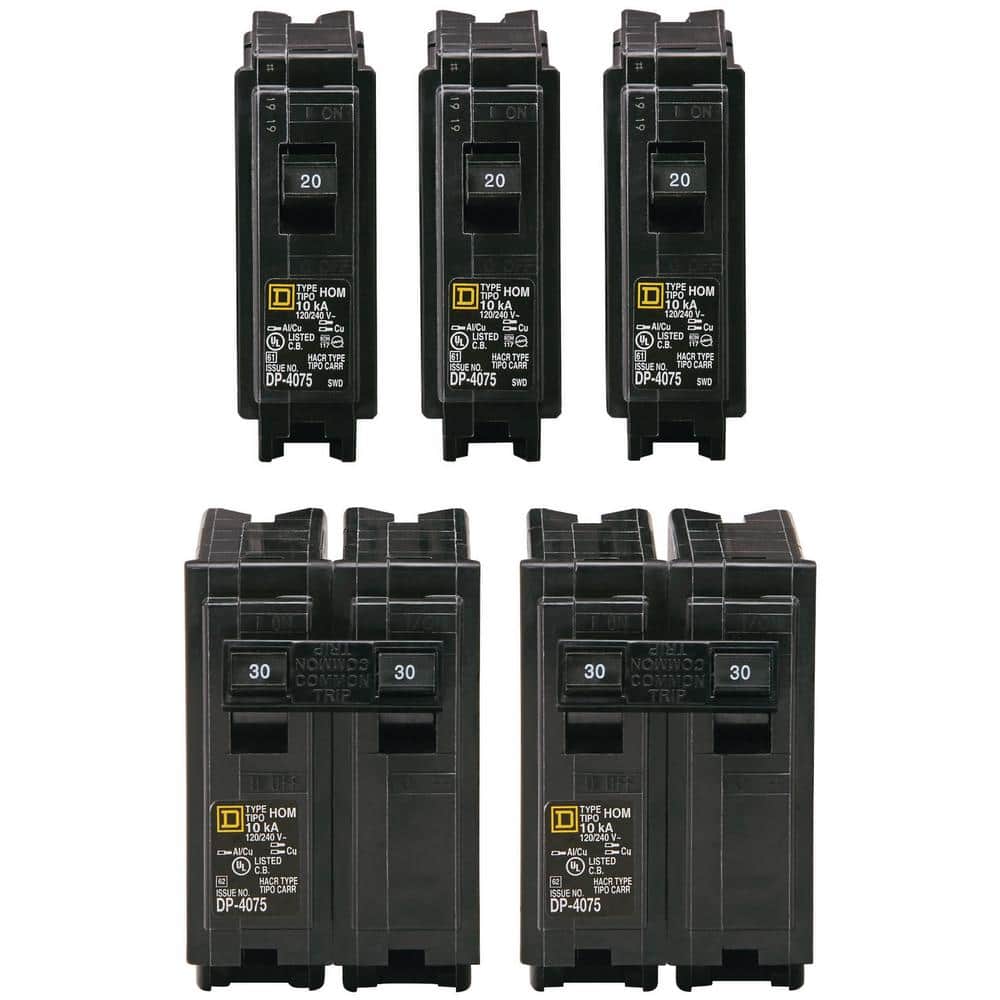

Comprehensive Coverage: Includes both circuit breakers and cover for a complete setup.
-
Versatile Configuration: Accommodates up to 60 circuits, making it suitable for varied electrical needs.
-
Safety Certified: Fully UL Listed for residential and commercial applications.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Breaker Box Type |
Main Breaker Panel |
| Connection Type |
Neutral |
| Electrical Product Type |
Load Center and Breaker Kit |
| Included |
Circuit Breaker,Cover |
| Indoor/Outdoor |
Indoor |
| Maximum Amperage (A) |
200 A |
| Mounting Type |
Flush,Surface |
| NEMA Configuration |
NEMA 1 |
| Number of Circuits |
60 |
| Number of Pieces |
6 |
| Number of Spaces |
30 |
| Phase Type |
1 Phase |
| Product Weight (lb.) |
34.83 lb |
| Series Type |
Homeline |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

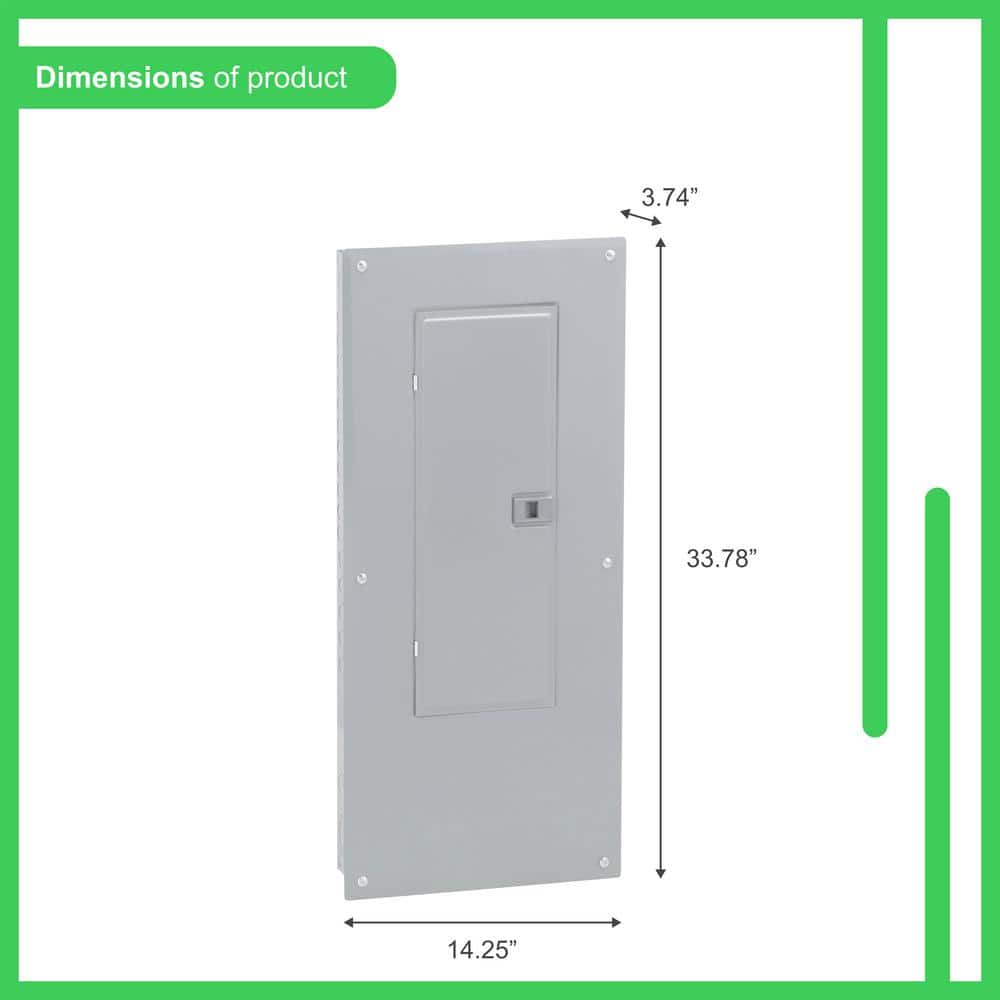

| Product Depth (in.) |
3.75 in |
| Product Height (in.) |
33.78 in |
| Product Width (in.) |
14.25 in |
Frequently Asked Questions (FAQ):
Q: Is this panel suitable for both residential and commercial use?
A: Yes, the Square D Homeline 200 Amp Main Breaker Panel is designed and UL listed for both residential and commercial applications.
Q: Can this panel be used for overhead and underground feeds?
A: Yes, the design allows for overhead and underground feeds by simply rotating the device before installation.
Q: What type of circuit breakers are compatible with this panel?
A: This panel is compatible only with Square D Homeline circuit breakers, including full-size, tandem, and quad breakers.
Q: Are there any special requirements for installation?
A: The panel features plug-on neutral, straight-in mains for easy and quick installation, saving time and cable costs.
Q: Does it accommodate surge protection?

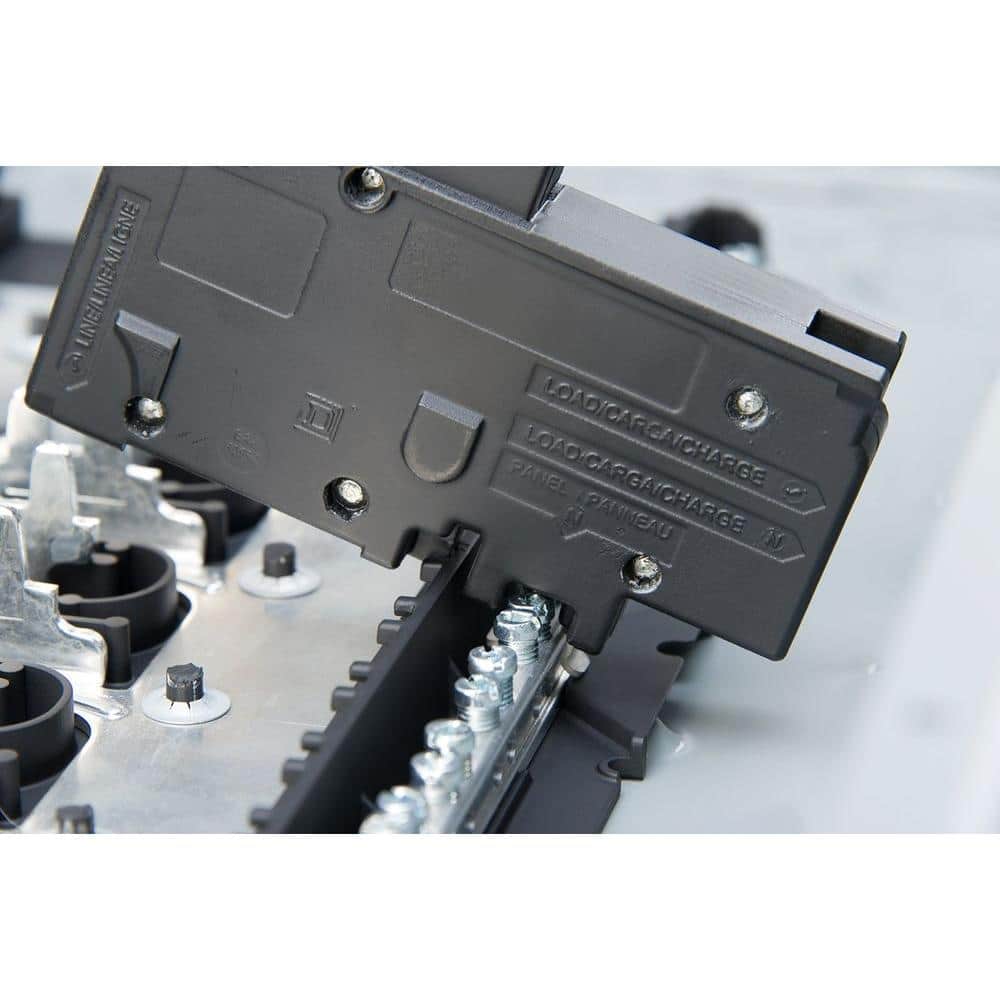

A: Yes, it can accommodate a plug-on secondary surge arrestor, although it is sold separately.
Power Distribution Meets Elegance
Envision a space where reliability meets refined design with the Square D Homeline 200 Amp Main Breaker Panel. Its sleek, sturdy architecture not only empowers your building's electrical system but also melds effortlessly into any modern interior aesthetic. Picture this panel seamlessly integrated into a utility or equipment room, providing both practical function and a sense of streamlined efficiency. A vital tool in every sophisticated homeowner or contractor's arsenal, it transforms power management into an art, ensuring your living environments remain uninterrupted havens of luxury.
Secure seamless and efficient power distribution for your projects with the Square D Homeline 200 Amp Main Breaker Panel—order now and ensure optimal reliability for your electrical systems.
