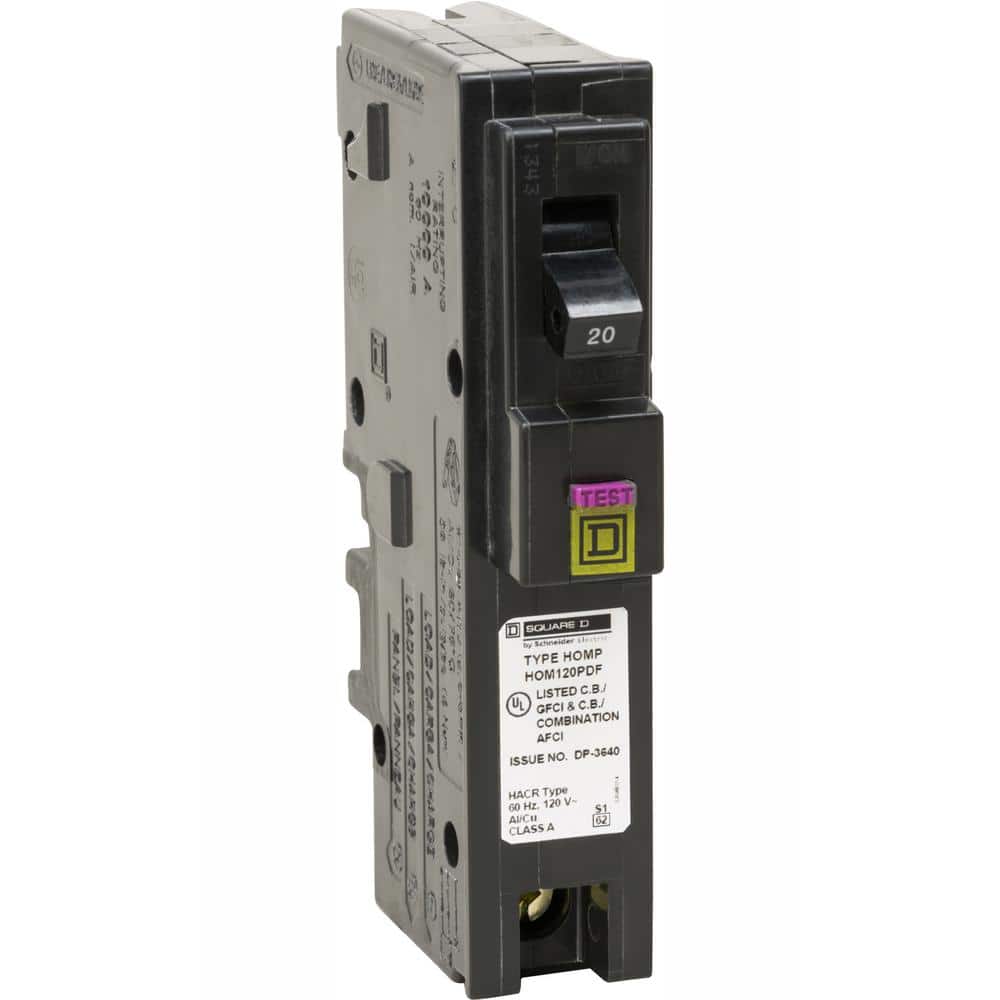

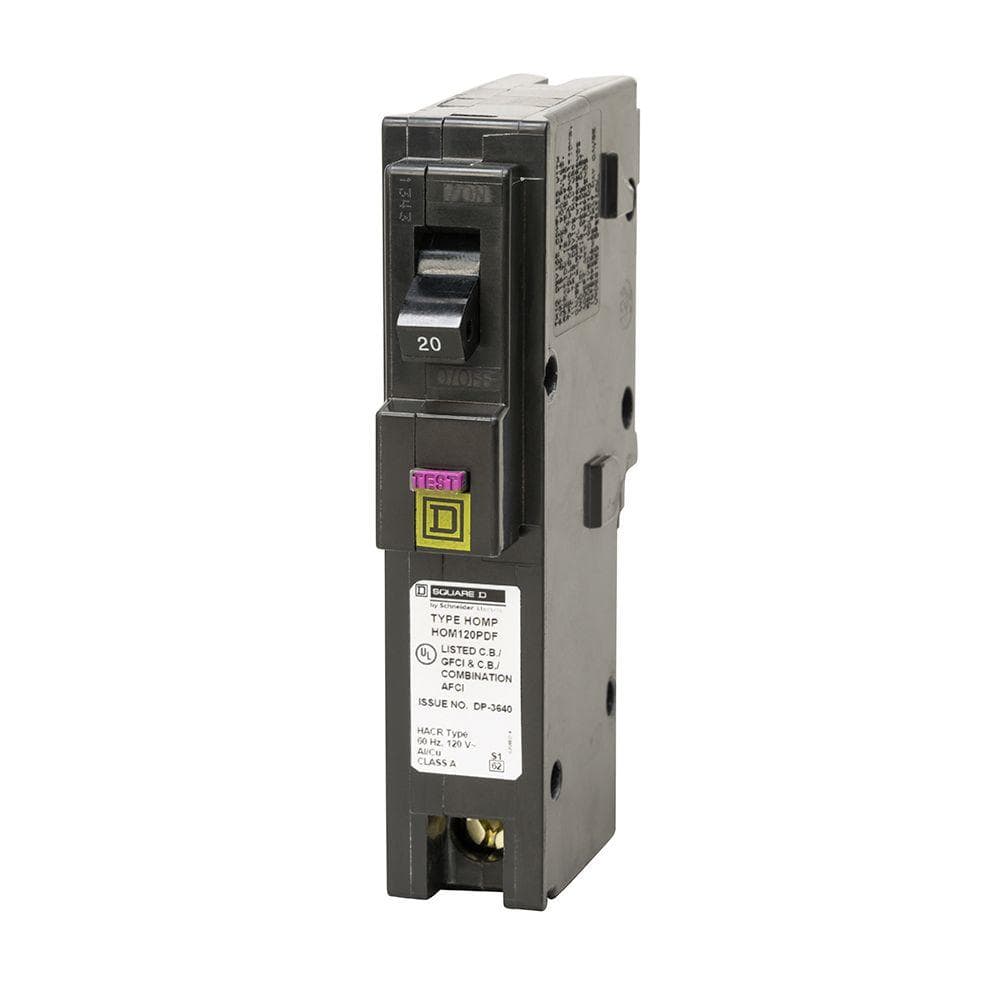

20 Amp Dual Function Circuit Breaker

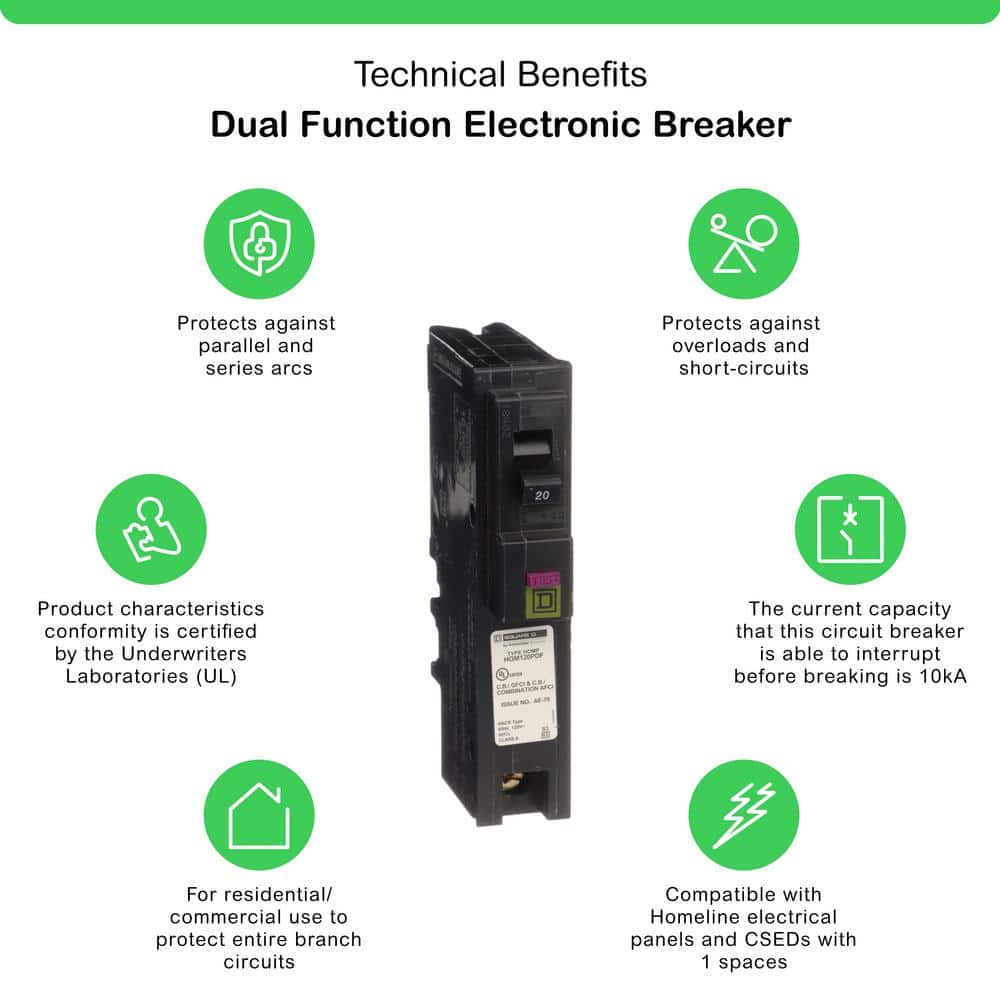

The Square D Homeline 20 Amp Single-Pole Plug-On Neutral Dual Function Circuit Breaker is designed to provide essential protection against arc faults and ground faults (CAFCI and GFCI). Simplifying installations with its Plug-On Neutral design, this breaker seamlessly integrates into Homeline electrical panels, providing reliability and saving space.
Key Features:
-

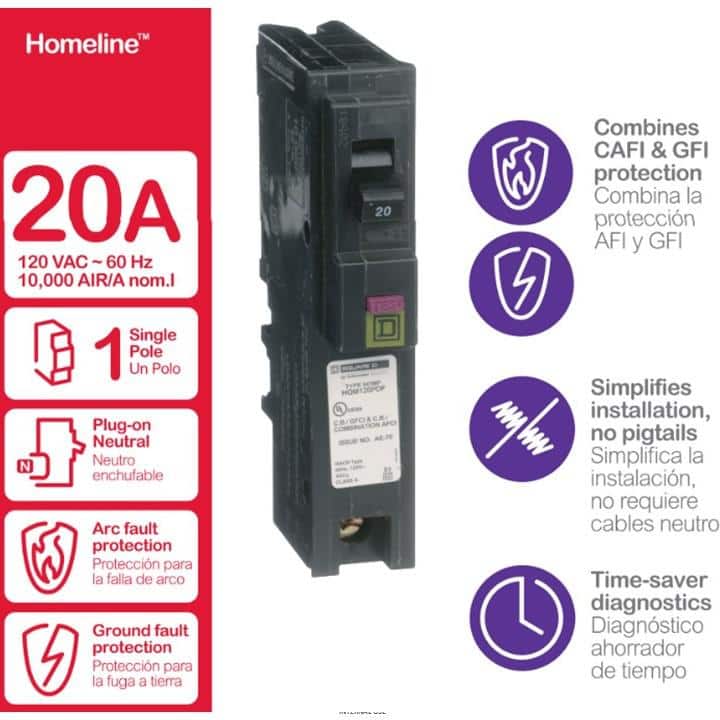

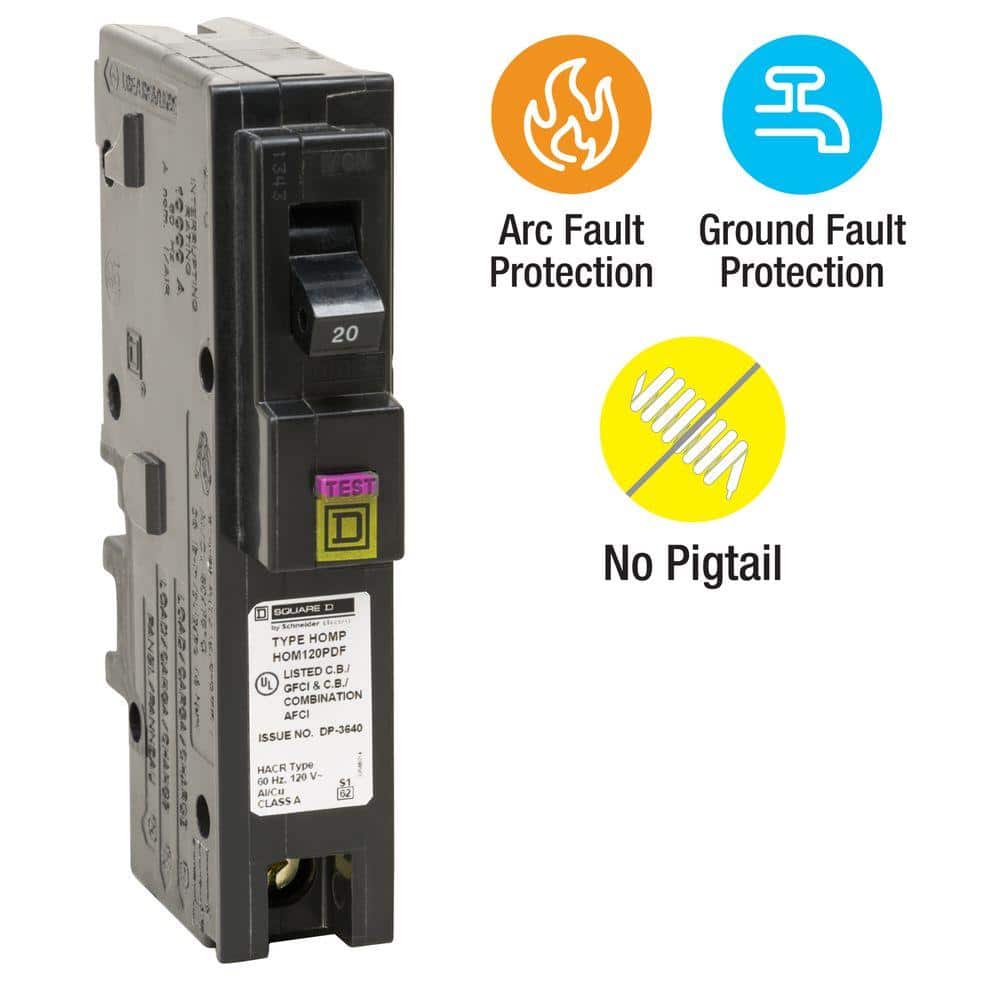

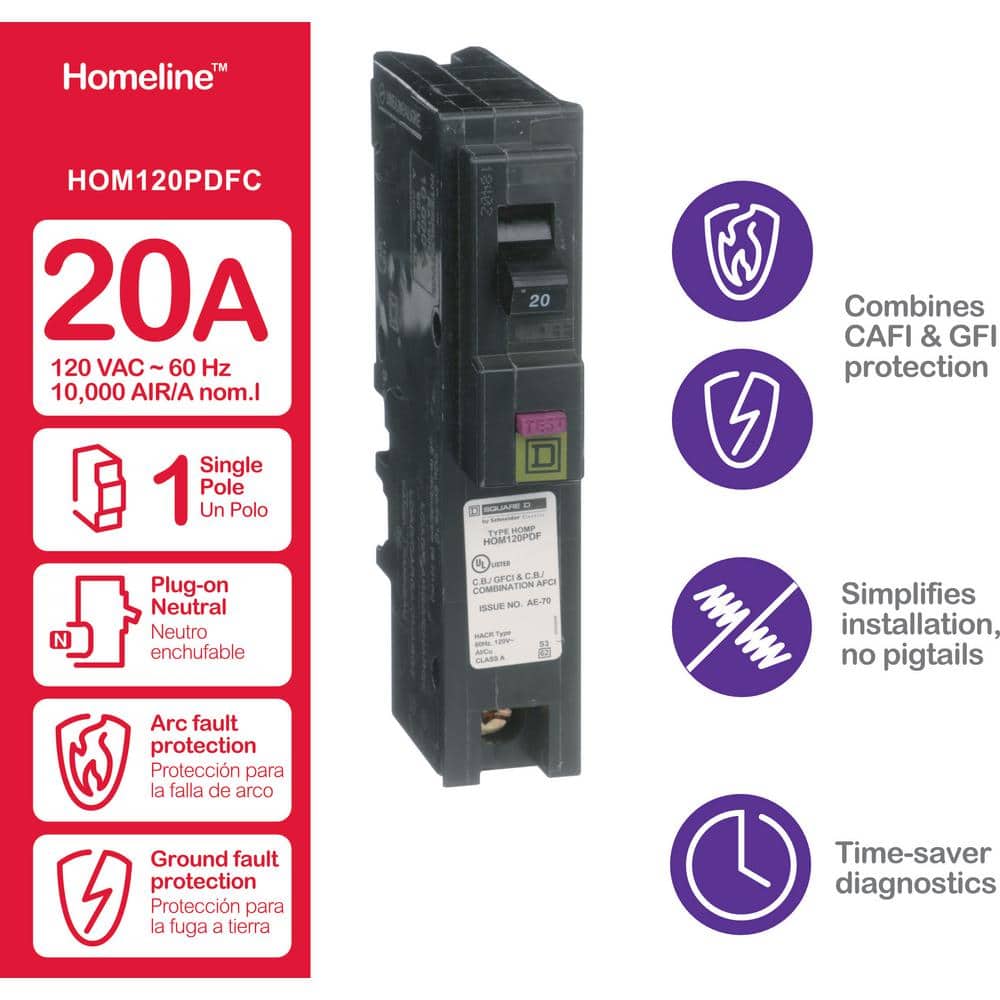

Dual Function Protection: Combines CAFCI and GFCI in a single breaker to safeguard against arc and ground faults.
-

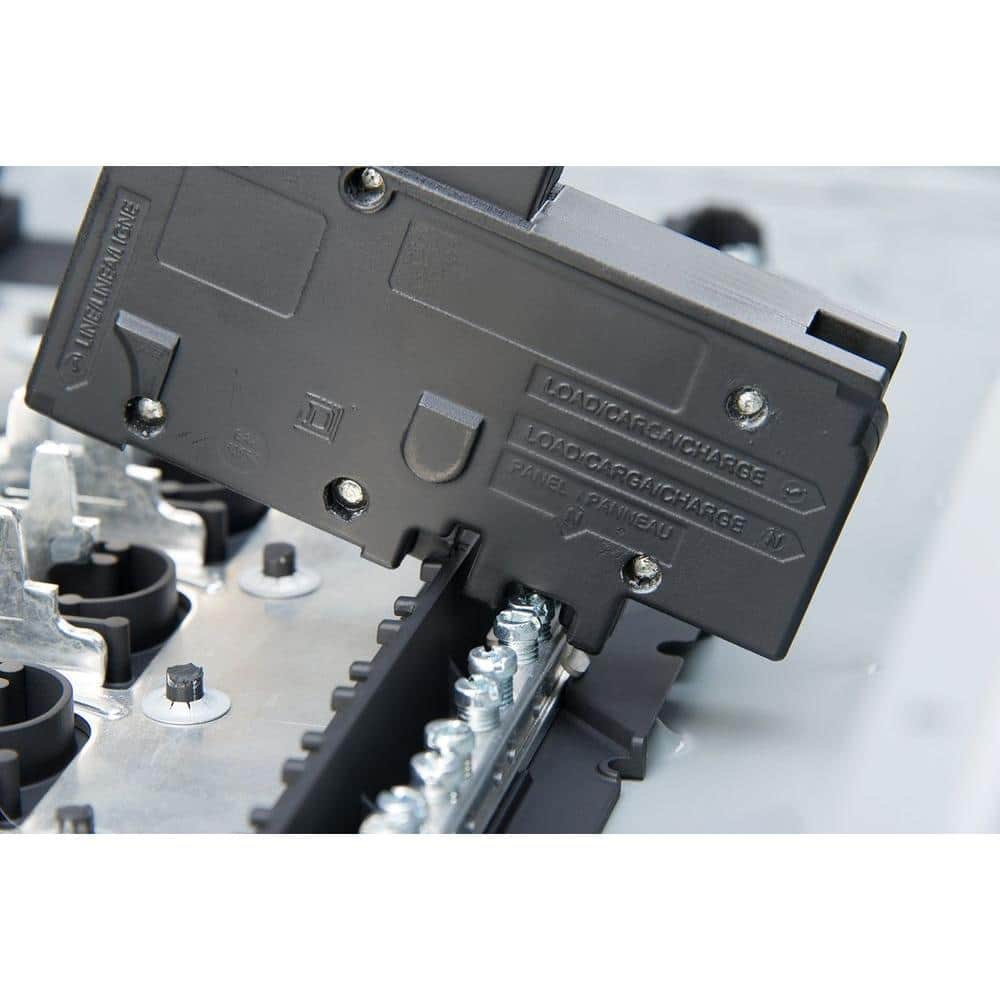

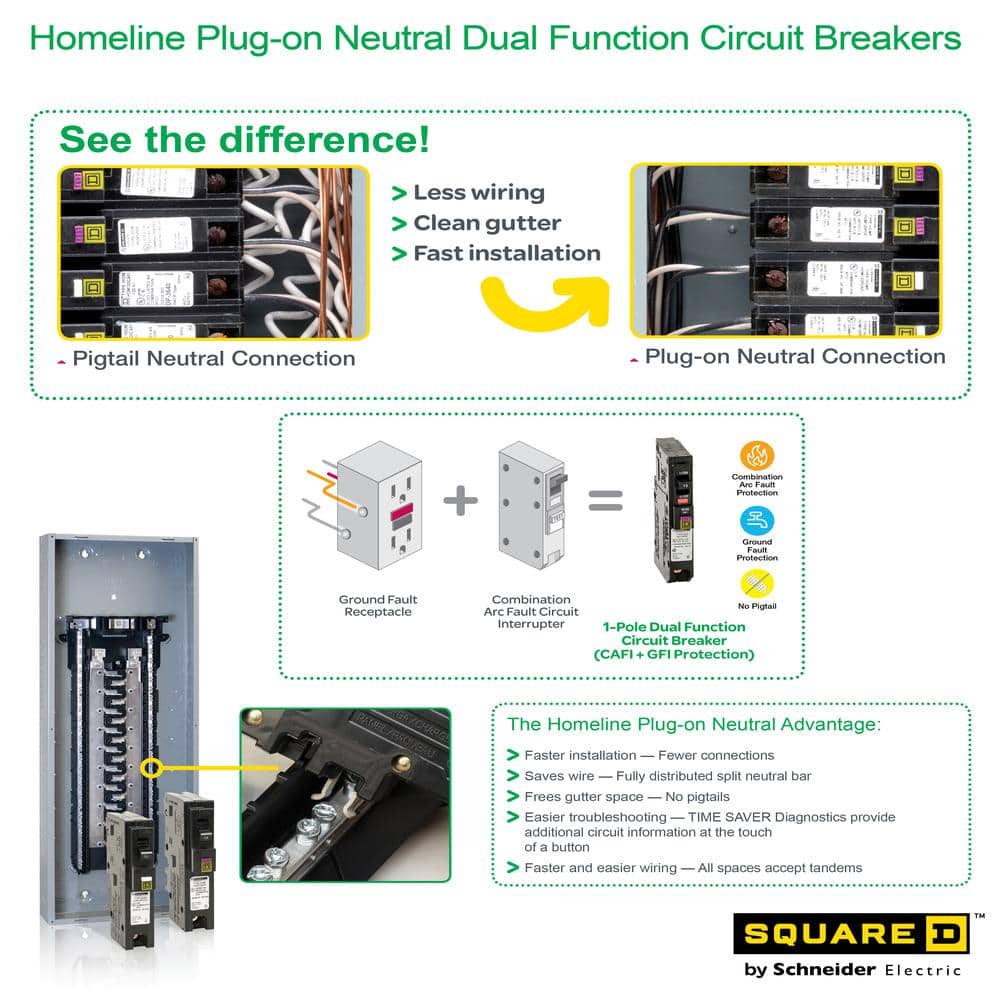

Plug-On Neutral Design: Simplifies installation with no pigtails, reducing wiring and freeing up panel space.
-
Compatible with Homeline Panels: Specifically designed for Homeline series 4 and newer load centers.
-
Time Saver Diagnostics: Integrated diagnostics for easy troubleshooting and enhanced system reliability.
-
Durable and Reliable: ANSI certified, UL listed, and backed by a limited lifetime warranty.
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Neutral |
| Interruption Type |
AFCI/GFCI |
| Maximum Amperage (A) |
20 A |
| Mounting Type |
Plug-On |
| Number of Poles |
Single |
| Number of Spaces |
1 |
| Pack Size |
1 |
| Product Weight (lb.) |
0.28 lb |
| Series Type |
Homeline |
| Trip Unit |
Electronic |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its branch circuit breakers to be free from defects in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the Homeline load center in which it is installed. |

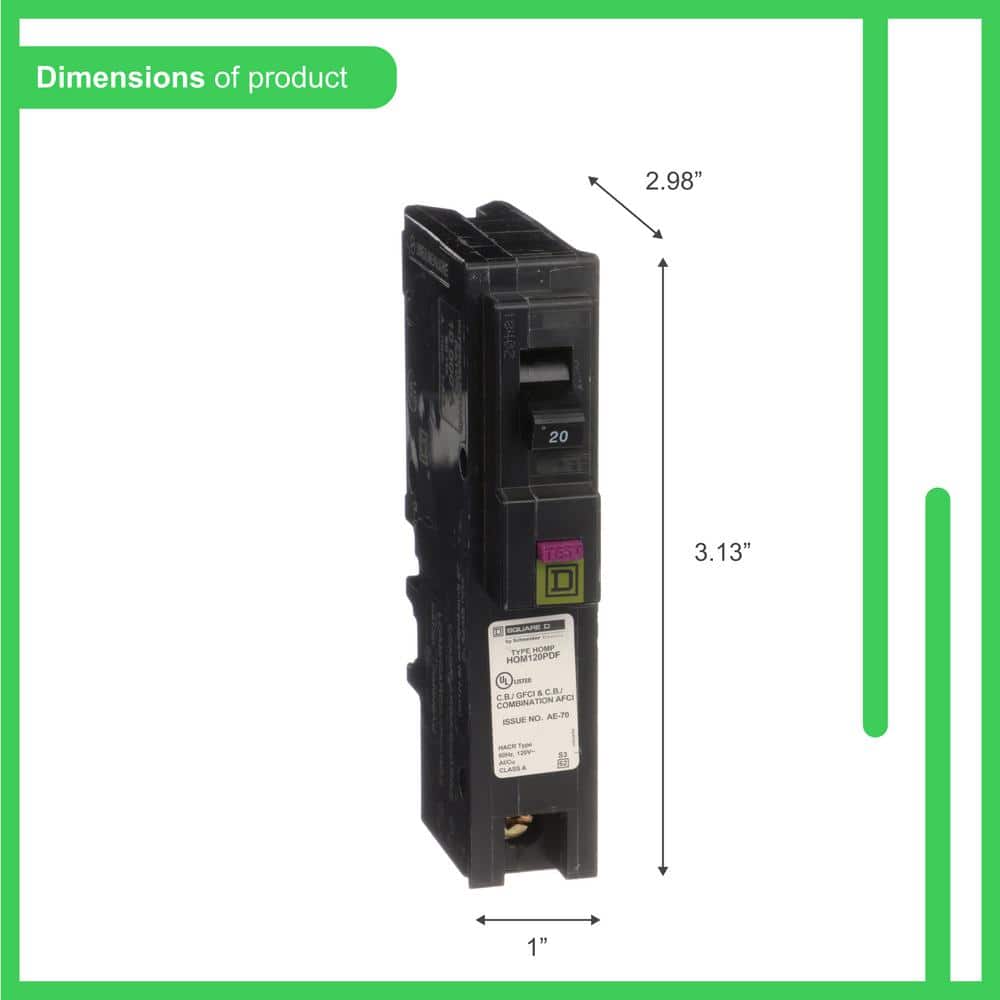

| Product Depth (in.) |
2.98 in |
| Product Height (in.) |
3.13 in |
| Product Width (in.) |
1 in |
Frequently Asked Questions (FAQ):
Q: Can this circuit breaker be used in any electrical panel?
A: No, this circuit breaker is compatible only with Square D Homeline series 4 and newer load centers.
Q: Does the circuit breaker come with a warranty?
A: Yes, it is covered by a limited lifetime warranty when installed in a Homeline load center.
Q: Is this circuit breaker suitable for outdoor use?
A: This breaker is designed for indoor use in residential panels. Outdoor installation would require appropriate panel protection.
Q: Do I need additional pigtails for installation?
A: No, the Plug-On Neutral design eliminates the need for pigtails, simplifying the installation process.
Illuminate Your Space with Safety and Innovation
The Square D Homeline Dual Function Circuit Breaker brings an element of sleek sophistication powered by technological prowess, embodying both safety and style. Its streamlined design discreetly offers advanced protection for modern spaces where aesthetics meet practicality. Whether you're updating a kitchen, a laundry room, or designing an efficiency-focused smart home, the use of these compact marvels transforms protective circuits into an art form. Truly, this breaker isn’t just a functional necessity—it's the cornerstone for sustainable, safe, and luxurious living.
Upgrade your electrical panel with the Square D Homeline Dual Function Breaker and experience unmatched protection and efficiency.
