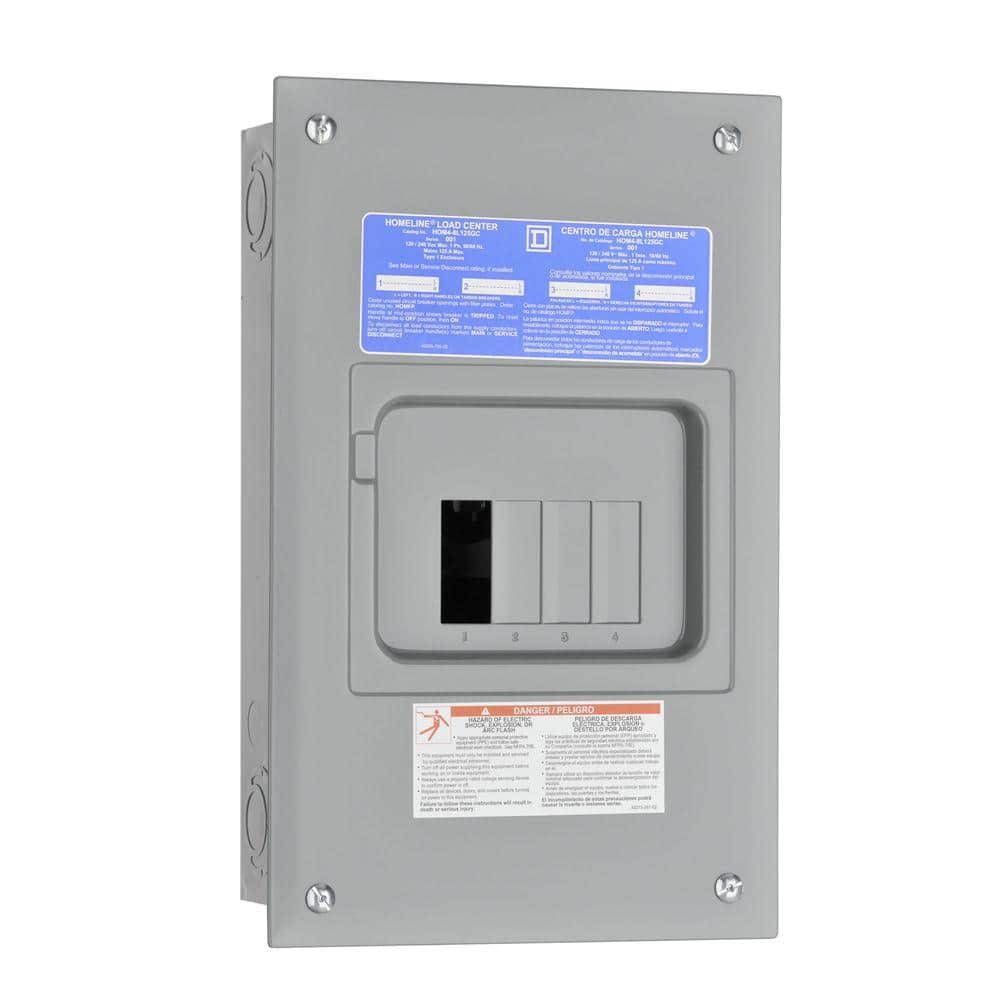

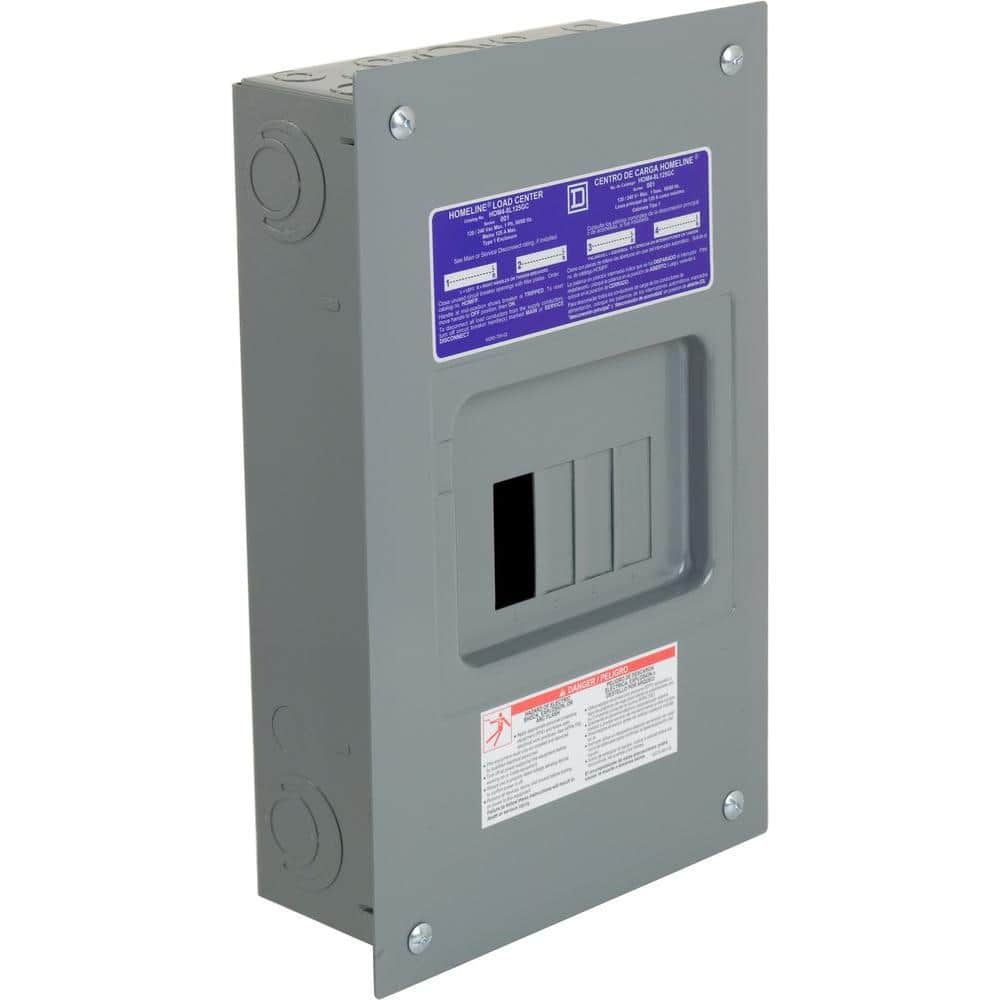

Square D Homeline 125 Amp Indoor Load Center
Optimize power distribution with the Square D Homeline 125 Amp Indoor Load Center. Designed for easy installation, this reliable breaker box integrates a hardened thermoplastic interior for durability and comes with an automatic flush-adjusting cover to save time. Perfect for residential and commercial setups, it’s the ideal choice for value-focused professionals.
Key Features:
-
Installation Efficiency: Features an automatic flush-adjusting cover for quick and smooth mounting.
-
Durability: Built with a rugged thermoplastic assembly to withstand demanding environments.
-
Versatile Use: Accommodates both overhead and underground feeds, enhancing installation flexibility.
-
Compatibility: Integrates seamlessly with Square D Homeline circuit breakers for reliable performance.
-
Convenience: Includes a ground bar and offers slot/square drive screws for versatile screwdriver use.
Specifications Table:
| Specification |
Details |
| Breaker Box Type |
Subpanel |
| Connection Type |
Non-Neutral |
| Indoor/Outdoor |
Indoor |
| Maximum Amperage (A) |
125 A |
| Mounting Type |
Flush,Surface |
| NEMA Configuration |
NEMA 1 |
| Number of Circuits |
8 |
| Number of Spaces |
4 |
| Product Weight (lb.) |
9.36 lb |
| Series Type |
Homeline |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

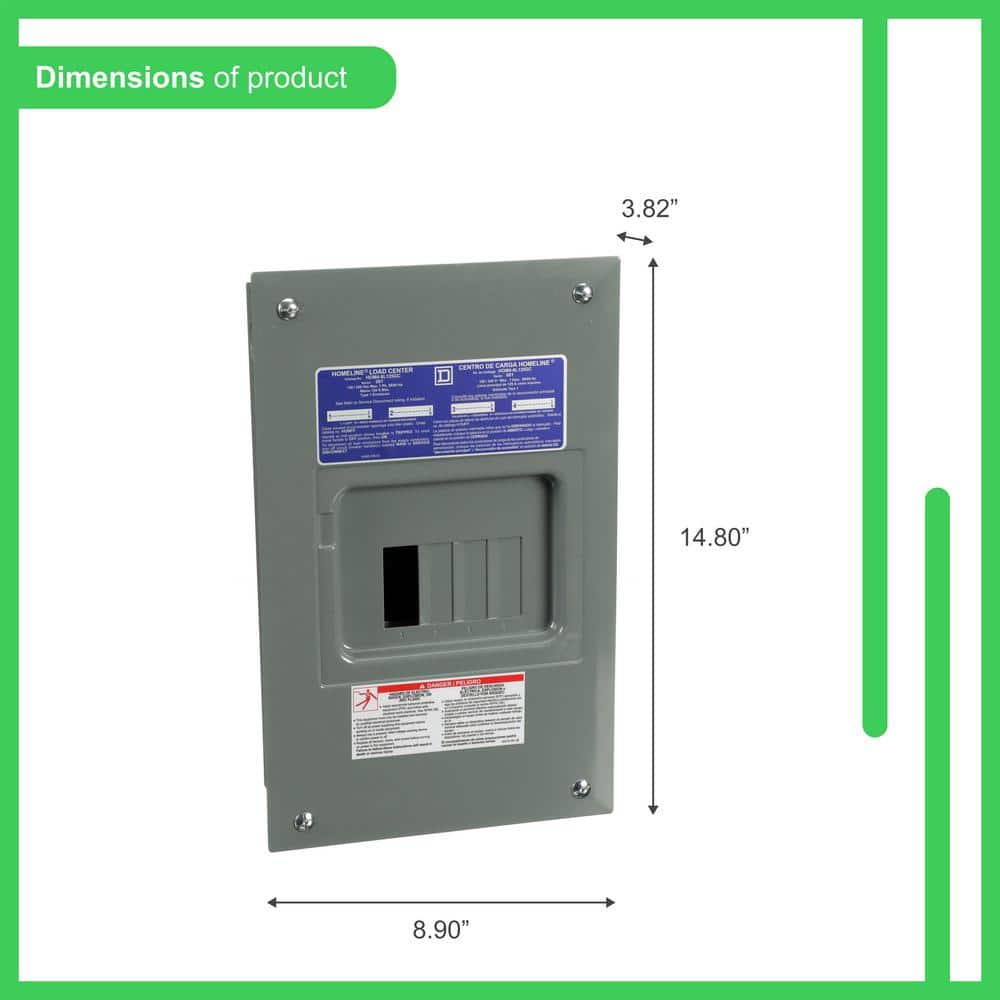

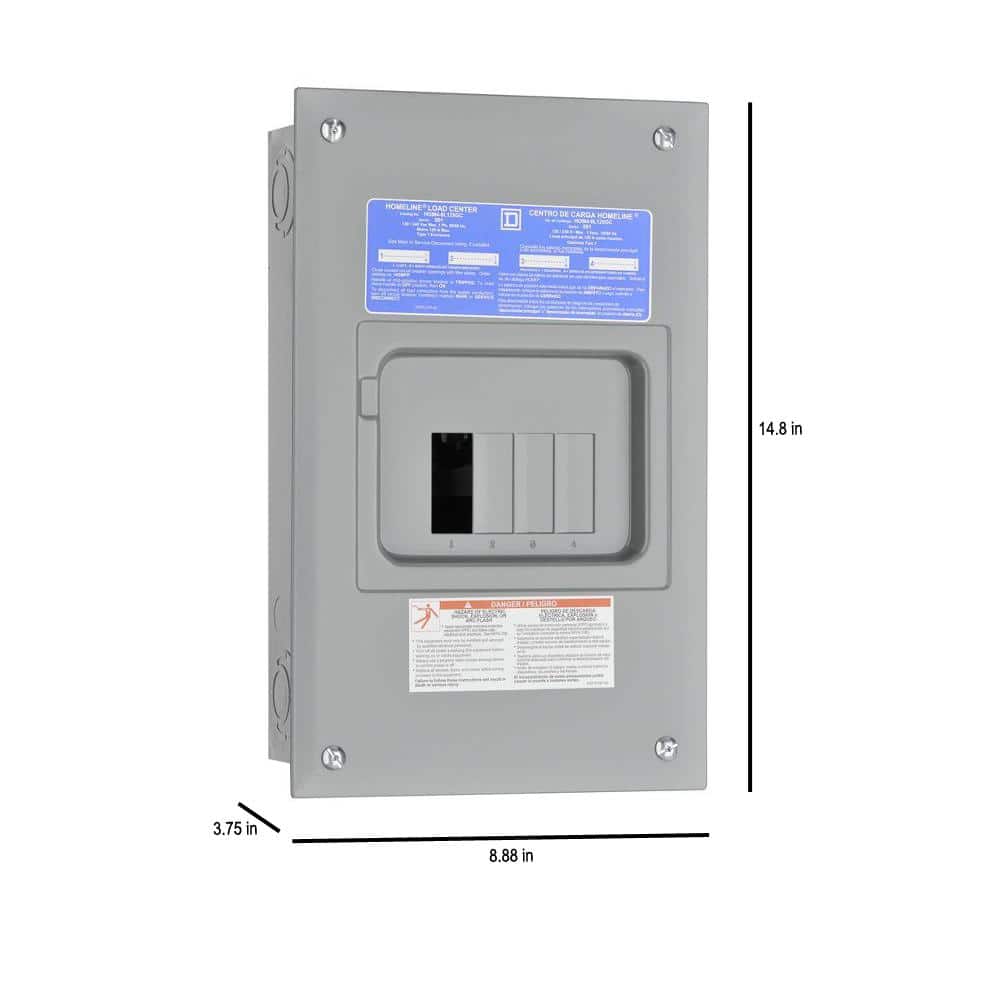

| Product Depth (in.) |
3.75 in |
| Product Height (in.) |
14.8 in |
| Product Width (in.) |
8.88 in |
Frequently Asked Questions (FAQ):
Q: Can this load center be used outdoors?
A: No, the Square D Homeline 125 Amp Load Center is designed for indoor use only.
Q: Does it come pre-installed with any circuit breakers?
A: No, circuit breakers are sold separately and need to be chosen according to your specific needs.
Q: What is the warranty coverage for this product?
A: Square D offers a 10-year warranty covering defects in materials and workmanship for the Homeline Load Center when used with Homeline breakers.
Q: Can I install this load center by myself?
A: Installation of electrical panels should be performed by a licensed professional to ensure safety and compliance with local codes and regulations.
Q: Is the ground bar included with this load center?
A: Yes, the load center comes with a factory-installed PK7GTA ground bar.
Power with Precision, Concealed Elegance
The Square D Homeline Load Center elegantly tucks away your electrical essentials without compromising style. Its flush, seamless cover becomes a subtle companion to any modern utility room, while its robust technical build speaks to a dedication to quality and function. Imagine pairing it with sleek, industrial cabinetry or chic utility fixtures, enhancing an urban industrial theme. Experience how practical, inconspicuous power distribution transforms into a silent partner in luxurious, seamless home functionality.
Upgrade your power management system with the Square D Homeline 125 Amp Load Center—buy now and experience unmatched reliability and smooth installation.
