Square D Homeline 125 Amp Electrical Panel
The Square D Homeline 125 Amp Main Lug Electrical Panel is designed for efficient power distribution in residential and commercial settings. With its easy plug-on neutral feature, it facilitates faster installation while minimizing wiring. This robust panel supports up to 20 spaces and 40 circuits, making it ideal for various electrical setups.
Key Features:
-

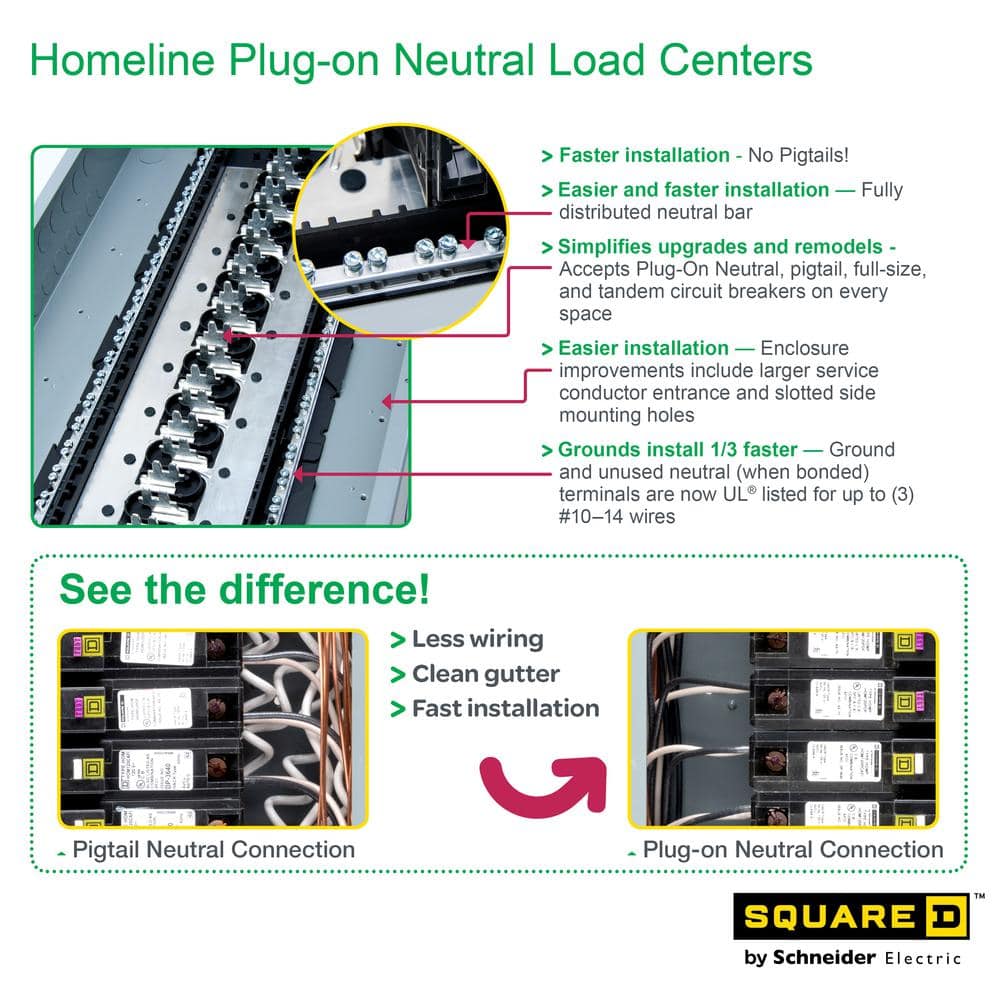

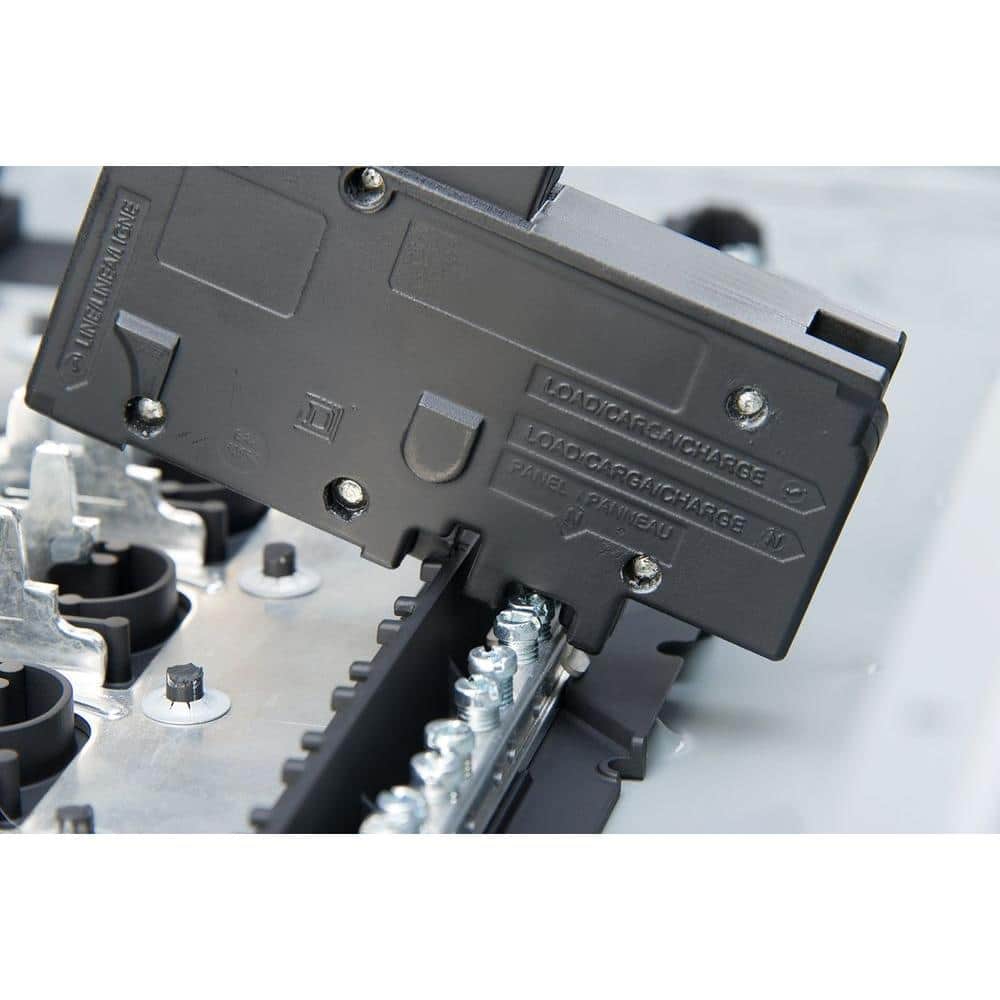

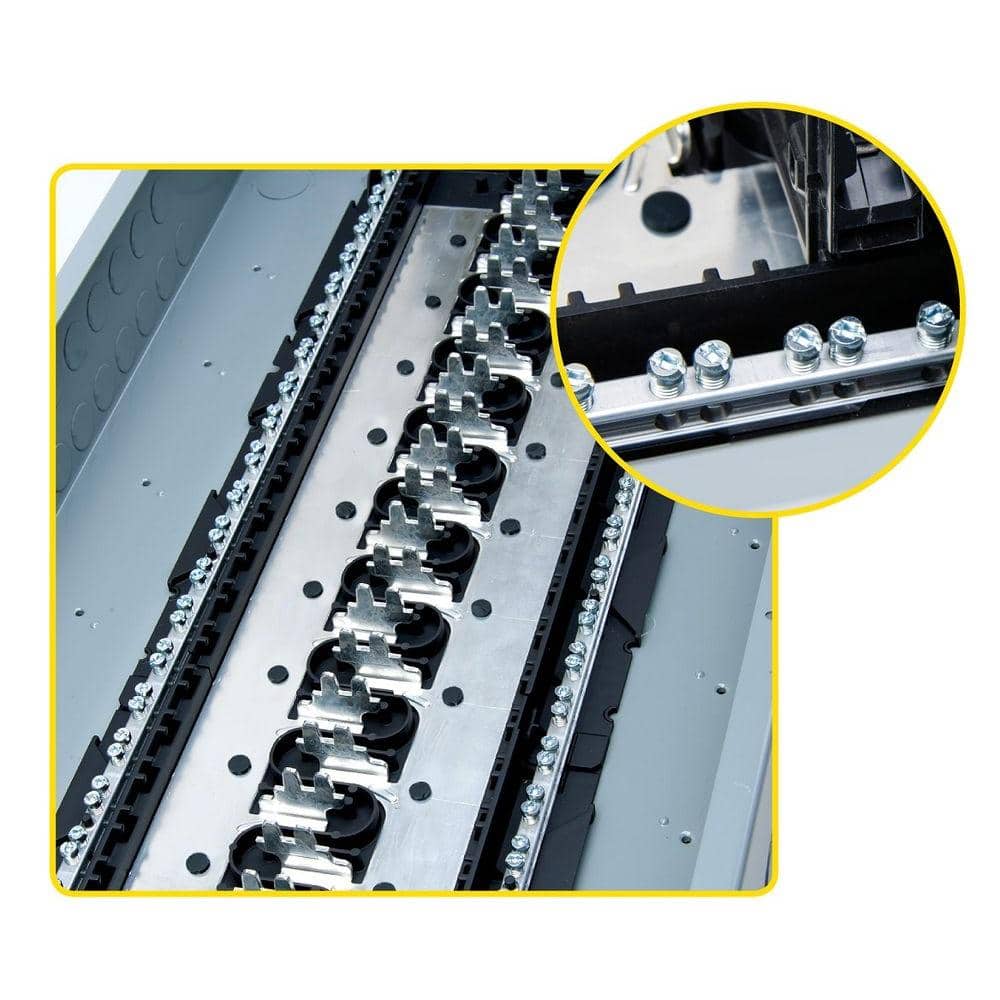

Efficient Design: Supports plug-on neutral breakers for quicker wiring and clean layouts.
-
Versatile Mounting: Convertible to main breaker with an optional QOM1 main breaker.
-
Enhanced Protection: Includes a PK15GTAL ground bar and secure cover to safeguard circuits.
-
Robust Build: Durable thermoplastic interior ensures reliable performance.
-
USA-Made: Proudly manufactured in the USA, ensuring quality and reliability.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Breaker Box Type |
Subpanel |
| Connection Type |
Neutral |
| Electrical Product Type |
Main Lug/ Main Lug Kit |
| Indoor/Outdoor |
Indoor |
| Maximum Amperage (A) |
125 A |
| Mounting Type |
Flush,Surface |
| NEMA Configuration |
NEMA 1 |
| Number of Circuits |
40 |
| Number of Spaces |
20 |
| Phase Type |
1 Phase |
| Product Weight (lb.) |
24.2 lb |
| Series Type |
Homeline |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

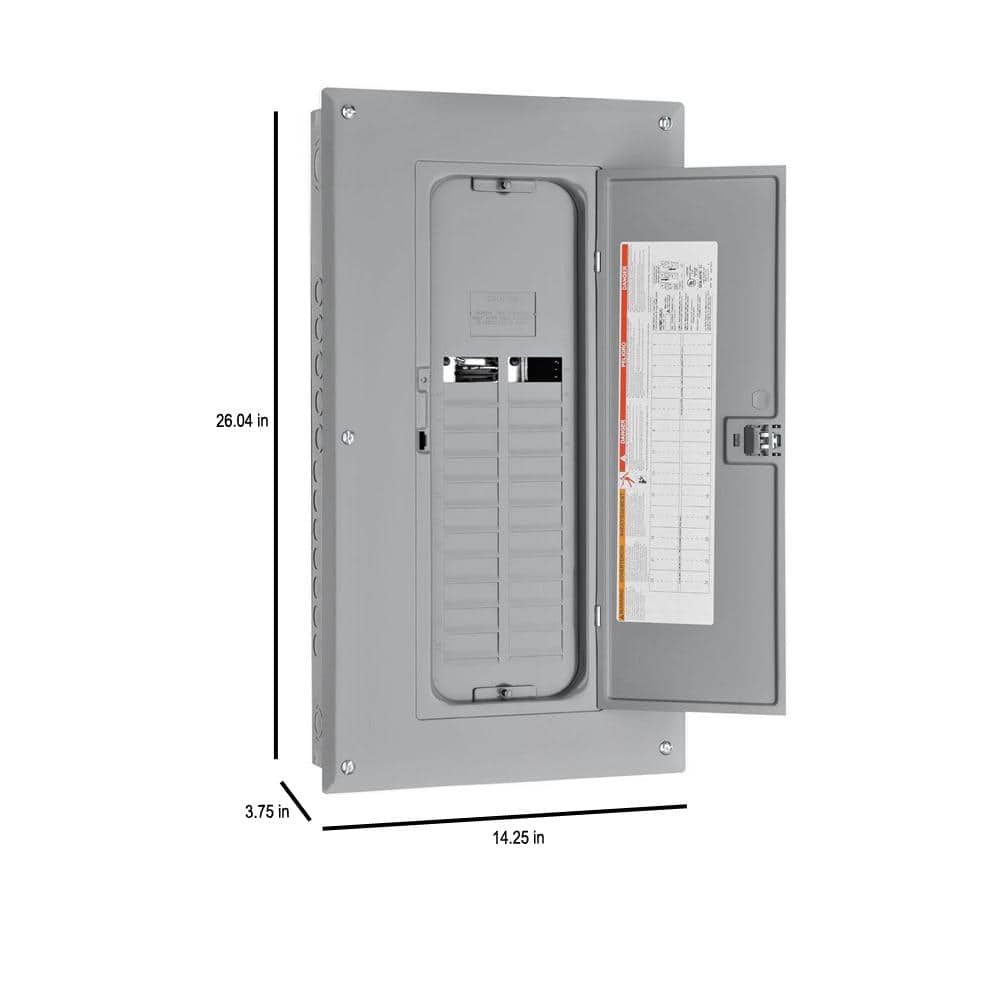

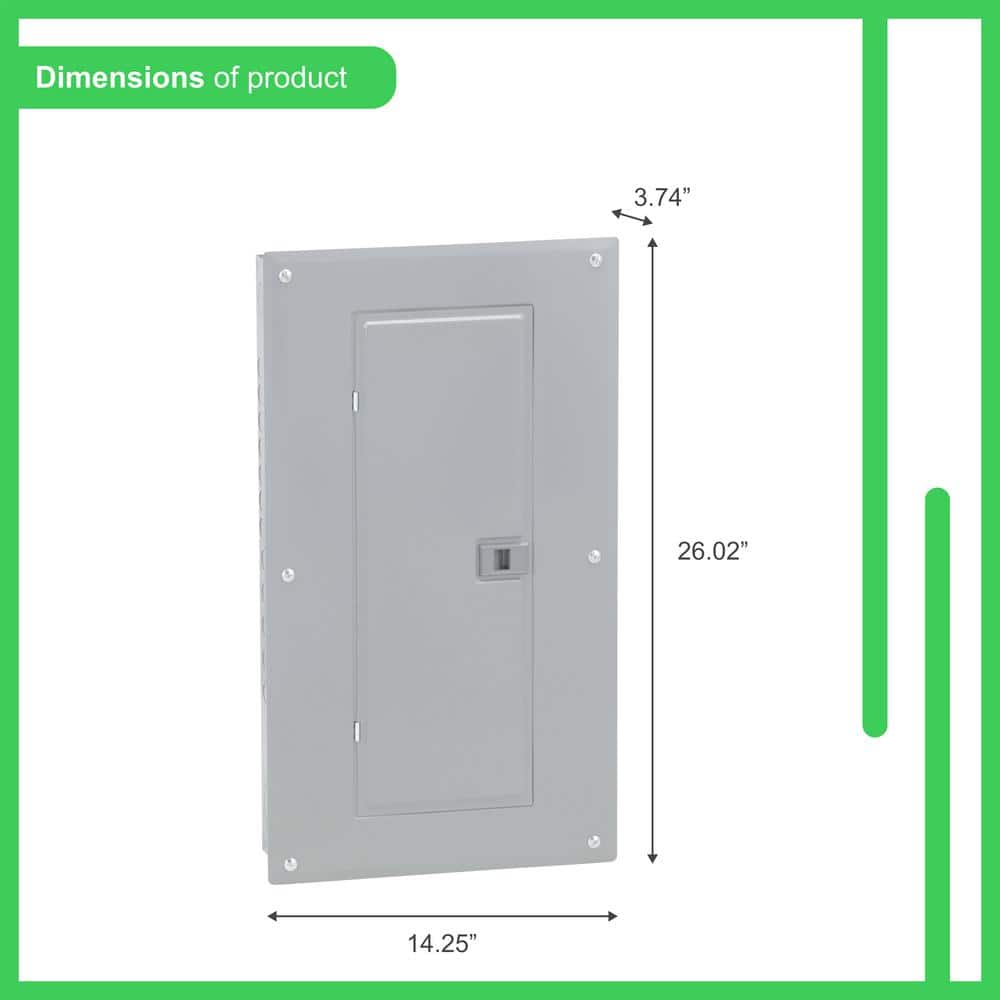

| Product Depth (in.) |
3.75 in |
| Product Height (in.) |
26.04 in |
| Product Width (in.) |
14.25 in |
Frequently Asked Questions (FAQ):
Q: Can this electrical panel be used for both overhead and underground feeds?
A: Yes, the panel can accommodate both feed types by simply being rotated before installation.
Q: Is the ground bar included with the panel?
A: Yes, the panel comes with a PK15GTAL ground bar for easy setup.
Q: What kind of breaker is compatible with this panel?
A: This panel is compatible only with Square D Homeline circuit breakers.
Q: Can I convert this panel to a main breaker load center?
A: Yes, it can be converted using a QOM1 main breaker, which is sold separately.
Q: What is the warranty for this product?
A: The panel has a 10-year warranty against defects in material and workmanship when used with Square D Homeline branch circuit breakers.
Elevate Your Electrical Aesthetics
Transform the functional into beautiful with the Square D Homeline Electrical Panel. Its sleek and unobtrusive design merges seamlessly into any interior, offering an understated elegance while providing powerful functionality. Opt for an art-meets-engineering installation by showcasing it within a utility-focused space. This panel isn't just about practicality—it's an essential element of refined living, where form meets indispensable function.
Streamline your electrical installations with the Square D Homeline 125 Amp Electrical Panel for ultimate efficiency and reliability.
