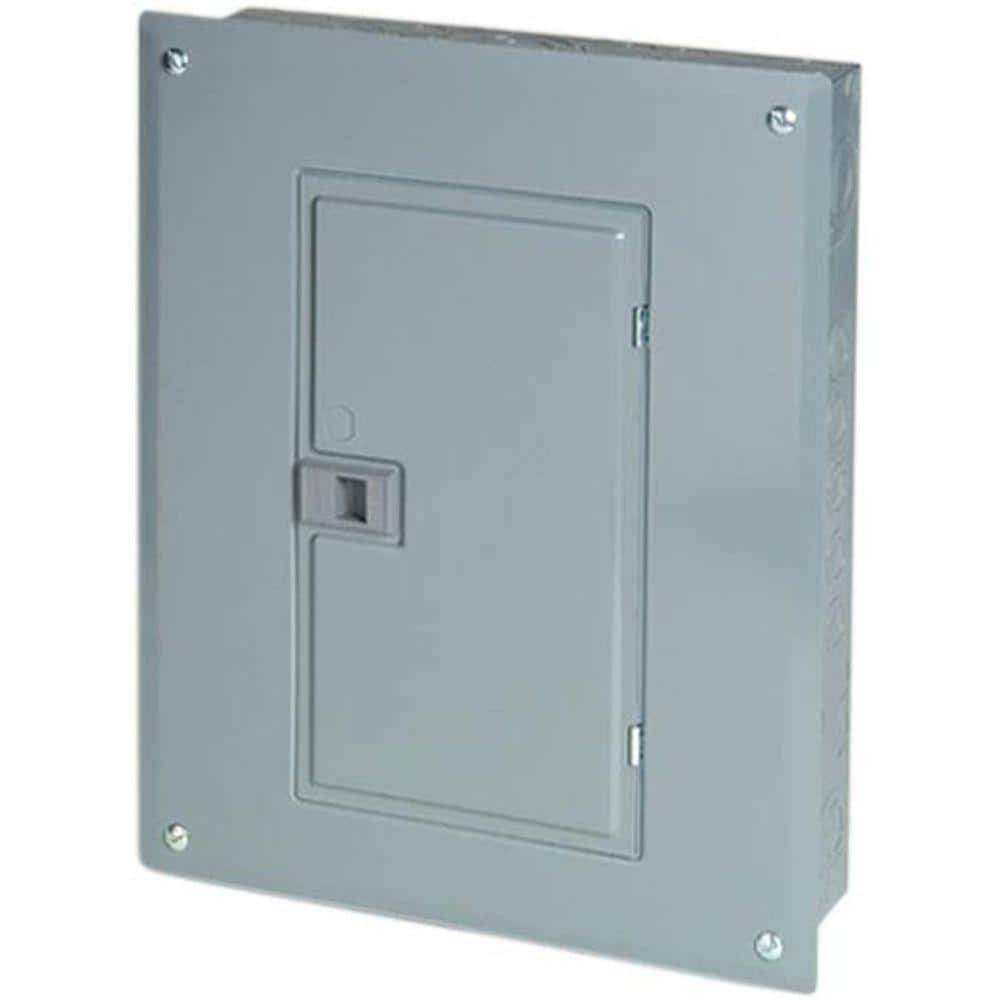

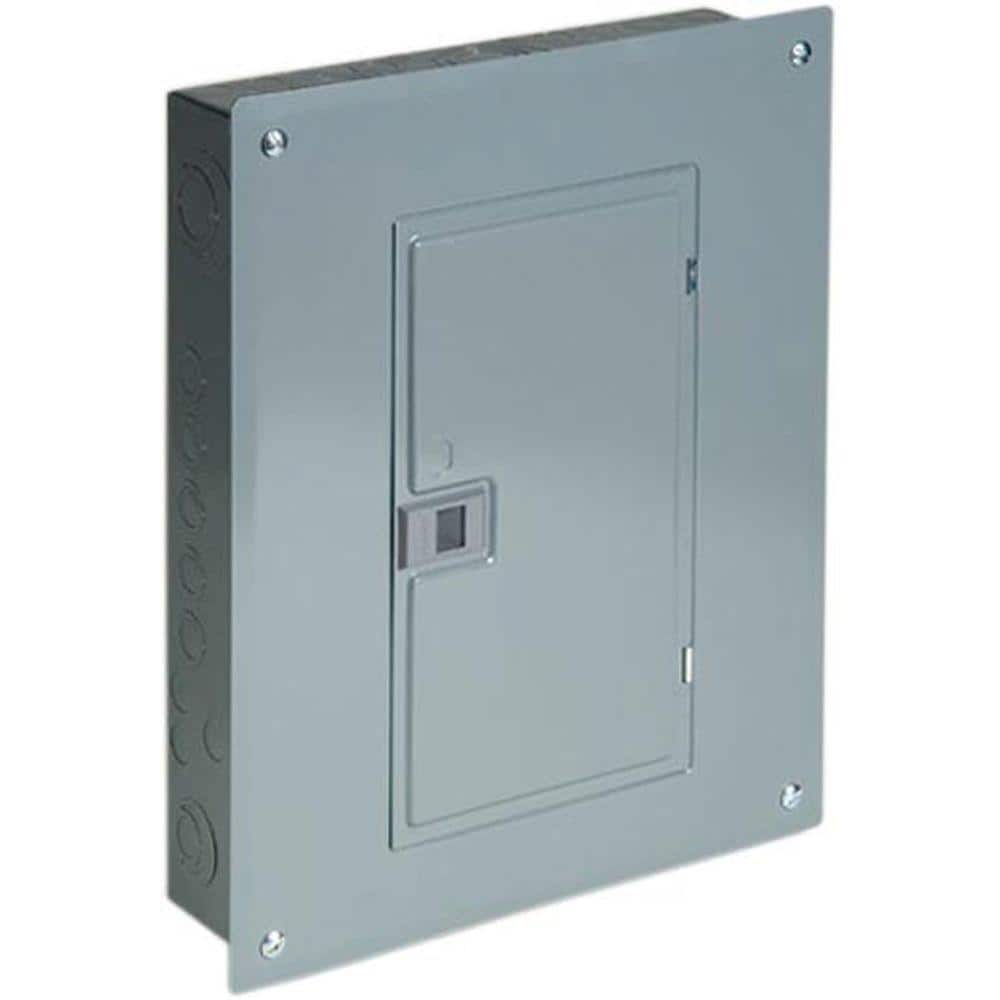

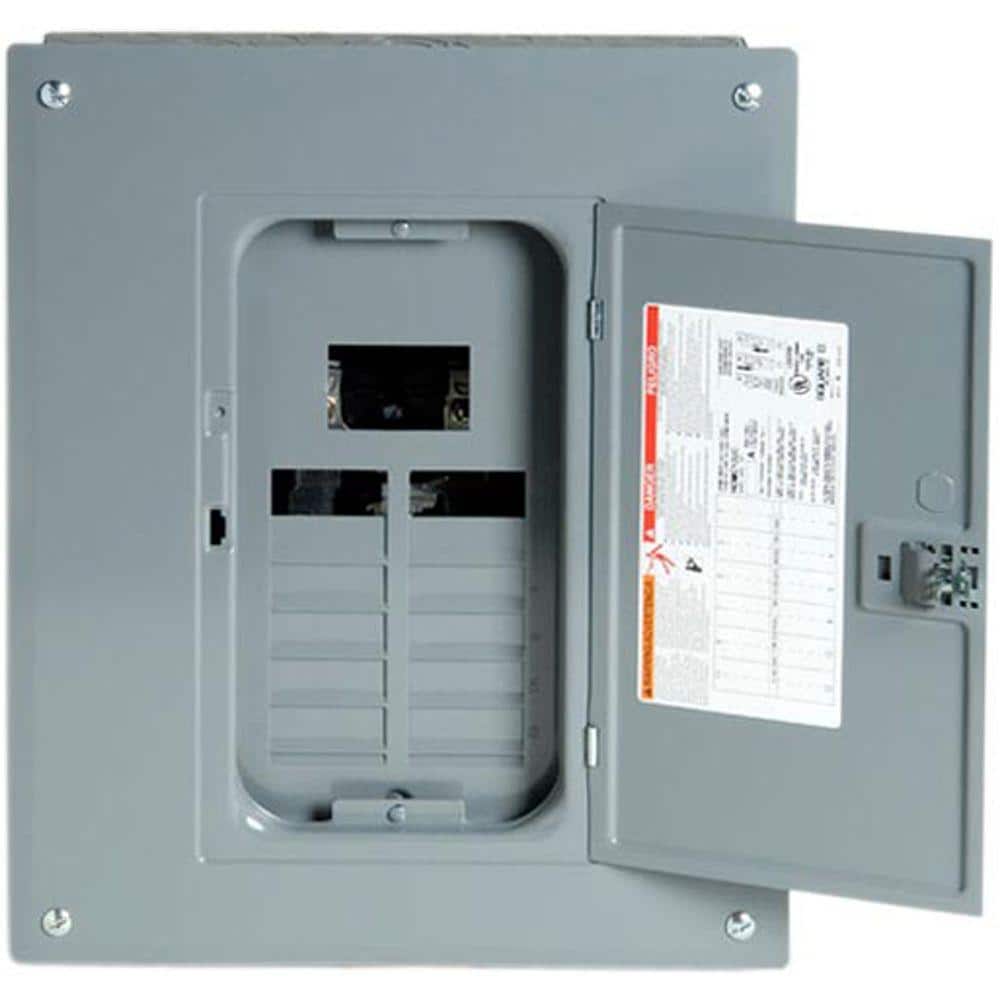

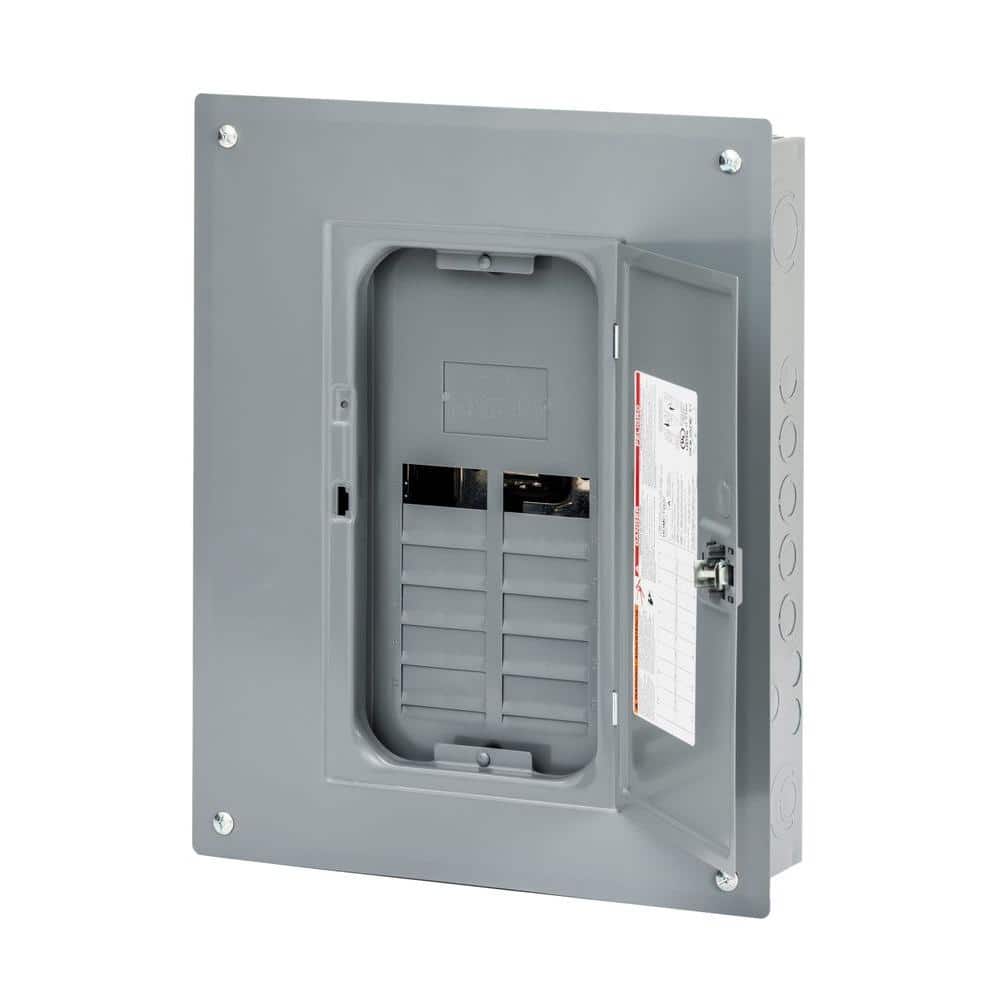

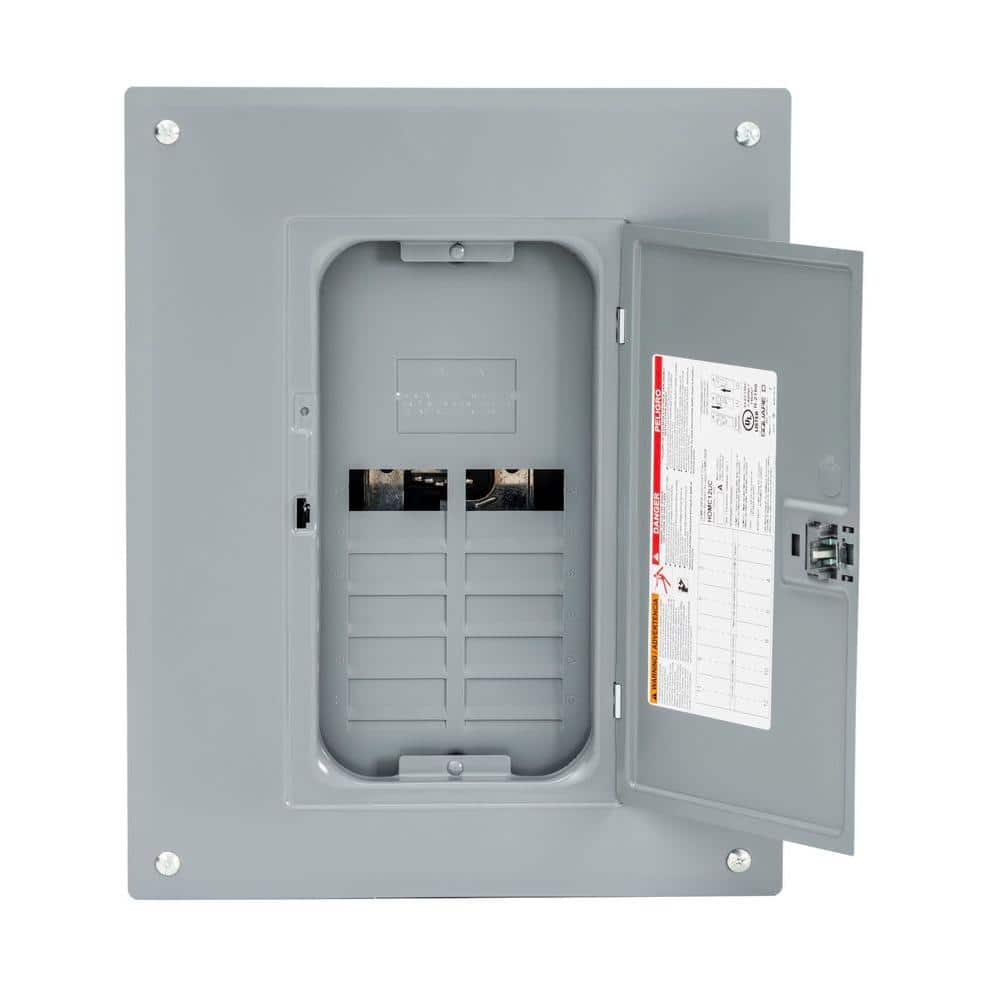

Square D Homeline 125 Amp Load Center
The Square D Homeline 125 Amp Load Center optimizes power distribution for residential and commercial spaces. With its aluminum bus bar and plug-on neutral design, this load center ensures easy installation and efficiency. Perfect for value-minded professionals and homeowners seeking reliable electrical solutions.
Key Features:
-
Plug-On Neutral: Expedites installation with less wiring and a clean gutter.
-
Versatile Use: Supports full-size, tandem or quad breakers for flexible circuit management.
-
Durability: Features a thermoplastic interior assembly for enhanced strength and longevity.
-
Rainproof Convenience: Supports overhead/underground feeds via easy rotation during setup.
-
Safety Design: 65,000 AIR short circuit current rating for advanced protection.
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Breaker Box Type |
Subpanel |
| Connection Type |
Neutral |
| Indoor/Outdoor |
Indoor |
| Maximum Amperage (A) |
125 A |
| Mounting Type |
Flush,Surface |
| NEMA Configuration |
NEMA 1 |
| Number of Circuits |
24 |
| Number of Spaces |
12 |
| Product Weight (lb.) |
17.82 lb |
| Series Type |
Homeline |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
Square D warrants its single phase load centers, in a residential application, to be free from defects in material and workmanship under normal care and proper usage for a period of 10 years from the date of installation for HOMELINE load centers when used with the appropriate Square D HOMELINE branch circuit breakers. |

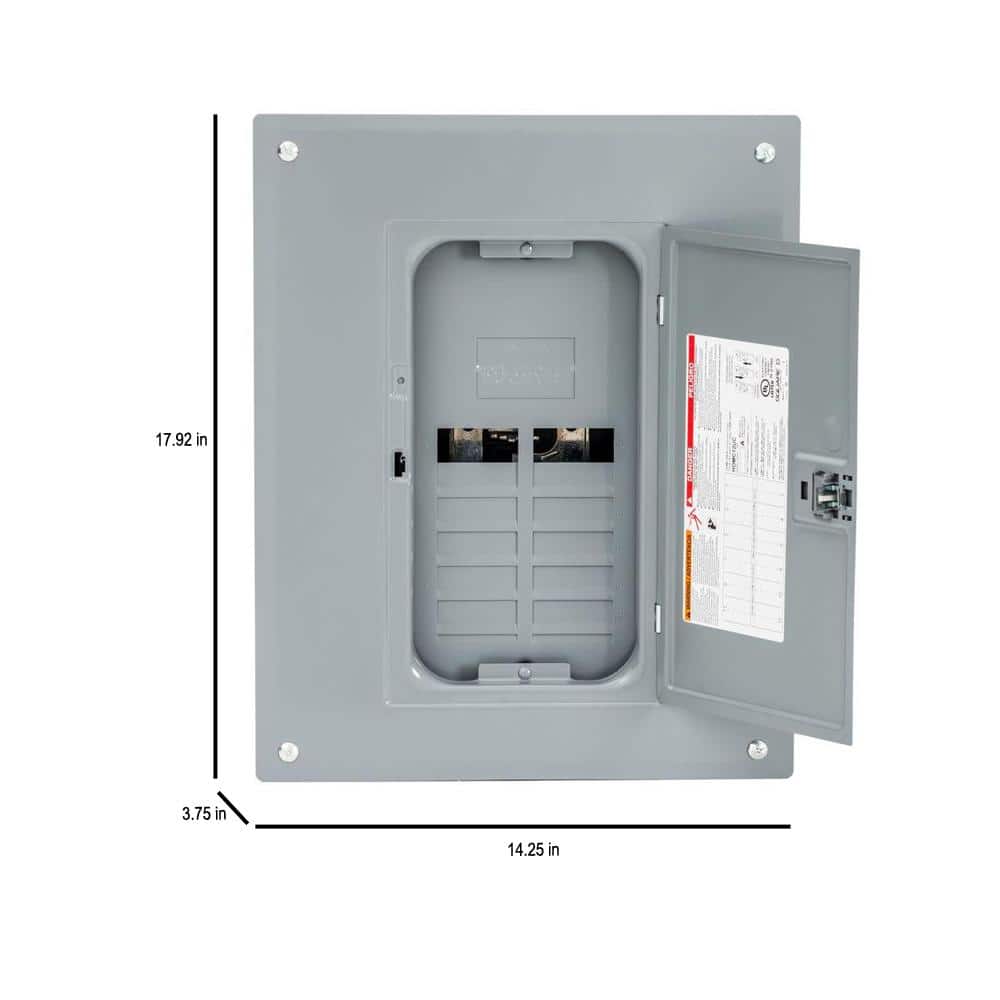

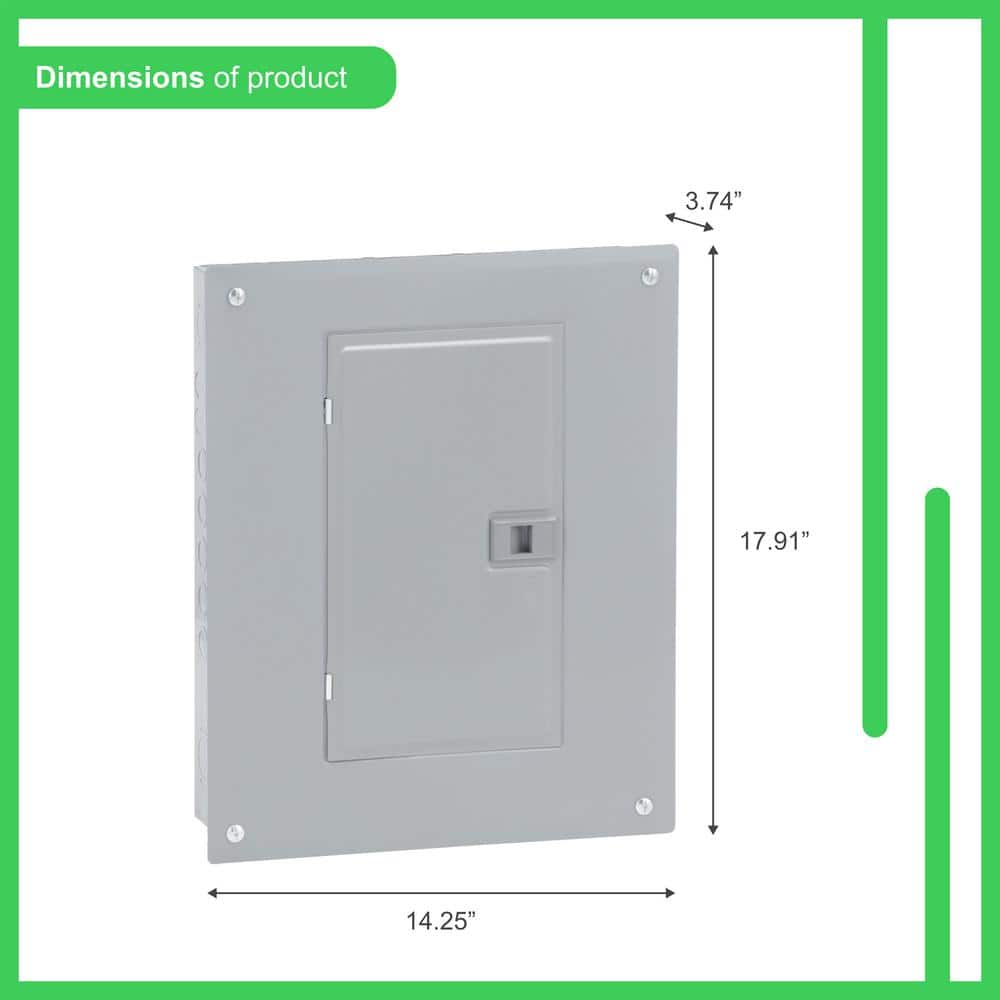

| Product Depth (in.) |
3.75 in |
| Product Height (in.) |
17.92 in |
| Product Width (in.) |
14.25 in |
Frequently Asked Questions (FAQ):
Q: Can this load center be used for outdoor installations?
A: No, this load center is designed for indoor use only as per its NEMA 1 rating.
Q: How can I convert this load center to a main breaker setup?
A: You can convert it to a main breaker load center using a QOM1 main breaker, sold separately.
Q: What types of breakers are compatible with this load center?
A: This load center is compatible with Square D Homeline circuit breakers.
Q: Is this product compliant with UL listing standards?
A: Yes, this product is UL listed and adheres to safety and performance standards.
Q: What is the warranty on this load center?
A: Square D offers a 10-year manufacturer's warranty on the Homeline load center when used with corresponding Homeline breakers.
Empower Your Interiors with Electrical Finesse
The Square D Homeline Load Center transcends mere functionality—it lays the foundational elegance of an intelligently powered home. This thoughtfully crafted piece, with its streamlined neutral plug-on design, not only elevates the efficiency of your power systems but also reinforces the aesthetics of a well-organized electrical infrastructure. Seamlessly integrate it within sleek cabinetry to maintain a clean and sophisticated interior. Choosing this as your power hub enriches your residence with the luxury of smart, safe, and subtle elegance.
Enhance your power distribution with the Square D Homeline 125 Amp Load Center—order today for efficiency done right.
