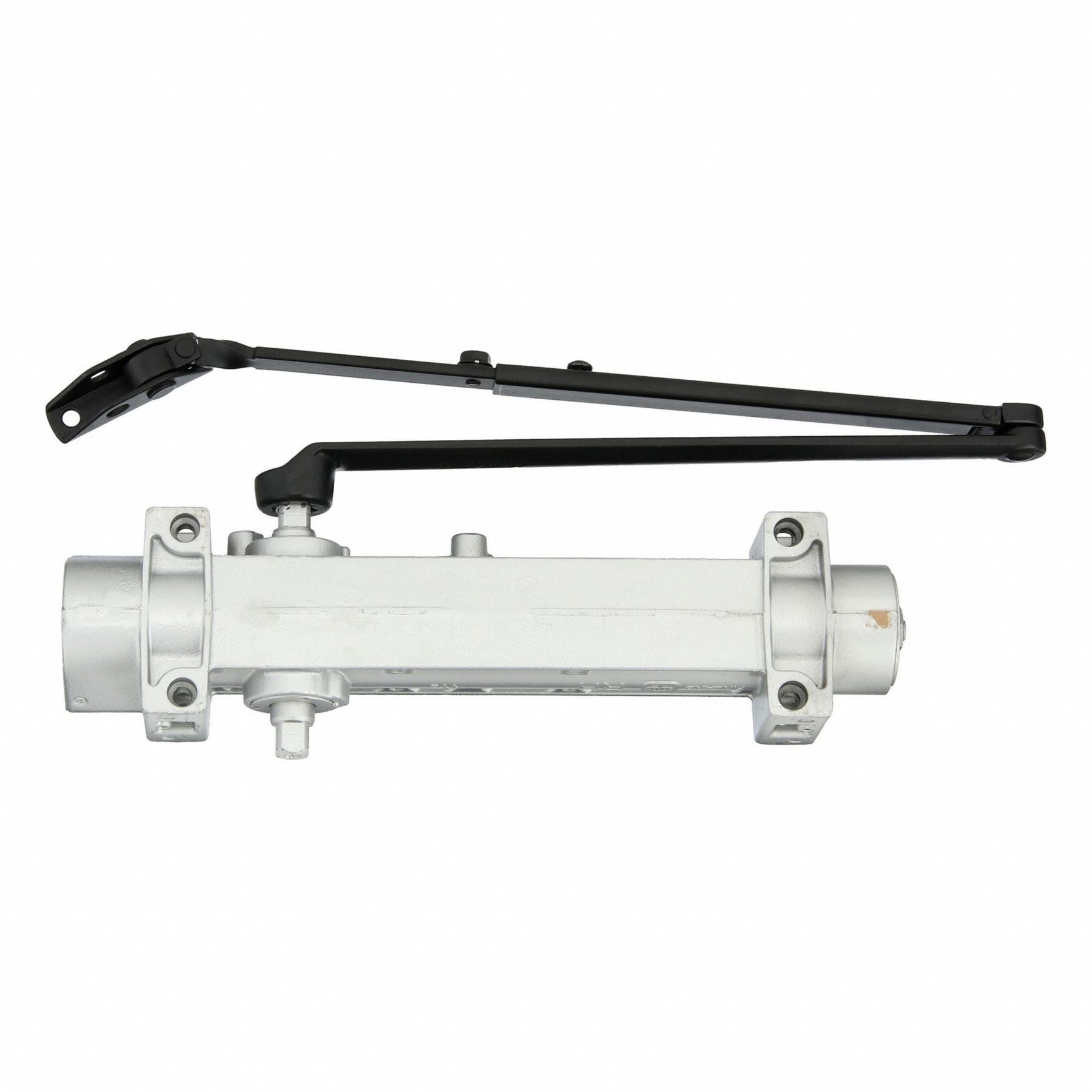

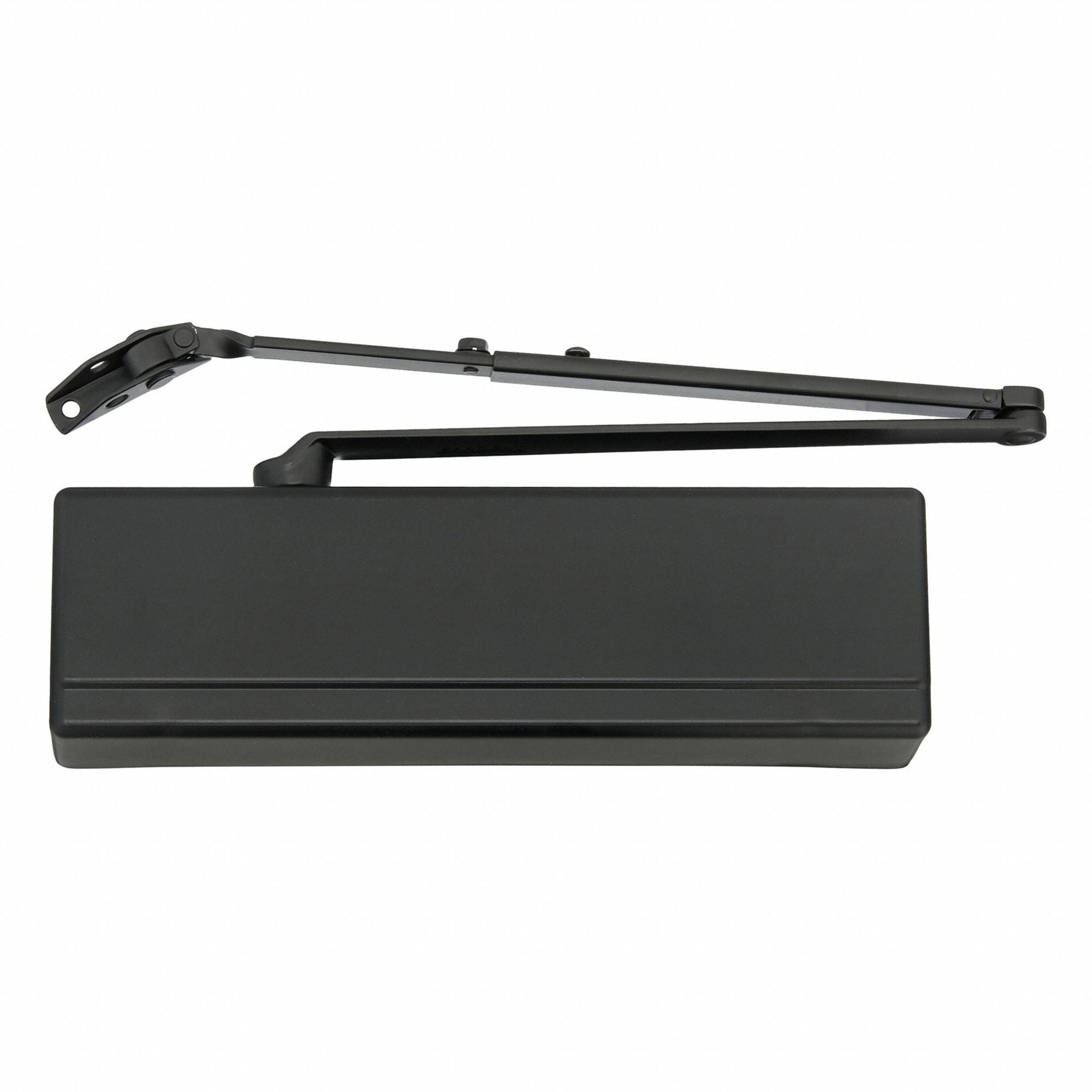

SARGENT Grade 1 Heavy Duty Parallel Door Closer, Black
Regular price $550.93Grade 1 Heavy Duty Parallel Door Closer
The SARGENT Grade 1 Heavy Duty Door Closer is engineered for high-traffic environments, ensuring durability and performance. With its sleek parallel-mount design, it seamlessly integrates into any door setup while offering robust hydraulic operation for smooth, controlled closing every time.
Key Features:
- Superior Durability: Designed to handle up to 25,000,000 cycles, ideal for high-traffic areas.
- Sleek Design: Parallel mounting with folding arm for a modern, unobtrusive look.
- Fire Rated: 3-hour UL and cUL listed rating for enhanced safety.
- Full Control: Adjustable spring size with standard pressure relief valves for precise operation.
- Versatile Use: Suitable for both interior and exterior applications, compatible with door widths up to 48 inches.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 351 UO BSP |
| Brand | SARGENT |
| Closer Mounting Type | Parallel |
| Closer Series | 351 |
| Closer Stop Type | Spring |
| Closer Type | Non-Hold Open |
| Color | Black |
| Compatible with Brand | Sargent |
| Compatible with Series | Sargent 351 |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Door Opening - Minimum | 120 ° |
| Features | Standard Pressure Relief Valves for Both Opening and Closing Cycles |
| Finish | Black |
| Fire Rating | 3 hr |
| Housing Depth | 2-3/16 in |
| Housing Height | 3-7/8 in |
| Energy Source | Hydraulic |
| Door Width Campatibility | 60 in |
| Location Use | Interior/Exterior |
| Properties | Wear-Resistant |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 2-1/2 in |
| Spring Size - Minimum | 1 |
| Material | Aluminum |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-3/16 in |
| Spring Size | 6 |
| Arm Type | Parallel |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 13 in |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 9 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Black Suede Powder Coated, Sprayed ; Aluminum ; Black |
Frequently Asked Questions (FAQ):
Q: What type of doors is this closer compatible with?
A: This door closer is designed for both interior and exterior applications and is compatible with doors up to 48 inches in width.
Q: Is this door closer ADA compliant?
A: Yes, the SARGENT Grade 1 Heavy Duty Door Closer meets ADA compliance standards.
Q: How is the door closer mounted?
A: The closer uses a parallel mount system, with the closer arm located underneath the door frame on the push side.
Q: Can the door closer be adjusted for different door types?
A: Yes, it features an adjustable spring size and pressure relief valves to accommodate various door specifications.
Transform Entries with Timeless Elegance
Elevate your space with the SARGENT Grade 1 Door Closer, where functionality meets finesse. Its discreet, foldaway arm design offers a clean aesthetic that blends seamlessly with any decor, adding a touch of refined elegance to your doorways. Ideal for high-traffic areas in commercial settings, its robust performance promises longevity and reliability. Consider it a luxurious staple for any project, embodying both efficiency and style.
Experience seamless door operation and enhanced safety by choosing the SARGENT Grade 1 Heavy Duty Door Closer, your ultimate solution for high-traffic environments.
