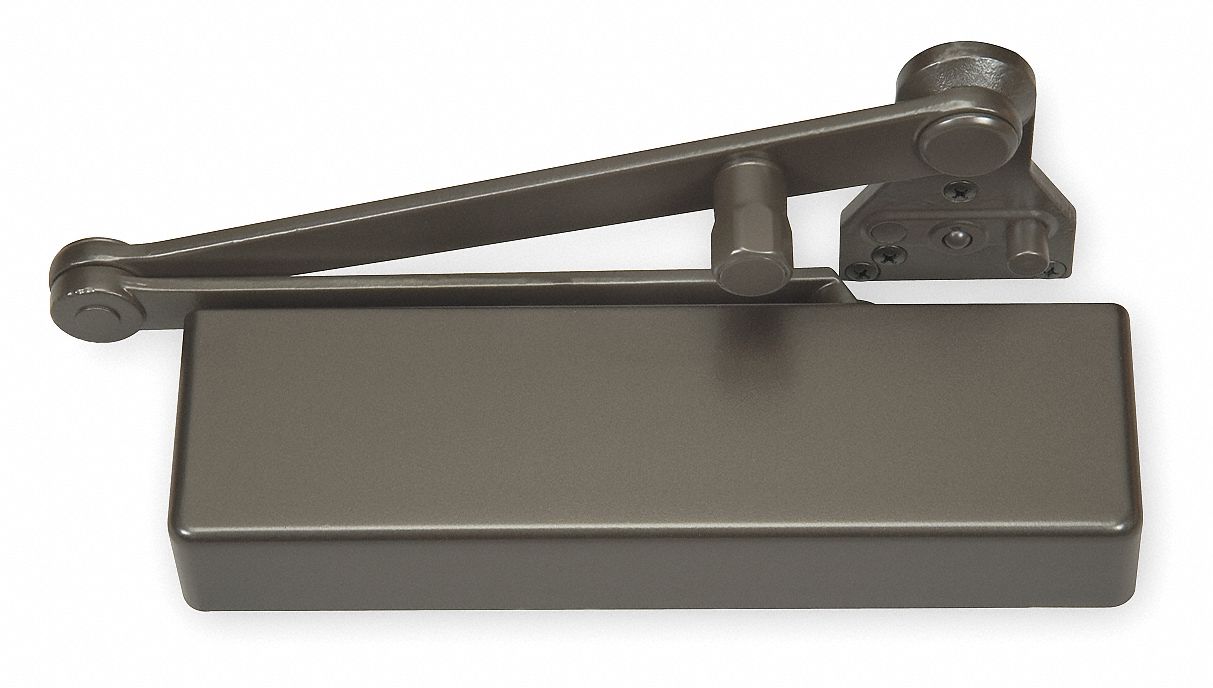

Heavy Duty Bronze Door Closer

The NORTON DOOR CONTROLS Heavy Duty Bronze Door Closer is engineered for top frame mounting, offering unmatched performance and reliability for both interior and exterior doors. Constructed from durable aluminum and finished in dark bronze, this Grade 1 door closer ensures safe and controlled door operations, making it ideal for high-traffic areas.

---

Key Features:

• Durability and Strength: Grade 1 rating with a performance duty rating designed for heavy-duty commercial applications.
• Versatile Application: Suitable for interior and exterior doors with maximum door width of up to 48 inches.
• Reliable Construction: Designed with a robust aluminum housing and finished with a dark bronze paint for longevity.
• Efficient Operation: Hydraulic energy source ensures smooth and consistent operation, accommodating up to 25,000,000 cycles.
• Safety Standards: UL and cUL listed with a 3-hour fire rating, providing assurance in safety-critical environments.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	CLP7500T X 690
Brand	NORTON DOOR CONTROLS
Closer Mounting Type	Top Frame
Closer Series	7500
Closer Type	Hold Open
Color	Dark Bronze
Compatible with Brand	NORTON RIXSON
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	110 °
Door Opening - Minimum	85 °
Features	Staked Valves
Finish	Bronze
Fire Rating	3 hr
Housing Depth	2-1/8 in
Housing Height	3-7/8 in
Energy Source	Hydraulic
Door Width Campatibility	48 in
Location Use	Interior/Exterior
Standards	UL and cUL Listed
UL Fire Rating	UL10C
Spring Type	Adjustable
Height Between Mounting Holes	2-3/8 in
Spring Size - Minimum	1
Material	Aluminum
Door Weight - Maximum	250 lb
Exterior Door Width - Maximum	48 in
Product Type	Door Closer
Projection	2-1/8 in
Spring Size	6
Closer Cycles	25,000,000
Hand Orientation	Non-Handed
Housing Length	13-5/8 in
Operation Style	Manual
Performance Duty Rating	1
Length Between Mounting Holes	6-3/4 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Dark Bronze Painted ; Aluminum ; Dark Bronze

---

Frequently Asked Questions (FAQ):

Q: How do I install this door closer?
A: This door closer is designed for top frame mounting and includes detailed installation instructions for efficient setup.

---

Q: Can this product be used on both interior and exterior doors?
A: Yes, this door closer is suitable for use on both interior and exterior doors due to its durable design.

---

Q: What door sizes is this closer compatible with?
A: The door closer is compatible with doors up to 48 inches wide and a maximum weight of 250 lbs.

---

Q: Does this door closer meet fire safety standards?
A: Yes, it is UL and cUL listed with a UL10C 3-hour fire rating.

---

Q: Is the door closer adjustable?
A: Yes, it features adjustable staked valves and an adjustable spring to suit different door weights and sizes.

---

Elegance in Every Swing: The Perfect Fusion of Function and Form

Transform any space with the NORTON DOOR CONTROLS Door Closer, a striking blend of lasting durability and refined aesthetics. Enveloped in a sophisticated dark bronze finish, this closer boasts a versatile function that seamlessly adapts to various environments. Picture this masterpiece adorning the entrances of grand commercial settings, where its subtlety elevates both style and security. Essential to luxurious living, it promises both elegance and resilience, suitable for even the highest traffic spaces.

---

Ensure seamless and secure door operations in your project by ordering the NORTON DOOR CONTROLS Bronze Door Closer today!
