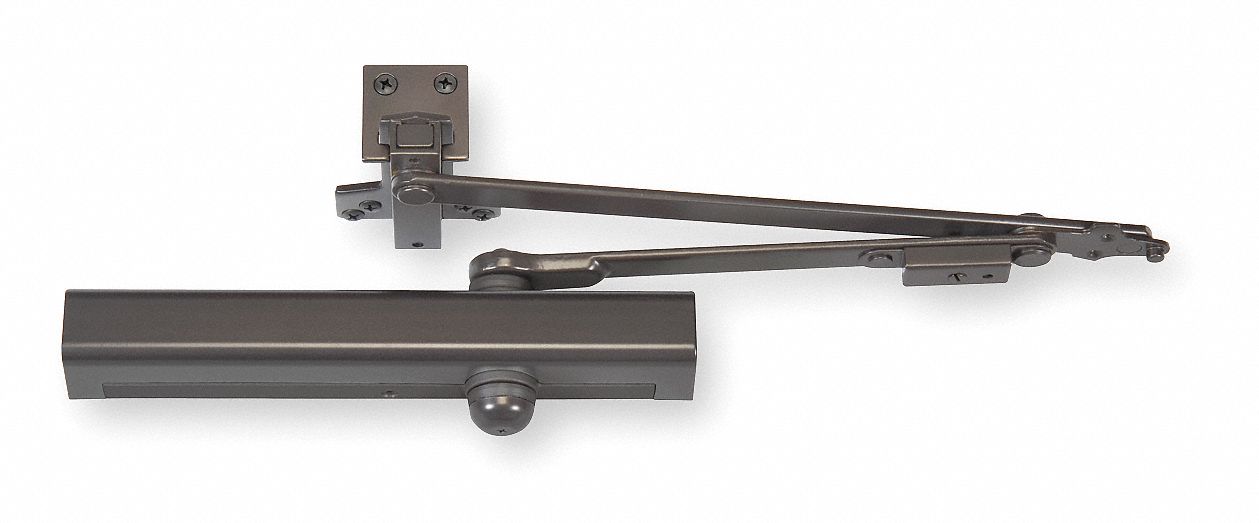

NORTON DOOR CONTROLS Heavy Duty Bronze Door Closer - Grade 1, Top Frame Mount
Regular price $446.83Norton Heavy Duty Bronze Door Closer
The NORTON DOOR CONTROLS Heavy Duty Door Closer offers robust performance with a sleek bronze finish. Designed for top frame mounting, this Grade 1 closer is ideal for high-traffic areas, ensuring durability and maintenance-free operation across millions of cycles.
Key Features:
- Grade 1 Heavy Duty: Built to withstand rigorous use in high-traffic environments.
- Top Frame Mount: Ideal for installations without sufficient room on the door.
- Hydraulic Operation: Ensures smooth, reliable closure with a maximum angle of 110 degrees.
- Adjustable Spring Size: Provides customization for various door weights and sizes.
- Non-Handed Design: Universal fit for easy installation on any door orientation.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | UNI8301H X 690 |
| Brand | NORTON DOOR CONTROLS |
| Closer Mounting Type | Top Frame |
| Closer Series | Norton 8301 |
| Closer Stop Type | Spring |
| Closer Type | Hold Open |
| Color | Dark Bronze |
| Compatible with Brand | NORTON RIXSON |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 110 ° |
| Finish | Bronze |
| Housing Depth | 2-1/8 in |
| Housing Height | 2-7/8 in |
| Energy Source | Hydraulic |
| Includes | Plastic Cover |
| Includes Hardware | Hardware Not Included |
| Door Width Campatibility | 48 in |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 3/4 in |
| Spring Size - Minimum | 1 |
| Material | Plastic |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Spring Size | 6 |
| Arm Type | Parallel |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 13 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 12 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Dark Bronze Painted ; Plastic ; Dark Bronze |
Frequently Asked Questions (FAQ):
Q: How is this door closer installed?
A: This Norton door closer is installed with a top frame mounting type, suitable for interior and exterior doors. It connects the arm under the closer to the door, perfect for situations where door mounting isn't possible.
Q: Is this door closer suitable for exterior doors?
A: Yes, the door closer is designed for both interior and exterior use, accommodating door widths up to 48 inches.
Q: What makes this closer Grade 1 rated?
A: Grade 1 rating indicates the highest level of performance and durability, suitable for commercial settings with frequent use.
Q: Does it come with the necessary installation hardware?
A: The door closer includes a plastic cover but does not come with additional hardware, which must be purchased separately.
Q: Is this door closer ADA compliant?
A: Yes, it meets ADA compliance, making it suitable for accessible facilities.
Elevate Entryways with Elegant Efficiency
The intersection of functionality and design, the Norton Heavy Duty Door Closer graces your space with sophisticated bronze allure, all while championing robust performance. Its subtle dark bronze finish seamlessly blends into a variety of styles, making it perfect for both contemporary and traditional spaces. Consider pairing this closer with similarly timeless bronze accents for a cohesive look. An essential for maintaining a refined, seamless entrance in luxurious environments.
Enhance your door's functionality with the NORTON Heavy Duty Door Closer—order today to ensure a lasting, reliable solution for your high-traffic entryways.
