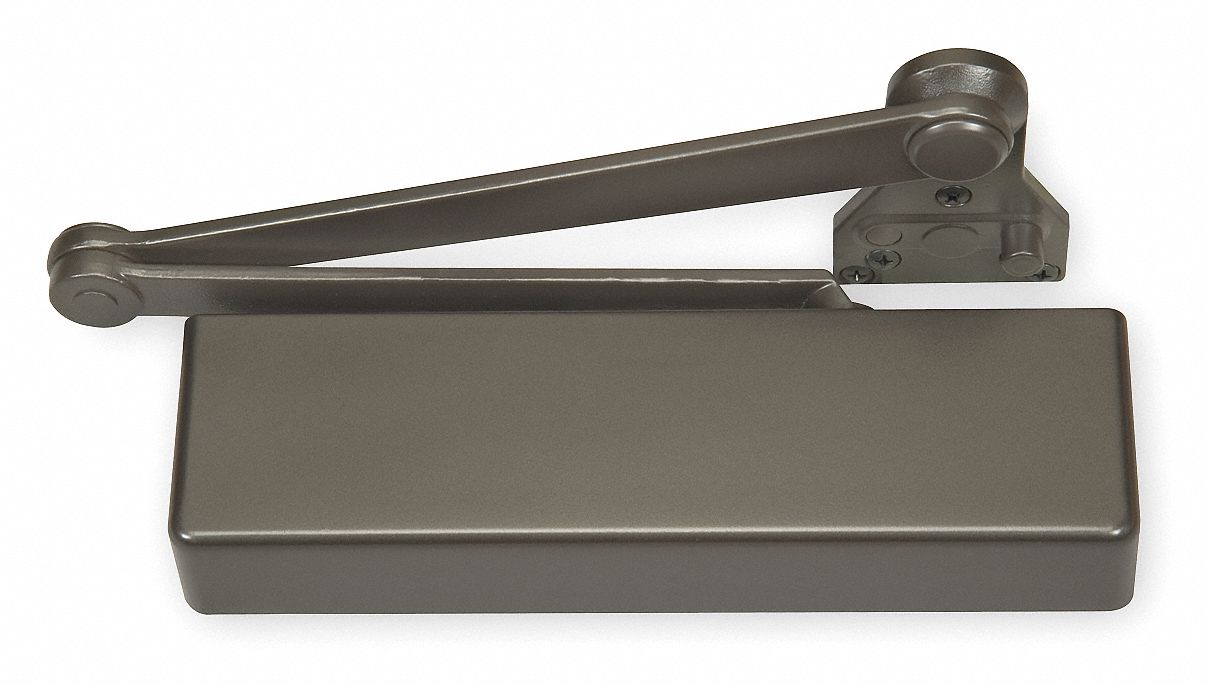

Heavy Duty Bronze Door Closer

The NORTON DOOR CONTROLS Heavy Duty Bronze Door Closer is designed for top frame mounting, making it ideal for doors where space is limited. With a robust, dark bronze finish and ADA compliance, this Grade 1 closer ensures reliable performance for up to 25 million cycles on doors up to 250 lbs.

---

Key Features:

• Durable Construction: Built from robust aluminum with a stylish dark bronze finish, providing both aesthetics and long-lasting performance.
• Top Frame Mounting: Ideal for environments where door space is limited, ensuring high functionality without compromising door aesthetics.
• Adjustable Spring: Features a Non-Hold Open, adjustable spring for tailored door closing force, accommodating doors up to 250 lbs.
• High Performance: Grade 1 certified for heavy-duty application, rated for 25 million cycles, ensuring long-term durability and reliability.
• Fire-Rated Safety: UL and cUL listed for 3-hour fire rating, meeting strict safety standards for both interior and exterior use.

---

Specifications Table:

Specification	Details
Manufacturer Part Number	CLP7500 X 690
Brand	NORTON DOOR CONTROLS
Closer Mounting Type	Top Frame
Closer Series	7500
Closer Type	Non-Hold Open
Color	Dark Bronze
Compatible with Brand	NORTON RIXSON
Display Qty	1
Display Sell UOM	EA
Max Door Opening Angle	110 °
Door Opening - Minimum	85 °
Features	Tri-Packed
Finish	Bronze
Fire Rating	3 hr
Housing Depth	2-1/8 in
Housing Height	3-7/8 in
Energy Source	Hydraulic
Door Width Campatibility	48 in
Location Use	Interior/Exterior
Standards	UL and cUL Listed
UL Fire Rating	UL10C
Spring Type	Adjustable
Height Between Mounting Holes	2-3/8 in
Spring Size - Minimum	1
Material	Aluminum
Door Weight - Maximum	250 lb
Exterior Door Width - Maximum	48 in
Product Type	Door Closer
Projection	2-1/8 in
Spring Size	6
Closer Cycles	25,000,000
Hand Orientation	Non-Handed
Housing Length	13-5/8 in
Operation Style	Manual
Performance Duty Rating	1
Length Between Mounting Holes	6-3/4 in
Ligature Resistance	Not Ligature-Resistant
ADA Compliant	Yes
Performance Rating	Grade 1 - Heavy Duty
Finish C	Dark Bronze Painted ; Aluminum ; Dark Bronze

---

Frequently Asked Questions (FAQ):

Q: How do I install this door closer?
A: The NORTON DOOR CONTROLS door closer uses a top frame mounting type, which requires drilling onto the top frame of the door. A detailed installation guide is included to assist with setup.

---

Q: Is this door closer suitable for exterior doors?
A: Yes, this door closer is designed for both interior and exterior use, supporting doors up to 250 lbs while maintaining performance in varied environments.

---

Q: Can the closing speed be adjusted?
A: Yes, the hydraulic mechanism allows you to adjust the closing speed to suit your needs, along with an adjustable spring feature to tailor the closing force.

---

Q: What is the fire rating of this door closer?
A: It is UL and cUL listed with a 3-hour fire rating, providing robust safety standards for commercial and residential applications.

---

Q: What are the dimensions of the door closer?
A: The housing is 13-5/8 inches in length and 3-7/8 inches in height, projecting 2-1/8 inches, making it compact yet effective for door closing solutions.

---

Integrate Unseen Elegance with Architectural Door Mastery

NORTON DOOR CONTROLS’ Bronze Door Closer marries discrete functionality with a touch of sophistication, ideal for the understated architectural connoisseur. Its dark bronze finish seamlessly complements a range of design palettes, infusing elegance while maintaining its primary, seamless utility. Install this closer above an opulent framed entrance, adding a whisper of polished efficiency without marring visual cleanliness. Nothing completes the curated home or professional space quite like this blend of performance and style, a testament to quiet luxury in living spaces.

---

Elevate the functionality of your doorways with the NORTON Bronze Door Closer, designed for seamless elegance and unmatched durability.
