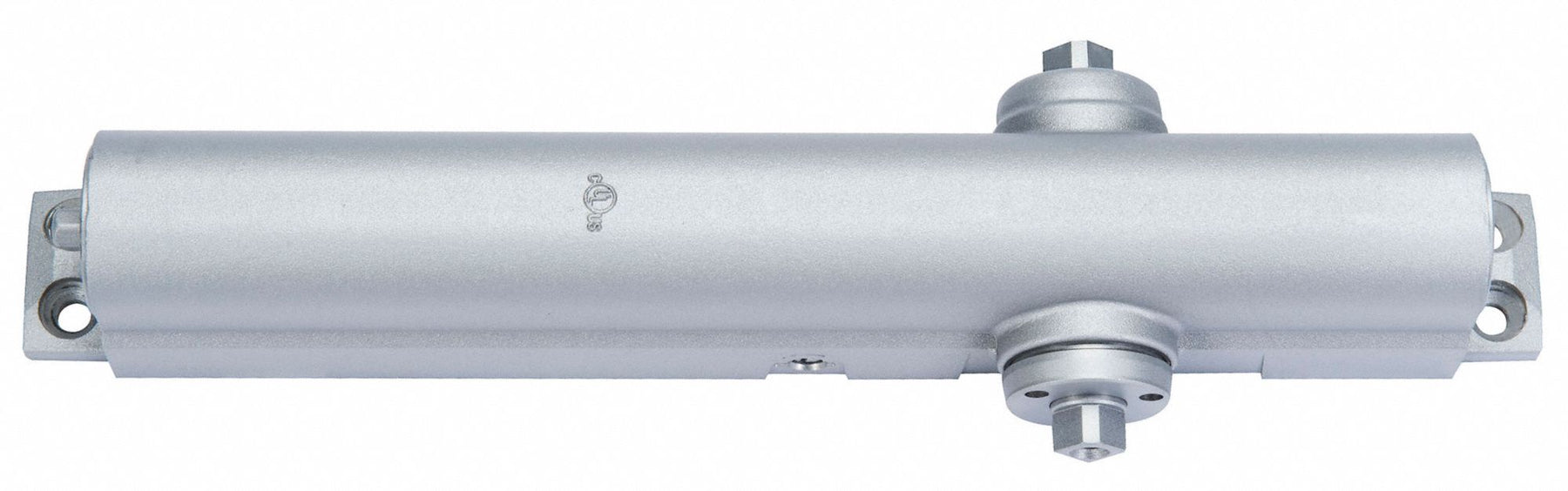

NORTON DOOR CONTROLS Aluminum Heavy Duty Door Closer - Grade 1
Regular price $295.95Heavy Duty Top Frame Aluminum Door Closer
Elevate your entryways with the robust Norton Door Controls Heavy Duty Door Closer. Designed for top frame mounting, this aluminum closer combines durability with fluid hydraulic operation, ensuring smooth and reliable door management even in high-traffic areas.
Key Features:
- Heavy Duty Design: Built to withstand rigorous conditions with a Grade 1 performance rating, ensuring long-lasting operation.

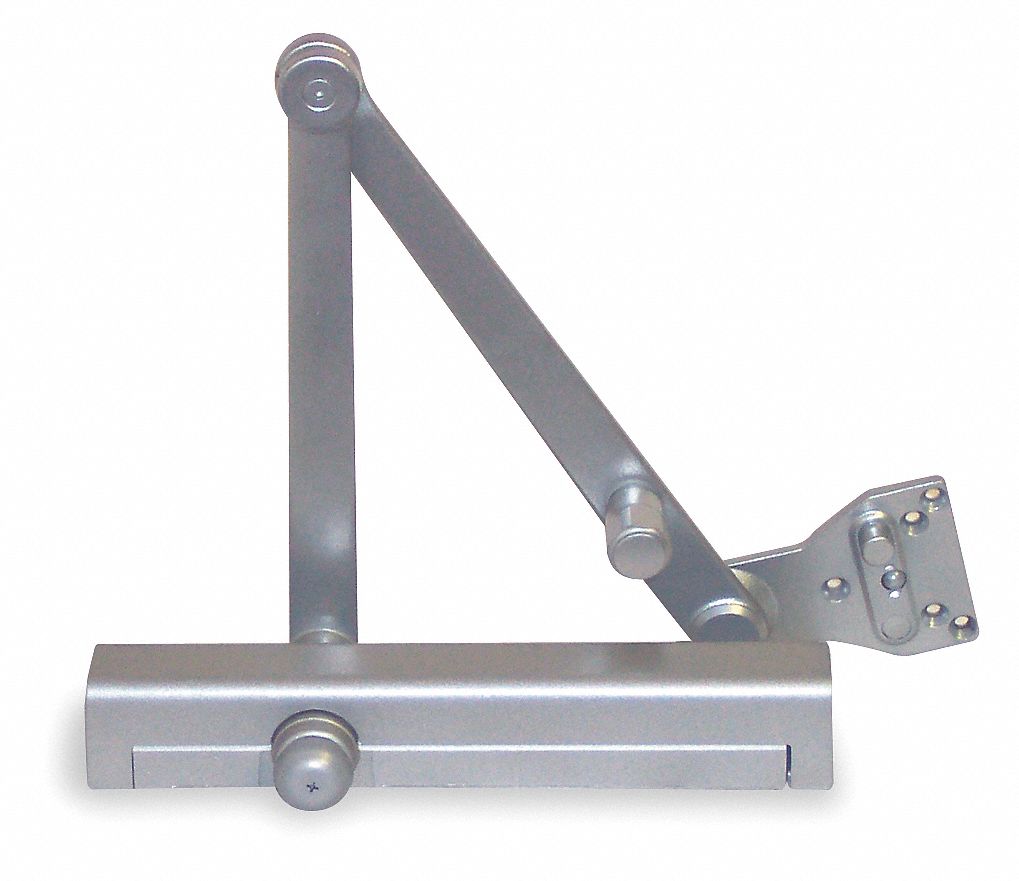

- Top Frame Mount: Ideal for installations where space is limited, featuring a parallel arm for effortless integration.
- Hydraulic Operation: Provides consistent, smooth door control with adjustable spring size from 1 to 6, accommodating various door weights.
- ADA Compliant: Certified for accessible design without compromising on functionality or strength.
- Exterior Ready: Designed for use on exterior doors up to 48 inches wide, suitable for a variety of commercial applications.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | CLP8301-TXSA |
| Brand | NORTON DOOR CONTROLS |
| Closer Mounting Type | Top Frame |
| Closer Series | Norton 8301 |
| Closer Stop Type | Spring |
| Closer Type | Hold Open |
| Color | Gray |
| Compatible with Brand | NORTON RIXSON |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 110 ° |
| Finish | Aluminum |
| Housing Depth | 2-3/4 in |
| Housing Height | 2-1/2 in |
| Energy Source | Hydraulic |
| Door Width Campatibility | 48 in |
| Location Use | Exterior |
| Standards | UL and cUL Listed |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 3/4 in |
| Spring Size - Minimum | 1 |
| Material | Plastic |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-3/4 in |
| Spring Size | 6 |
| Arm Type | Parallel |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 13 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 12 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Plastic ; Gray |
Frequently Asked Questions (FAQ):
Q: How is the door closer installed?
A: The closer is designed for top frame mounting. It is installed on the push side of the door with the arm extending under the frame to connect with the door.
Q: Is this product suitable for exterior doors?
A: Yes, it is specifically designed for use on exterior doors, accommodating doors up to 48 inches wide.
Q: What type of arm does this door closer use?
A: It features a parallel arm mount, making it more compact while maintaining functionality.
Q: Is the door closer ADA compliant?
A: Yes, this door closer is ADA compliant, ensuring accessibility in various environments.
Q: How durable is this door closer?
A: Tested to handle up to 25 million cycles, it is rated Grade 1 for heavy duty performance, suitable for demanding applications.
Elevate Every Entrance with Unmatched Craftsmanship
Transform any threshold into a gateway of sophistication with the Norton Heavy Duty Door Closer. Its sleek aluminum design not only promises durability but offers a subtle architectural detail that complements modern entryways. Perfect for high-traffic environments, its resilient functionality provides seamless motion that feels almost ethereal. Essential for those who value both elegance and performance, every door becomes an experience, adding a touch of polished confidence to any building. Make this door closer the silent sentinel of your entranceway, where practicality meets luxury.
Upgrade to the Norton Door Closer today and experience unparalleled durability and style for your entryways.
