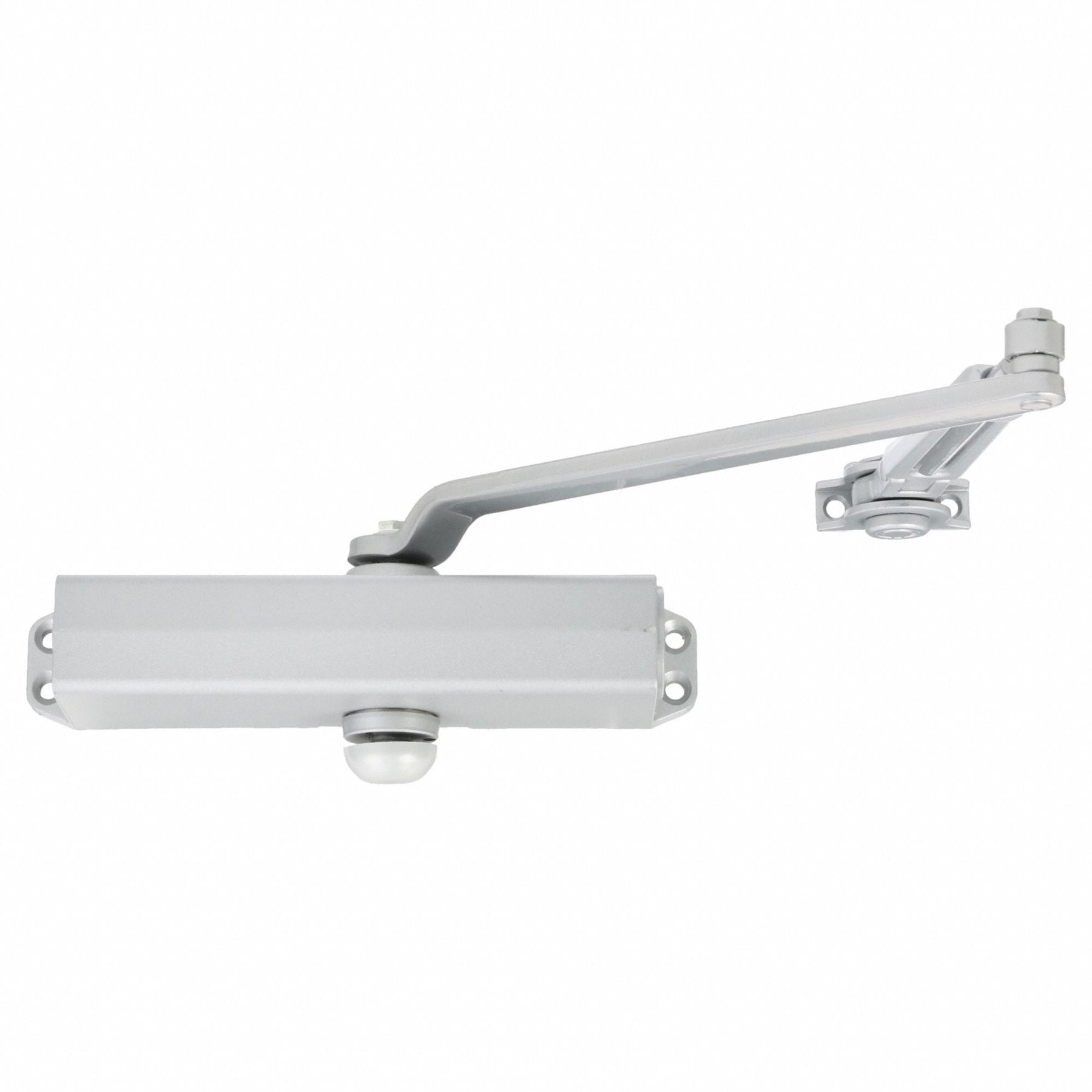

NORTON Door Closer Grade 1 Heavy Duty - Adjustable Mount
Regular price $200.13Heavy Duty Adjustable Door Closer
The NORTON Door Closer offers versatile mounting for top frame, parallel, and standard installation types. Designed for heavy-duty use, it's perfect for both interior and exterior doors up to 48 inches wide. The hydraulic operation ensures smooth closing while its UL fire rating makes it a reliable choice for safety standards.
Key Features:
- Versatile Mounting: Configure for top frame, parallel, or standard door closers.
- Heavy-Duty Performance: Grade 1 design supports doors up to 250 lb with up to 25,000,000 cycles.
- Hydraulic Operation: Ensures smooth, controlled door closures every time.
- Fire Rated: UL10C certified for up to 3-hour fire doors, ideal for commercial spaces.
- Adjustable Spring Size: Customizable from size 1 to 6 for varying door weights.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 1601H X 689 |
| Brand | NORTON DOOR CONTROLS |
| Closer Mounting Type | Top Frame |
| Closer Series | 1600 |
| Closer Type | Hold Open |
| Color | Gray |
| Compatible with Brand | NORTON RIXSON |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Door Opening - Minimum | 90 ° |
| Features | Staked Valves |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 2-7/8 in |
| Housing Height | 2-5/8 in |
| Energy Source | Hydraulic |

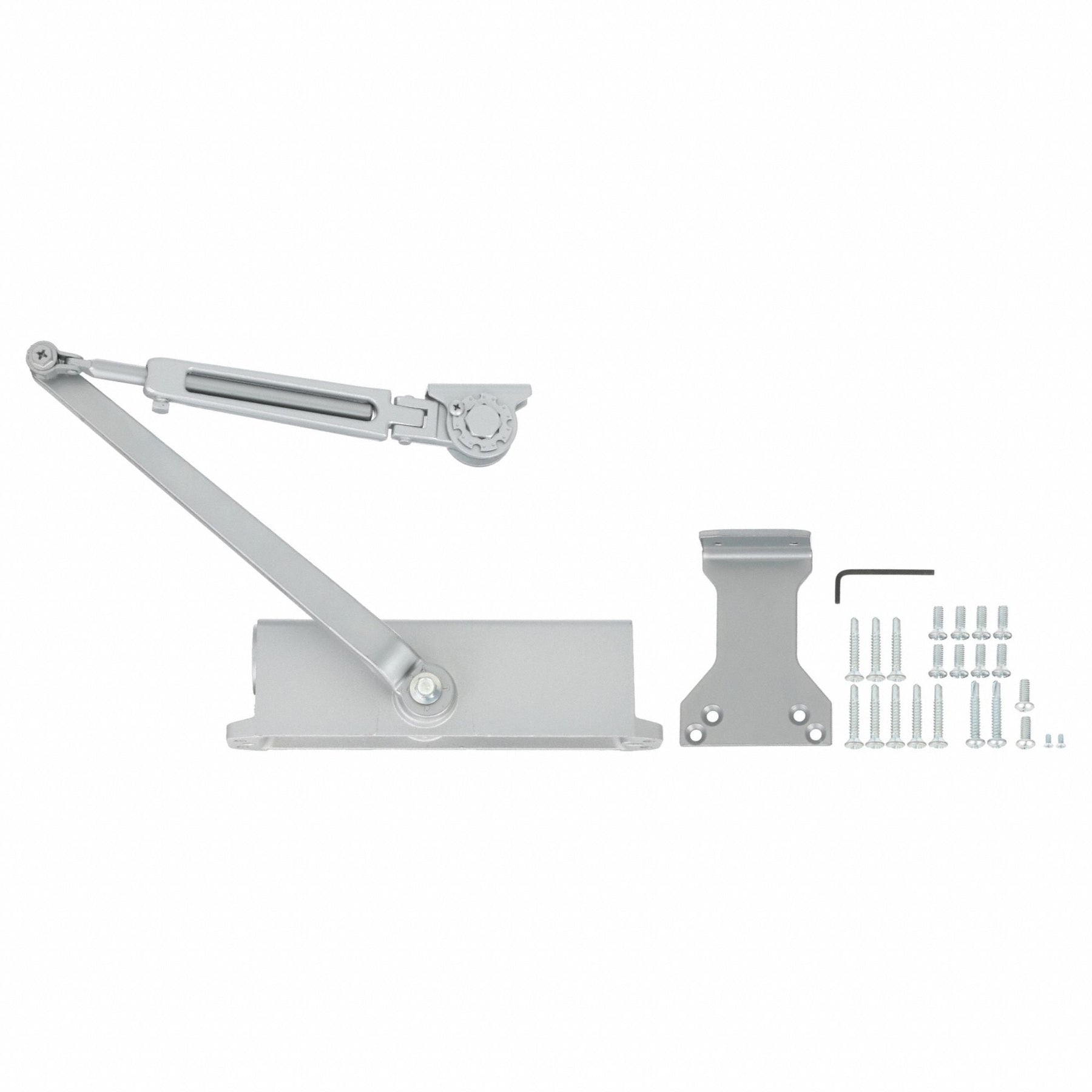

| Includes | Machine Screws |
| Includes Hardware | Hardware Included |
| Door Width Campatibility | 48 in |
| Location Use | Interior/Exterior |
| Standards | UL and cUL Listed |
| UL Fire Rating | UL10C |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 3/4 in |
| Spring Size - Minimum | 1 |
| Material | Aluminum |
| Door Weight - Maximum | 250 lb |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Projection | 2-7/8 in |
| Spring Size | 6 |
| Arm Type | Regular |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 9-3/4 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Length Between Mounting Holes | 9-1/16 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Aluminum ; Gray |
Frequently Asked Questions (FAQ):
Q: What is the maximum door weight this closer can accommodate?
A: The NORTON Door Closer is designed for doors weighing up to 250 pounds.
Q: Is this door closer suitable for both interior and exterior use?
A: Yes, it is suitable for both interior and exterior applications.
Q: How does the installation process work for this closer?
A: It includes hardware and instructions that make it easy to install in standard, parallel, or top frame mounting settings.
Q: Is it compliant with ADA standards?
A: Yes, the door closer is ADA compliant, ensuring accessibility standards are met.
Q: Can the door closer handle high-traffic areas?
A: Absolutely, with a Grade 1 - Heavy Duty performance rating, it's engineered for high-traffic conditions.
Elegance in Motion for Doors
The NORTON Door Closer transforms any entrance with its seamless blend of functionality and refinement. Its sleek aluminum finish exudes a modern elegance that complements various architectural styles. Pair it with distinct door handles for a cohesive, sophisticated look. This closer is not just a functional necessity but an elegant enhancement to any threshold, making it an indispensable element of luxe interiors.
Elevate your project's reliability with the NORTON Door Closer, and experience unmatched precision and strength today!
