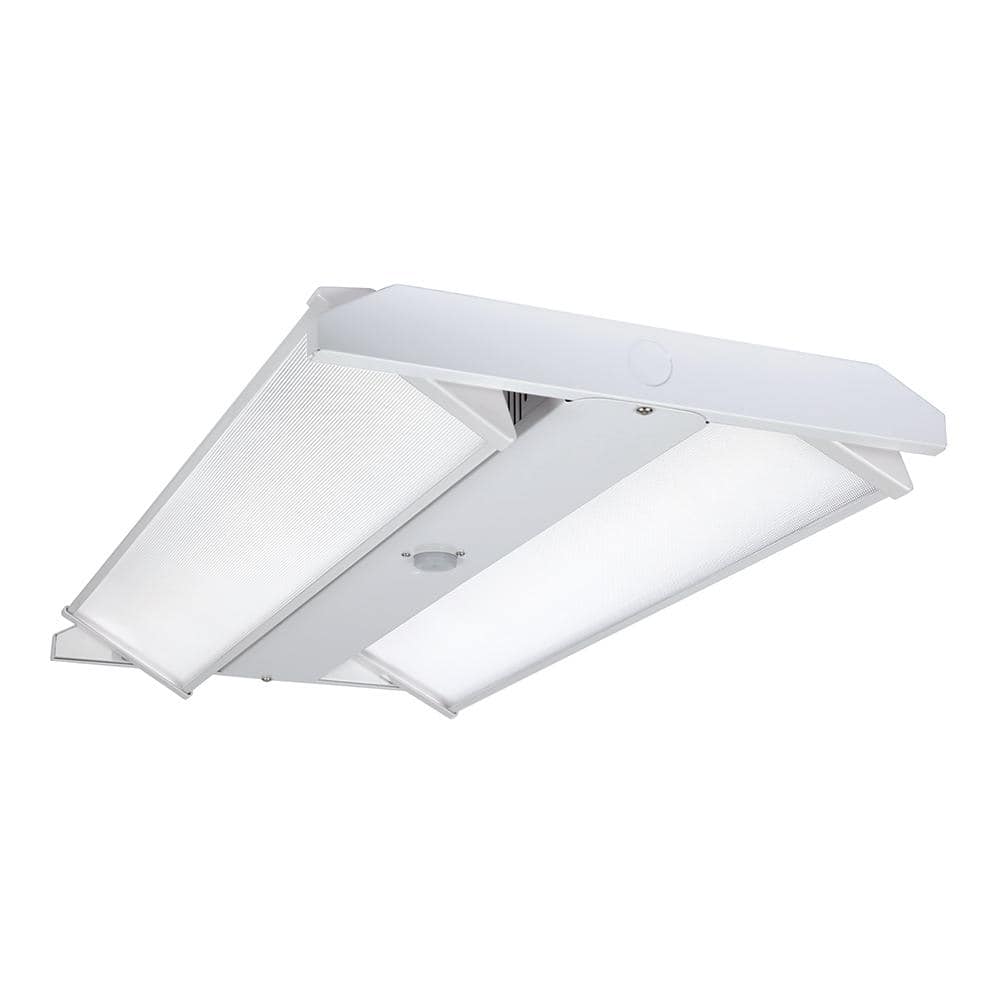

Metalux 2 ft. LED Highbay with Adjustable Optics
Illuminate your commercial spaces with the Metalux 2 ft. LED Highbay, offering selectable light levels and color temperatures. Featuring adjustable optics, this versatile fixture directs light efficiently up to 135 degrees, replacing traditional 400-watt metal halide lamps to boost energy savings.

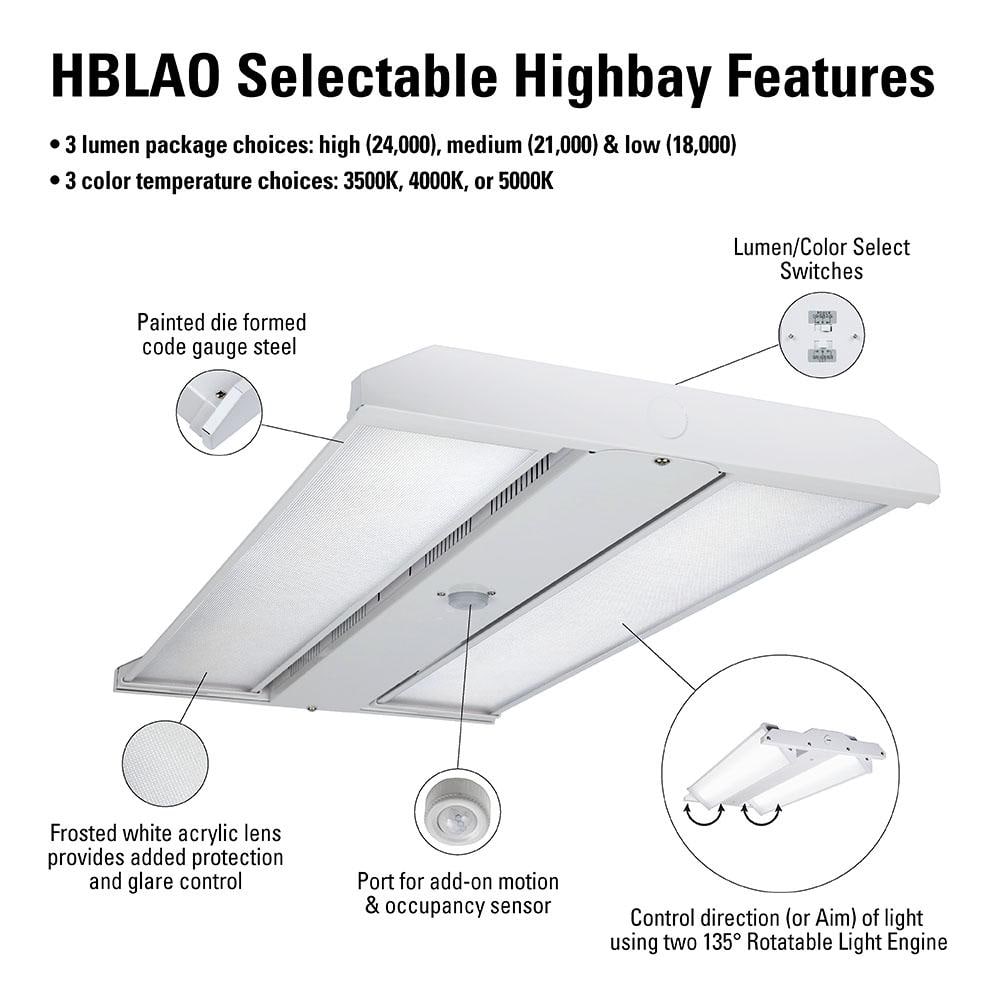

Key Features:
-

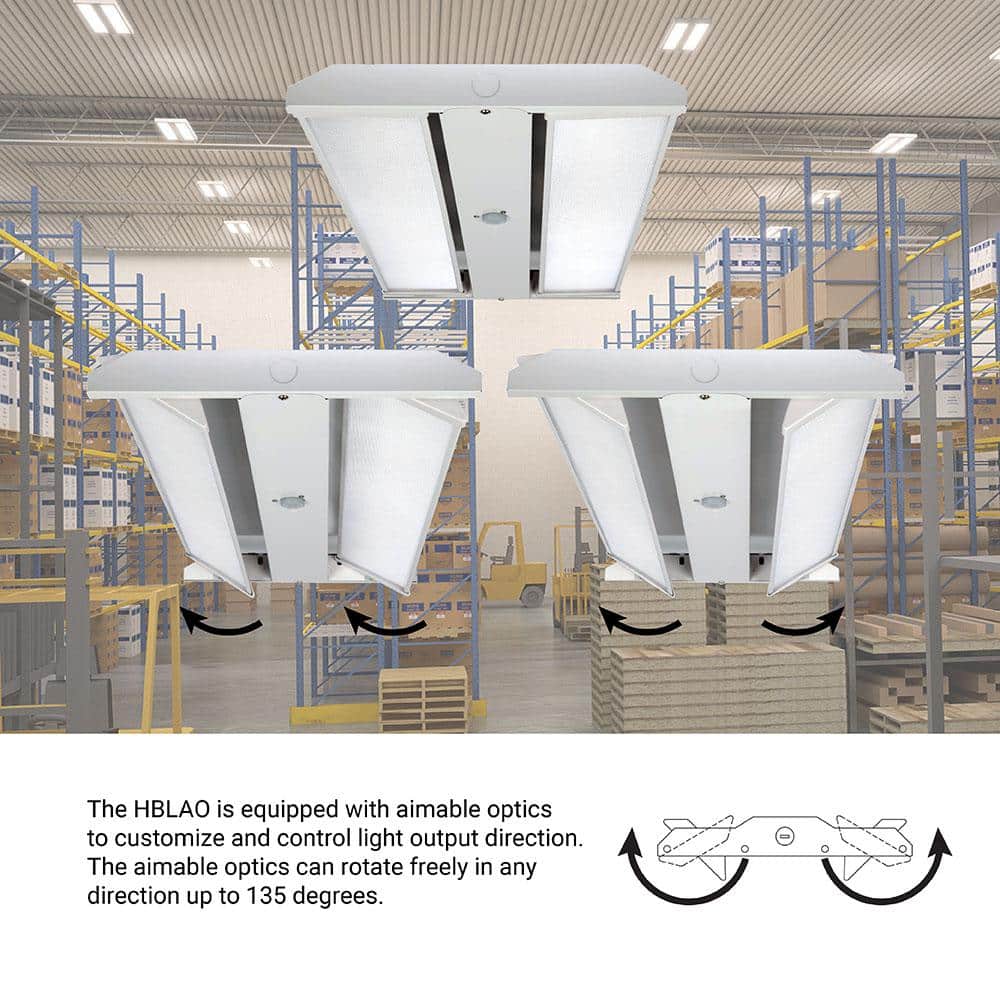

Adjustable Optics: Direct light up to 135° for customized illumination
-

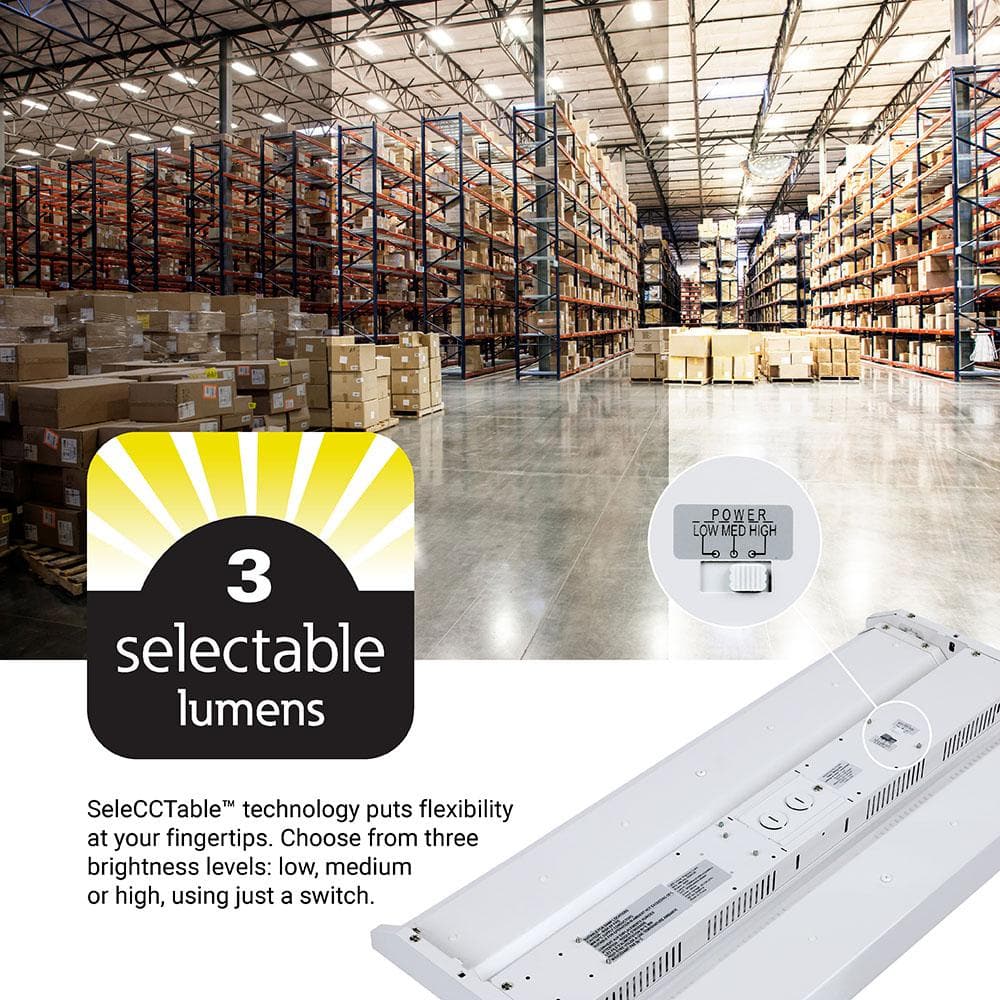

Selectable Lumens: Choose from 18K, 21K, or 24K lumens settings
-

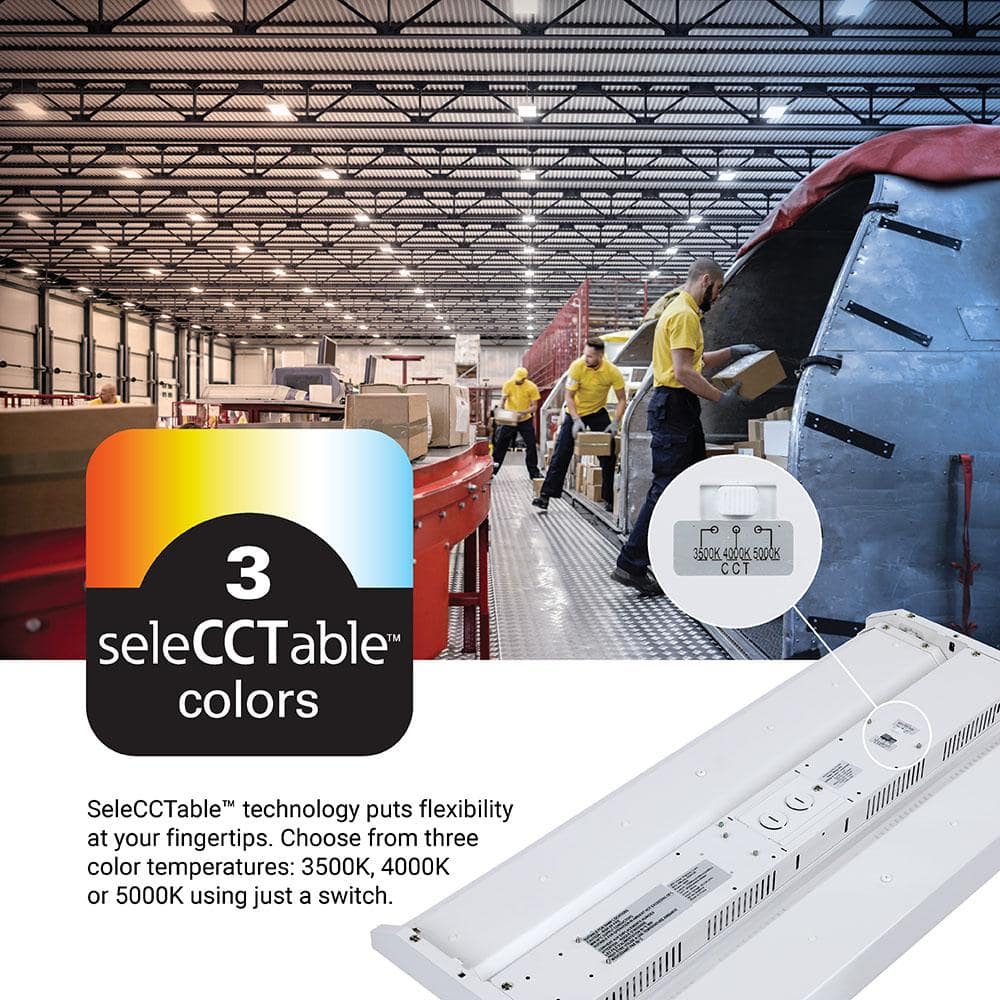

Selectable CCT: Easily switch between 3500K, 4000K, or 5000K color temperatures
-
Energy Efficient: Replaces 256W fluorescent or 400W metal halide lamps
-

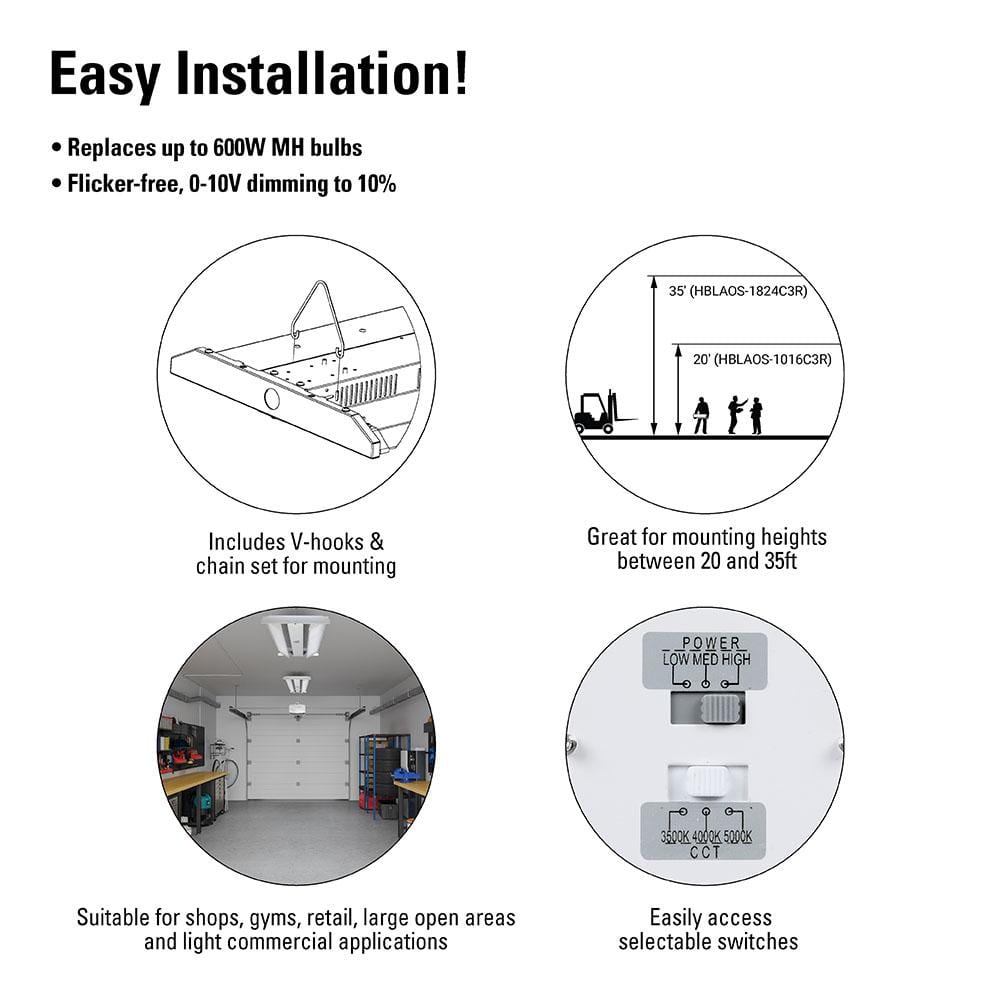

Easy Installation: Includes V-hanger and chain set for quick setup
Please check the Product Data Sheet Here
Specifications Table:
| Specification |
Details |
| Actual Color Temperature (K) |
3500,4000,5000 |
| Color Rendering Index (CRI) |
80 |
| Color Temperature |
Daylight |
| Color/Finish |
White |
| Color/Finish Family |
White |
| Damp/Wet Rating |
Damp Rated (Covered Outdoor) |
| Dimmable Capability |
0-10-Volt Dimming |
| Features |
No Additional Features |
| Fixture Shape |
Linear |
| Included |
Mounting Hardware |
| Light Bulb Type Included |
Integrated LED |
| Location Use |
Garage,Office,Warehouse |
| Lumens |
24000 |
| Material |
Steel |
| Package Quantity |
1 |
| Power Source |
Hardwired |
| Product Length (ft) |
2.07 ft |
| Product Weight (lb.) |
7.94 lb |
| Product Width (ft) |
1.02 ft |
| Recommended Mounting Height (ft.) |
35 ft |
| Voltage (V) |
120/277 V |
| Wattage (W) |
165 W |
| Certifications and Listings |
ROHS,UL Certified,cULus Listed |
| Manufacturer Warranty |
5-years limited warranty |

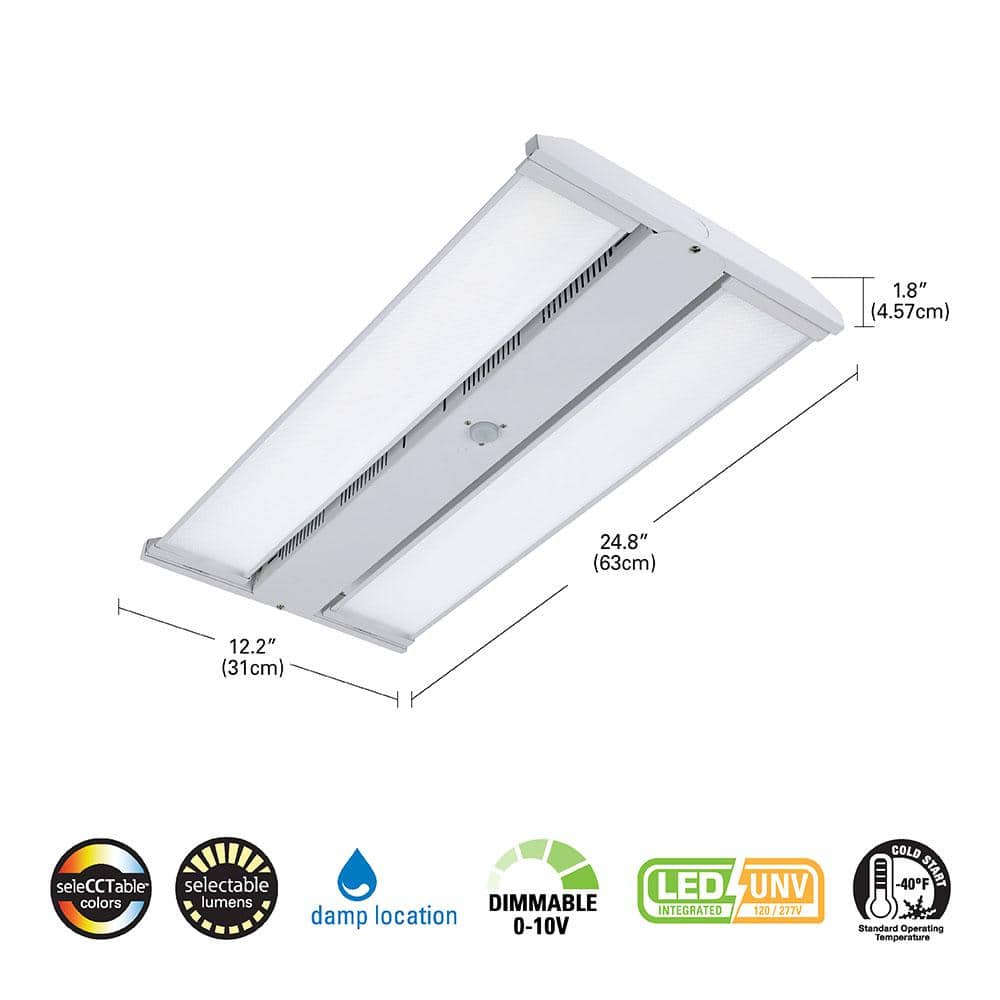

| Product Height (in) |
1.8 |
| Product Length (in) |
24.8 |
| Product Width (in) |
12.2 |
Frequently Asked Questions (FAQ):
Q: How do I install the Metalux LED Highbay?
A: The fixture includes a V-hanger and 39" chain set for convenient installation, suitable for mounting heights up to 35 ft.
Q: Is this fixture suitable for damp locations?
A: Yes, the Metalux LED Highbay is DLC Premium qualified and UL listed for damp locations.
Q: Can this light fixture be dimmed?
A: Yes, it features a 0-10V dimming driver, which is compatible with many dimmer switches.
Q: What temperatures can this fixture operate in?
A: This fixture is rated for ambient temperatures ranging from -40°C to 50°C (-40°F to 122°F).
Q: What additional accessories are available?
A: An add-on sensor accessory is available for plug-and-play connectivity, which can be purchased separately.
Revolutionary Lighting for Elevated Spaces
Imagine transforming your industrial environments with the Metalux LED Highbay light, where precision meets style. Its highly adjustable optics present a design feature that not only optimizes light output but simultaneously serves a visually harmonious element in expansive settings. Create an engaging visual dynamic in lofty commercial spaces by utilizing its customizable lumens and CCT settings. Envision this innovation as a pivotal addition to your lighting arsenal, forging an ambiance of efficiency and modern luxury.
Upgrade your lighting and optimize energy use with the Metalux 2 ft. LED Highbay today!
