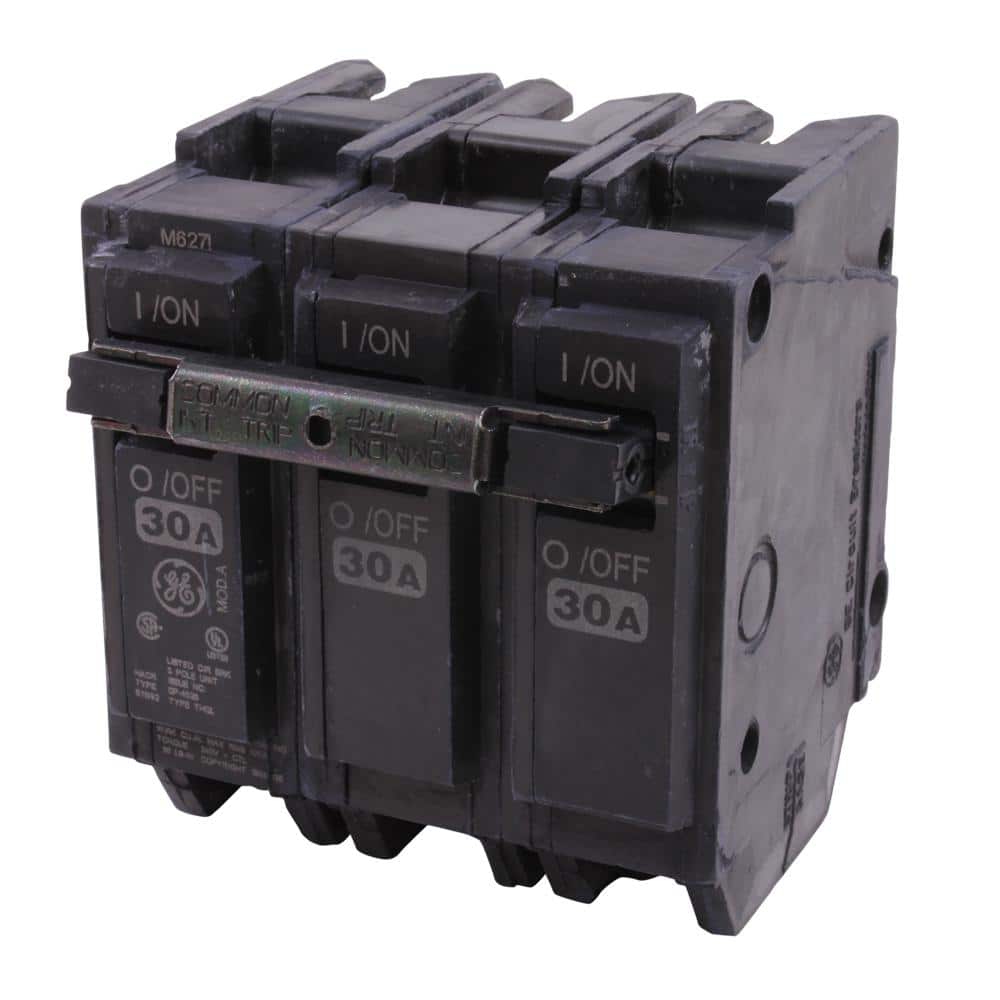

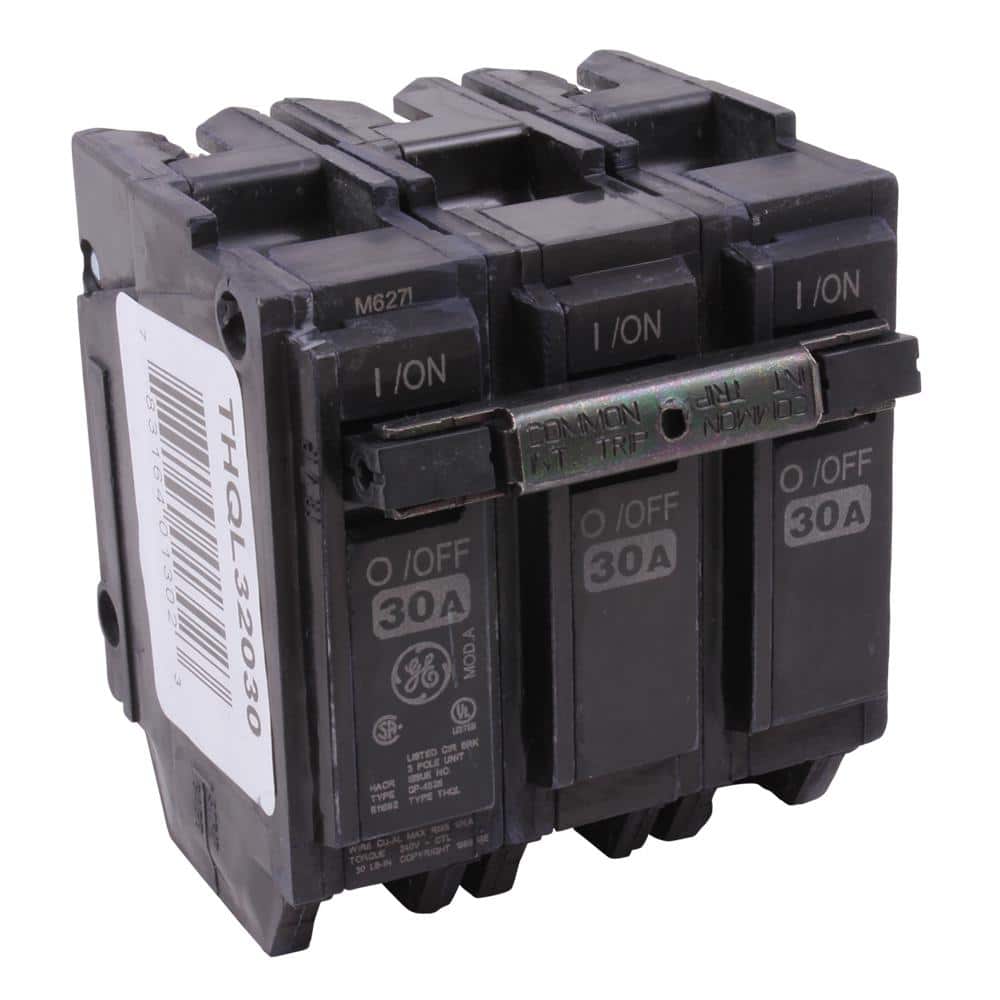

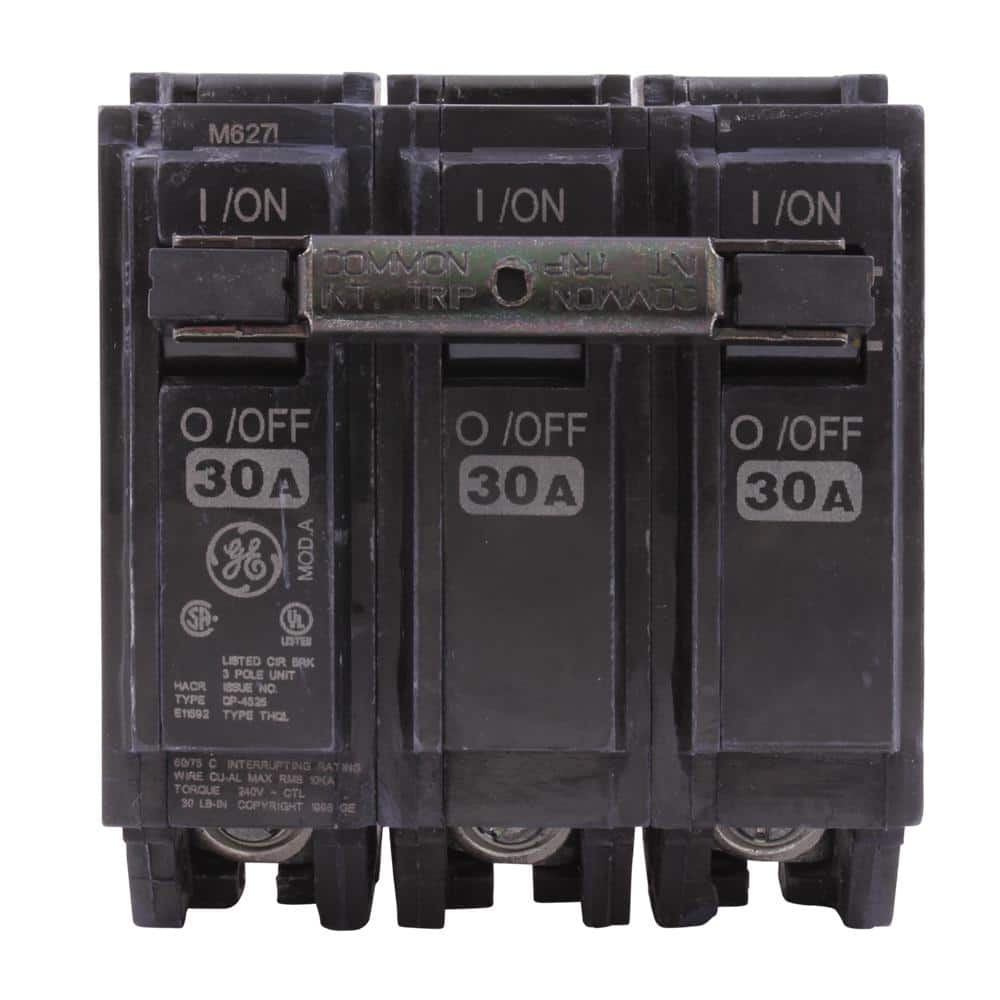

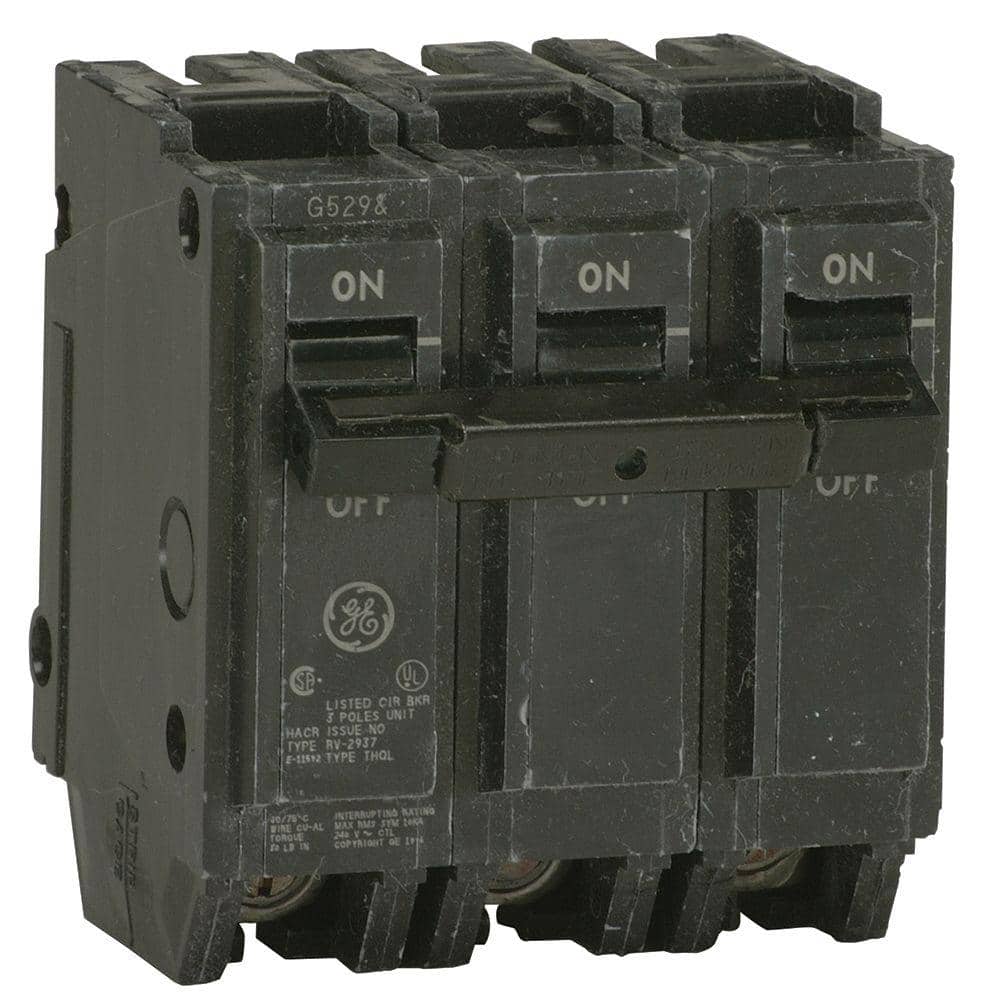

30 Amp Triple Pole Circuit Breaker
The GE Q-Line 30 Amp Triple-Pole Circuit Breaker delivers reliable power distribution with durable tin-plated copper stabs for corrosion resistance. Designed for optimal safety and performance, this breaker features a calibrated non-shifting screw and a robust heat-resistant thermoset case for enhanced stability.
Key Features:
-

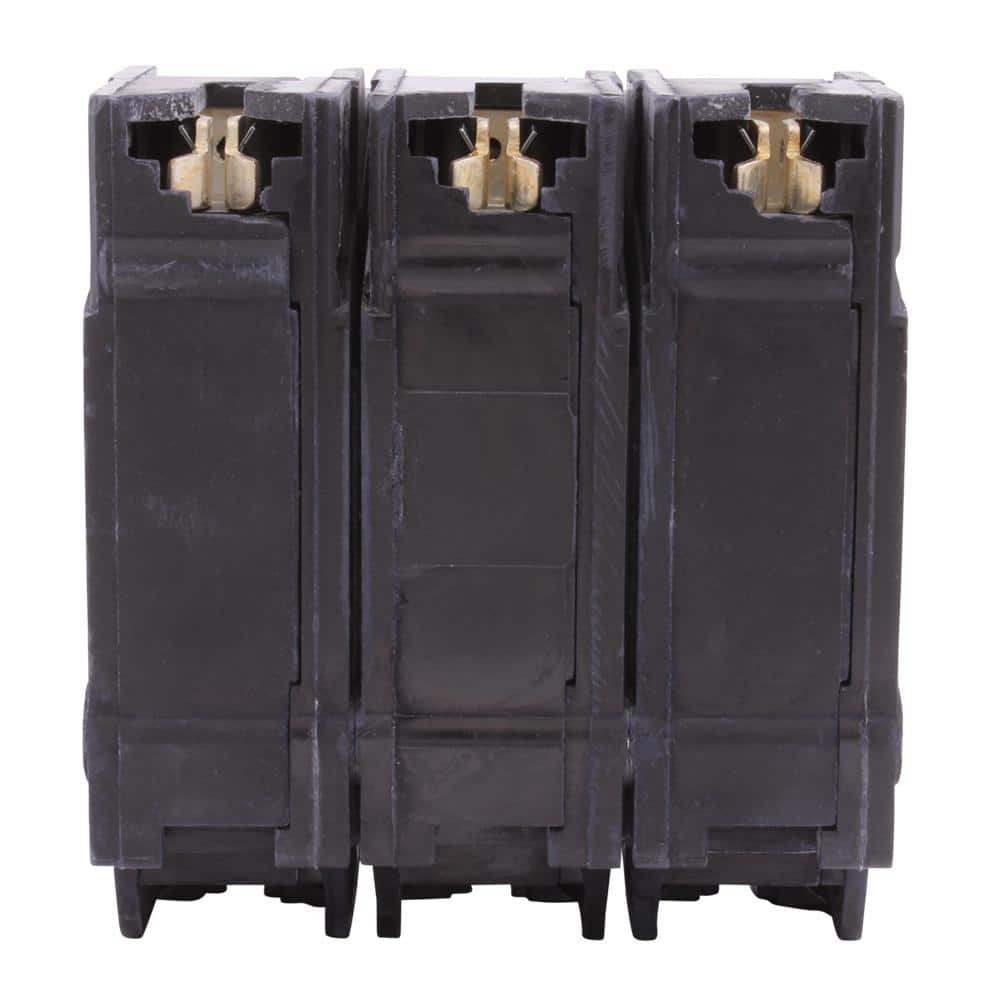

Reliable Connections: Tin-plated copper stabs ensure a permanent, corrosion-resistant connection.
-
Stability & Integrity: Heat-resistant thermoset breaker case maintains stability under high temperatures.
-
Calibration Security: Cemented calibration screw prevents shifting for consistent performance.
-
Center Position Trips: Enhanced safety with intuitive, easy-to-read trip positions.
-
Industry Standards: Meets NEMA standards, and is ANSI certified, CSA, and UL listed for assured quality.
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Non-Neutral |
| Interruption Type |
Standard Trip |
| Maximum Amperage (A) |
30 A |
| Mounting Type |
Plug-On |
| Number of Poles |
Triple |
| Pack Size |
1 |
| Product Weight (lb.) |
1.102 lb |
| Series Type |
Not Specified |
| Trip Unit |
Thermal Magnetic |
| Voltage (V) |
240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
One year warranty from first use |
| Product Depth (in.) |
3 in |
| Product Height (in.) |
3 in |
| Product Width (in.) |
3.375 in |
Frequently Asked Questions (FAQ):
Q: What is the warranty for this circuit breaker?
A: The GE Q-Line 30 Amp Triple-Pole Circuit Breaker comes with a one-year warranty from the first use.
Q: Can this breaker be used for 3-phase applications?
A: Yes, this GE circuit breaker is designed as a Q-line plug-in breaker suitable for 3-phase use.
Q: What types of wires are compatible with this circuit breaker?
A: This breaker supports 14-8 Cu (copper) and 12-8 Al (aluminum) wire ranges.
Q: Is this circuit breaker compliant with safety standards?
A: Absolutely, it meets NEMA standards and is ANSI certified, as well as CSA and UL listed.
Q: How does the calibrated screw improve performance?
A: The calibrated screw is cemented to prevent shifts, ensuring optimal performance and consistent calibration.
Unlock the Power of Precision with GE
Transform your electrical installations with the GE Q-Line Circuit Breaker—a masterpiece of functionality and durability. Its tin-plated copper stabs are a standout feature, offering impeccable corrosion resistance for lasting connections. Imagine integrating this component seamlessly into your project, its stability enhancing every wiring task. Cherish its innovative calibration, a testament to engineering excellence—your path to a secure and luxurious electrical setup.
Equip your projects with the stability and reliability of the GE Q-Line Circuit Breaker today!
