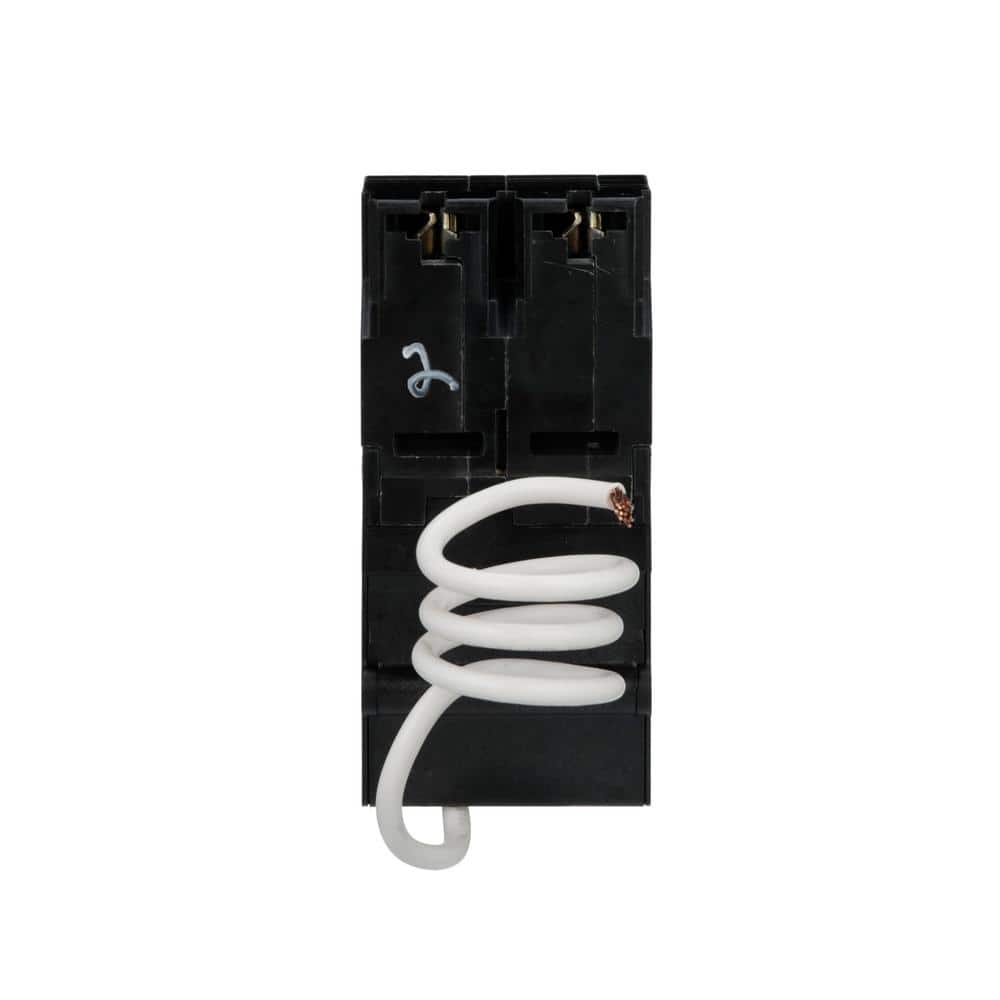

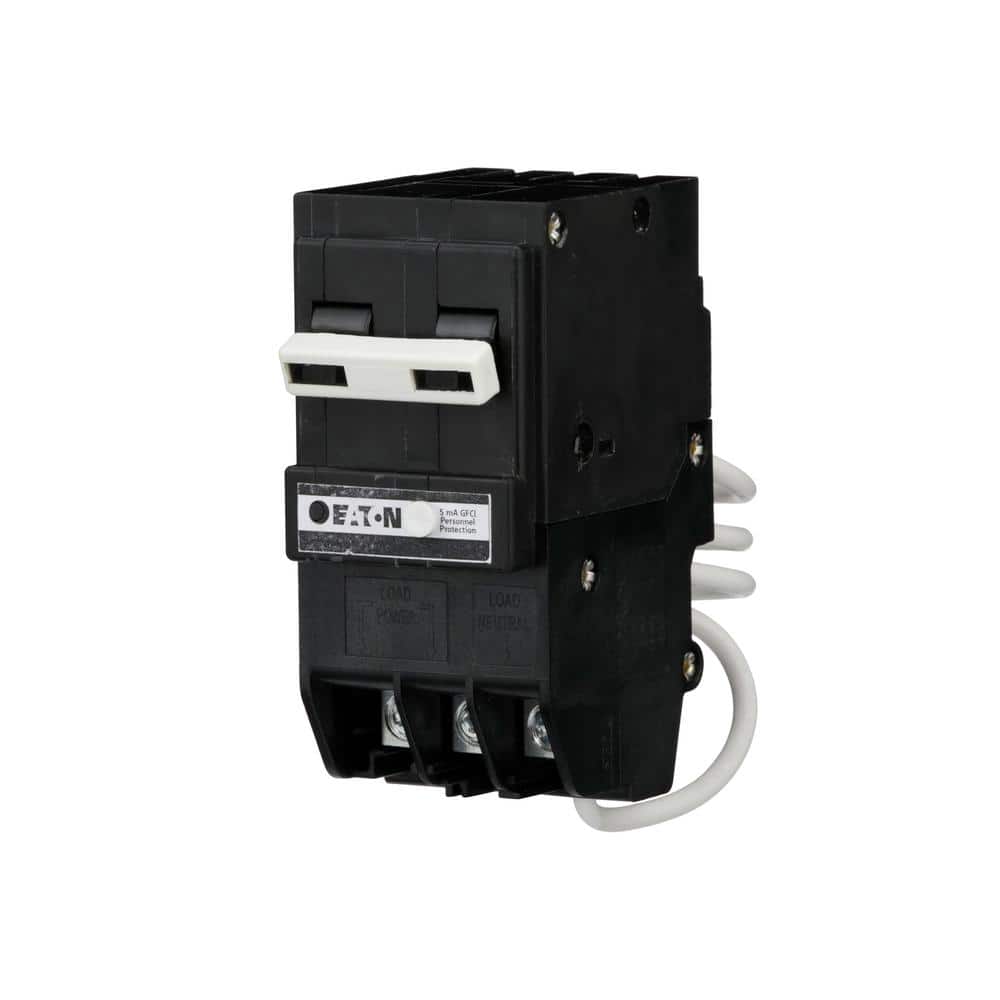

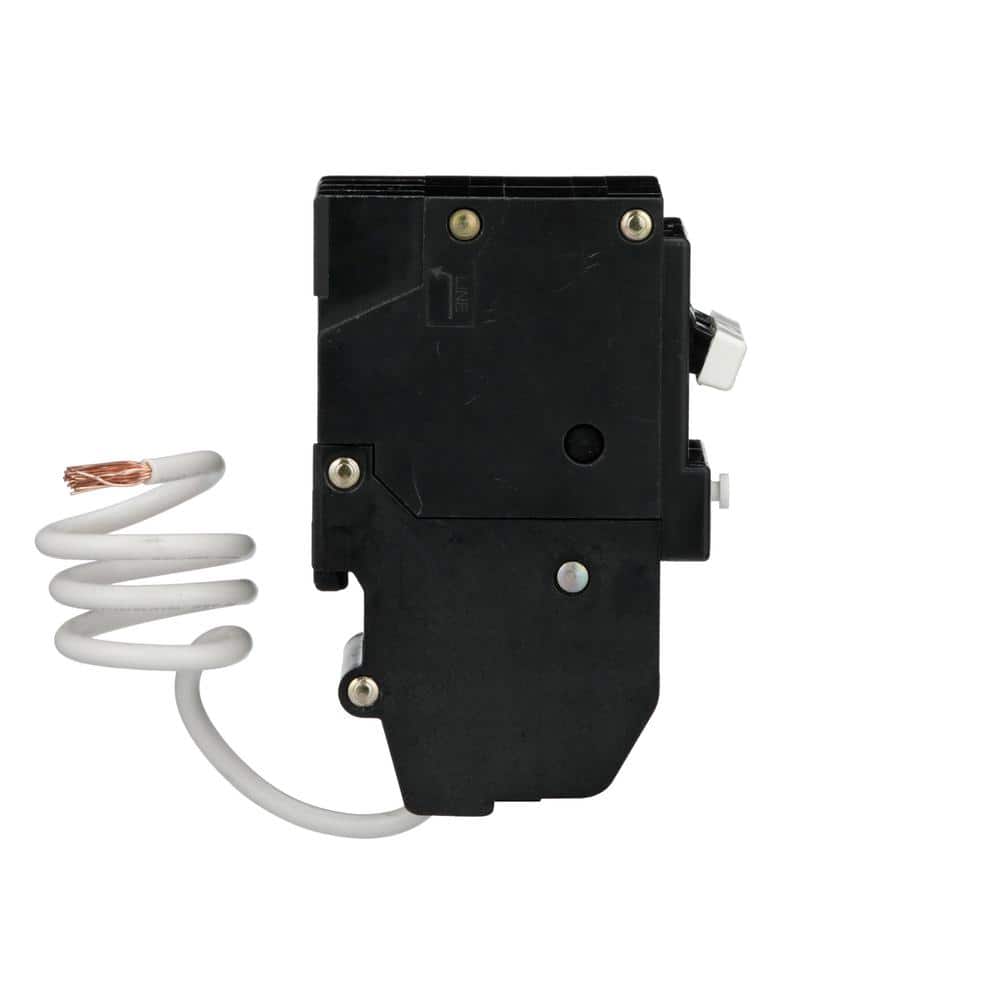

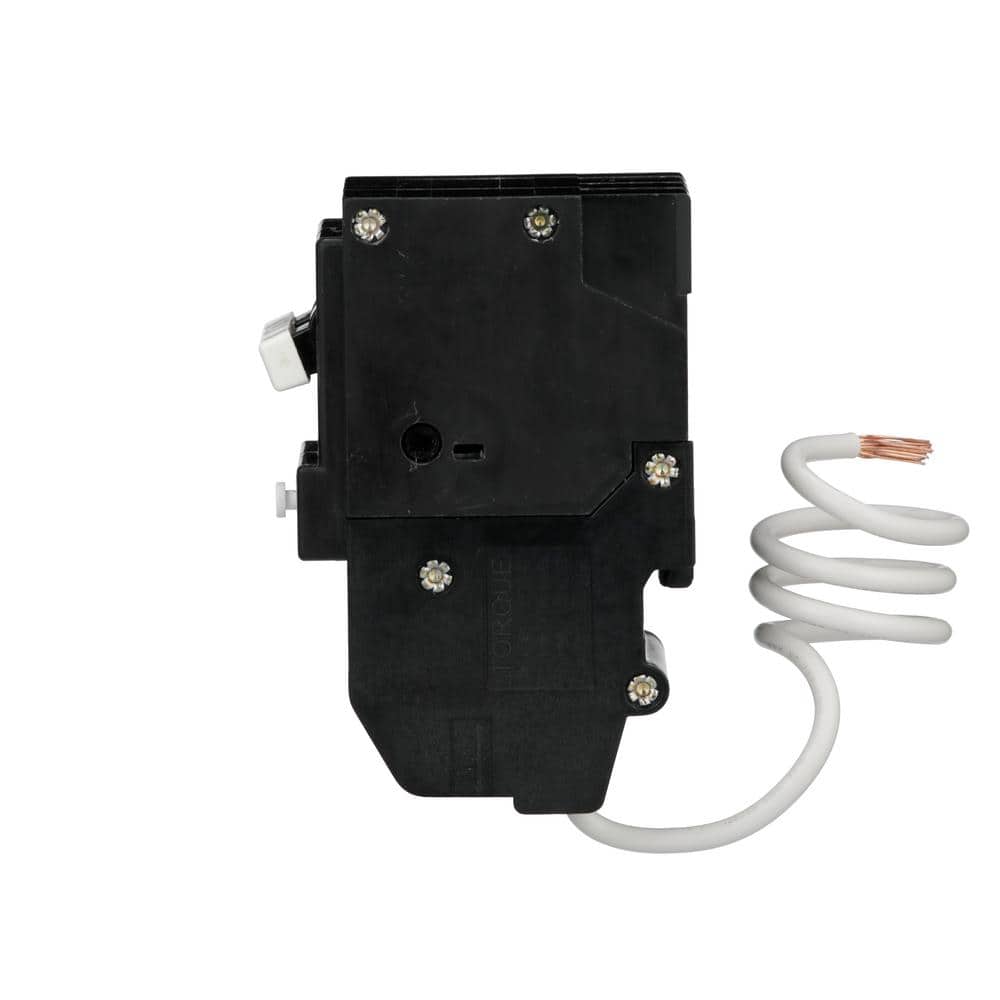

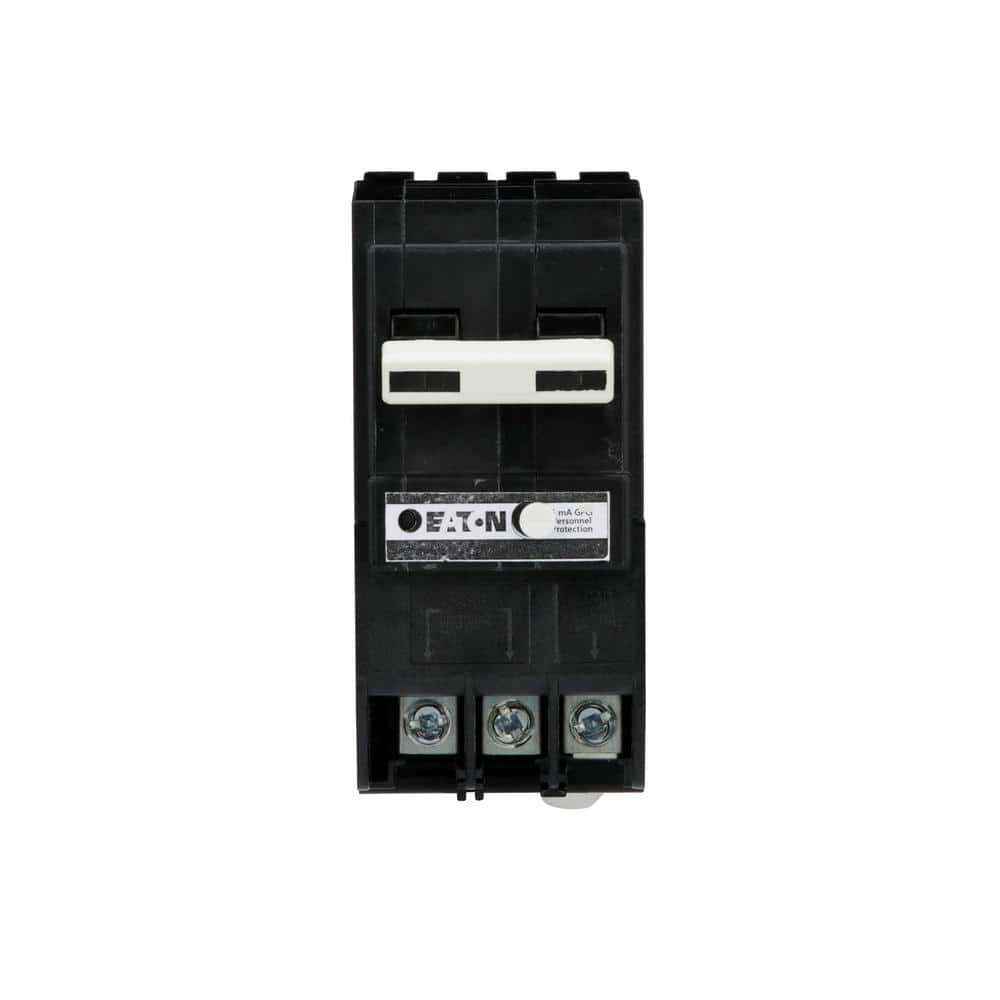

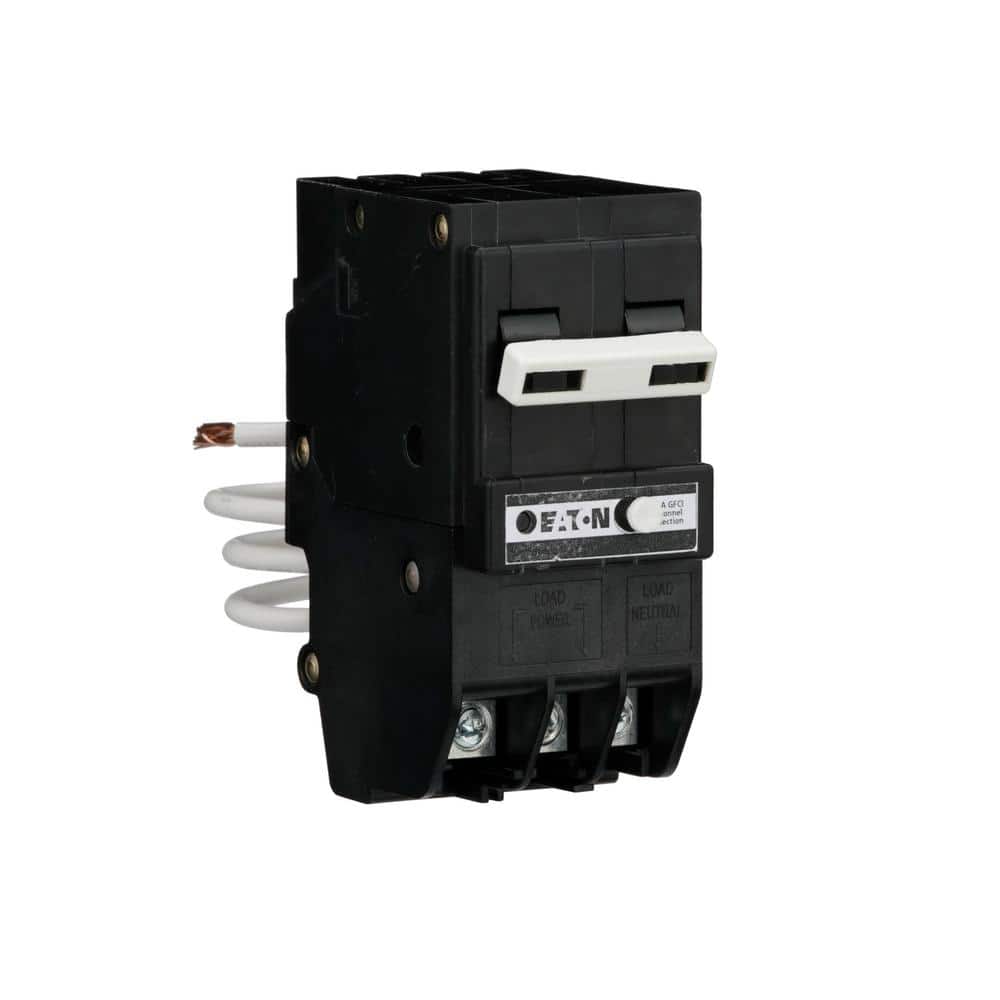

Eaton BR 50 Amp 2-Pole GFCI Circuit Breaker with Pigtail Neutral
Equip your electrical system with Eaton's BR 50 Amp 2-Pole GFCI Circuit Breaker, tailored for optimal ground fault protection in 240V applications. Featuring microprocessor-based decision-making, it delivers precise and rapid responses to faults, minimizing unnecessary trips and enhancing troubleshooting accuracy through its LED trip code indicators.
Key Features:
-
Ground Fault Protection: Advanced digital protection optimizes response for VFDs and 240V equipment.
-

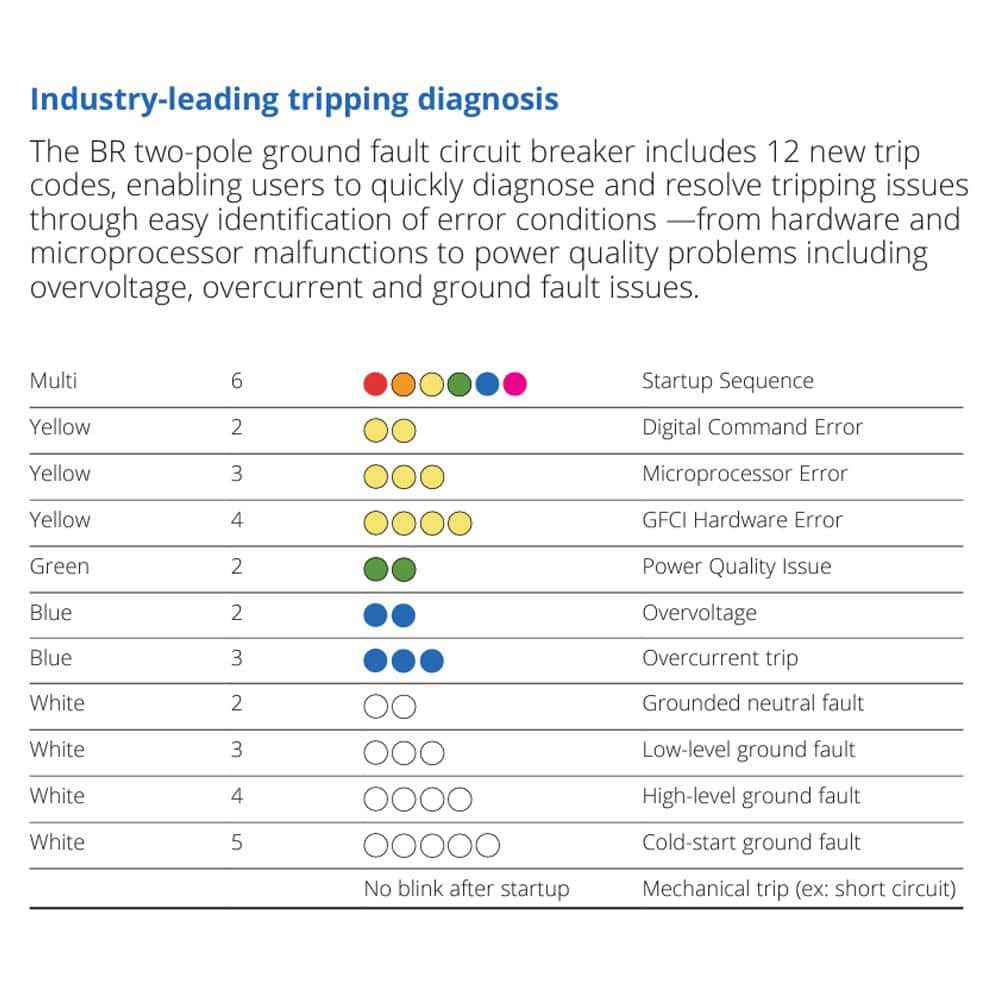

Rapid Diagnostics: 12 new codes with LED indications for accurate fault source identification.
-
VFD Compatibility: Designed for enhanced service in variable frequency drive systems.
-
Single Point Reset: Simple reset process with automatic self-tests every 3 hours.
-
Durable Construction: 10kA interrupting rating suitable for robust applications.
Specifications Table:
| Specification |
Details |
| AIC Rating |
10000 |
| Breaker Type |
Standard |
| Connection Type |
Pigtail |
| Interruption Type |
GFCI |
| Maximum Amperage (A) |
50 A |
| Mounting Type |
Bolt-On |
| Number of Poles |
Double |
| Number of Spaces |
2 |
| Pack Size |
1 |
| Power Distribution Features |
No Additional Features |
| Product Weight (lb.) |
1 lb |
| Series Type |
BR |
| Trip Unit |
Electronic |
| Voltage (V) |
120/240 V |
| Certifications and Listings |
UL Listed |
| Manufacturer Warranty |
10 Year Limited |
| Product Depth (in.) |
4.5 in |
| Product Height (in.) |
2 in |
| Product Width (in.) |
3 in |
Frequently Asked Questions (FAQ):
Q: How does the GFCI function enhance safety?
A: The GFCI function detects currents flowing along an unintended path, like through water or a person, and cuts power quickly to prevent shock hazards.
Q: What is the significance of the LED trip codes?
A: The LED trip codes provide specific diagnostic information, allowing for quicker fault resolution and minimizing downtime.
Q: Can this circuit breaker be used in any load center?
A: This circuit breaker is specifically designed for use with Eaton type BR load centers and meter breaker panels.
Q: How often does the circuit breaker perform self-tests?
A: An automatic self-test is initiated within 5 seconds of power availability, repeating every 3 hours.
Q: Is the breaker covered by a warranty?
A: Yes, Eaton provides a 10-year limited warranty on this circuit breaker.
Revolutionize Your Electrical Safety
Consider integrating the Eaton BR 50 Amp GFCI Circuit Breaker as a foundational element of any high-end electrical system, where safety intersects with innovation. Its cutting-edge microprocessor technology not only enhances performance but also offers a sophisticated, streamlined appearance that fits seamlessly into both traditional and modern settings. Picture its flawless functionality as it protects while reflecting a commitment to excellence. Let this product not just be a component, but a statement in ensuring safety without compromising on design integrity—a true pillar of luxurious living.
Upgrade your electrical safety with the Eaton BR 50 Amp 2-Pole GFCI Circuit Breaker, ensuring precision and protection for your 240V systems.
