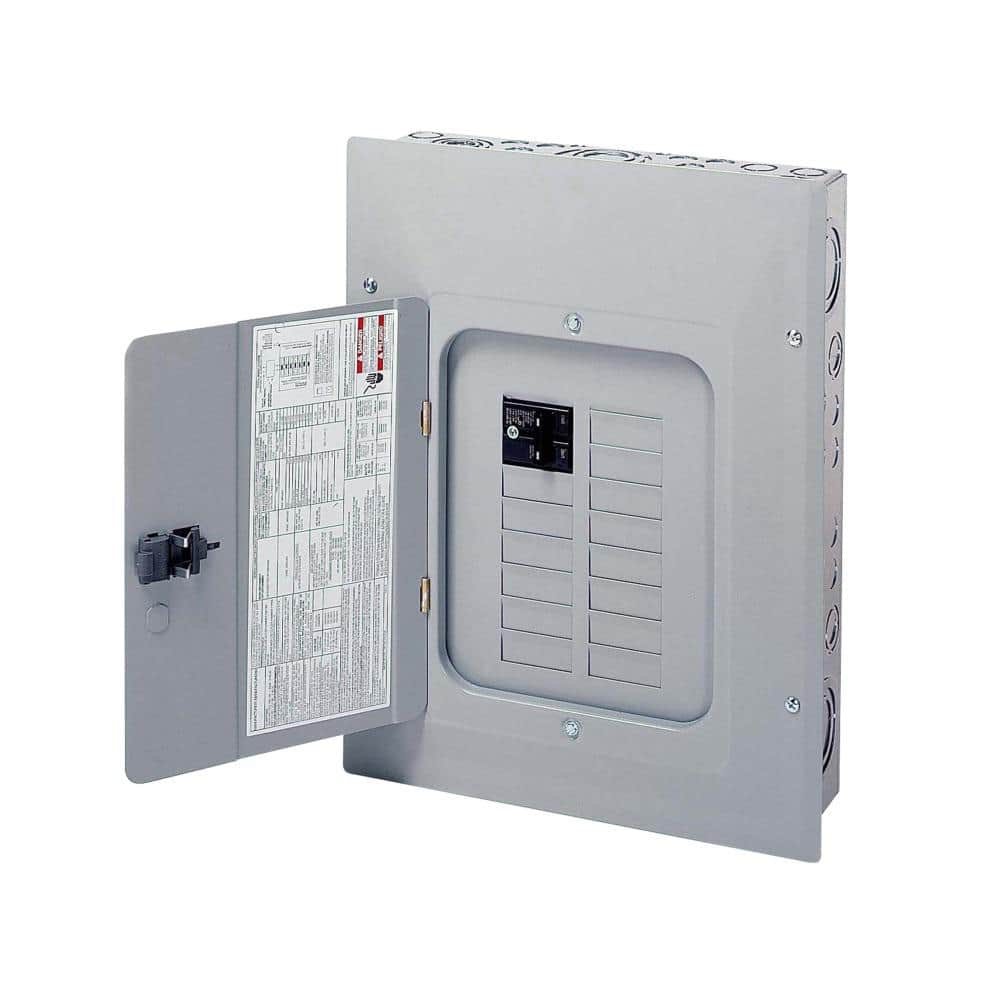

Eaton BR 100 Amp 24-Circuit Indoor Main Breaker Plug-On Neutral Load Center
Regular price $78.23Eaton 100 Amp 24-Circuit Plug-On Neutral Load Center
The Eaton 100 Amp 24-Circuit Plug-On Neutral Load Center is engineered for quick and efficient installation, offering professional contractors time-saving features for clean, hassle-free setups. Its innovative plug-on neutral design eliminates pigtail connections, simplifying the installation process while maintaining a neat and aesthetic appearance in any indoor setting.
Key Features:
- Installation Efficiency: Streamlined plug-on neutral design accelerates the setup process by eliminating pigtail connections.

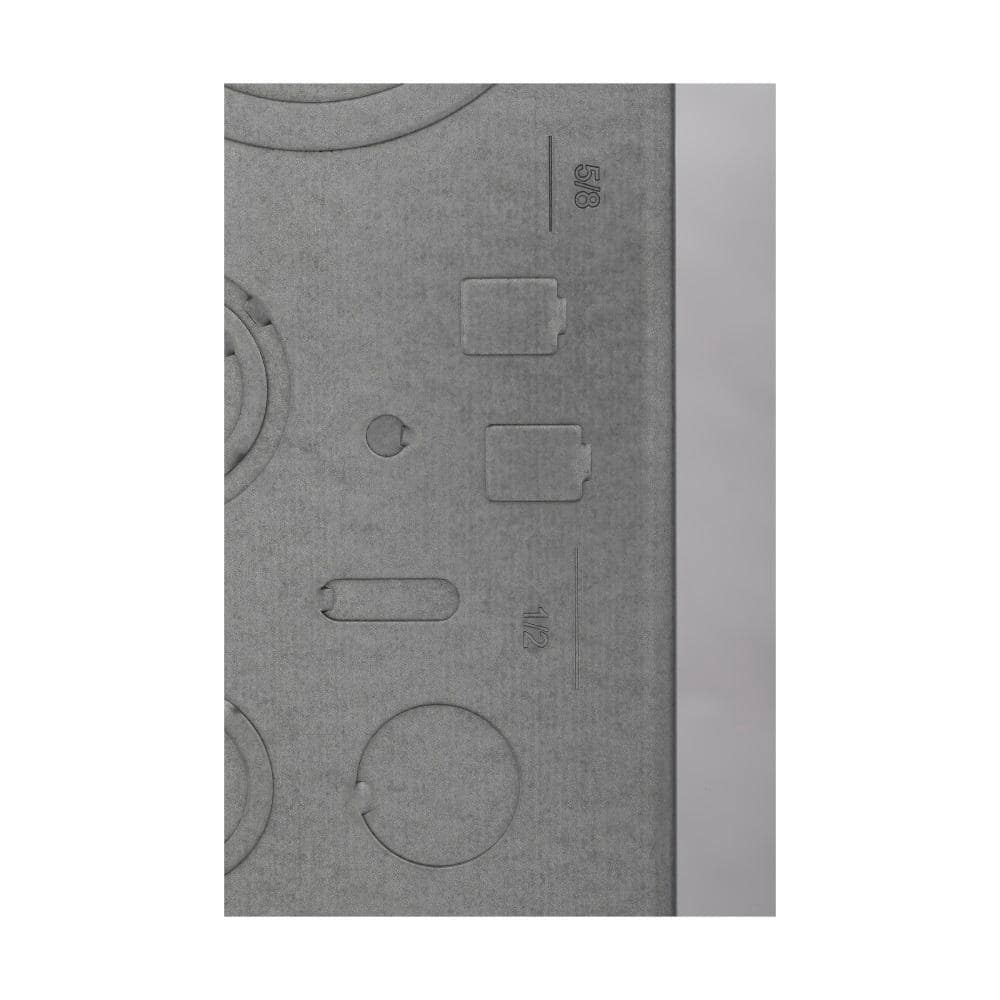

- Professional Finish: Self-leveling tabs and optimized knockout locations ensure a clean and precise installation in drywall applications.
- Durable Construction: Made with high-quality materials, including an aluminum bus and a rigid cover spine, for ensured strength and reliability.
- Enhanced Safety: Compatible with Eaton's full line of breakers, including arc fault, ground fault, and surge protection options, meeting all protection needs.

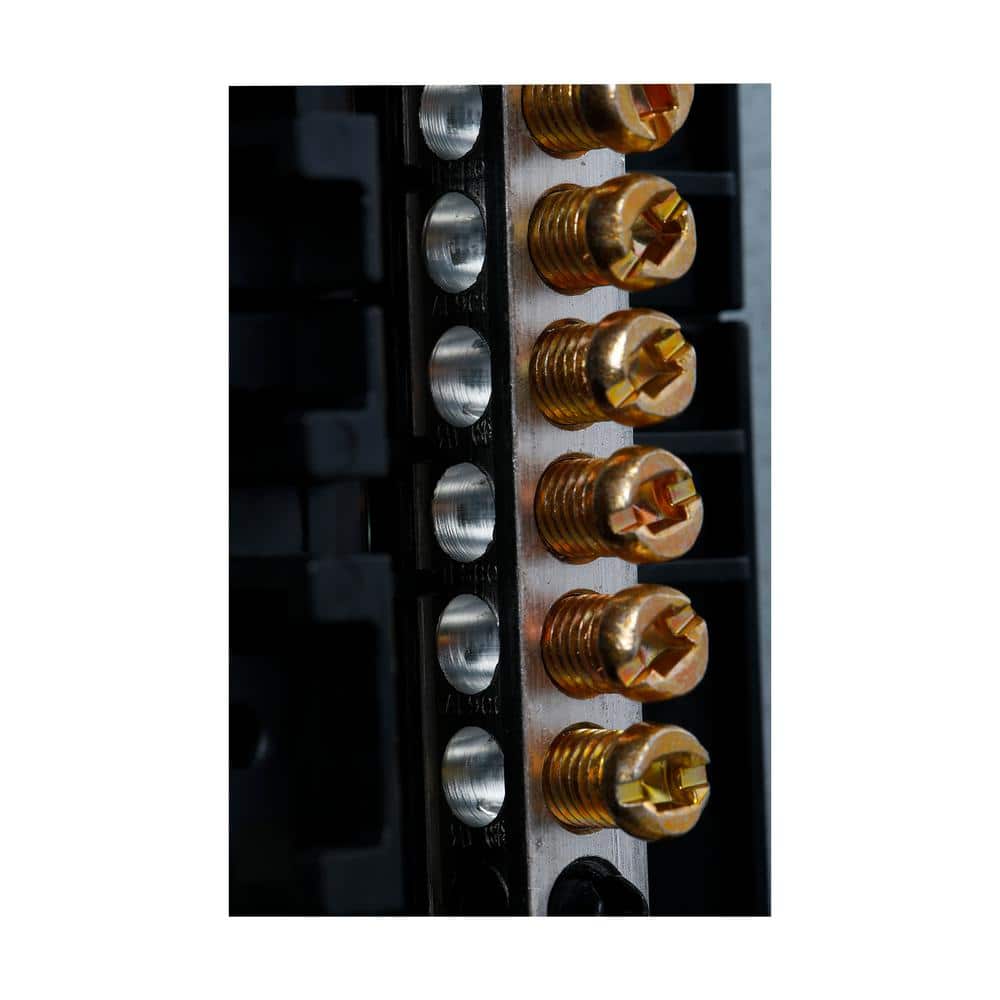

- Convenience Features: Backed out neutral screws and dedicated neutral bus enhance ease of wiring, maximizing gutter space for professional conductor routing.
Specifications Table:
| Specification | Details |
|---|---|
| Breaker Box Type | Main Breaker Panel |
| Connection Type | Neutral |
| Indoor/Outdoor | Indoor |
| Maximum Amperage (A) | 100 A |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 1 |
| Number of Circuits | 24 |
| Number of Spaces | 12 |
| Product Weight (lb.) | 19.66 lb |
| Series Type | BR |
| Voltage (V) | 120/240 V |
| Certifications and Listings | UL Listed |
| Manufacturer Warranty | 10 Year Per Warranty Statement |
| Product Depth (in.) | 19.1 in |
| Product Height (in.) | 5.1 in |
| Product Width (in.) | 15.8 in |
Frequently Asked Questions (FAQ):
Q: How do the self-leveling tabs benefit the installation process?
A: Self-leveling tabs help in quick and accurate alignment with drywall, reducing installation time and ensuring a professional finish.
Q: What are the advantages of the plug-on neutral design?
A: The plug-on neutral design eliminates the need for pigtail connections, saving time and labor while providing a cleaner aesthetic and easier breaker installation.
Q: Is this load center suitable for outdoor use?
A: No, this load center is designed for indoor use only, as it features a NEMA 1 enclosure which is not weatherproof.
Q: What kind of circuit breakers are compatible with this load center?
A: This load center is compatible with Eaton's BR type plug-on neutral breakers, offering flexibility in meeting various protection needs.
Q: Is there a warranty for the product?
A: Yes, the Eaton 100 Amp 24-Circuit Load Center comes with a 10-year manufacturer's warranty, ensuring long-term reliability.
Streamline Your Electrical Layout with Precision
Transform your indoor electrical setup with Eaton's Plug-On Neutral Load Center, a perfect blend of functionality and sleek design. Its smooth finish complements any interior style, while subtle yet robust construction anchors your home's safety with elegance. Position this load center within a workspace or utility area to maintain a seamless aesthetic without sacrificing purpose. Elevate your installations to include this essential component, ideal for creating a harmonious balance of practicality and refined living.
Optimize your electrical installations with Eaton's time-saving Plug-On Neutral Load Center, and ensure your projects are finished with precision and confidence.
