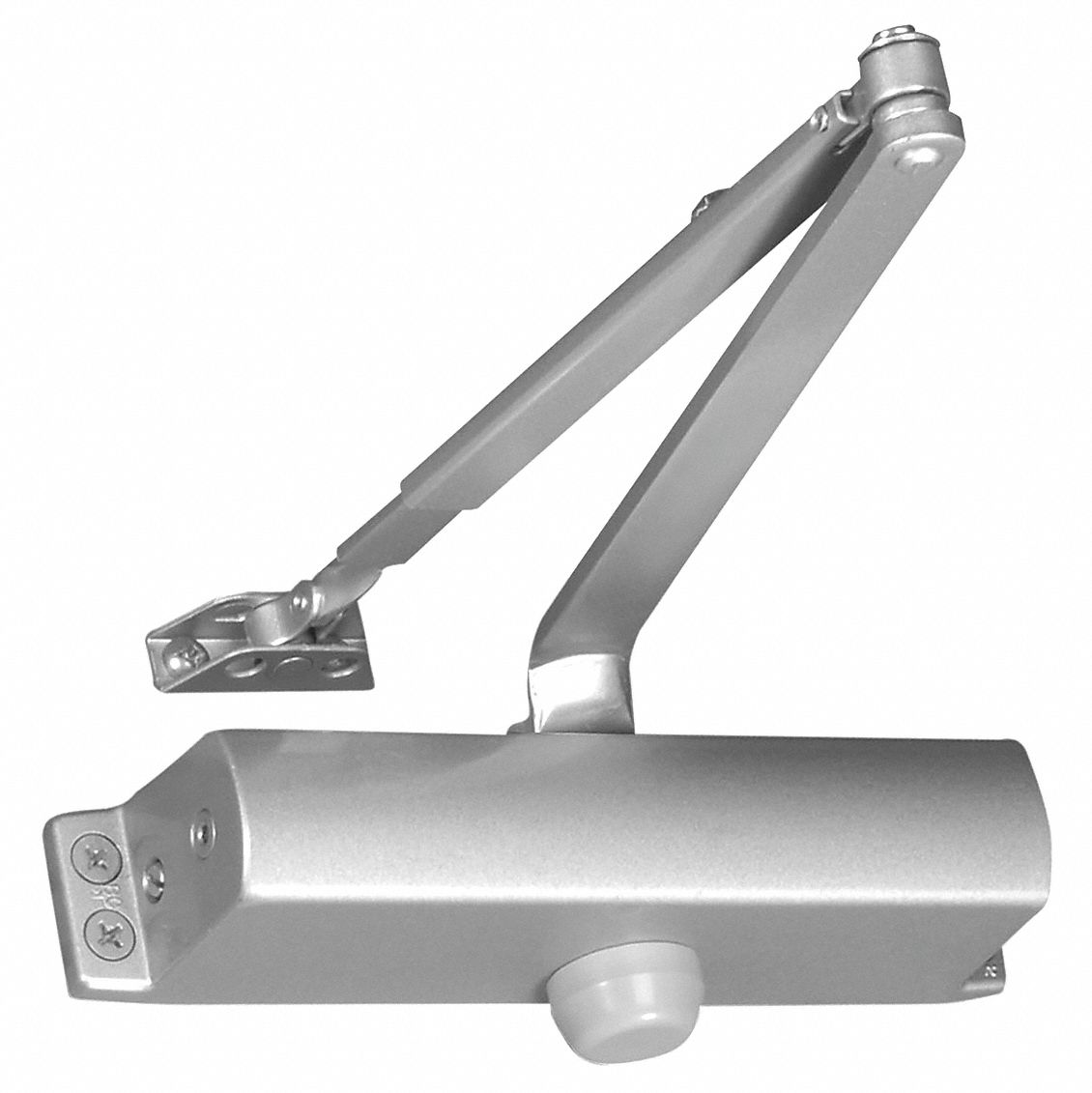

ASSA ABLOY ACCENTRA Heavy Duty Door Closer, Grade 1
Regular price $141.91Heavy Duty Adjustable Door Closer
The ASSA ABLOY ACCENTRA Heavy Duty Door Closer is engineered for reliability and versatility, offering adjustable mounting options for seamless integration into any door layout. Crafted from durable aluminum and rated for 3-hour fire standards, this door closer ensures top-notch security and longevity.
Key Features:
- Versatile Mounting: Configurable for standard, top frame, or parallel installation options to fit various door setups.
- Heavy Duty Performance: Rated Grade 1 for high usage with standing up to 25 million cycless.
- Fire-rated Protection: UL and cUL listed with a 3-hour fire rating for added safety.
- Energy-efficient Operation: Hydraulic energy source with adjustable backcheck valve for smooth door control.
- Durable Construction: Constructed with robust aluminum and finished in a sleek aluminum paint for a modern look.
Specifications Table:
| Specification | Details |
|---|---|
| Manufacturer Part Number | 1101BFX689 |
| Brand | ASSA ABLOY ACCENTRA |
| Closer Mounting Type | Top Frame |
| Closer Series | 1100 |
| Closer Type | Non-Hold Open |
| Color | Gray |
| Compatible with Brand | ACCENTRA |
| Display Qty | 1 |
| Display Sell UOM | EA |
| Max Door Opening Angle | 180 ° |
| Features | Adjustable Backcheck Valve |
| Finish | Aluminum |
| Fire Rating | 3 hr |
| Housing Depth | 1-3/4 in |
| Housing Height | 2-5/8 in |
| Energy Source | Hydraulic |
| Includes | Latching Speed Valve |
| Door Width Campatibility | 48 in |
| Location Use | Exterior |
| Standards | UL and cUL Listed |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 3/4 in |
| Spring Size - Minimum | 1 |
| Material | Aluminum |
| Exterior Door Width - Maximum | 36 in |
| Product Type | Door Closer |
| Projection | 2-7/8 in |
| Spring Size | 4 |
| Arm Type | Regular |
| Closer Cycles | 25,000,000 |
| Hand Orientation | Non-Handed |
| Housing Length | 9-3/4 in |
| Operation Style | Manual |
| Performance Duty Rating | 1 |
| Sub-brand | Closer |
| Length Between Mounting Holes | 9-1/16 in |
| Ligature Resistance | Not Ligature-Resistant |
| ADA Compliant | Yes |
| Performance Rating | Grade 1 - Heavy Duty |
| Finish C | Aluminum Painted ; Aluminum ; Gray |
Frequently Asked Questions (FAQ):
Q: How do I install this door closer?
A: The ASSA ABLOY ACCENTRA door closer comes with comprehensive installation instructions, suitable for standard, top frame, or parallel mounting. Professional installation is recommended for optimal performance.
Q: Is this door closer suitable for exterior doors?
A: Yes, this door closer is designed for both interior and exterior use, with a maximum door width compatibility of 48 inches.
Q: What is the fire rating for this door closer?
A: This model is UL and cUL listed with a 3-hour fire rating, providing reliable performance in fire-rated door applications.
Q: Can I adjust the closing speed?
A: Yes, the door closer includes an adjustable latching speed valve to customize the closing speed based on preferences or requirements.
Q: What makes this door closer suitable for heavy duty use?
A: It's rated Grade 1, capable of enduring 25 million cycles, making it an ideal choice for high-traffic areas.
Elevate Entryways with Precision and Strength
Incorporating the ASSA ABLOY ACCENTRA door closer transforms any entrance into a masterpiece of engineering and elegance. Its sleek aluminum finish harmonizes with modern and classic architectural elements alike, creating seamless transitions in any setting. Imagine your space benefiting from this advanced closer's subtle control and sturdy demeanor, ensuring each entryway operates smoothly and safely. Perfect for both high-traffic commercial spaces and exclusive private residences, it encapsulates the luxury of uncompromised performance.
Upgrade your space's functionality with the ASSA ABLOY ACCENTRA Door Closer today, and experience the pinnacle of durability and precision.
