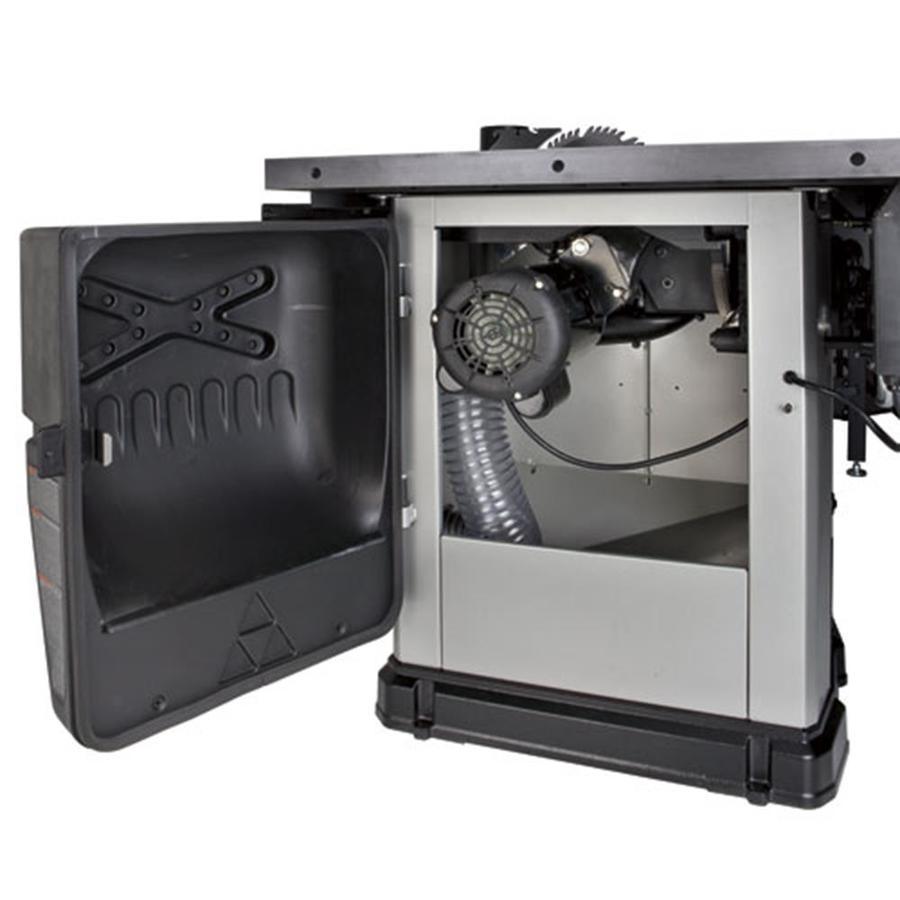

BI-LEVEL DUST EXTRACTION™ system results in optimal dust collection
Improved table-top geometry provides more surface area - providing stability, smoothness, and superior ease

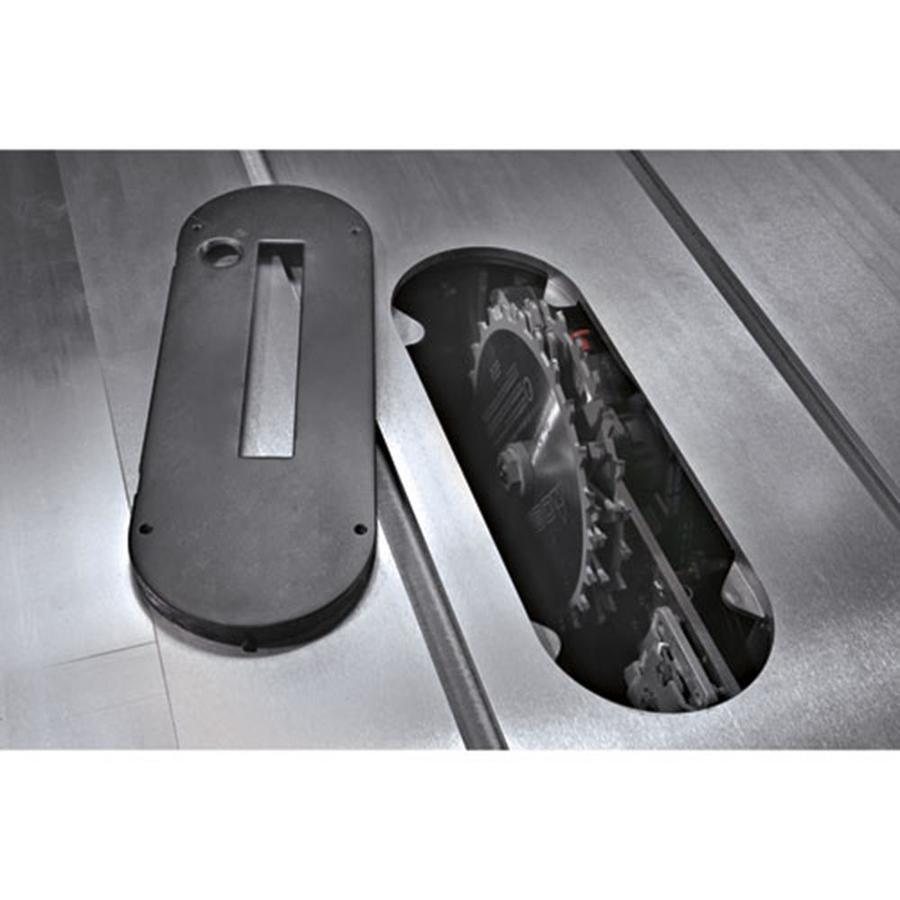

Large blade opening makes fine tuning riving knife and changing blades easier than ever
On-board storage
Independently certified to applicable standards
BIESEMEYER® fence system, with hairline pointer and built-in tape, allows precision set-ups
Single-cast trunnion system controls vibration, providing smooth operation and dependable accuracy

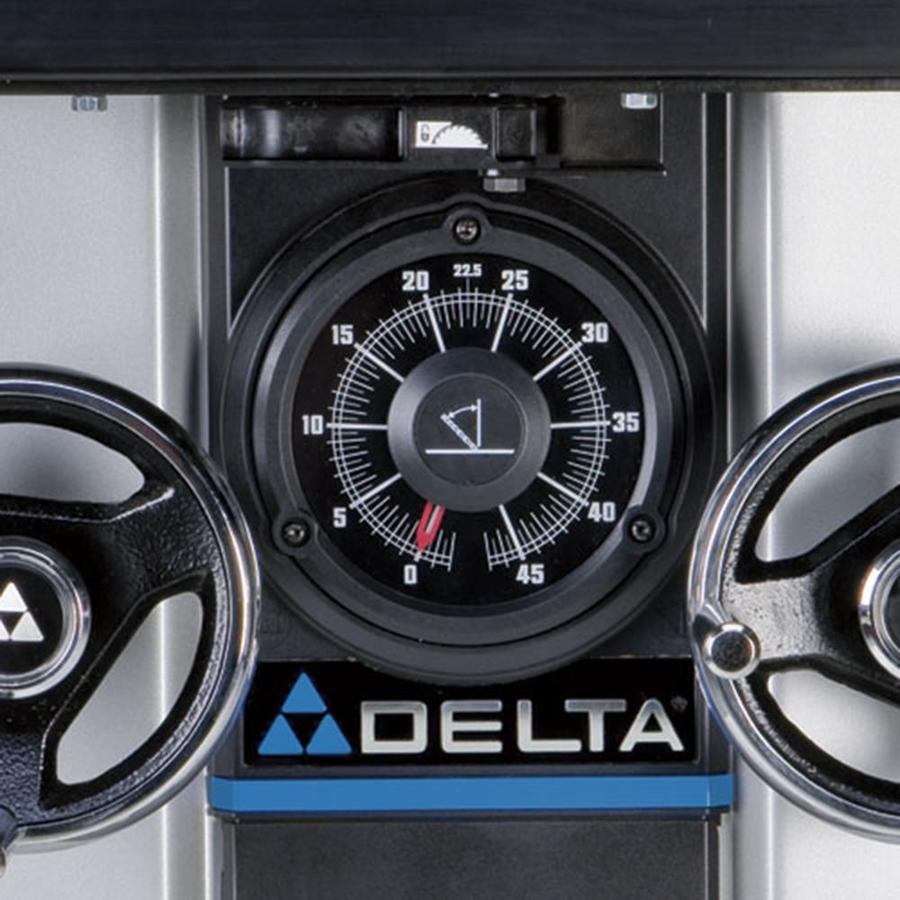

SURE-LOCK™ Dual front cranks allow easy, accurate, and repeatable blade-height and bevel adjustments
Powered by 3-HP, 230-volt, 1-phase, 60-Hz motor
Features
Blade Material |
Carbide-tipped |
Auxiliary Handle |
No |
Repetitive Cut Marking System |
No |
Micro Adjust Rip Fence |
Yes |
Caster Platform Included |
No |
Bevel Capacity (Degrees) |
90 |
Dust Handling |
Chute |
Voltage |
230 |
Arbor Size (Inches) |
0.625 |
Cutting Depth (Inches) |
3.125 |
Weight (lbs.) |
644 |
Series Name |
UNISAW |
Warranty |
5-year limited |
Table Height (Inches) |
35 |
Table Length (Inches) |
31 |
Maximum Depth at 45 Degrees (Inches) |
2.125 |
Maximum Depth at 90 Degrees (Inches) |
3.125 |
Table Width (Inches) |
82 |
Type |
Table |
Amps |
15 |
Depth Control |
Yes |
Blade Size (Inches) |
10 |
Left Rip Capacity (Inches) |
13.5 |
Right Rip Capacity (Inches) |
52 |
Maximum Blade Speed (RPM) |
4300 |
Spindle Lock |
Yes |
Worm Drive |
No |
Portable |
No |
CA Residents: Prop 65 Warning(s) |
Yes |
UNSPSC |
23101500 |
Arbor Diameter |
5/8-in |
