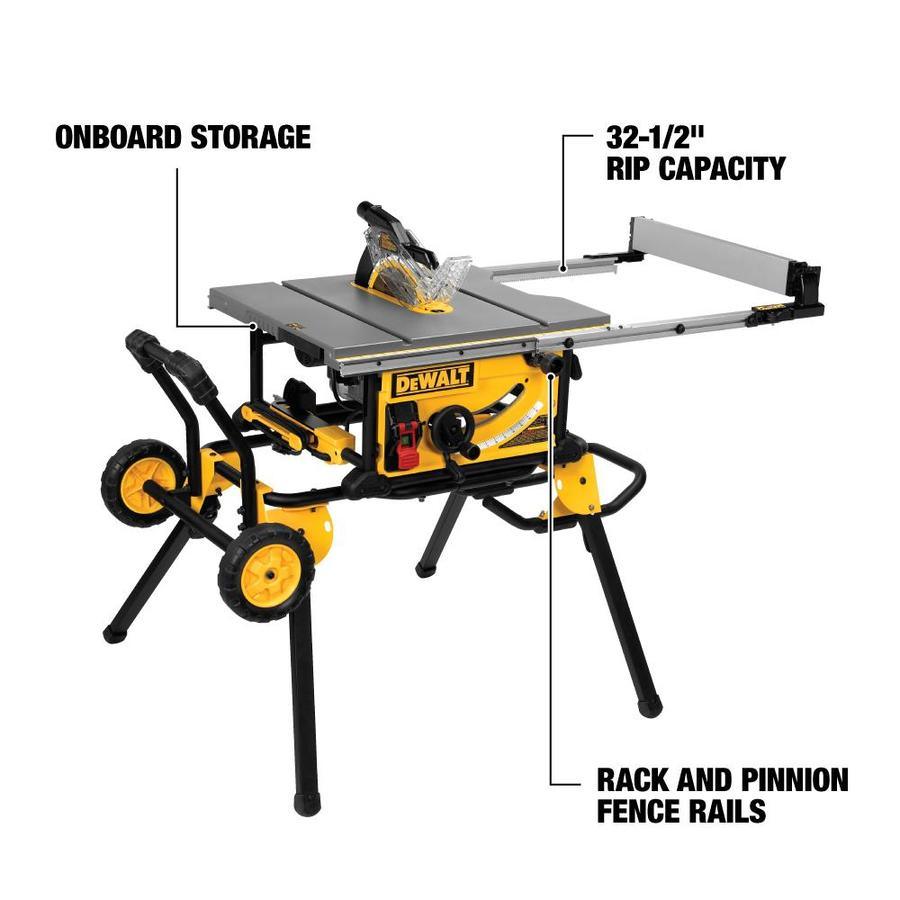

Rack and pinion telescoping fence system makes fence adjustments fast, smooth and accurate
Patented material support, can be used for narrow rip cuts

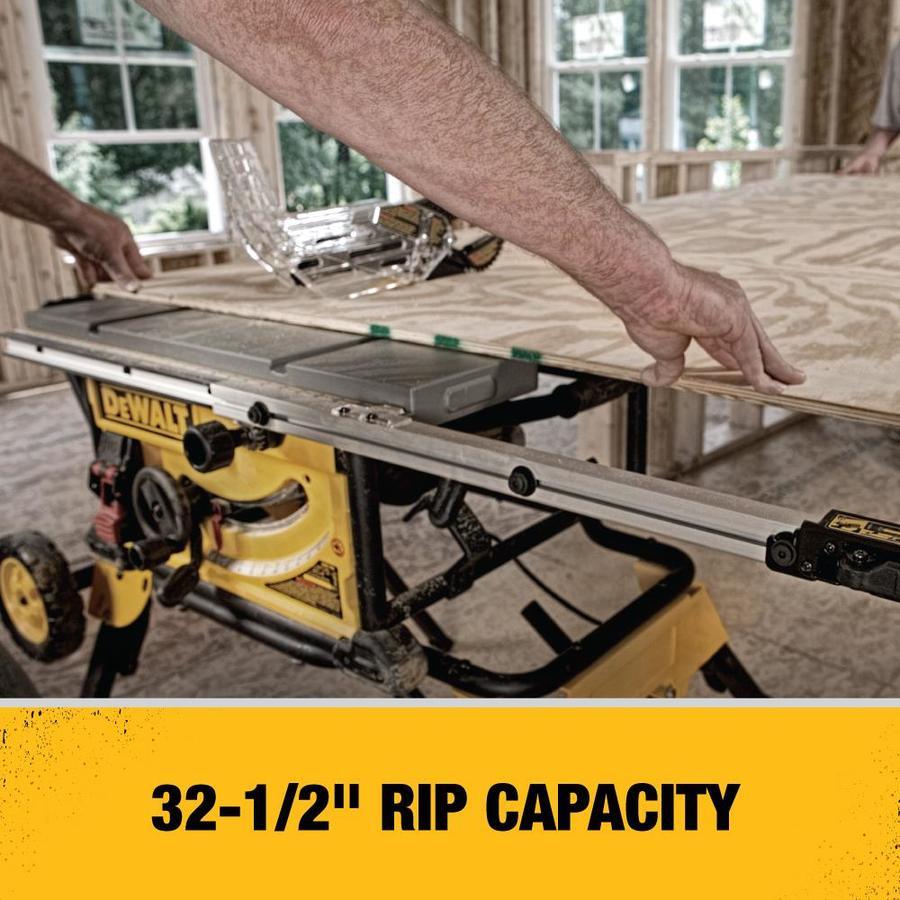

32-1/2-in rip capacity easily cuts a variety of larger shelving and trim materials

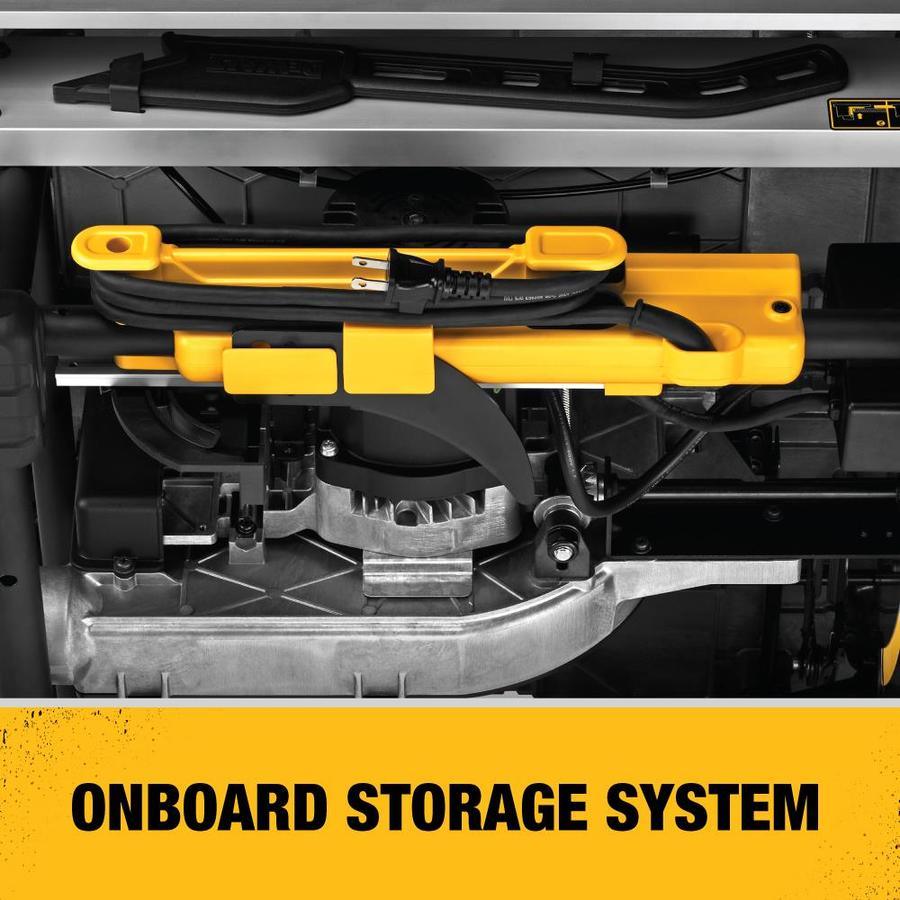

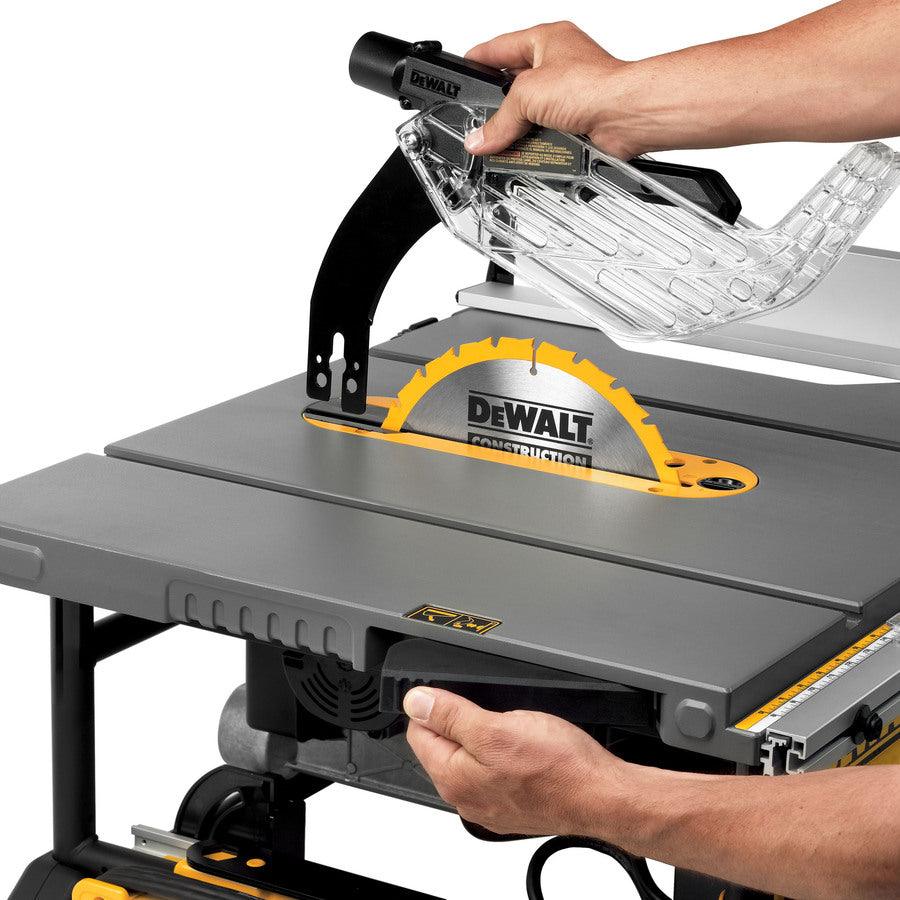

Onboard storage system provides easy access to the blade guard assembly, fence, riving knife, miter gauge, wrenches, push stick, and cord wrap when not in use

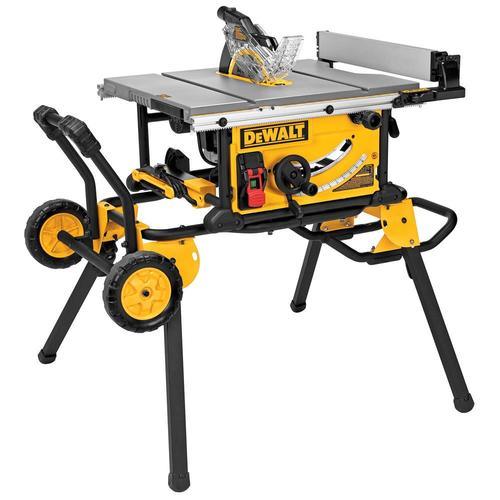

Rolling stand designed for easy set up and breakdown with excellent stability

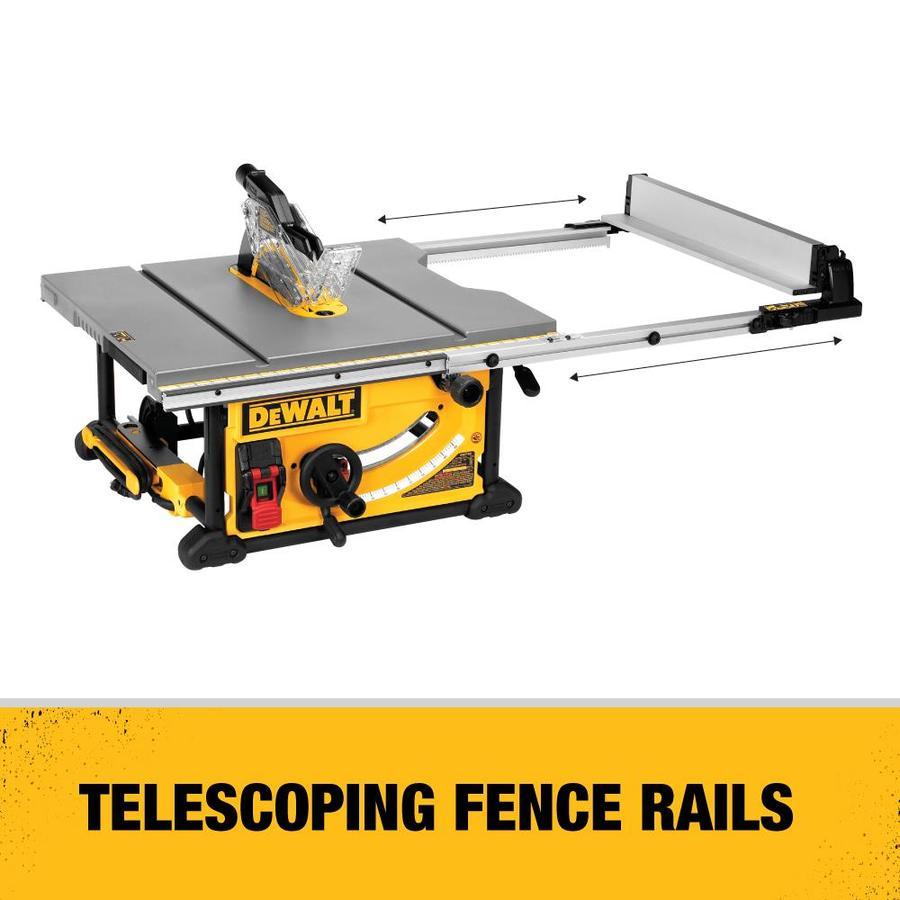

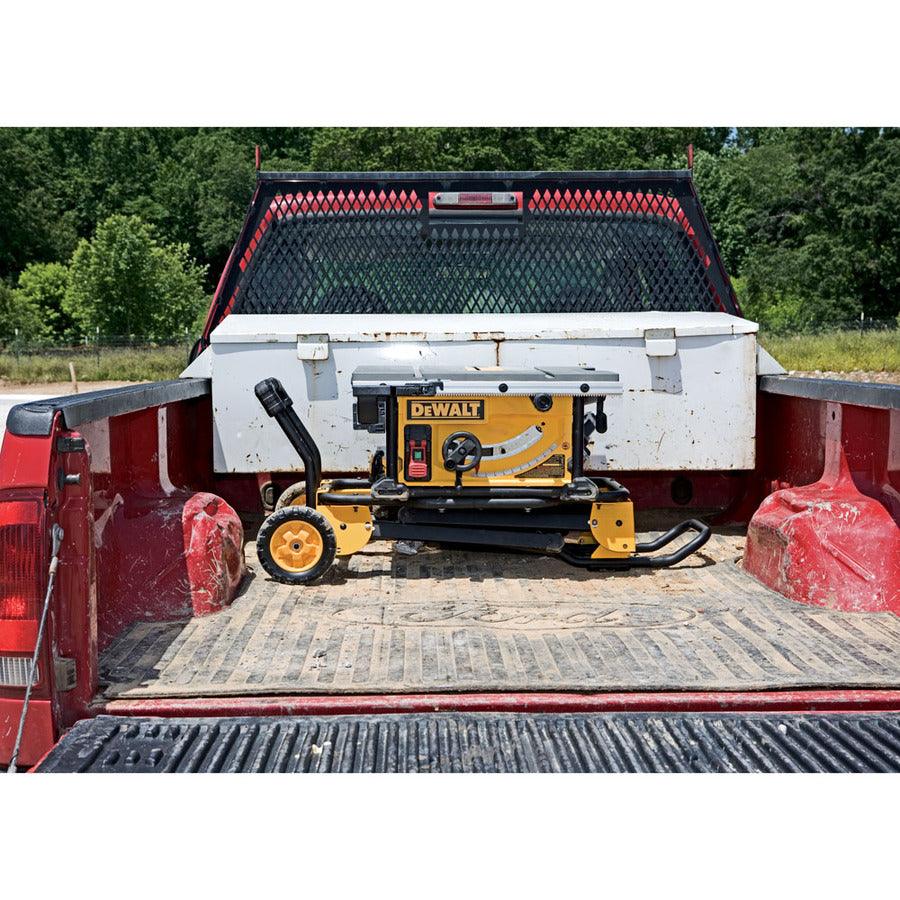

Telescoping fence rails retract to create a small, portable package
Flip over ripping fence allows for narrow rip cuts
15 amp motor quickly rips through hardwoods with ease

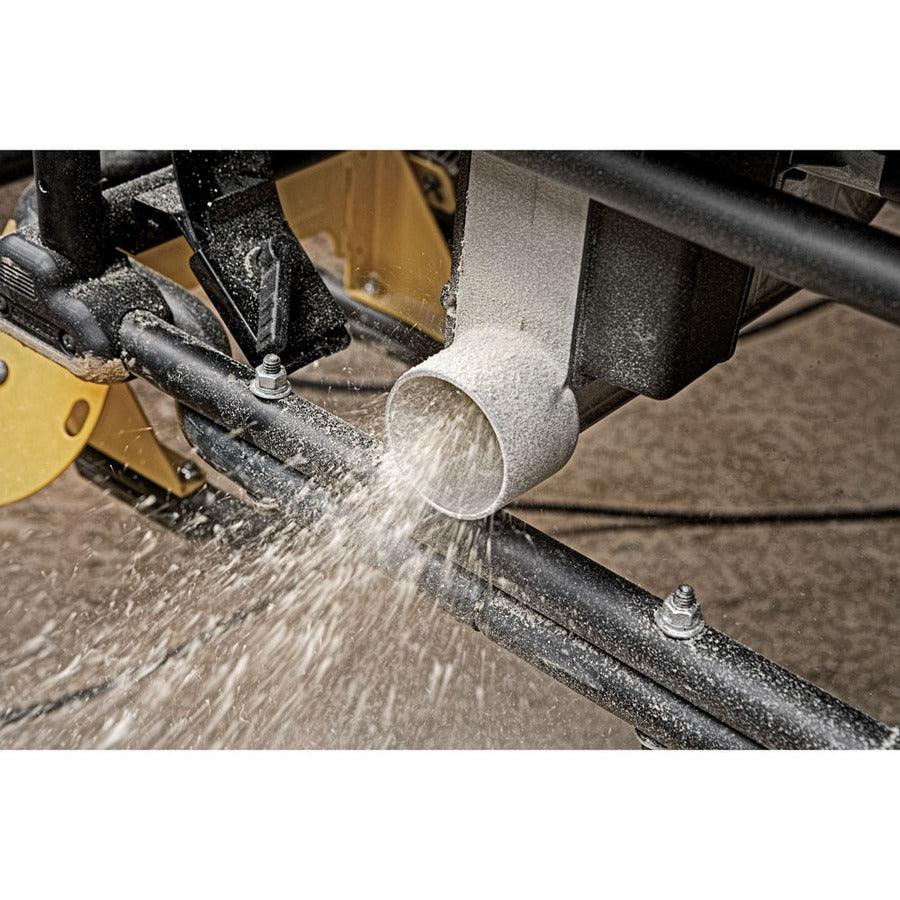

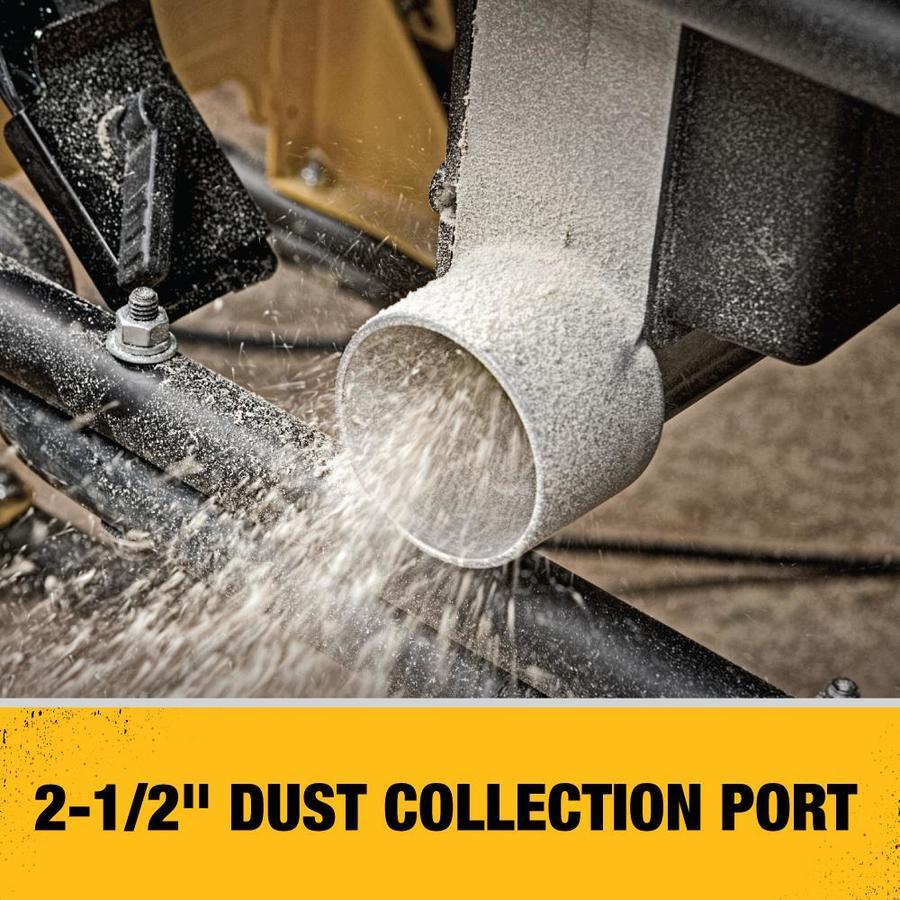

2-1/2-in dust collection port easily connects to a vacuum for efficient dust extraction
Features
Blade Material |
Carbide-tipped |
Auxiliary Handle |
No |
Repetitive Cut Marking System |
No |
Micro Adjust Rip Fence |
No |
Caster Platform Included |
No |
Bevel Capacity (Degrees) |
45 |
Dust Handling |
Port |
Voltage |
0 |
Arbor Size (Inches) |
0.625 |
Cutting Depth (Inches) |
3.125 |
Weight (lbs.) |
90 |
Series Name |
N/A |
Warranty |
3-year limited |
Table Height (Inches) |
36.5 |
Table Length (Inches) |
26.25 |
Maximum Depth at 45 Degrees (Inches) |
2.25 |
Maximum Depth at 90 Degrees (Inches) |
3.125 |
Table Width (Inches) |
26 |
Type |
Table |
Amps |
15 |
Depth Control |
Yes |
Blade Size (Inches) |
10 |
Left Rip Capacity (Inches) |
24 |
Right Rip Capacity (Inches) |
32.5 |
Maximum Blade Speed (RPM) |
4800 |
Spindle Lock |
Yes |
Worm Drive |
No |
Portable |
Yes |
CA Residents: Prop 65 Warning(s) |
Yes |
UNSPSC |
23101500 |
Safety Listing |
CSA safety listing |
Arbor Diameter |
5/8-in |
