Coventry Matte Black Door Handleset with Springdale Lever Interior and Single Cylinder Deadbolt

$115.43

/
Shipping calculated at checkout.

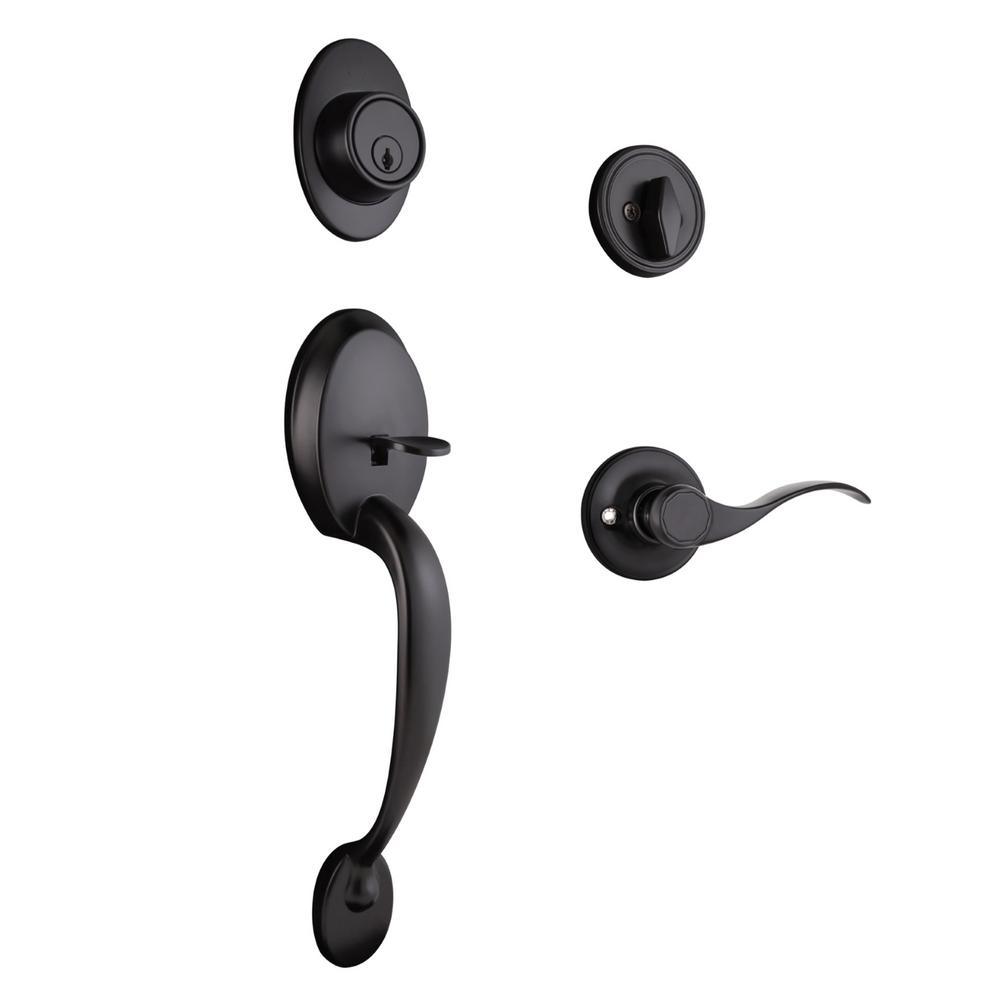

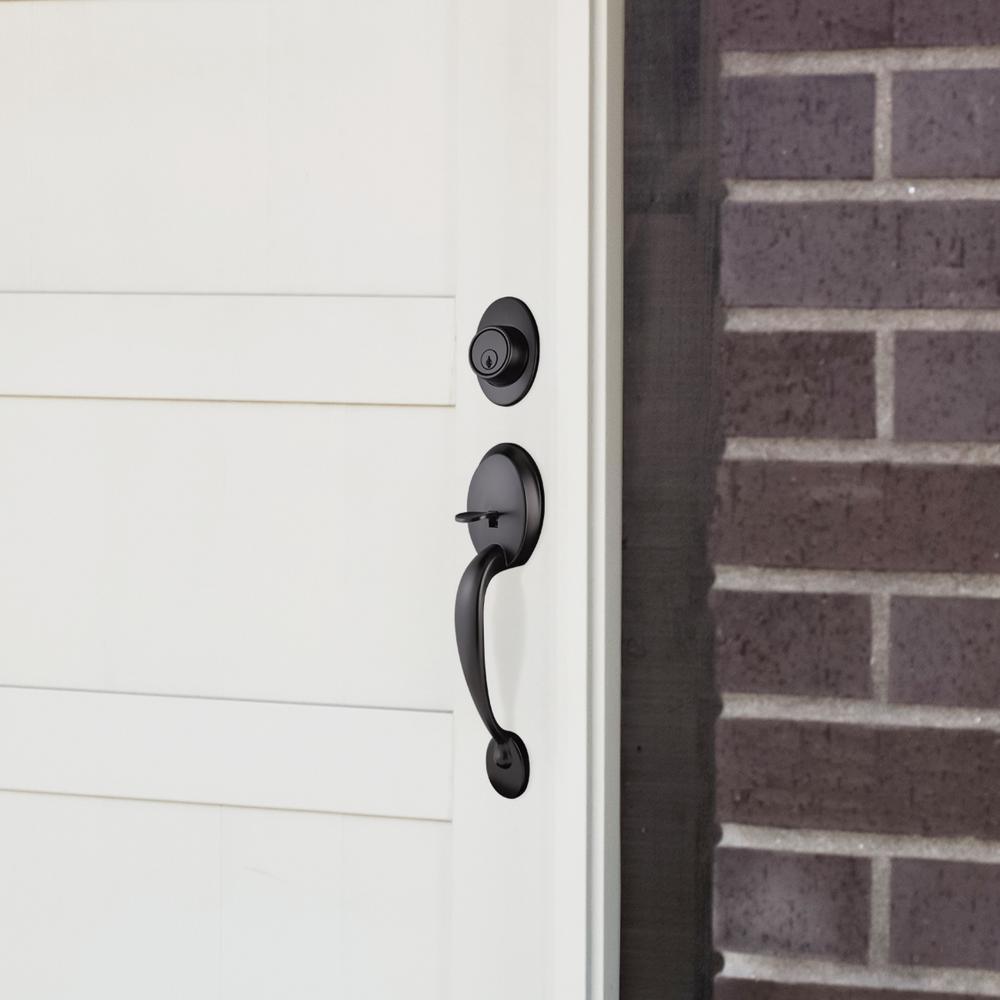

The Coventry Entry Door Handle Set in matte black will add simple style to your modern or rustic farmhouse entry decor. This set includes a vertical handle for the exterior and Springdale wave lever for the interior side. A single cylinder deadbolt adds security with a keyed lock. Perfect for front and back porch or patio doors. Designed for left- or right-hand doors, it will easily fit 2 common backsets (2-3/4 in. and 2-3/8 in.) and has a 1 in. x 2-1/4 in. radius round corner face plate. Use this hardware on standard 1-3/8 in. and 1-3/4 in. thick doors.
  • Fully reversible, designed for both left-hand or right-hand doors, fits standard 1-3/8 in. and 1-3/4 in. thick doors
  • Ideal hardware for patio, back or front porch, a matte black finish coordinates with modern, industrial and rustic farmhouse styles alike

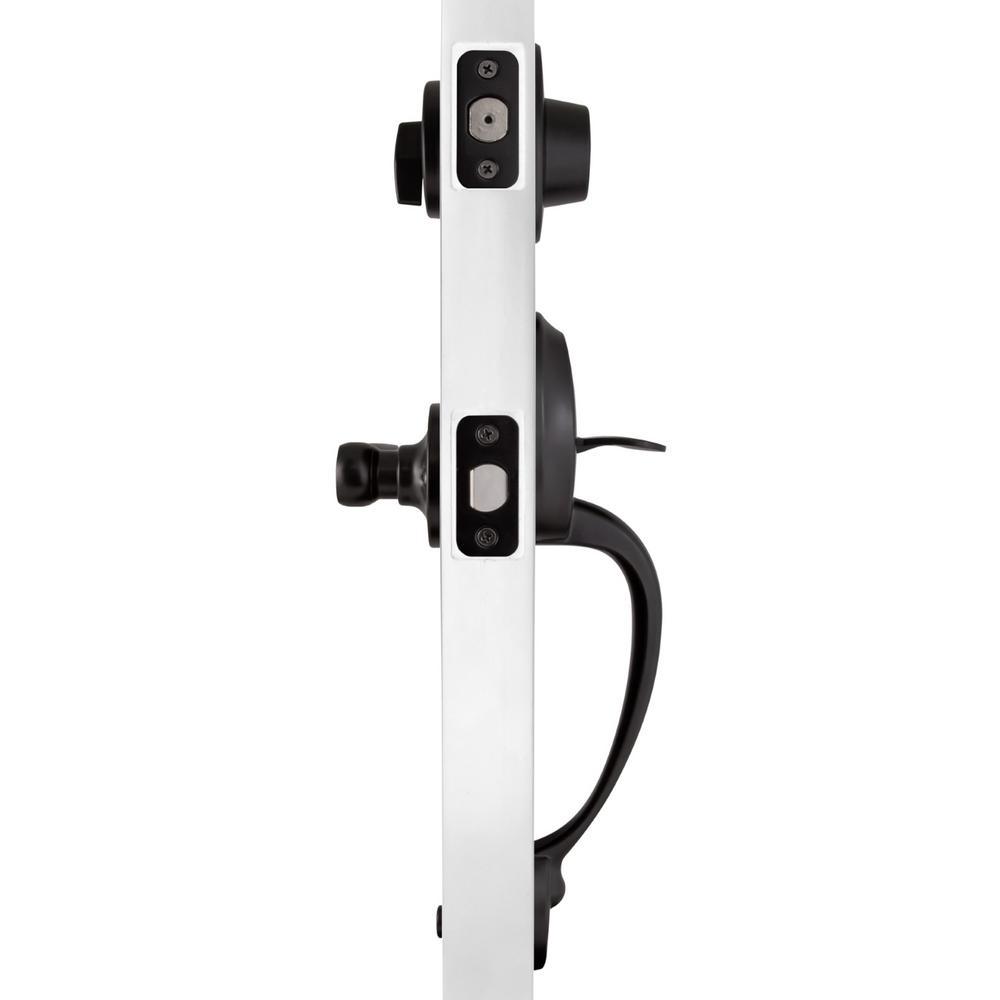

  • Entry door handle set features a single cylinder deadbolt with keyed lock exterior and turn-button lock interior, a vertical handle for outside the door and low-profile wave lever for inside
  • Anti-bump technology for enhanced security prevents unlawful entry by not allowing sufficient force to move or bump pins inside the lock
  • Latch adjusts for 2-3/4 in. and 2-3/8 in. backsets
  • Includes 2 keys, faceplate, mounting hardware and installation instructions
  • ANSI grade 3 certified, rated for residential security
  • Full 1/2 in. throw on entry and full 1 in. throw on deadbolt, both nickel plated
  • 5-year limited mechanical, 5-year limited finish warranty


Features
Item Weight 4.24
Included Drilling Template,Hardware,Installation Instructions
Door Handing Universal
Hardware Finish Family Bronze
Material Steel
Lock Type Keyed
Door Lock Style Classic
Commercial/Residential Residential
Total Number of Keys Included 2
Keyway KW1
Deadbolt Type Single Cylinder Deadbolt
Security/ANSI Grade ANSI Grade 3 (Good)
Knob/lever strike Round corner
Handleset Product Type 2 Piece Front & Back
Keying Type Keyed Alike
Application Type Entry
Features Adjustable Backset,Easy Installation
Lock Type2 Keyed Entry
Backset size (in.) Adjustable
Deadbolt strike Round corner
Returnable 180-Day
Door Locks & Knobs Product Type Keyed Handlesets
Finish oil rubbed bronze
Product Weight (lb.) 4.24
Lever style Wave
Minimum door thickness (in.) 1.375
Interior/Exterior Interior/Exterior
Electronic/Mechanical Mechanical

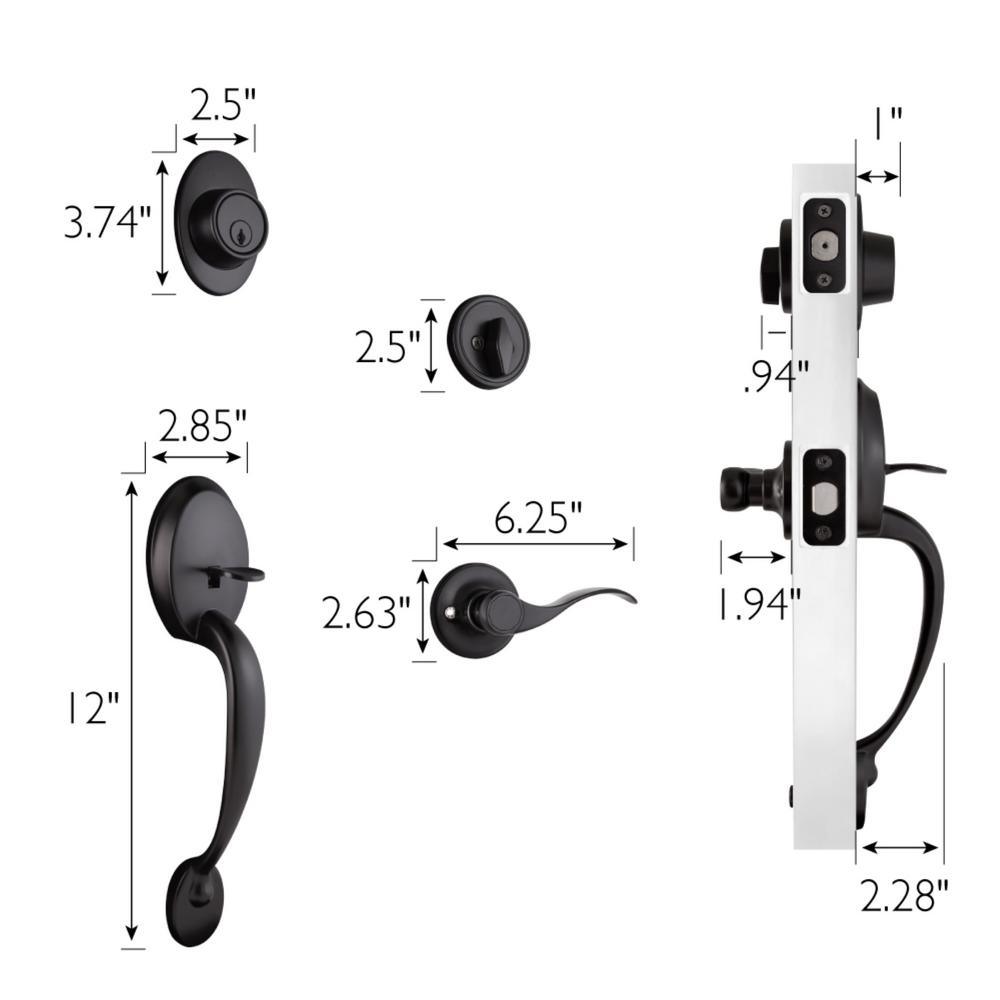

Outside key plate width (in.) 2.5
Inside top plate length (in.) 4.125
Inside top plate width (in.) 2.875
Assembled Height (in.) 16.25 in
Knob/lever housing width (in.) 2.94
Lever grip length (in.) 5
Knob/lever strike height (in.) 2.25
Knob/lever strike width (in.) 1
Deadbolt cross bore diameter (in.) .94
Handle grip length (in.) 12.5
Outside bottom handle plate width (in.) 1.625
Assembled Width (in.) 6.5 in
Deadbolt trim ring diameter (in.) 2.5
Outside top handle plate length (in.) 4.125
Deadbolt strike height (in.) 2.25
Knob/lever housing height (in.) 2.94
Assembled Depth (in.) 2.38 in
Outside key plate length (in.) 3.625
Maximum door thickness (in.) 1.75
Deadbolt strike width (in.) 1
Deadbolt bore hole diameter (in.) 2.09
Knob/lever cross bore diameter (in.) 0.94
Deadbolt throw length (in.) 1
Knob/lever bore hole diameter (in.) 2.09
Outside top handle plate width (in.) 2.875
Outside bottom handle plate length (in.) 2.313
Knob/lever throw length (in.) .5
Projection (in.) 2.438
Manufacturer Warranty 5yrs on finish / limited lifetime on mechanics
Certifications and Listings No Certifications or Listings
