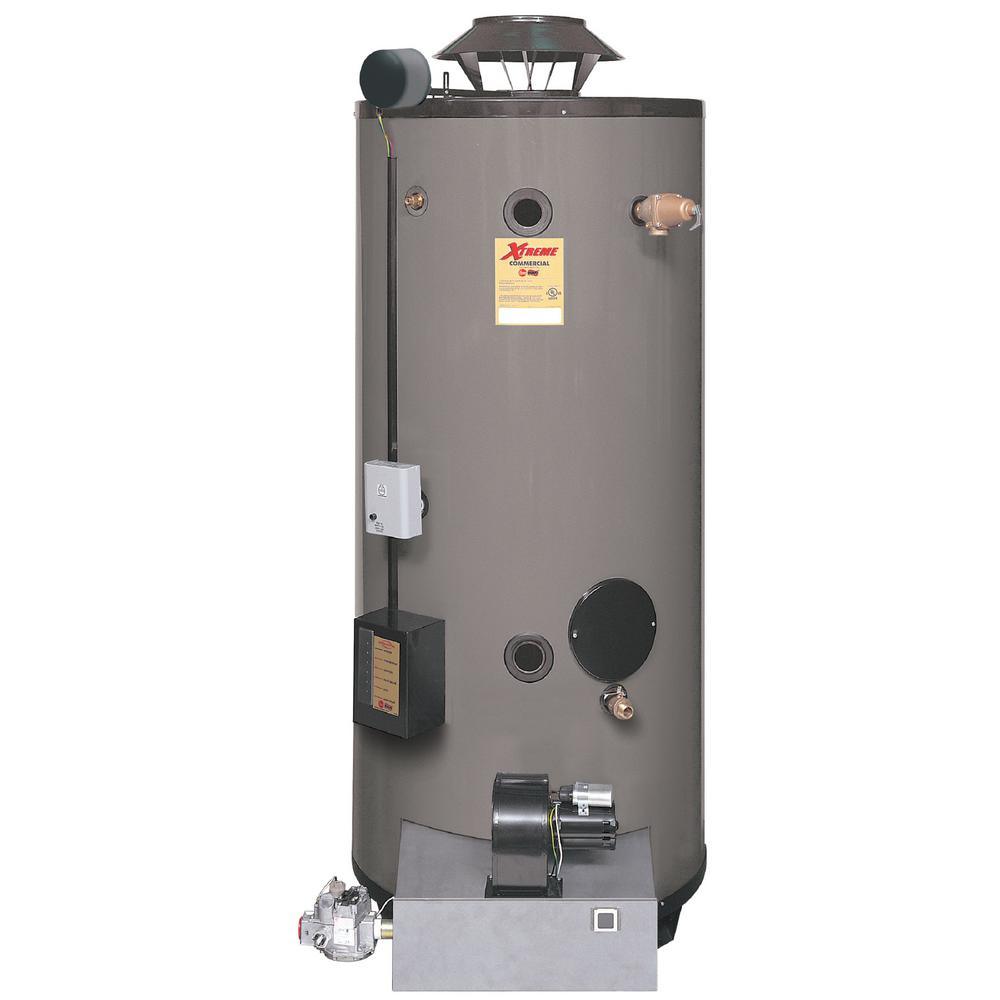

Xtreme Heavy Duty 90 Gal. 640K BTU Commercial Natural Gas ASME Mass Code Tank Water Heater
Regular price $11,623.35/
Shipping calculated at checkout.

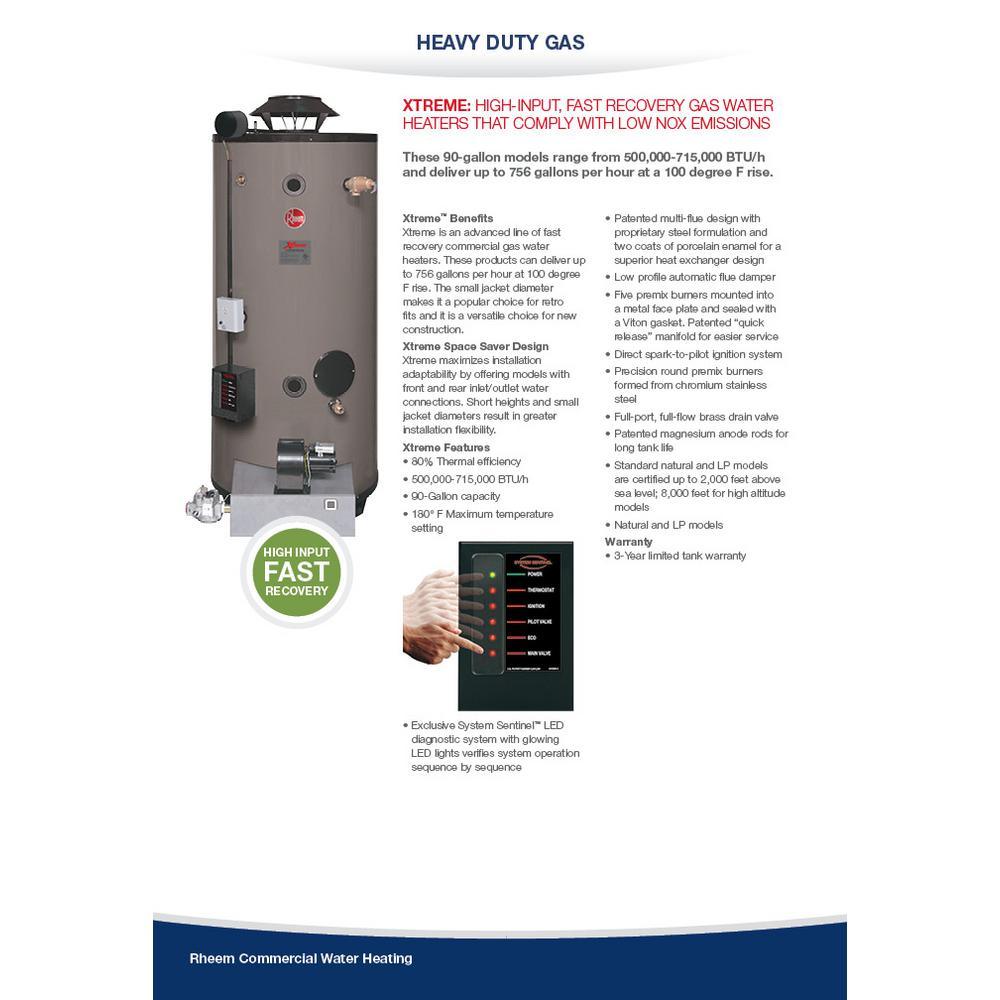

Xtreme is an advanced line of fast recovery heavy duty commercial gas water heaters. Its smaller jacket diameter makes it a popular retrofit option. The tighter the commercial retrofit, the more you will appreciate how Xtreme's compact size and multiple water connections simplify installations. This 90 Gal. model delivers up to 621 GPH at 100°F rise. Please Note: This model requires a 120-Volt power source.
Features
- California residents
- California and Utah residents (Utah effective 7/1/18): this water heater model meets or exceeds ultra-low NOX (ULN) emissions requirements for all air quality management districts
- Texas residents: this water heater does not meet low NOX (LN) emissions requirements, regulations prohibit the sale, shipment or installation of this water heater in any air quality district that requires low NOX water heaters
- Space saver design: Xtreme maximizes installation adaptability by offering models with front and rear inlet/outlet water connections; short heights and small jacket diameters result in greater installation flexibility
- System sentinel LED diagnostic system: our exclusive diagnostic system, with glowing LED lights, verifies system operation sequence by sequence
- Patented multi-flue tank design: proprietary steel formulation, patented multi-flue design, and 2-coats of high temperature porcelain enamel maximize corrosion resistance and result in a superior heat exchanger design
- Automatic flue damper: low profile design minimizes overall product height and heavy-duty vent hood supports are designed to withstand rigors of installation
- Specialized burner assembly: each model features 5-premix burners mounted into a metal face plate and sealed with a Viton gasket, and patented quick release manifold for easier service
- Round premix burners: precision burners are formed from high chromium stainless steel
- Direct spark to pilot ignition system: energy saving ignition that ignites pilot only when there is a call for heat
- Anode rods: patented design utilizes multiple magnesium rods to ensure long life and corrosion resistance
- Easy to service: factory installed full port, full flow brass drain valve allows for faster draining and servicing and hand-hole cleanout for easy removal of lime/sediment deposits
- Built-in features: CSA/ASME rated factory-installed T and P relief valve
- Call 1-855-400-2552 before noon for same-day installation service in most areas, or
Features
| Item Weight | 945 |
| Uniform Energy Factor | 0 |
| Tank Lining Material | Glass |
| Commercial/Residential | Commercial |
| Application Type | Commercial |
| Returnable | 180-Day |
| Water Heater Features | Glass-Lined Tank,Overheat Protection,Temperature Pressure Relief Valve |
| Nominal Tank Capacity (gallons) | 90 |
| Minimum Temperature (F) | 100 °F |
| Tank Warranty | 3 Year |
| BTU Rating | 640000 |
| Wattage (watts) | 0 |
| Maximum Temperature (F) | 180 |
| Water Heater Profile | Tall |
| Recovery Rate at 90F Rise (gallons/hour) | 690 |
| Finish Family | Gray |
| Indoor/Outdoor | Indoor |
| Fuel Type | Gas |
| Pack Size | 1 |
| Product Weight (lb.) | 945 lb |
| Vent Type | Atmospheric |
| Household Size | 5+ |
| Product Depth (in.) | 40.117 in |
| Tank Valve Size (in.) | 1 |

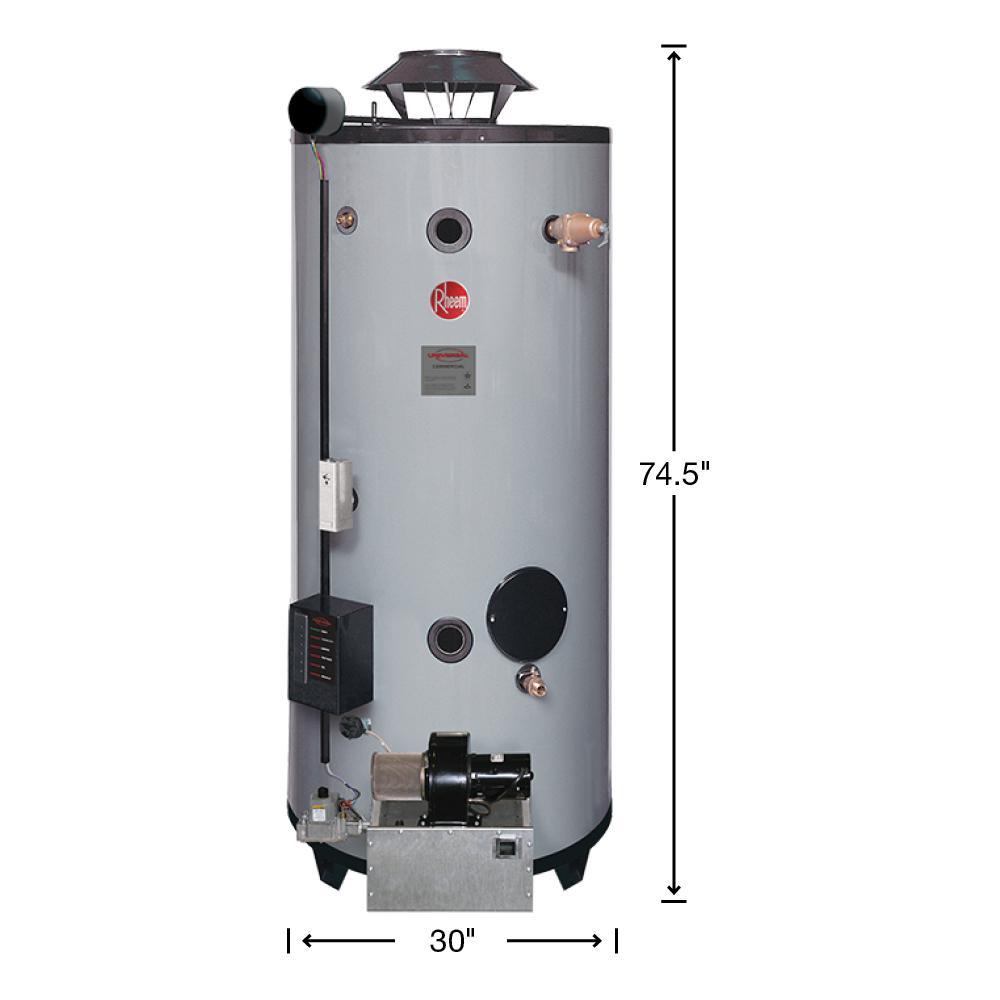

| Product Height (in.) | 74.5 in |
| Water Connection Size (in.) | 2 |
| Product Width (in.) | 30 in |
| Part Warranty | 1 Year |
| Labor Warranty | No Warranty |
| Certifications and Listings | CSA Listed,UL Listed |
