CURT Spectrum Brake Control

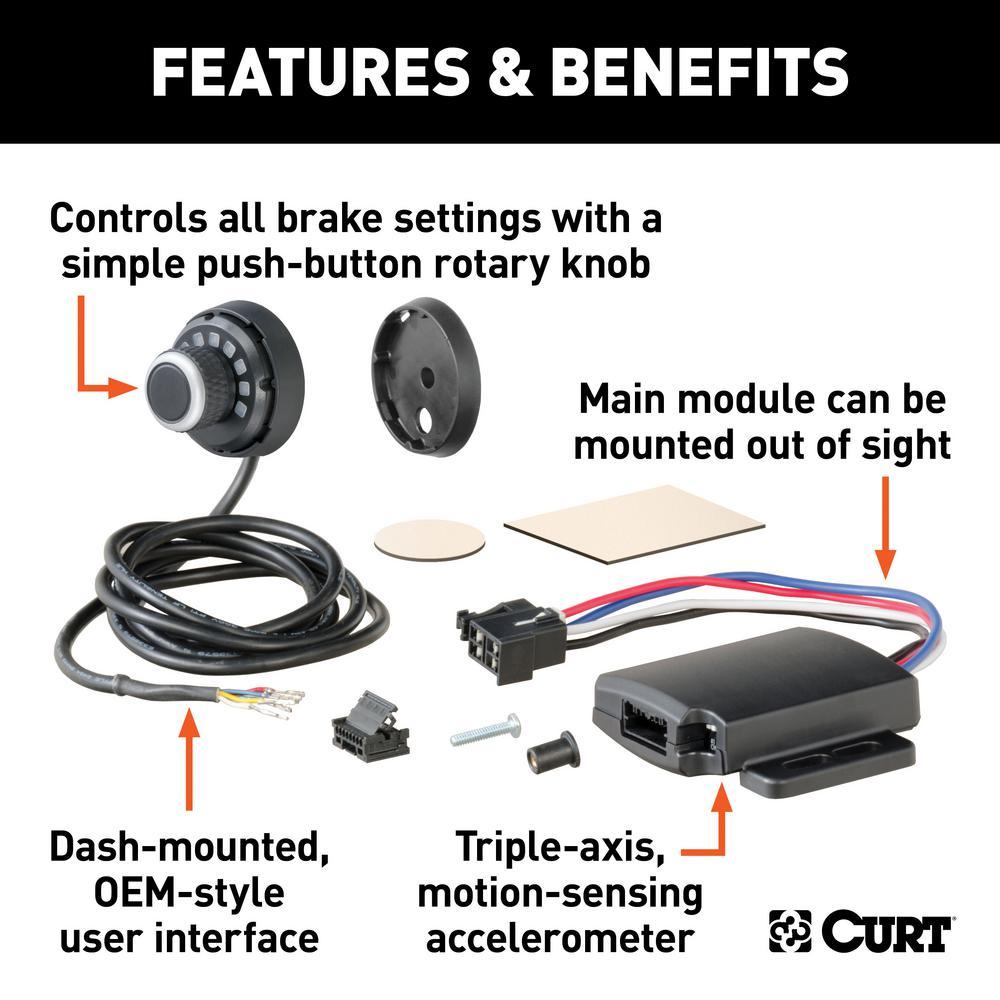

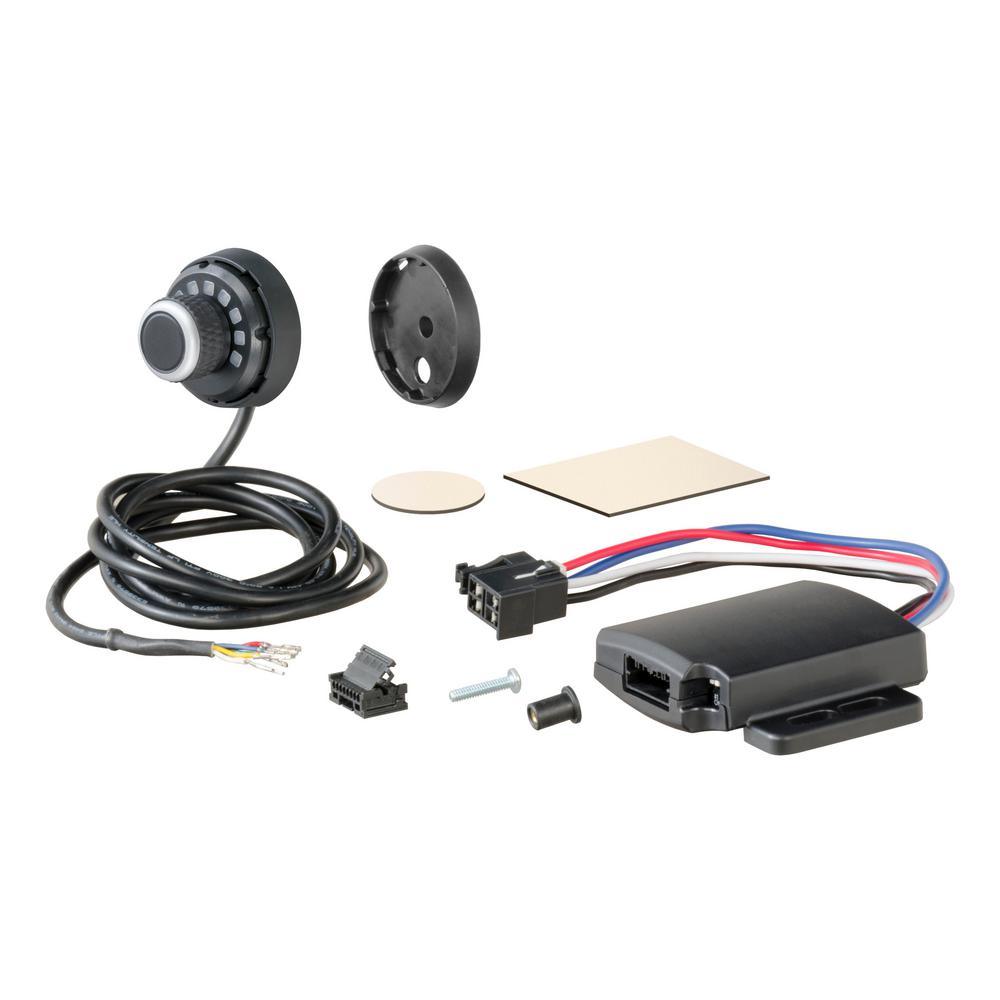

The CURT Spectrum trailer brake controller provides powerful brake operation while maintaining a clean, consistent OE look and feel on the dash of your vehicle. It is comprised of a main module that can be mounted out of sight and a separate user interface. This interface is a simple rotary knob with a push-button and ten tri-color LEDs to control and monitor all trailer brake activity. It also features a triple-axis accelerometer for highly responsive, smooth stops on any grade.

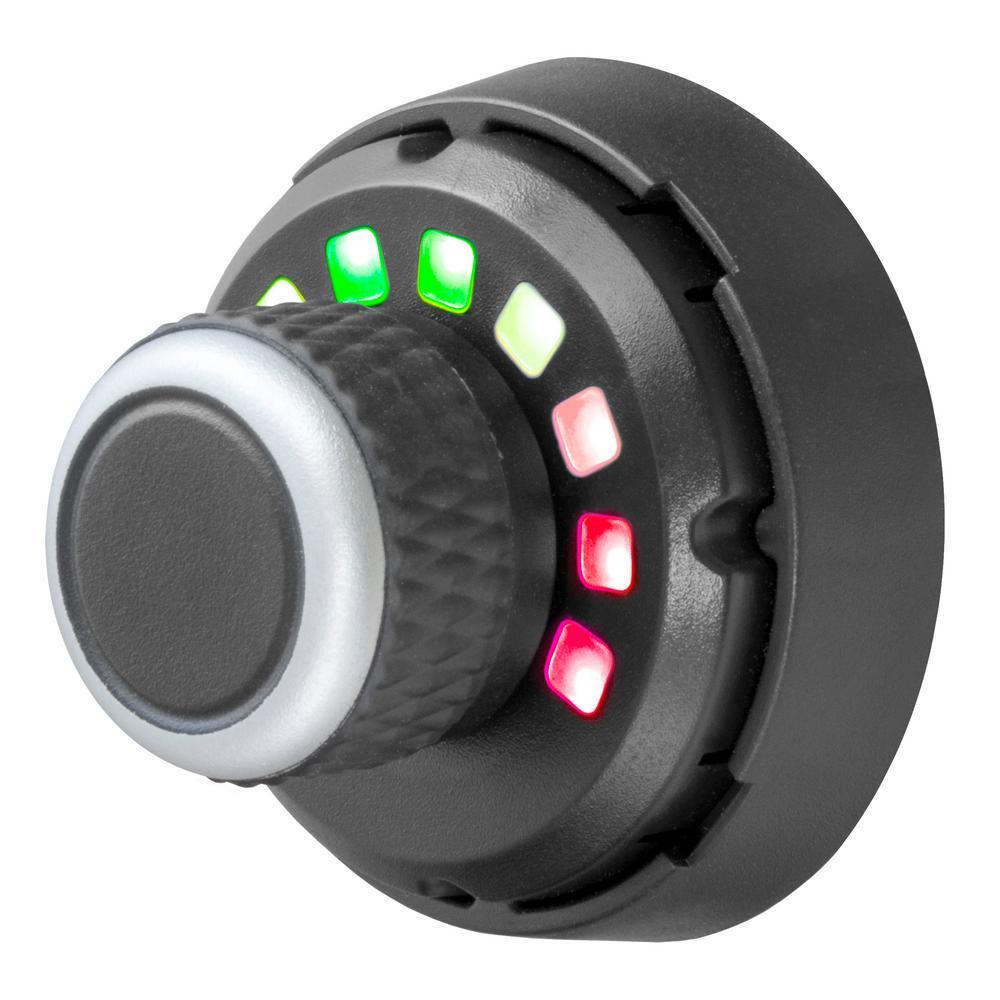

• Controls all brake settings with a simple push-button rotary knob with 10 tri-color LED's for a clean, dash-mounted, OEM-style look and feel
• Main module can be mounted anywhere, at any orientation, out of sight and operates with a triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
• Easily accessible manual override with the press of a button and automatic leveling and calibration to eliminate setup requirements
• Features 2 installation options: drill mount or surface adhesive mount and equipped with a quick plug for easy, plug-and-play, vehicle-specific installation
• Operates 2 to 8 trailer brakes at a time (1 to 4 axles) and compatible with ABS and cruise control
• Controls all brake settings with a simple push-button rotary knob

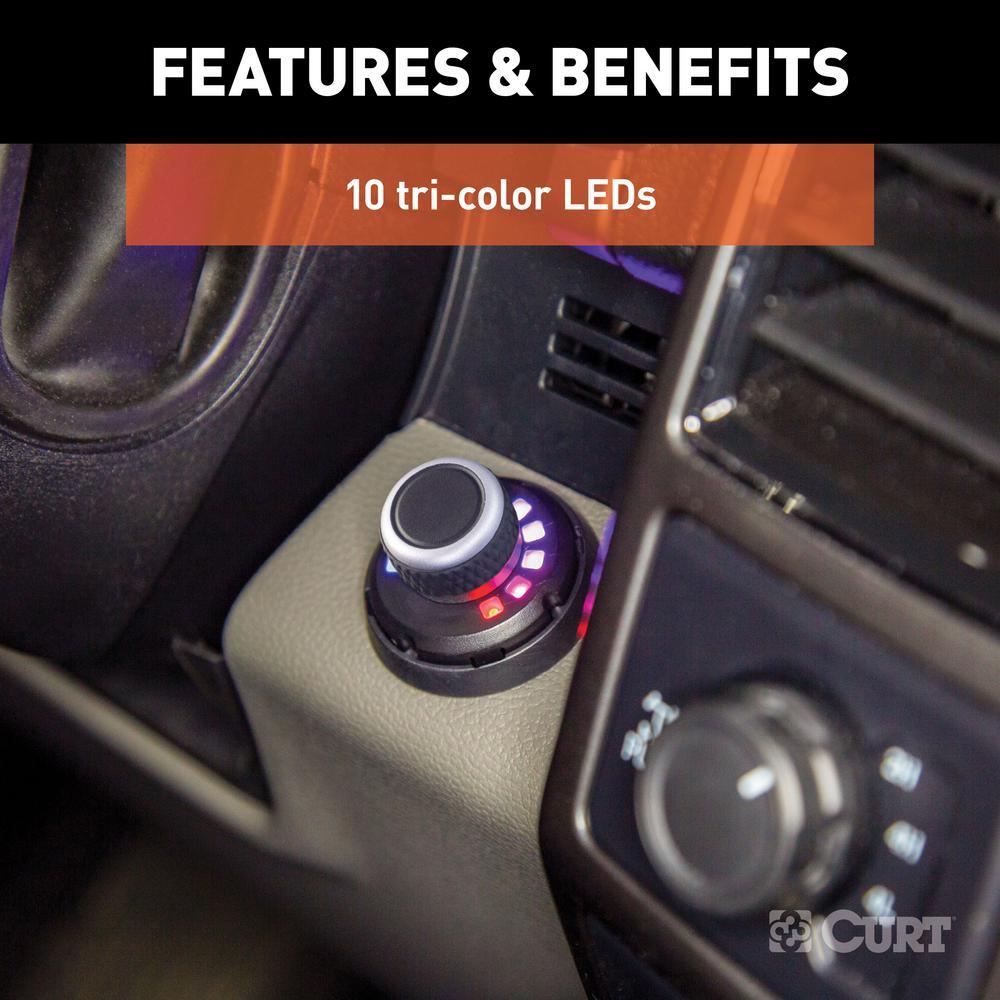

• Clean, dash-mounted, OEM-style user interface with 10 tri-color LED's

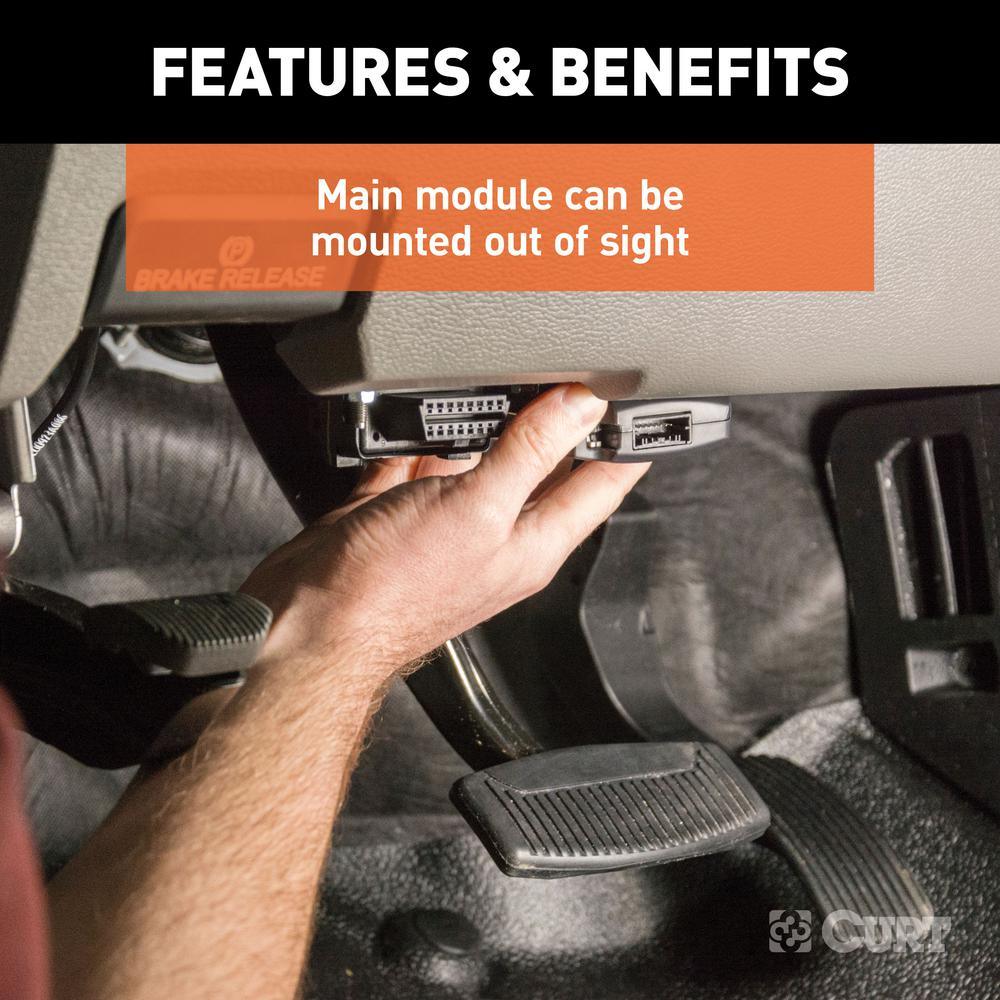

• Main module can be mounted anywhere, at any orientation, out of sight
• Highly responsive, smooth stops with triple-axis, motion-sensing accelerometer
• Easily accessible manual override with the press of a button
• Features 2 installation options: drill mount or surface adhesive mount
• Equipped with a quick plug for easy, plug-and-play installation
• Compatible with low voltage or pulse width modulation (PWM) systems
• Operates 2 to 8 trailer brakes at a time (1 to 4 axles)
• User-selectable power output and trailer brake light activation
• Automatic leveling and calibration eliminate setup requirements
• Built-in reverse-polarity and short-circuit protection
• Tow vehicle low voltage and trailer disconnect indicators
•




Features

Item Weight	.650
Number of Connectors/ Wires	2
Product Weight (lb.)	.650
Automotive Part Type	Trailer Brake Control Harness
Returnable	180-Day
Material	Plastic
Light function	Brake
Product Depth (in.)	8.00
Product Height (in.)	2.75
Product Width (in.)	4.00
Product Length (in.)	8.000
Manufacturer Warranty	Limited lifetime warranty (one-year finish, one-year parts)
