83 in. Full Surface Continuous Hinge Heavy Duty Limted Frame in Aluminum

$194.00

/
Shipping calculated at checkout.

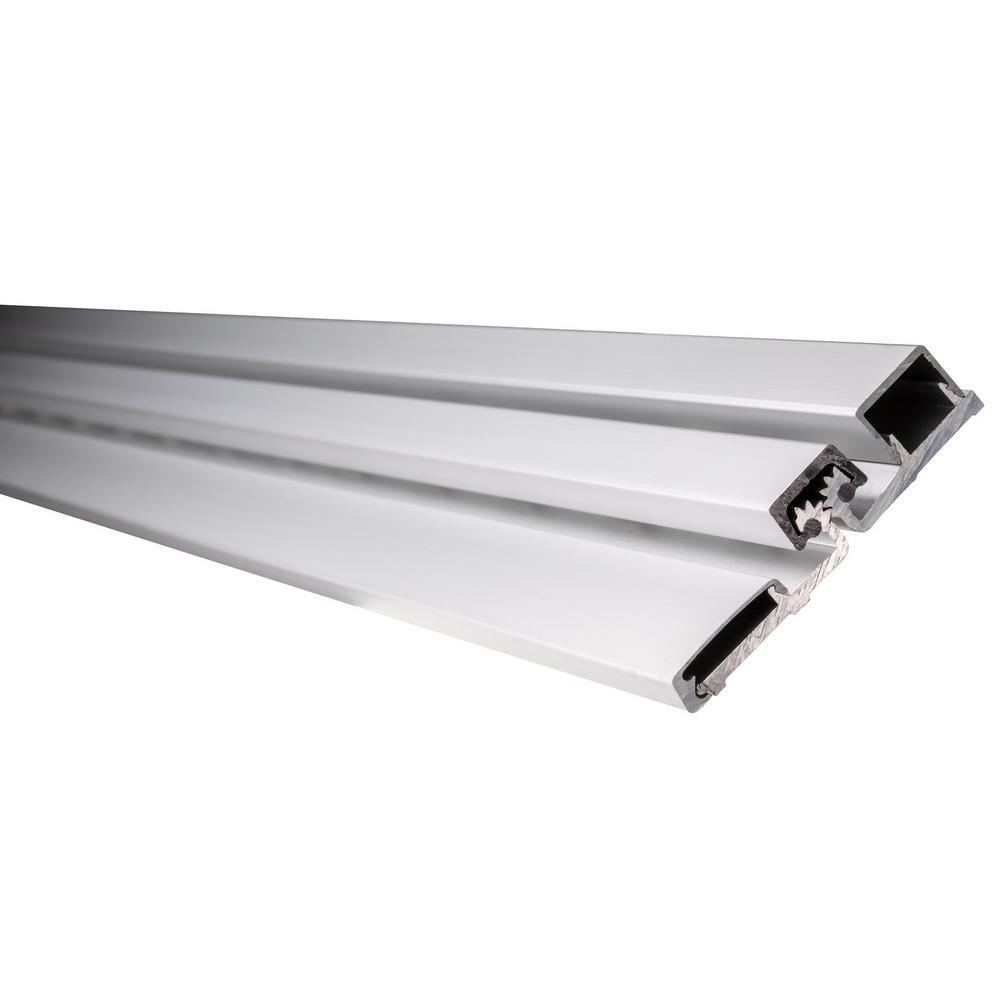

Continuous hinges have the option of being 83 in. or 95 in. long with screw holes. The 2 finishes available for these hinges are duranodic (DU) or aluminum (AL). These continuous hinges are either full mortise (CFM and FM2 codes) or full surface mount and are non-handed.
  • 83 in. continuous hinge used for narrow (limited) frame applications (LF)
  • Standard duty with 16 thrust type self-lubricating concealed bearings per hinge

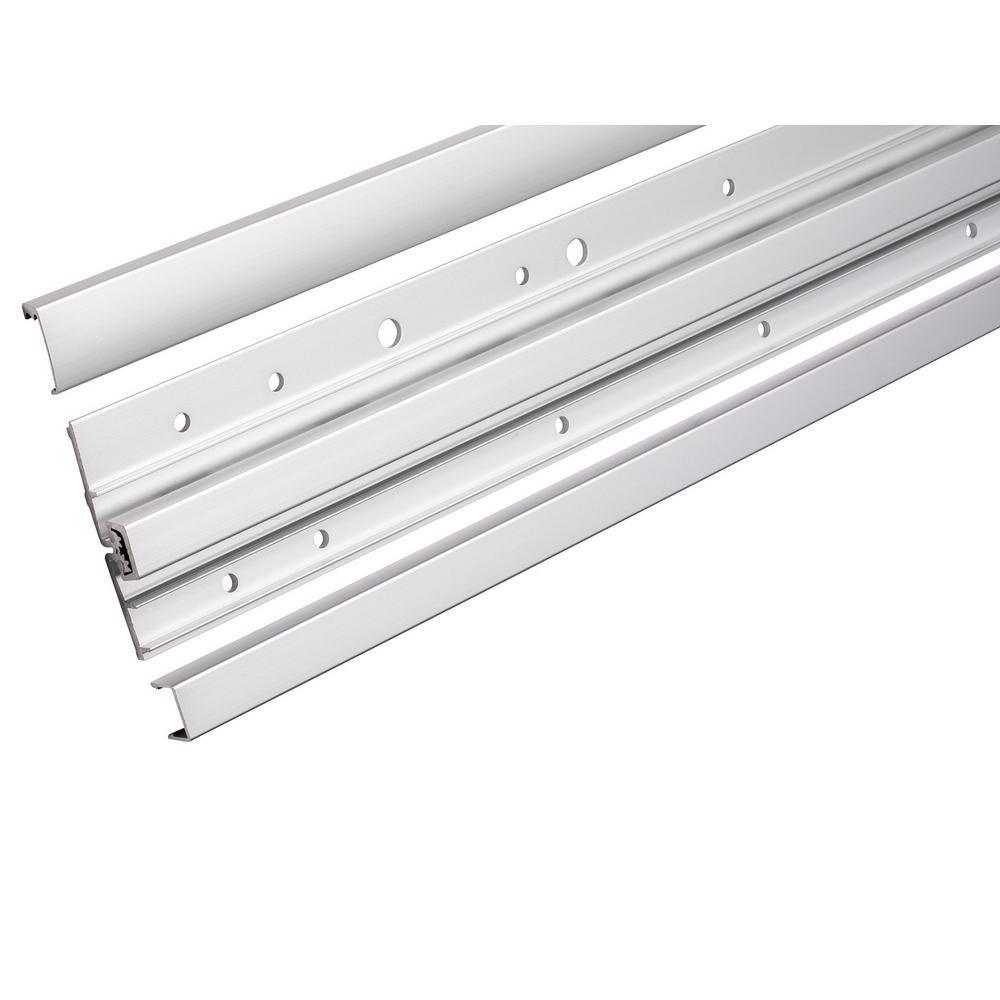

  • Tamper resistant removable door leaf cover

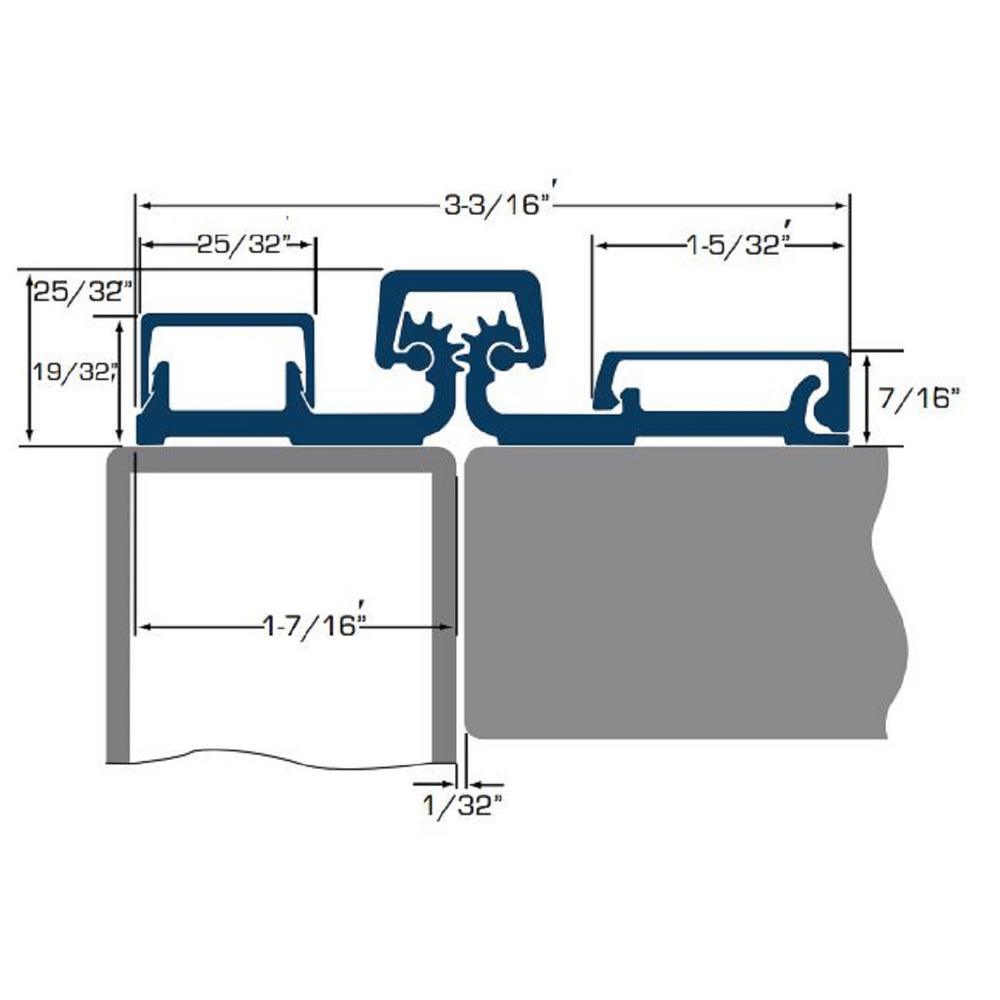

  • 1/32 clearance between door and frame
  • 10 year warranty
  • Non-handed with high degree of security


Features
Item Weight 11.6
Builders Hardware Product Type Door Hinge
Material Aluminum
Commercial/Residential Commercial
Package Quantity 1
Pin type Fixed Pin
Hinge Feature Mounting Hardware Included
Returnable 180-Day
Hardware Finish Family Gray
Hinge Radius No Radius
Fasteners included No
Mounting Type Wall
Hinge Type Surface mount
Mounting Type2 Surface Mount
Interior/Exterior Interior/Exterior
Finish Aluminum
Hole Pattern Straight
Holes 12
Product Depth (in.) 83 in
Product Height (in.) 2 in
Product Width (in.) 4 in
Manufacturer Warranty 10 Year Warranty
